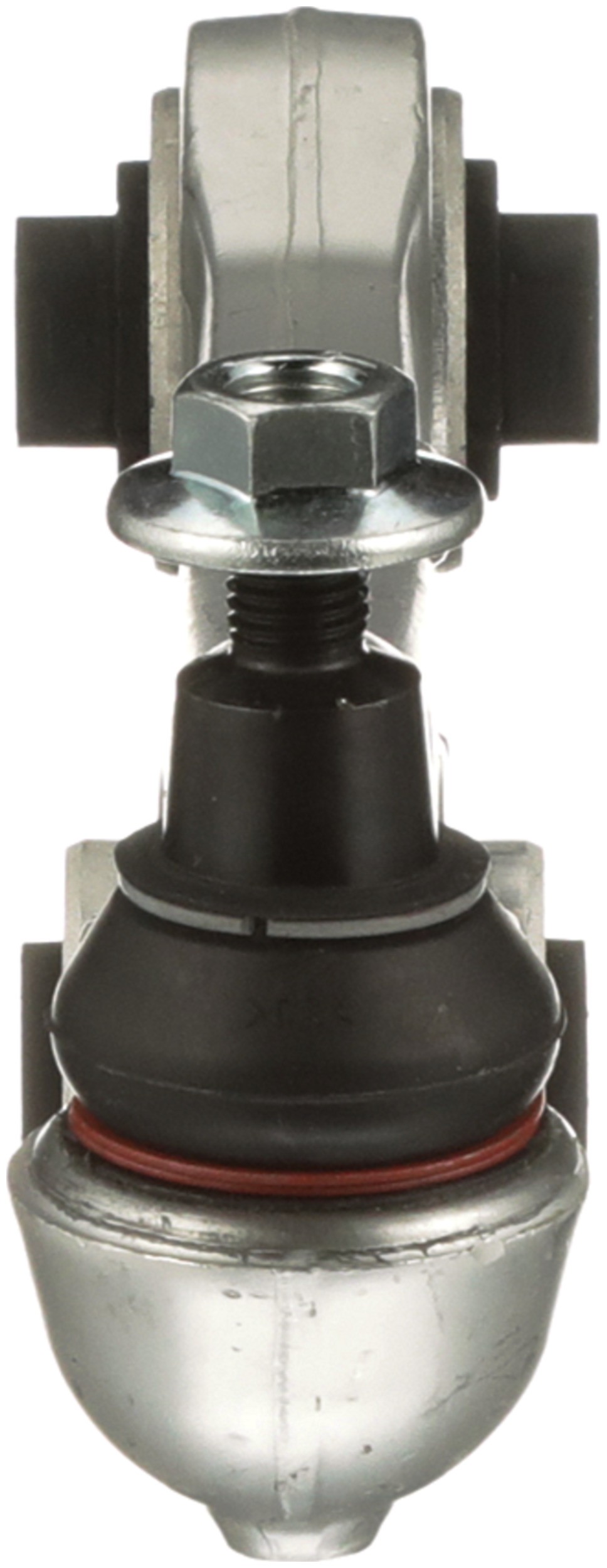

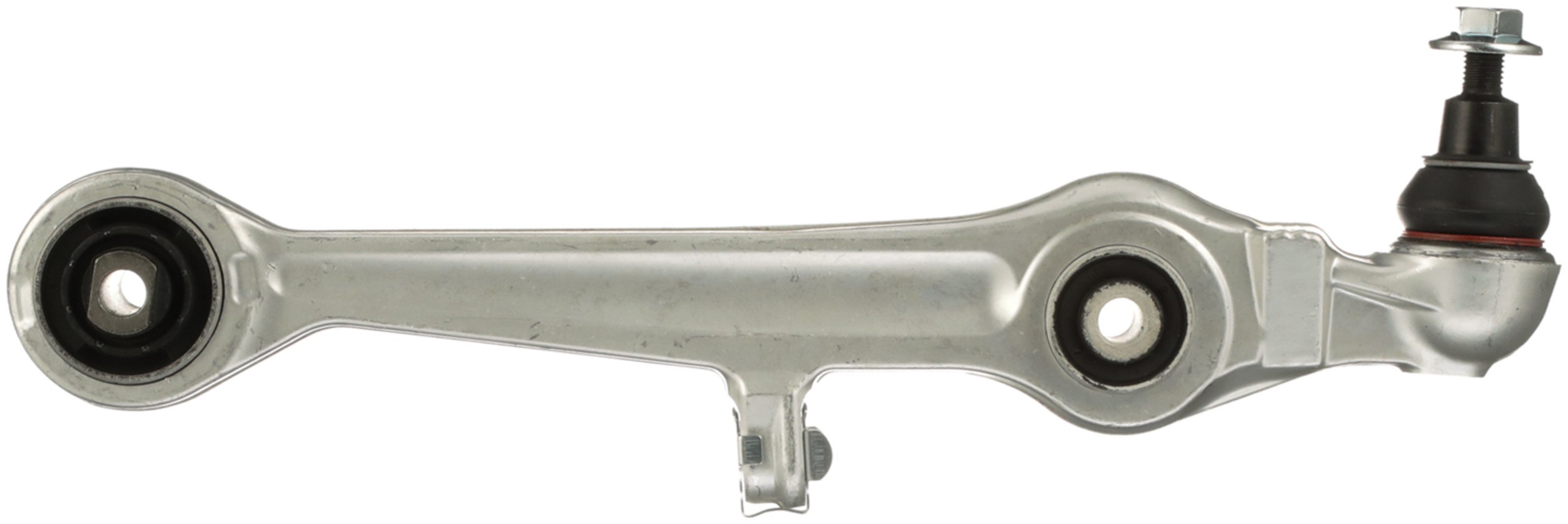

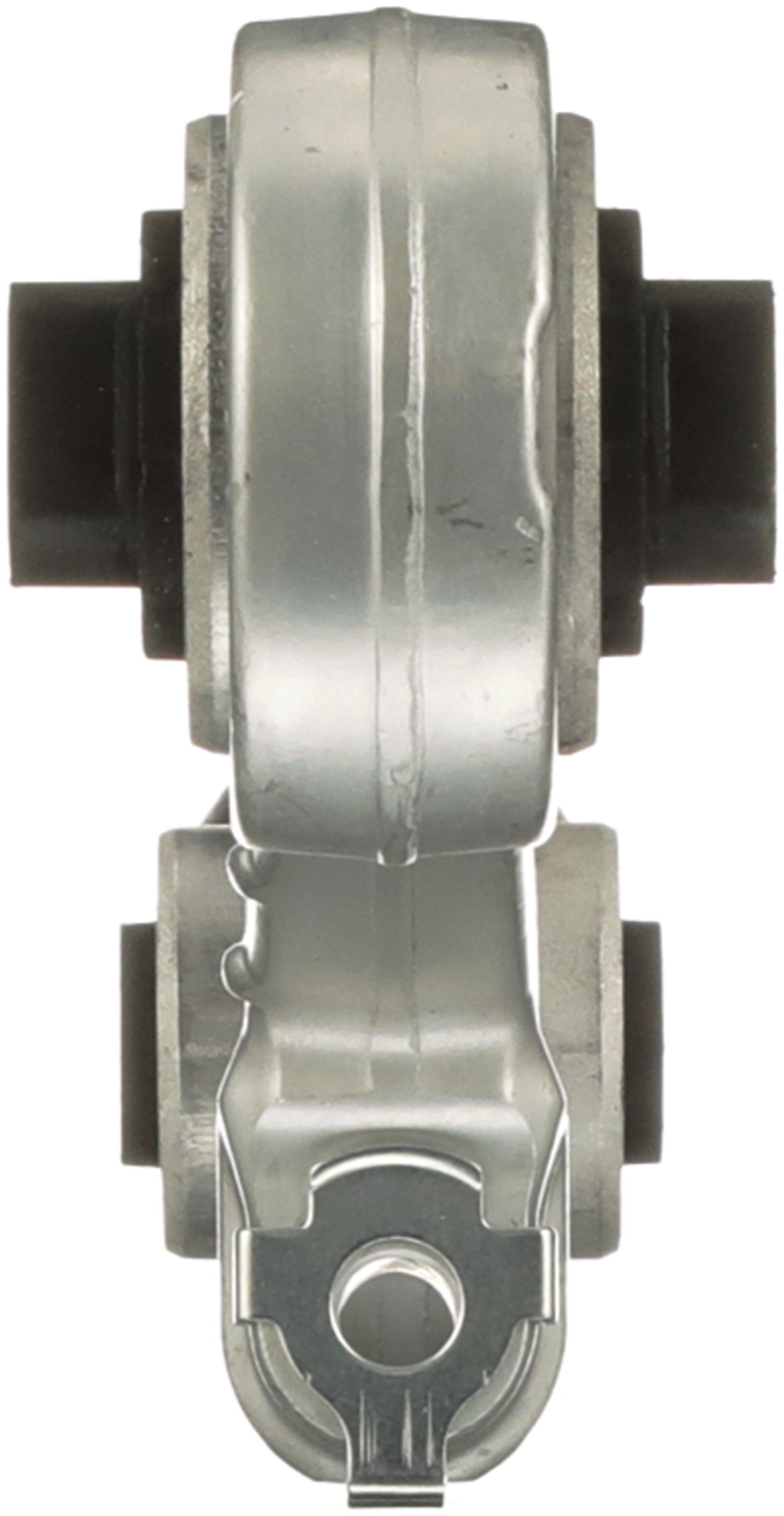

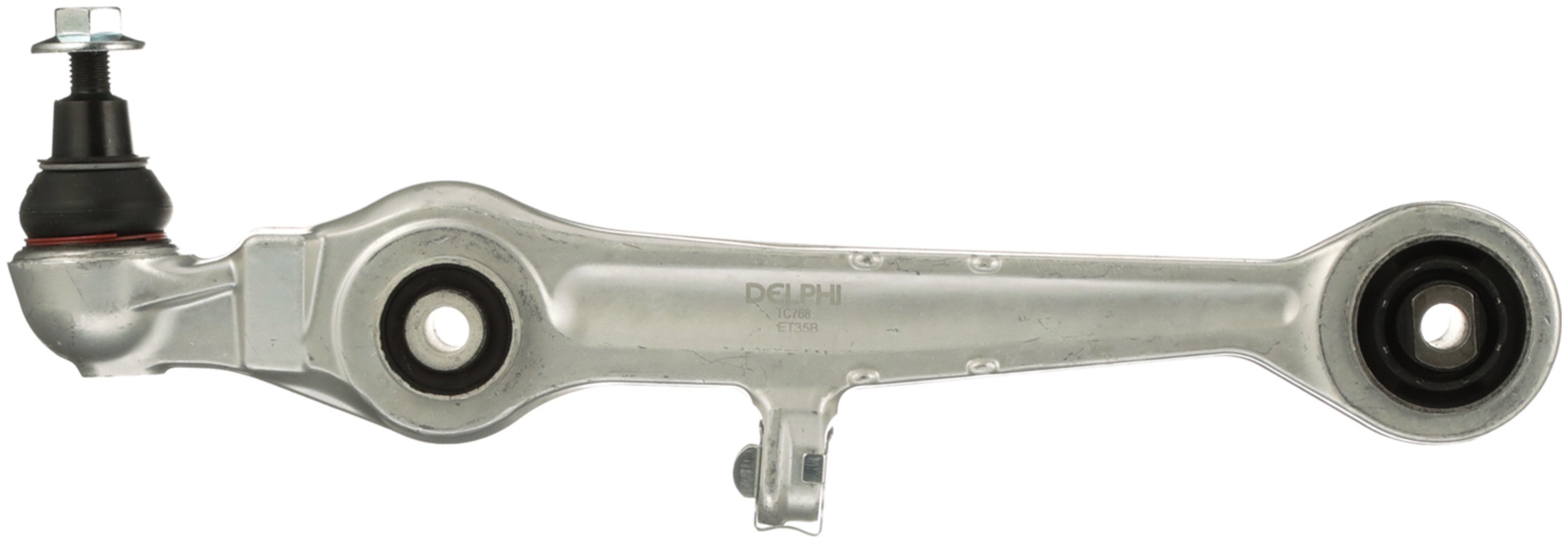

Delphi TC768 Suspension Control Arm and Ball Joint Assembly

Delphi TC768 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	0.571 IN
Length	15.157 IN
Length	385.00 MM
4887	130.00 MM
4887	5.118 IN
4890	71.00 MM
4890	2.795 IN
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Position(s)	Front Lower Forward
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Diameter	14.50 MM

Vehicle Applications:

Make	Model	Years
Audi	A4 Quattro	1996 to 2002
Audi	A4	1996 to 2002
Audi	A6 Quattro	1998 to 2001
Audi	A6	1997 to 2002
Audi	A8 Quattro	1997 to 1999
Audi	A8	1997 to 1999
Audi	S4	2000 to 2001
Volkswagen	Passat	1998 to 2003
