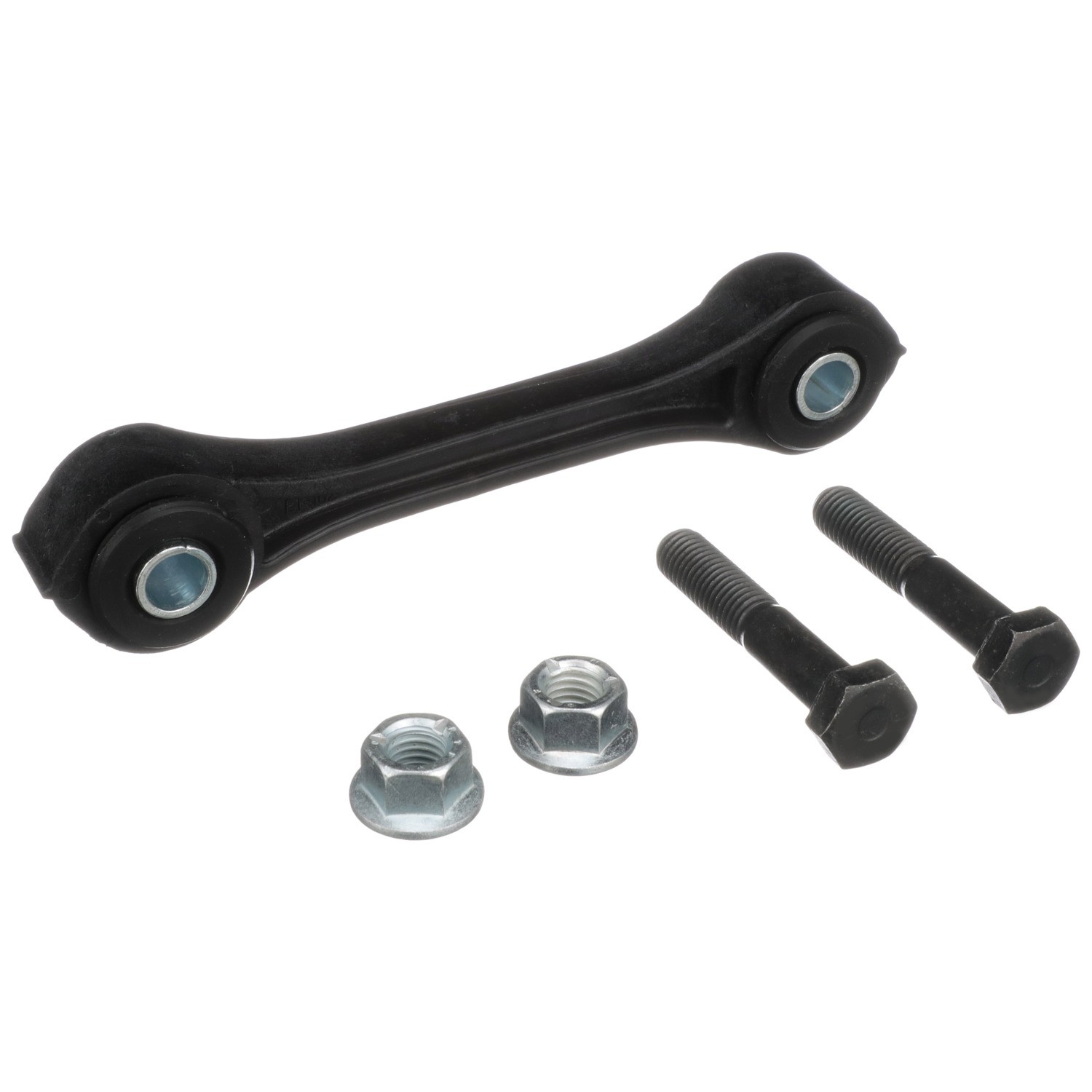

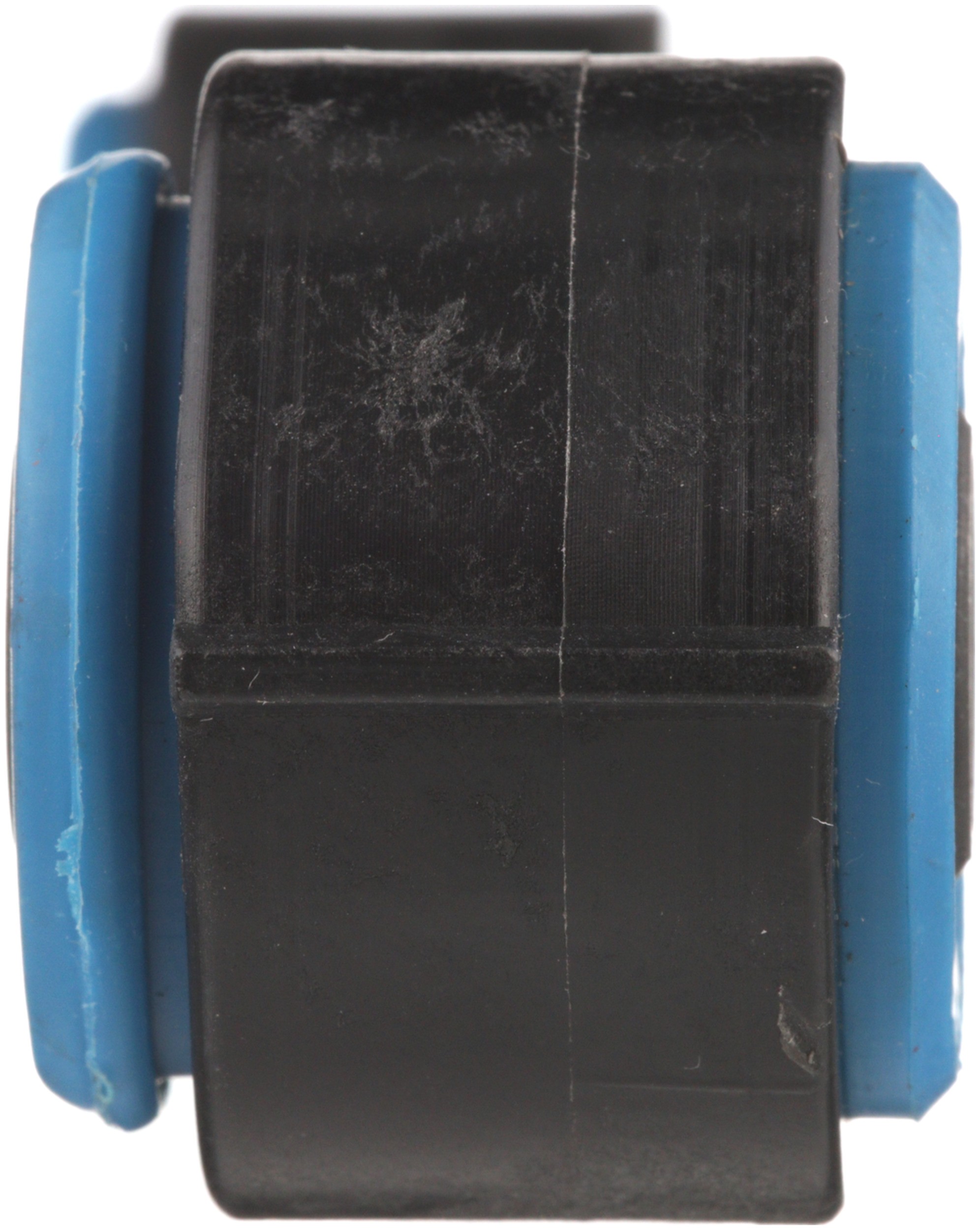

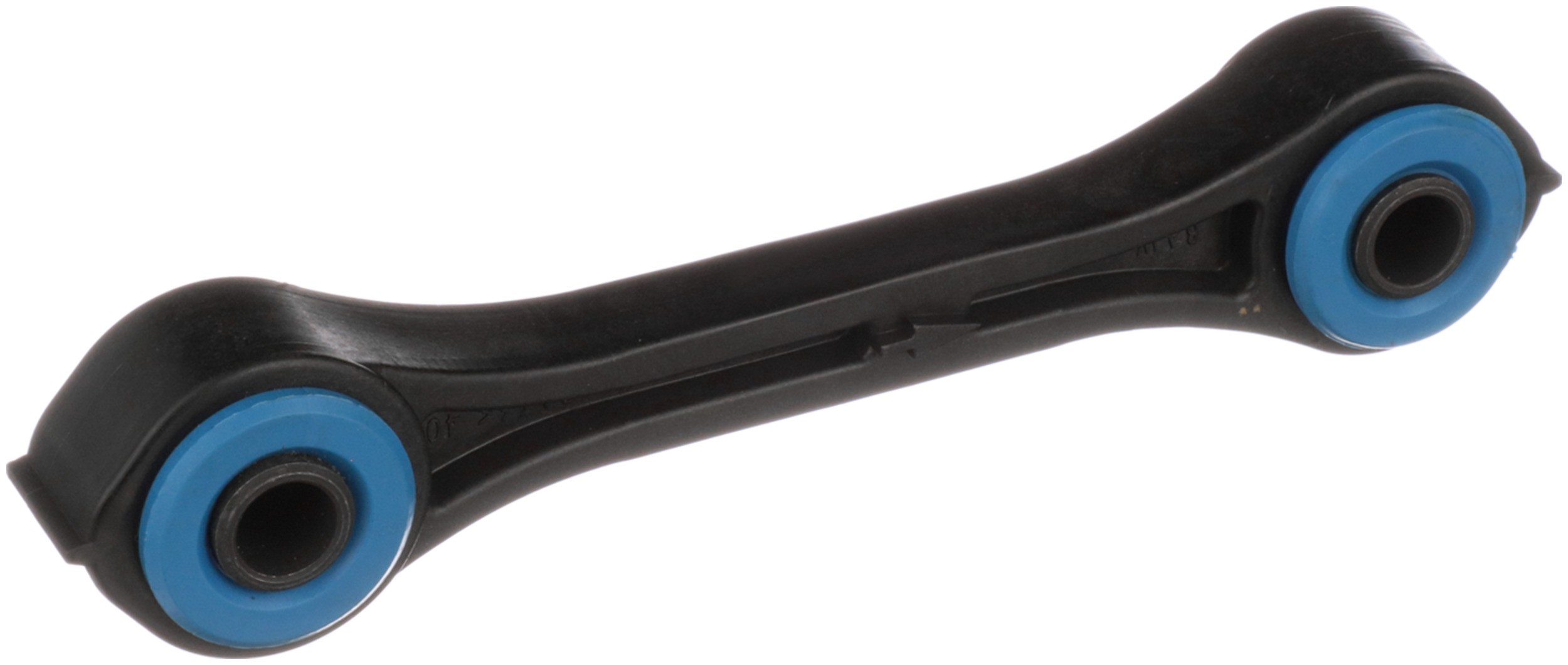

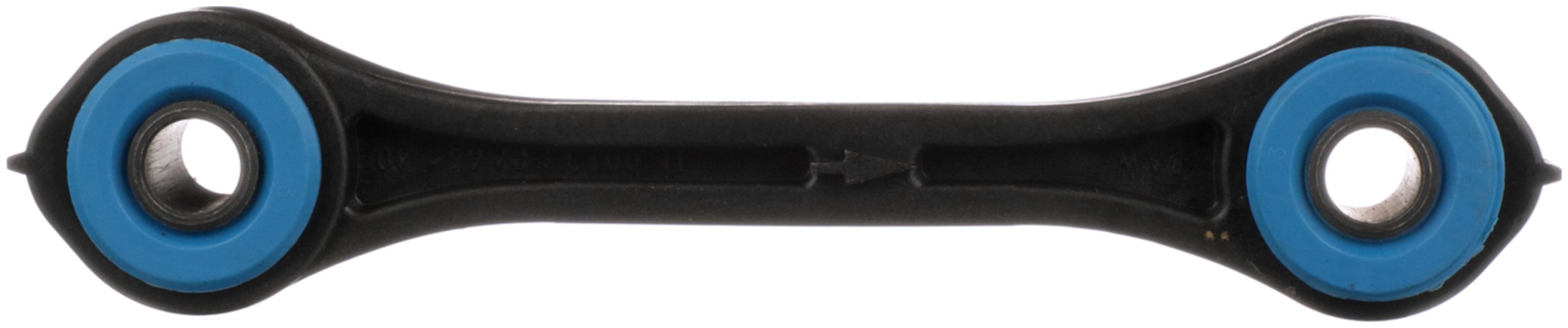

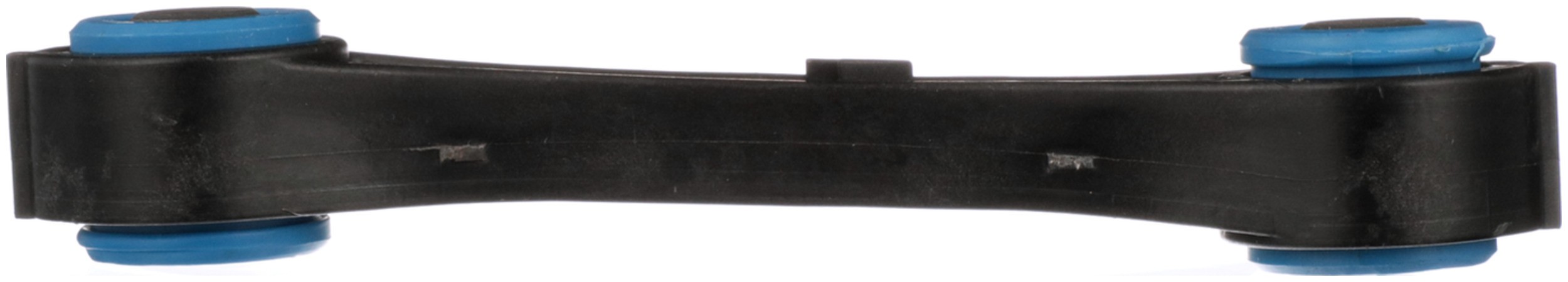

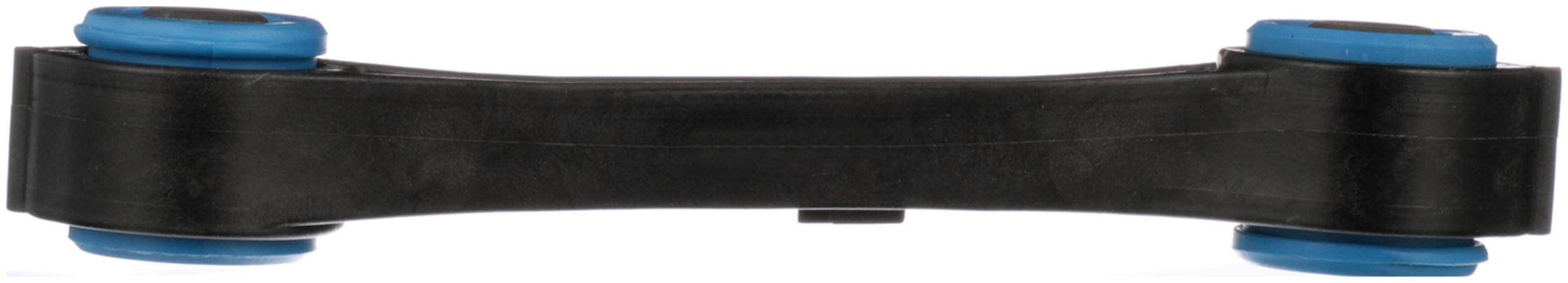

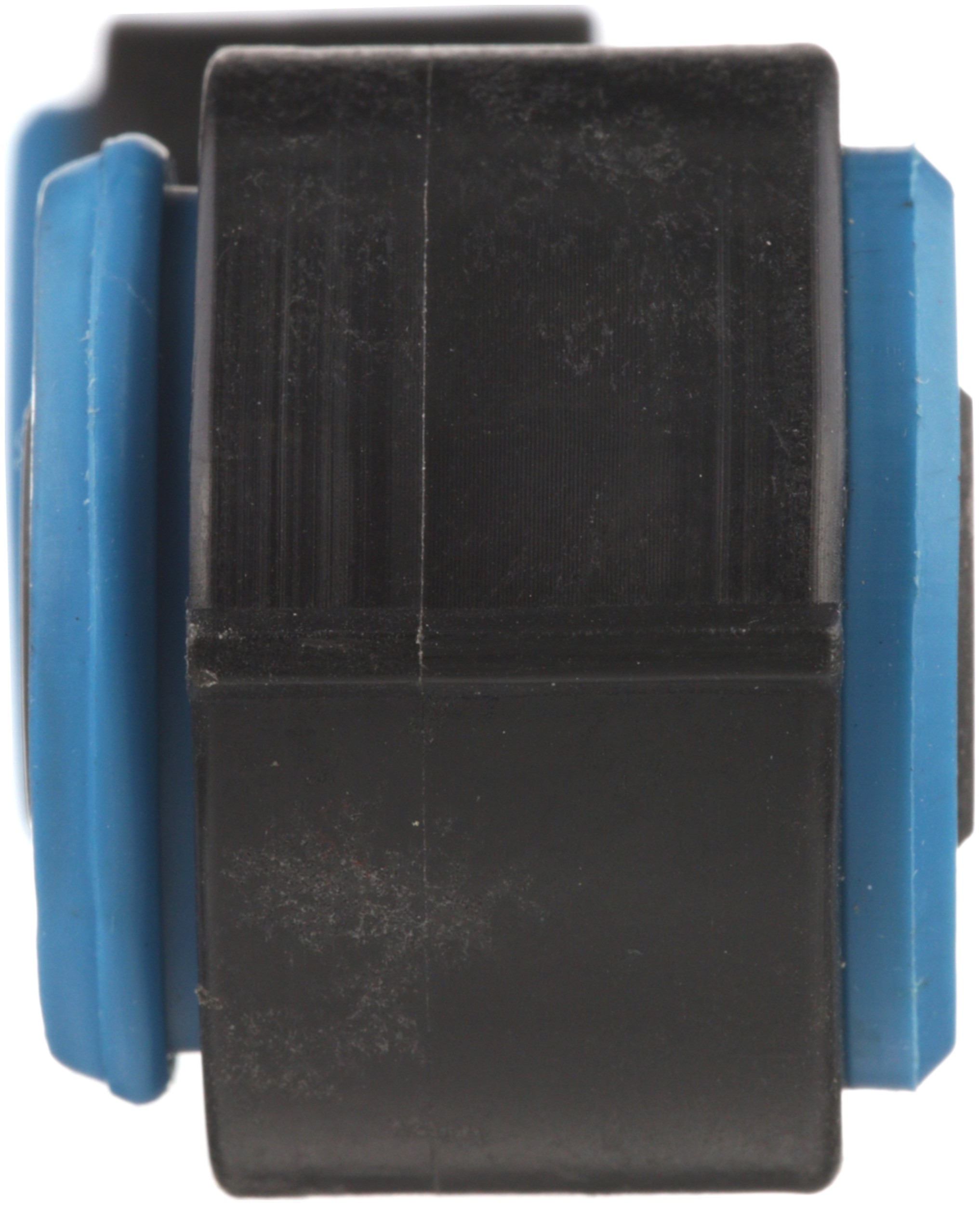

Delphi TC7696 Suspension Stabilizer Bar Link

Delphi TC7696 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Inside Diameter	12.40 MM
9058	154.50 MM
4504	18.90 MM
Grade Type	Standard Replacement
Greaseable	No
Housing Material	Plastic
Bolts Included	Yes
Washers Included	No
Dust Boot Included	No
Bushings Included	Yes
End 2 Type	Bushing
End 1 Type	Bushing
Bushing Colour	Blue
Bushing Inside Diameter	0.490 IN
4504	0.740 IN
Bolt Length	2.840 IN
Bolt Length	72.10 MM
Height	1.330 IN
Height	33.70 MM
Width	1.59 IN
Width	40.3 MM
Length	7.670 IN
Position(s)	Front
9296	Yes
Length	194.80 MM
Bushing Outside Diameter	1.590 IN
Bushing Outside Diameter	40.30 MM
