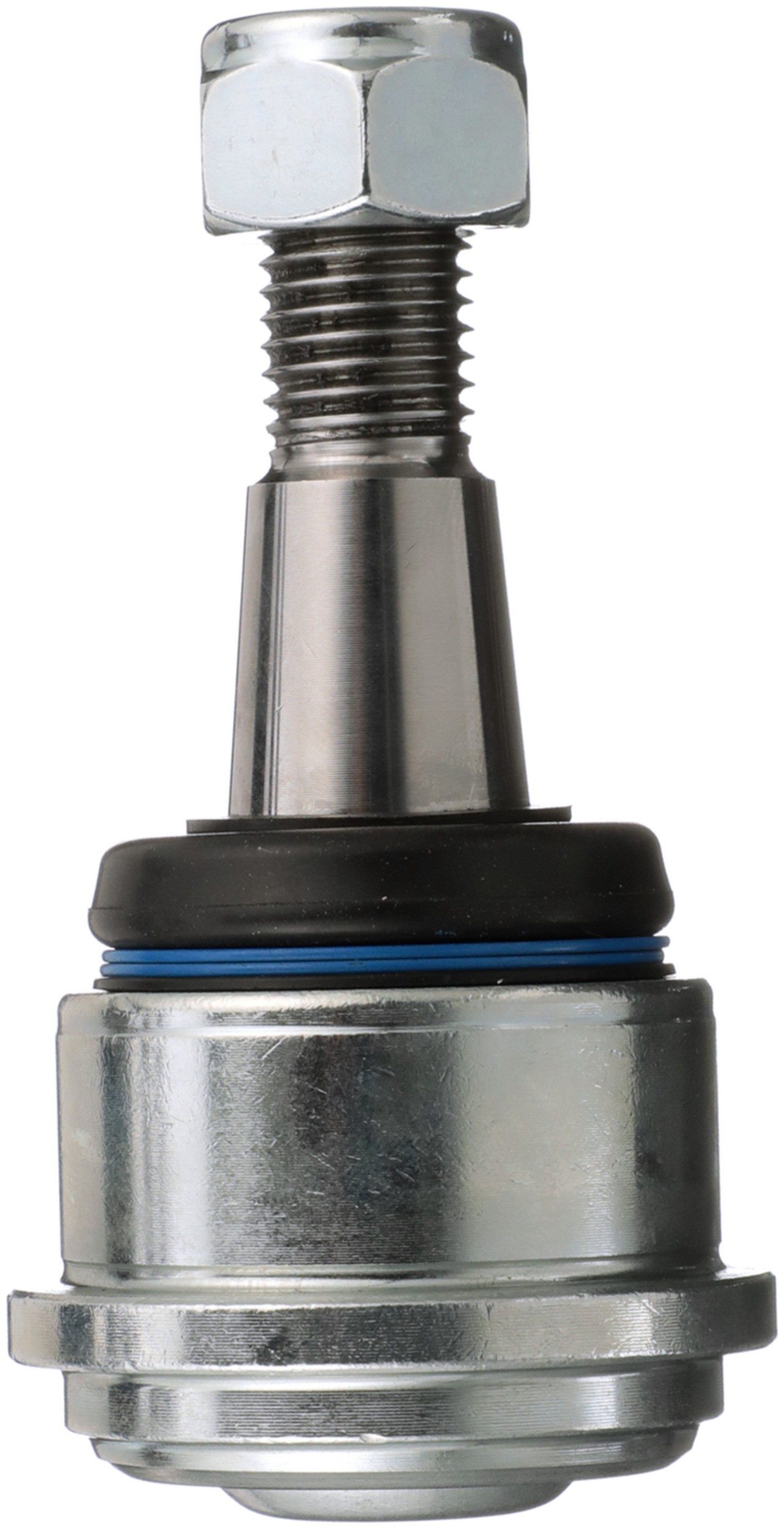

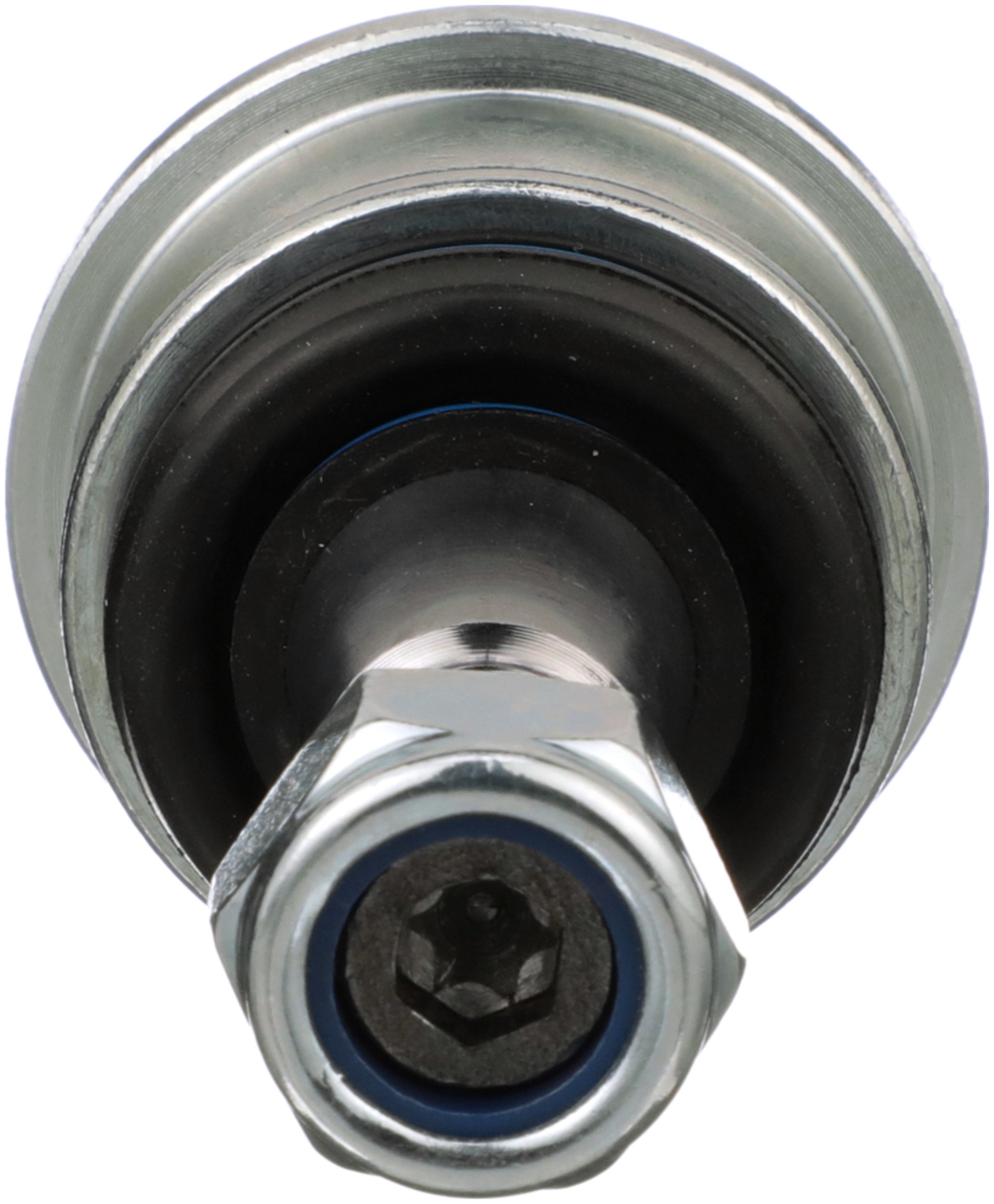

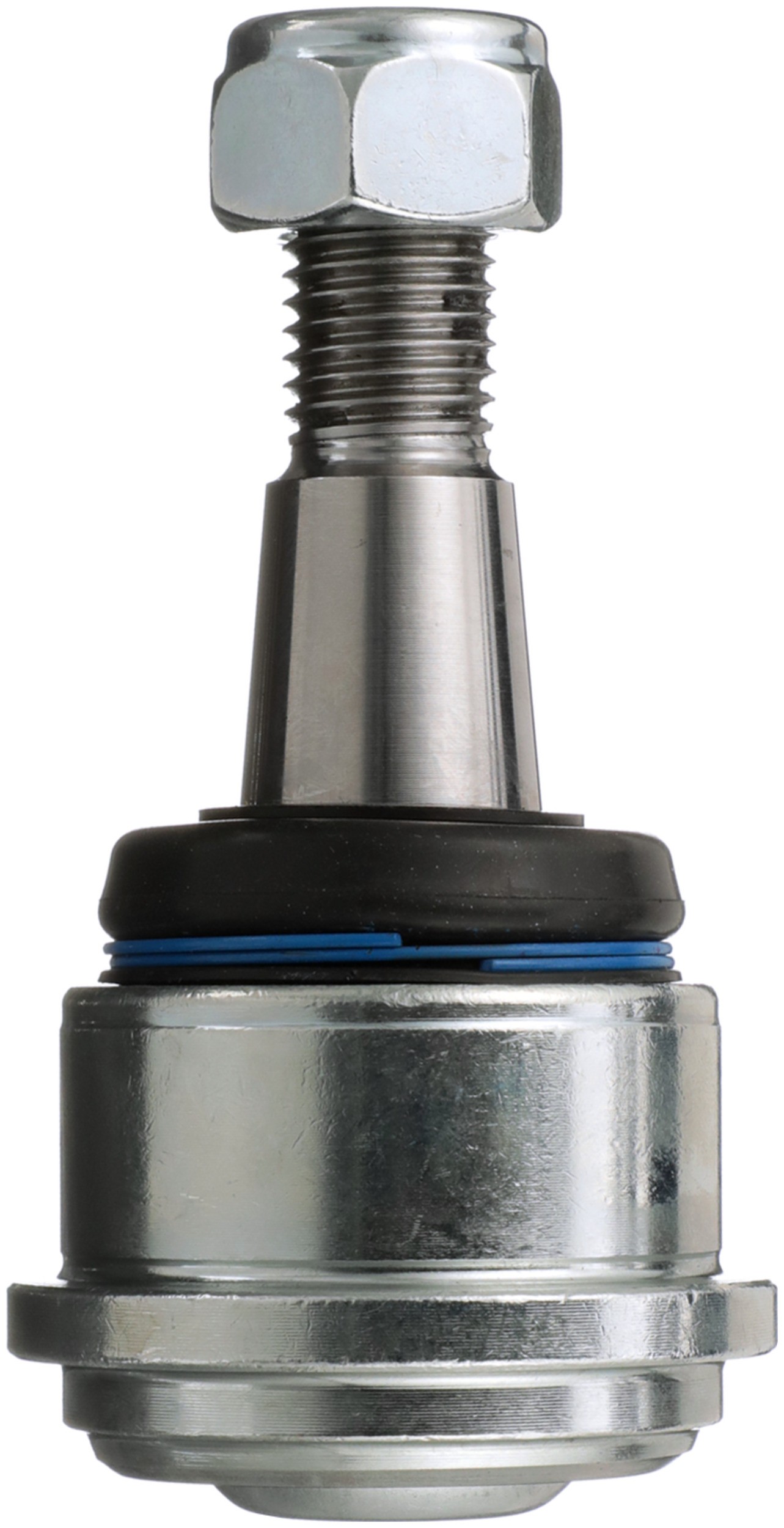

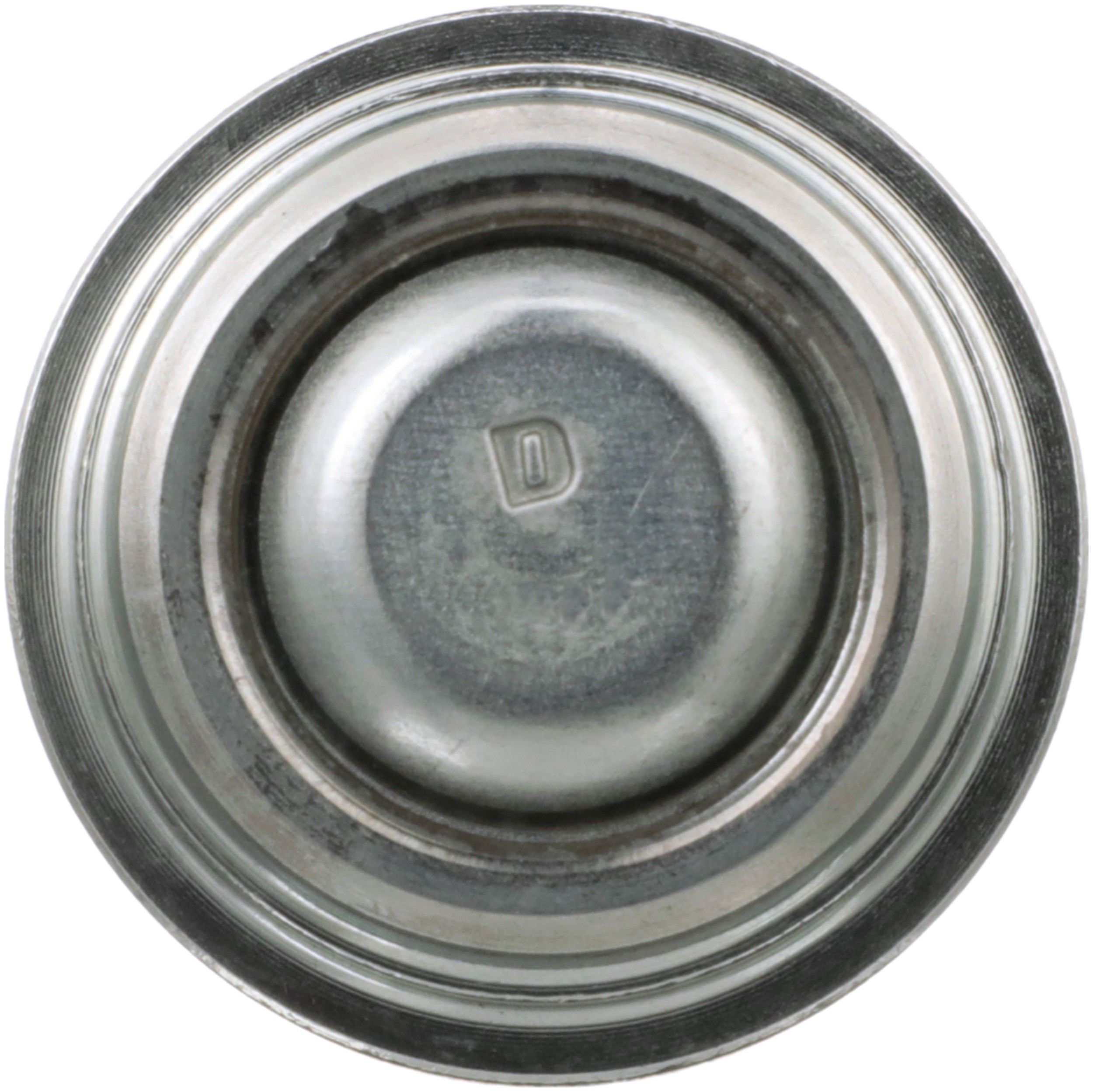

Delphi TC7772 Suspension Ball Joint

Delphi TC7772 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9212	0.85 IN
2827	No
2381	Yes
2334	No
Position(s)	Front Upper
Height	53.70 MM
Height	2.110 IN
Width	53.7 MM
Length	3.940 IN
Length	100.00 MM
Maximum Outside Diameter	53.70 MM
Maximum Outside Diameter	2.111 IN
881	Threaded
9210	Yes
9209	No
Suspension Grade Type	Standard Replacement
Mounting Type	Press-In
Greaseable	Yes
Adjustable	Yes
Washers Included	No
Mounting Hardware Included	No
Cotter Pin Hole	No
Dust Boot Included	No
Grease Fitting Included	Yes
Color	Gray
Material	Steel
190	0.480 IN
190	12.19 MM
4966	1.14 IN
4966	29 MM
9211	2 IN
9212	21.51 MM
9213	0.713 IN
9213	18.11 MM
