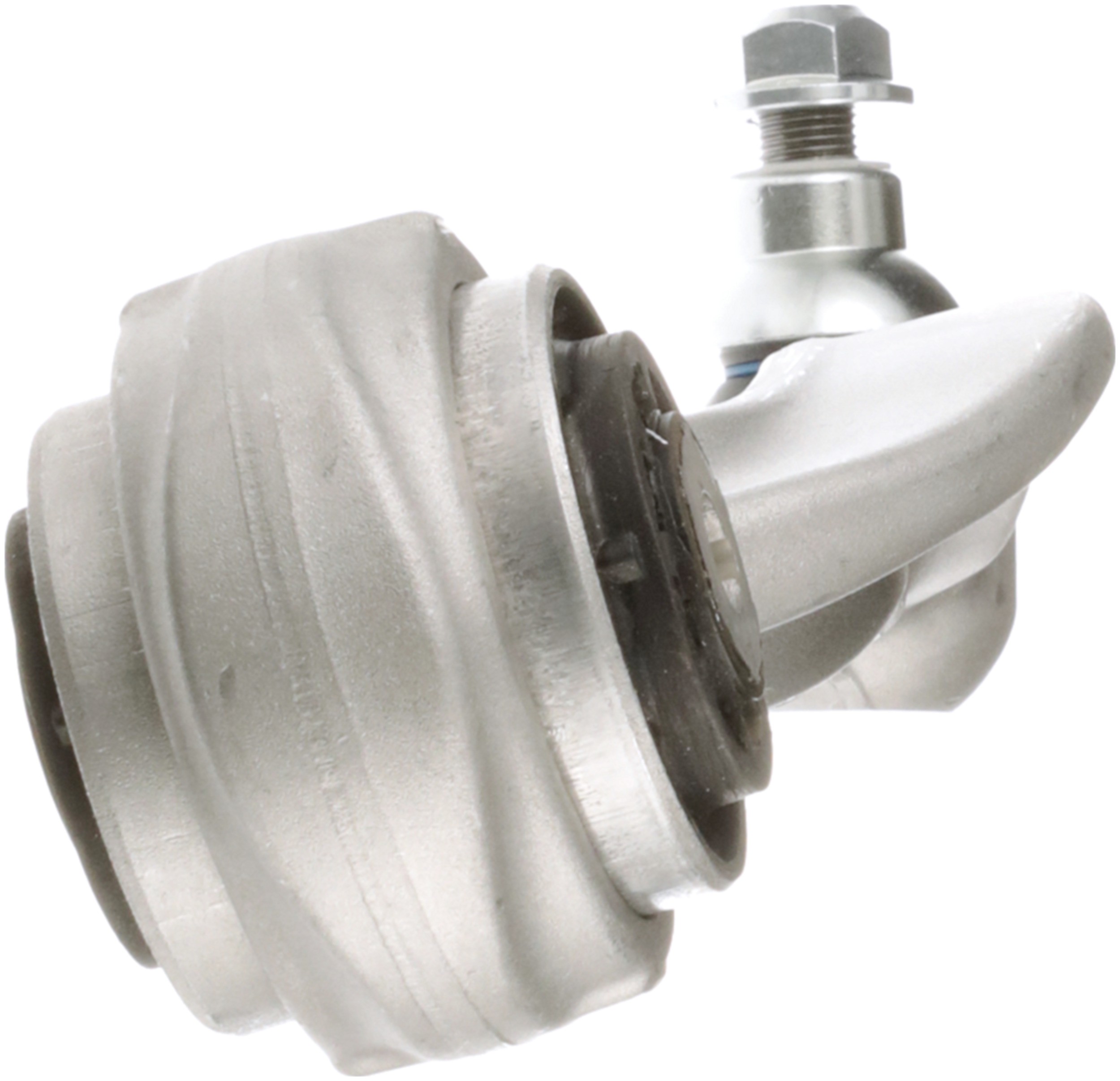

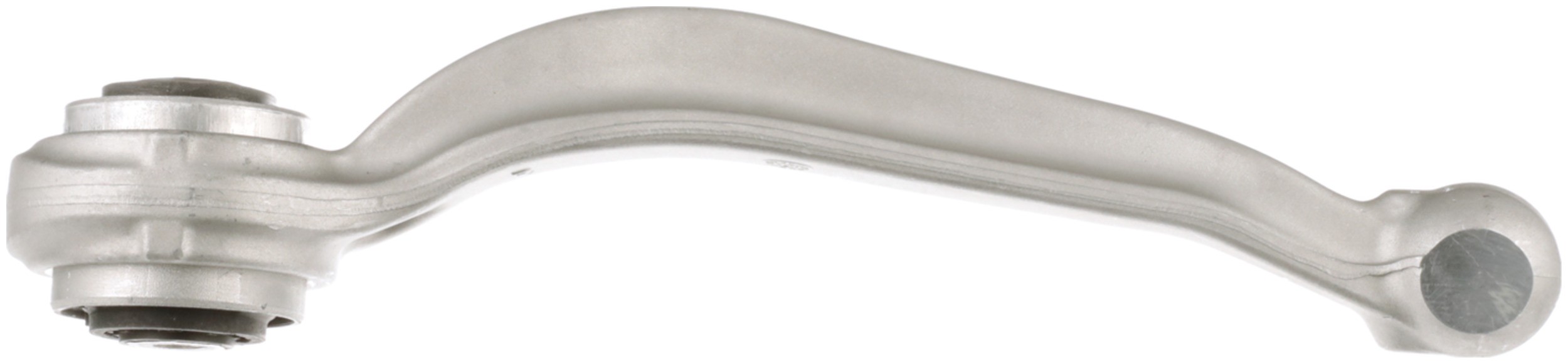

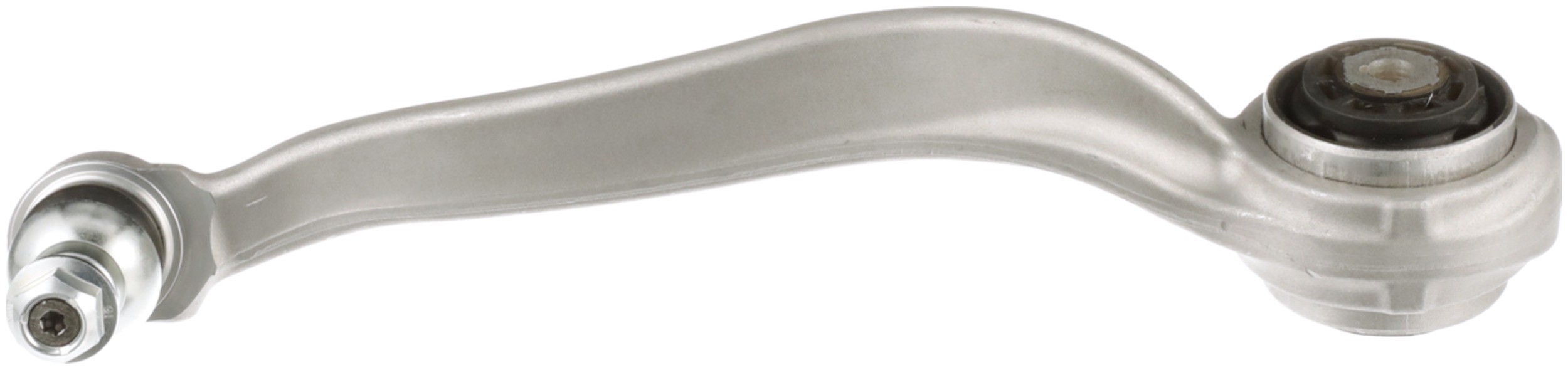

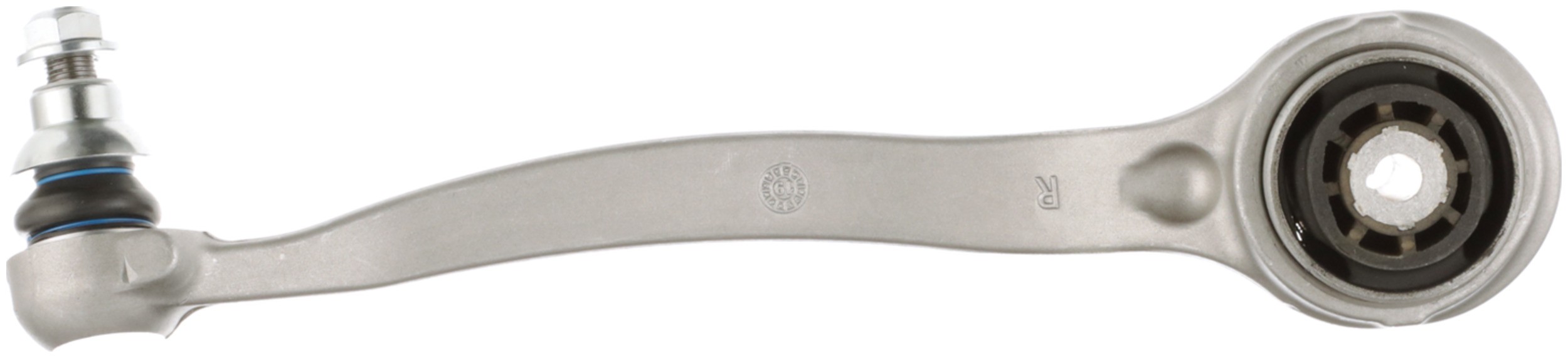

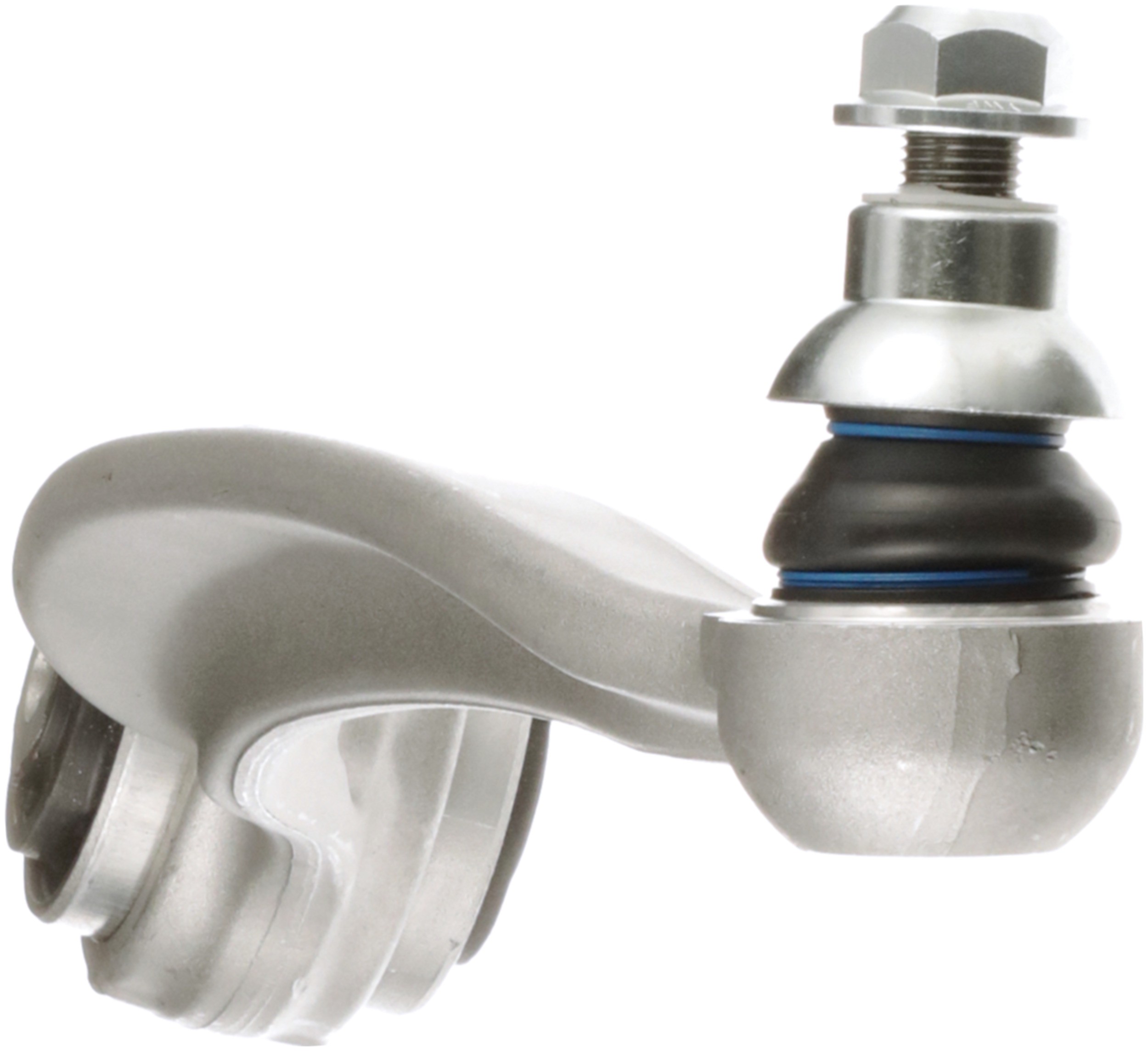

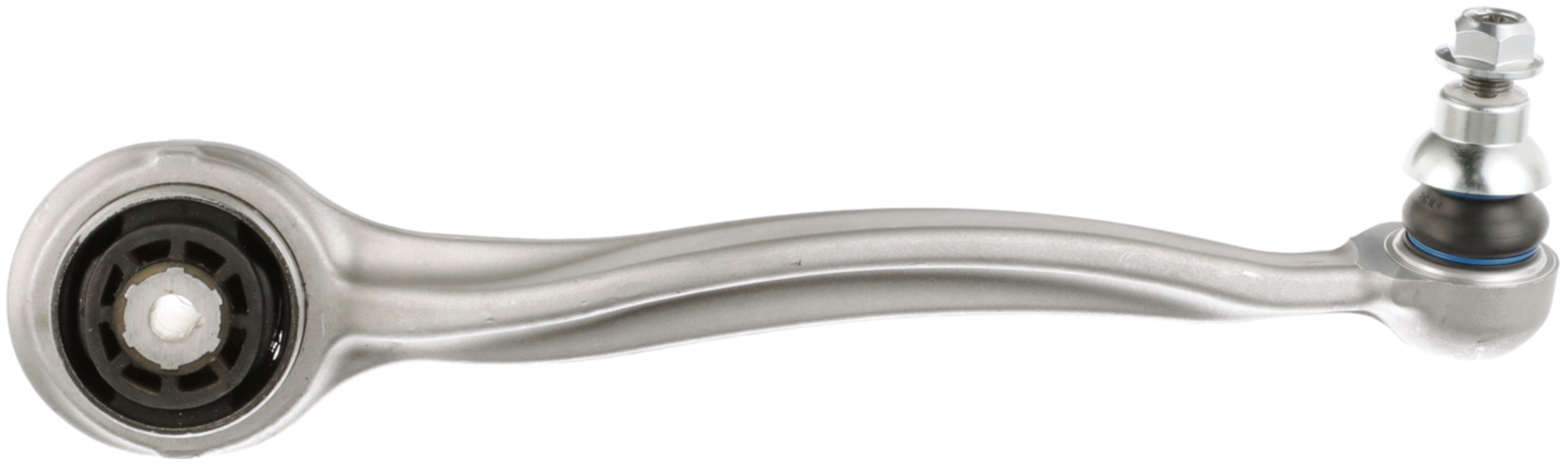

Delphi TC7786 Suspension Control Arm and Ball Joint Assembly

Delphi TC7786 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Lower Forward
4887	4.490 IN
4887	114.05 MM
Length	463.04 MM
Length	18.230 IN
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Threaded
Material	Aluminum
Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
9090	Chloroprene Rubber (CR)
6529	Power

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	C300	2015 to 2023
Mercedes-Benz	C350e	2016 to 2018
Mercedes-Benz	CLS450	2019 to 2020
Mercedes-Benz	E300	2017 to 2019
Mercedes-Benz	E350	2020 to 2020
Mercedes-Benz	E400	2018 to 2018
Mercedes-Benz	E450	2019 to 2020
