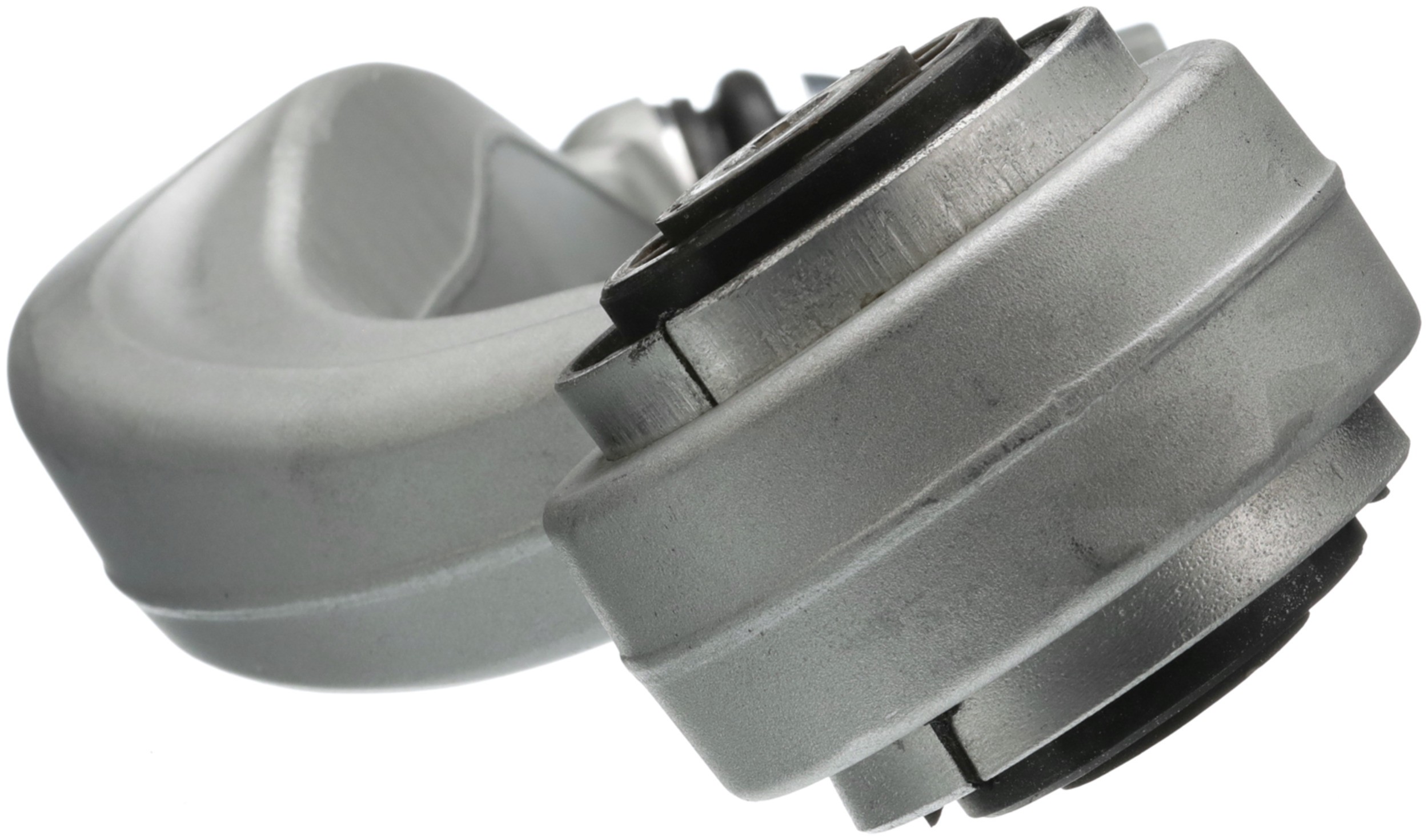

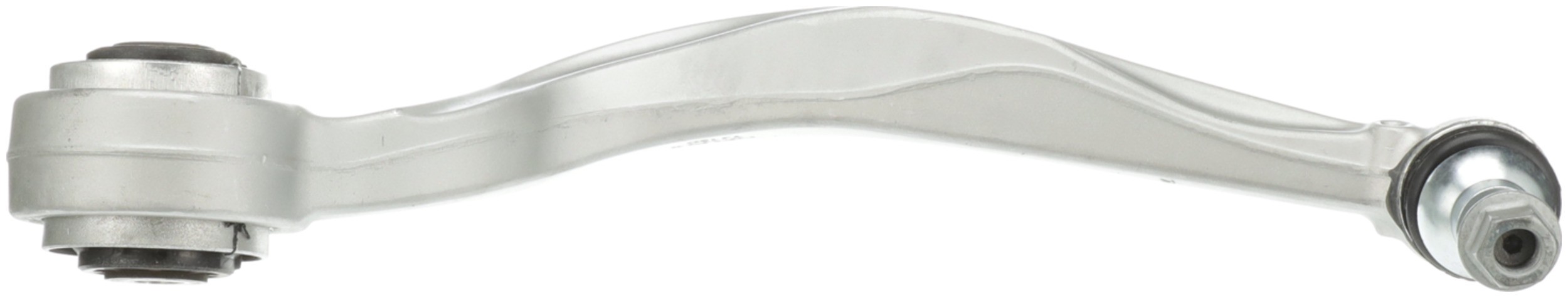

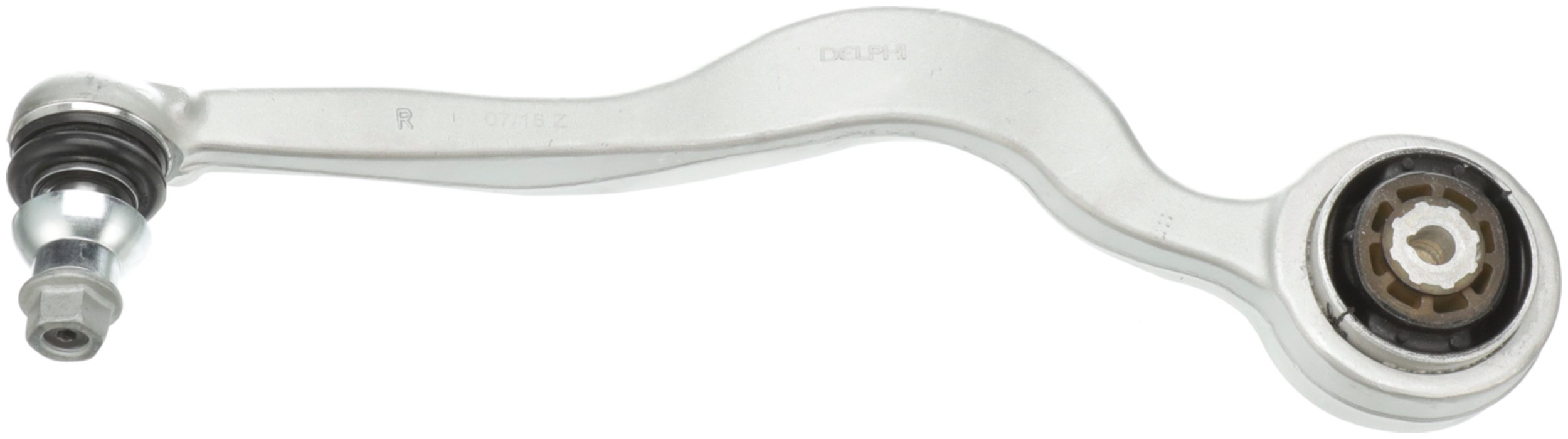

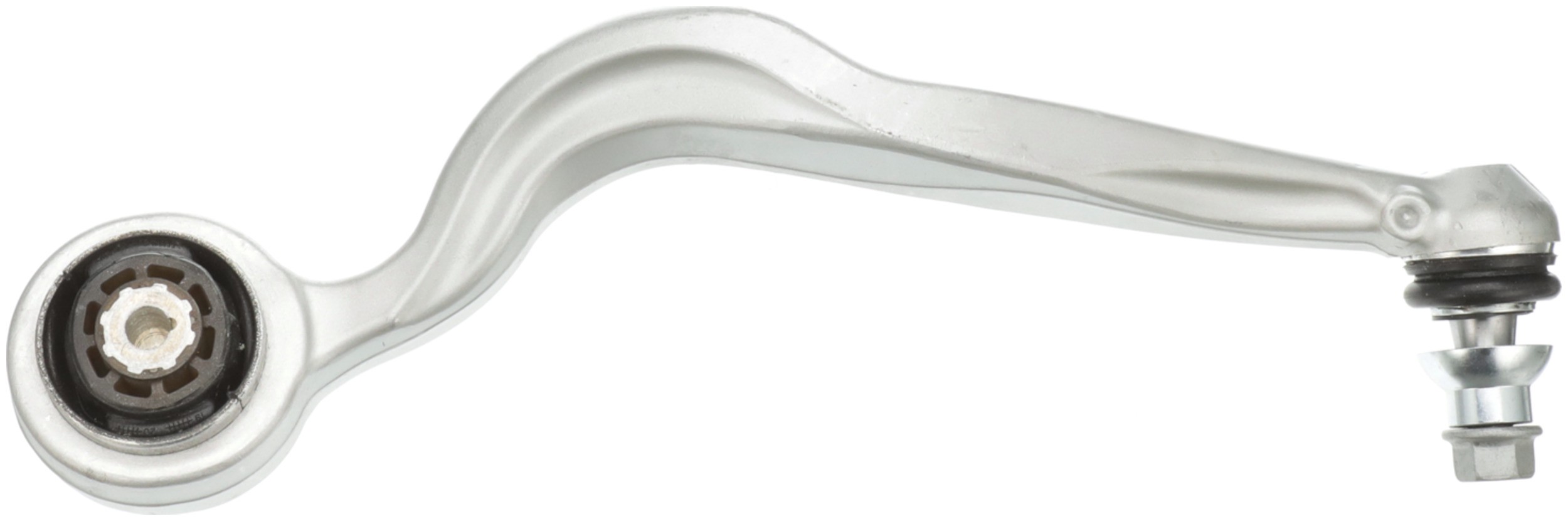

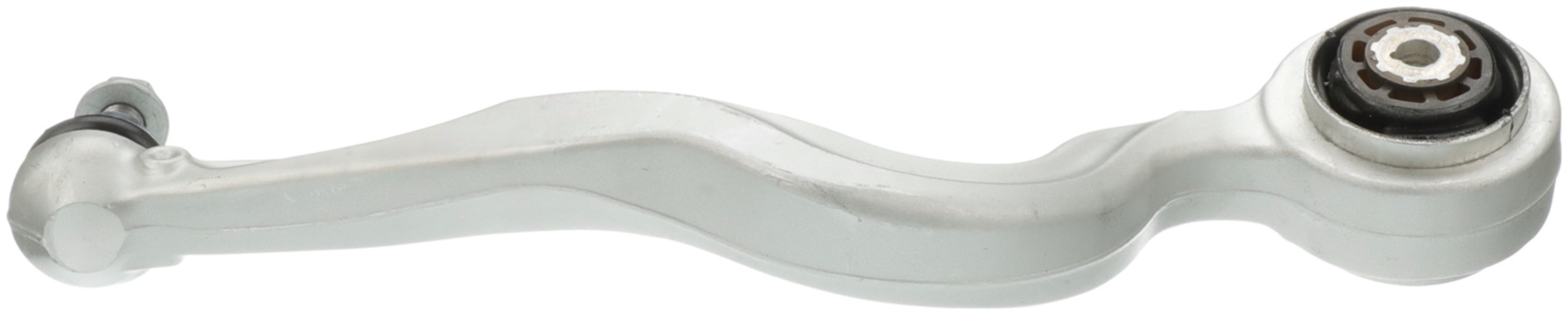

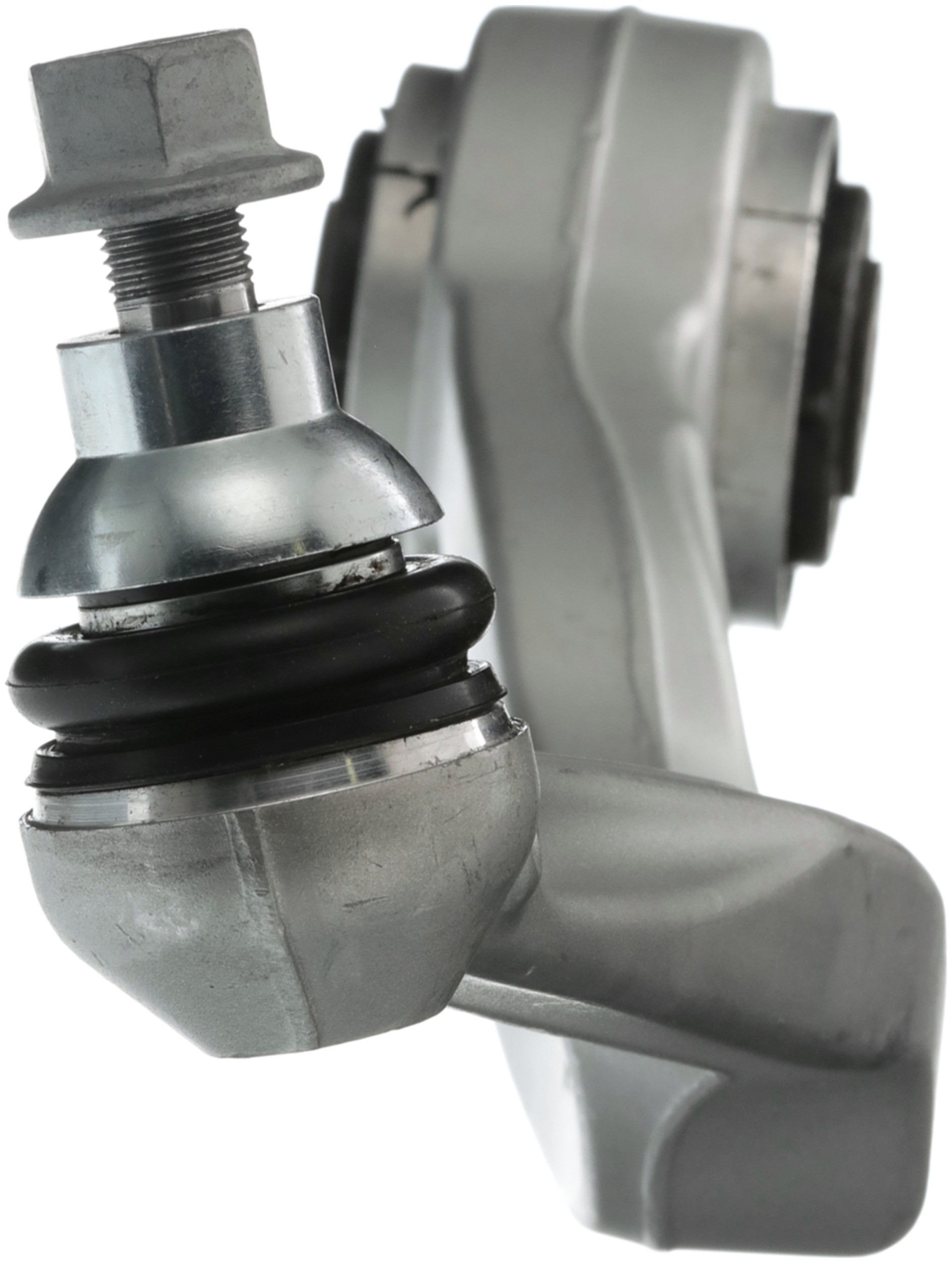

Delphi TC7818 Suspension Control Arm and Ball Joint Assembly

Delphi TC7818 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2384	Yes
Position(s)	Front Right Lower Forward
Mounting Hole Diameter	0.555 IN
Mounting Hole Diameter	14.10 MM
Length	7.087 IN
4887	40.00 MM
2386	Casting/Forged
4241	Yes
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Length	180.00 MM
Thread Direction	Clockwise (Right)
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
4890	3.689 IN
4890	93.70 MM
4887	1.575 IN

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	C300	2015 to 2020
Mercedes-Benz	C400	2015 to 2015
Mercedes-Benz	C43 AMG	2018 to 2019
Mercedes-Benz	C450 AMG	2016 to 2016
Mercedes-Benz	E400	2018 to 2018
Mercedes-Benz	E450	2019 to 2020
Mercedes-Benz	E53 AMG	2019 to 2019
