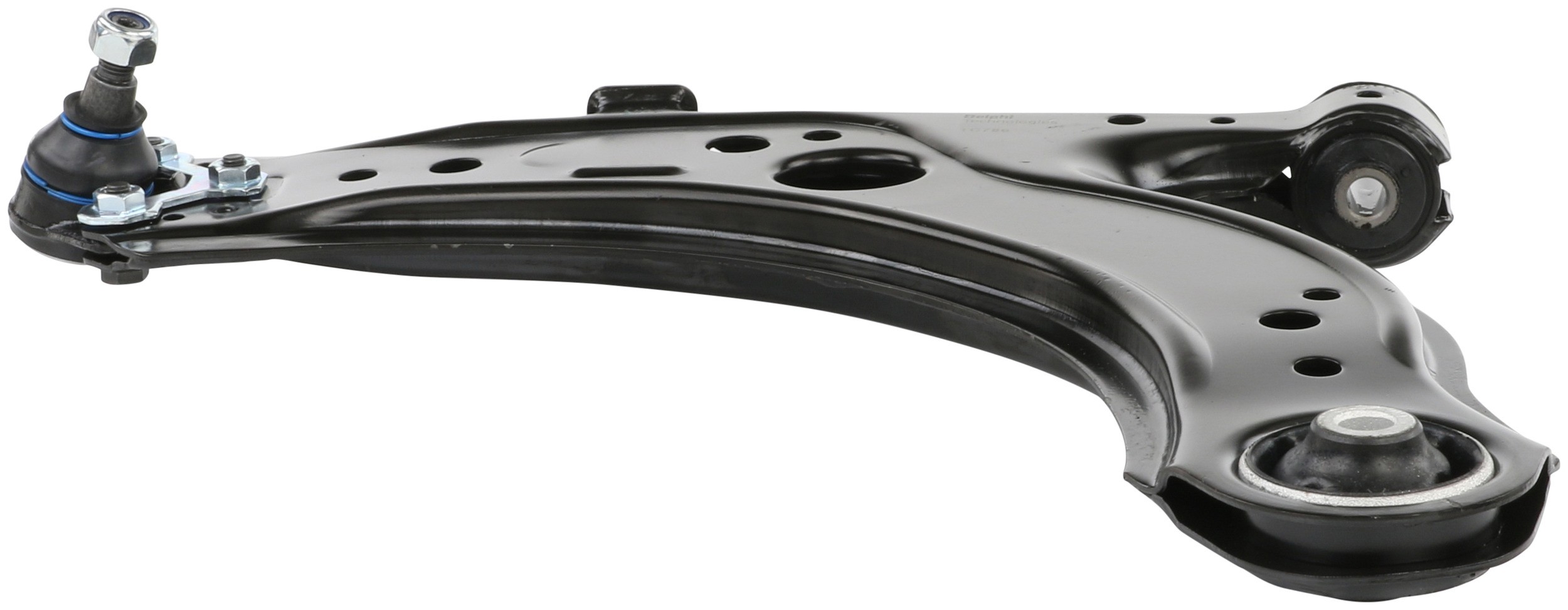

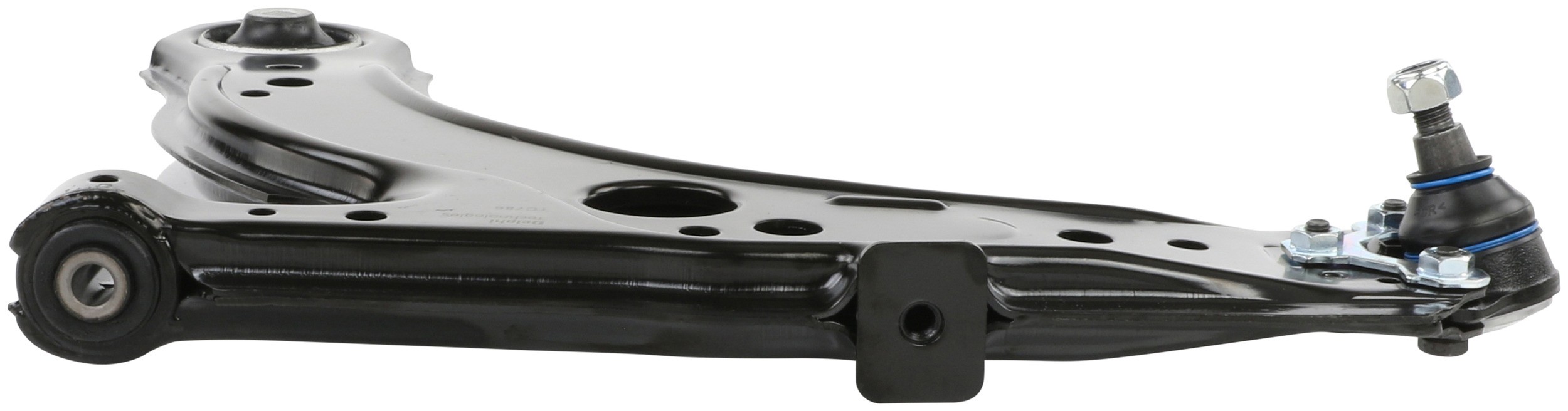

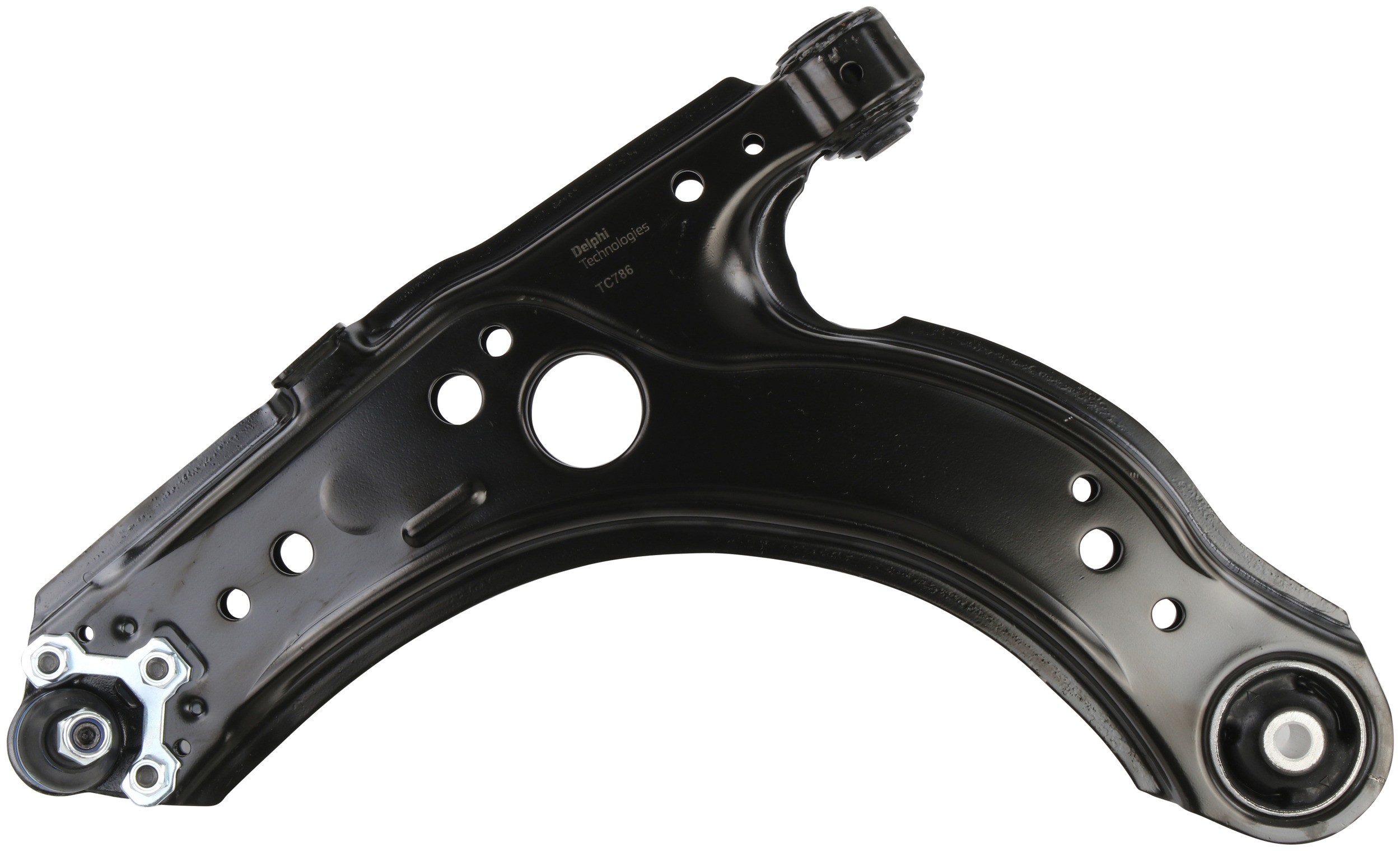

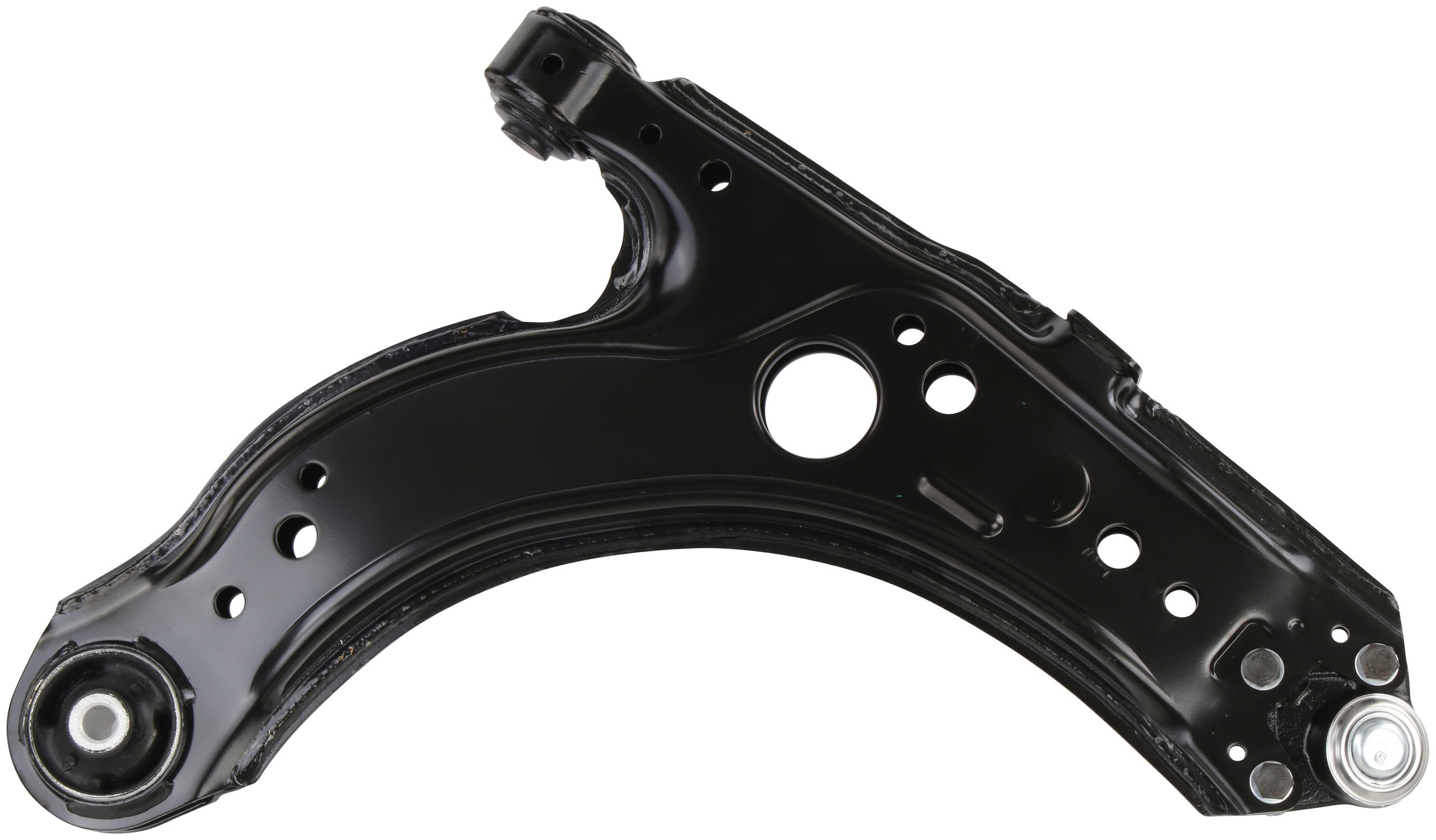

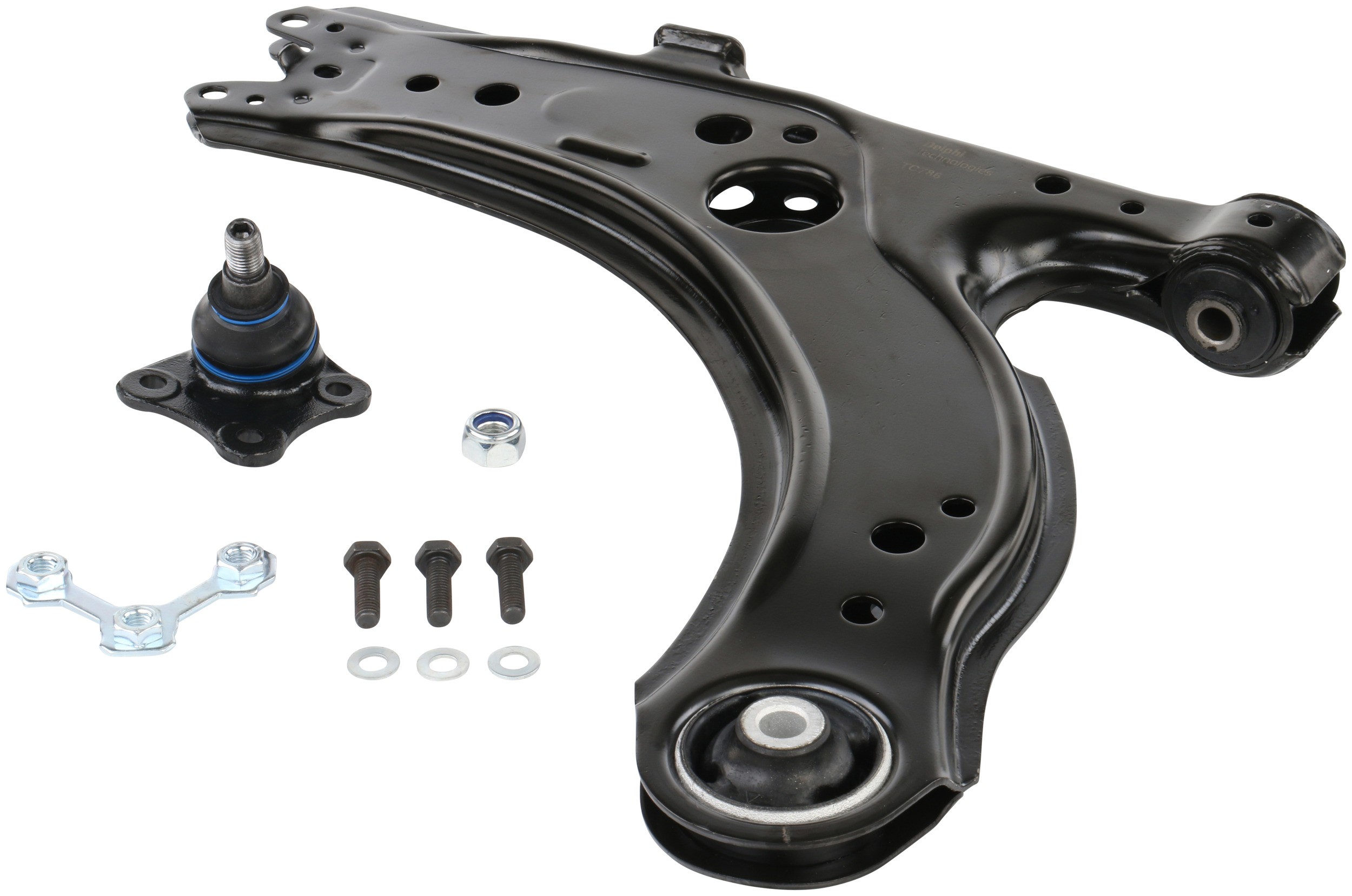

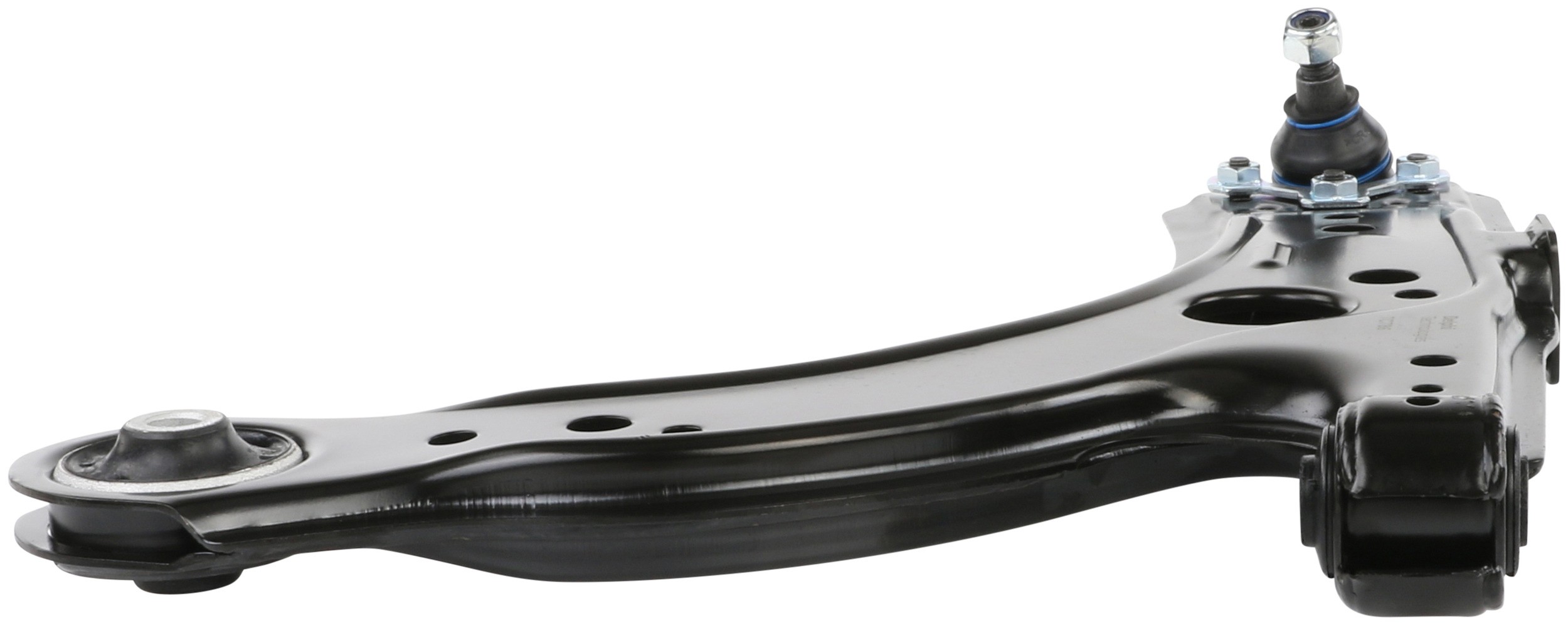

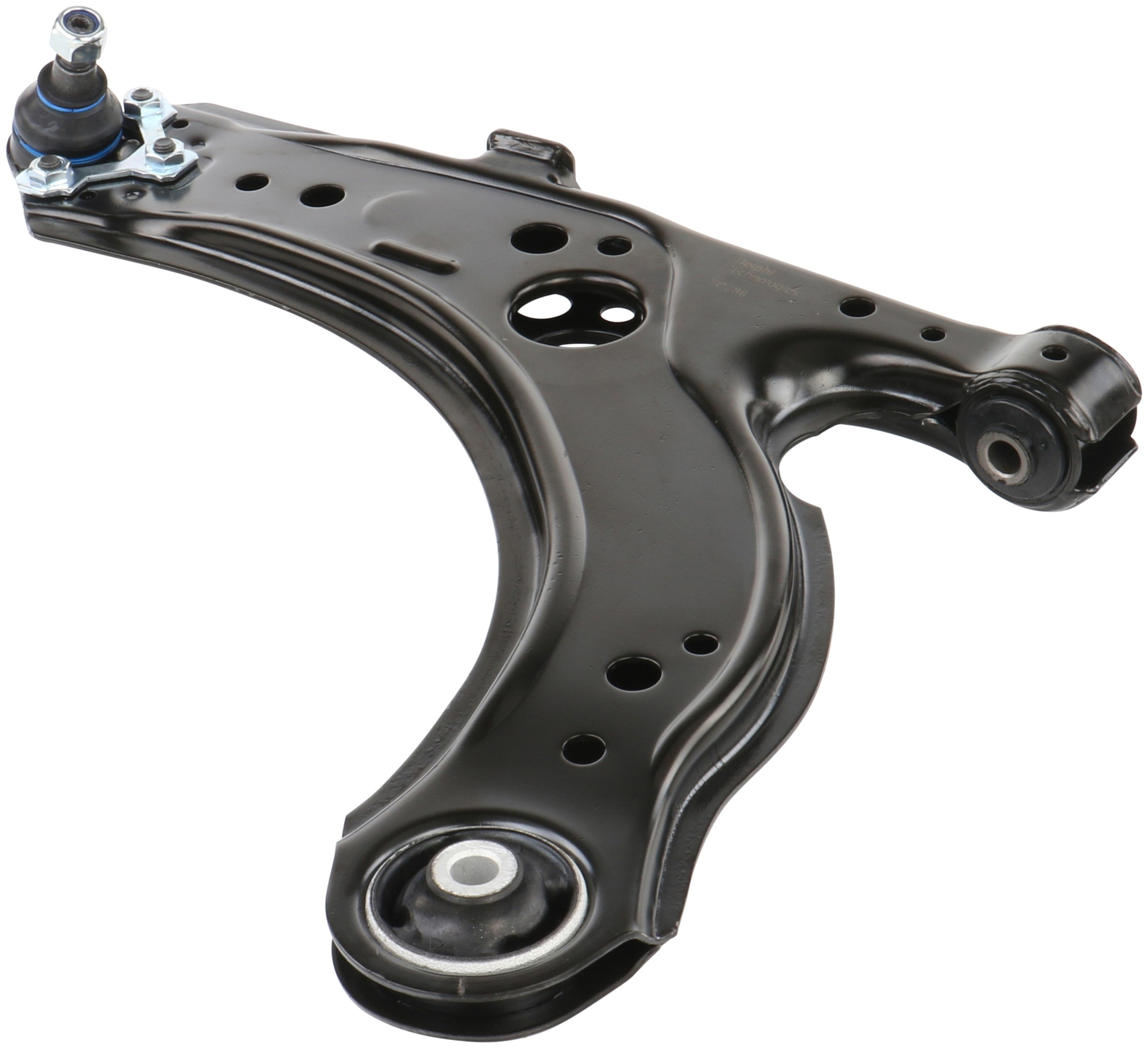

Delphi TC786 Suspension Control Arm and Ball Joint Assembly

Delphi TC786 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4890	15.50 MM
4887	6.142 IN
4887	156.00 MM
Adjustable	No
Greaseable	No
Finish	Black
Length	18.350 IN
Bushing Type	Rubber
Boot Colour	Black
Bushing Colour	Black
Finish	Painted
Position(s)	Front Left Lower
2384	Yes
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Stud Type	Threaded
Bearing Material	Plastic
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
2386	Stamped
6529	Power
4241	Yes
9090	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)
Length	466.10 MM
4890	0.610 IN
