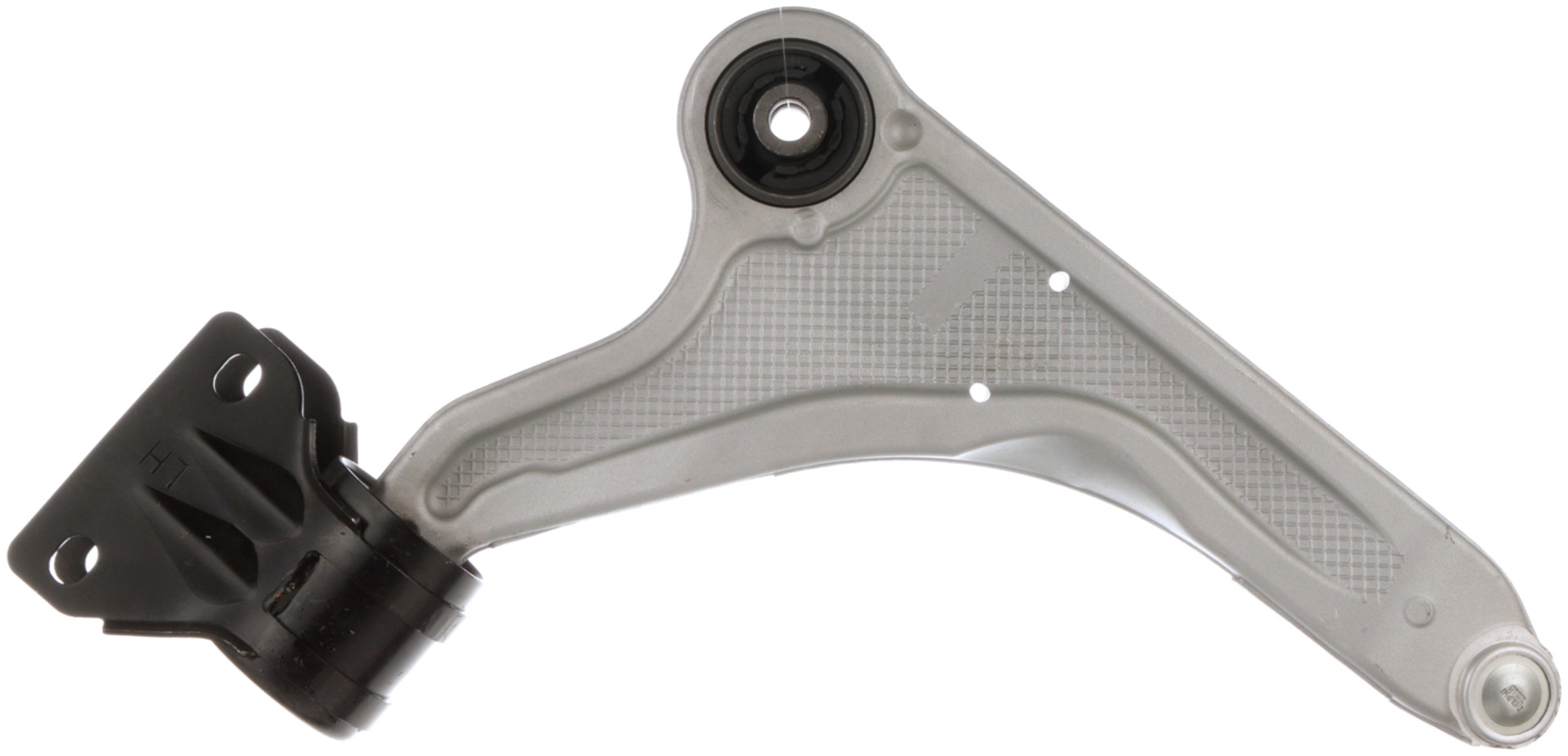

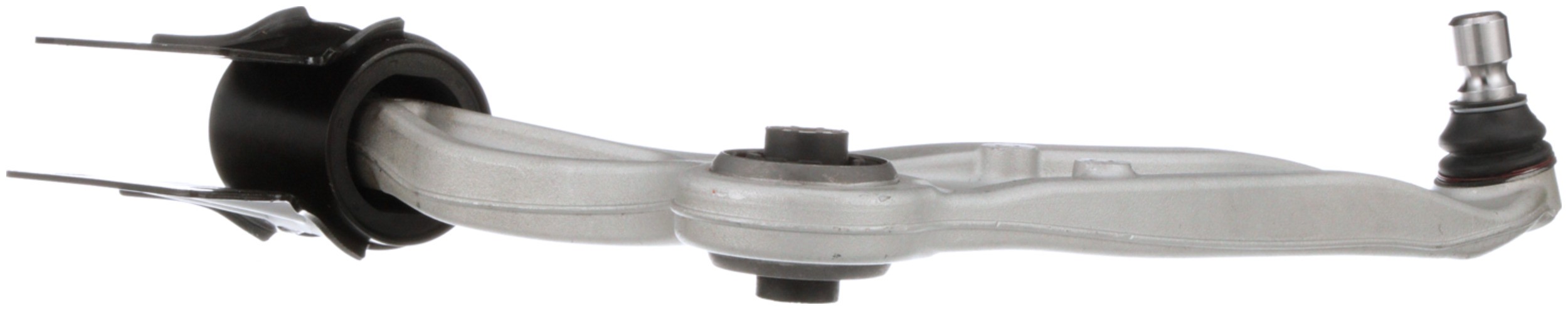

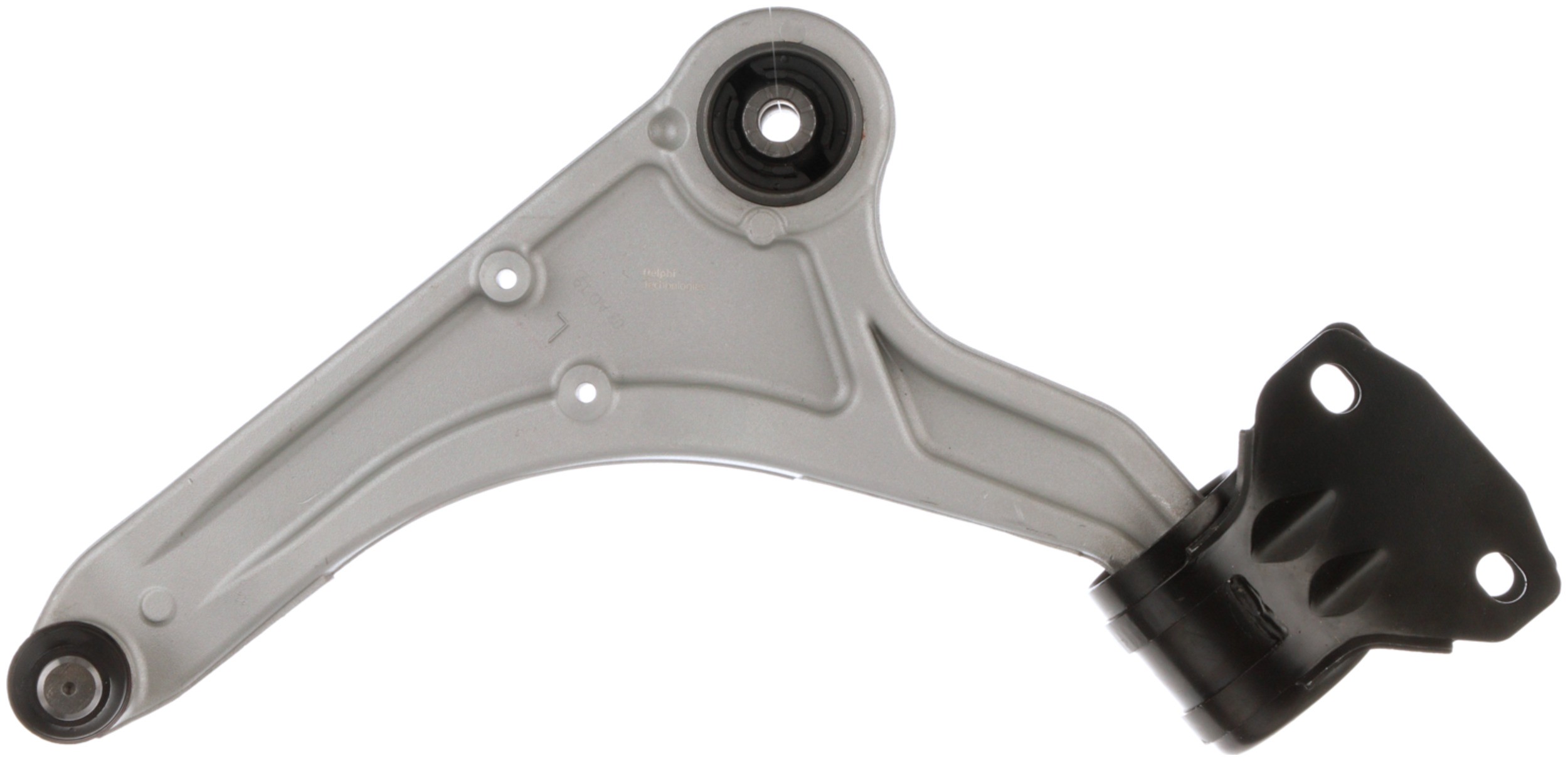

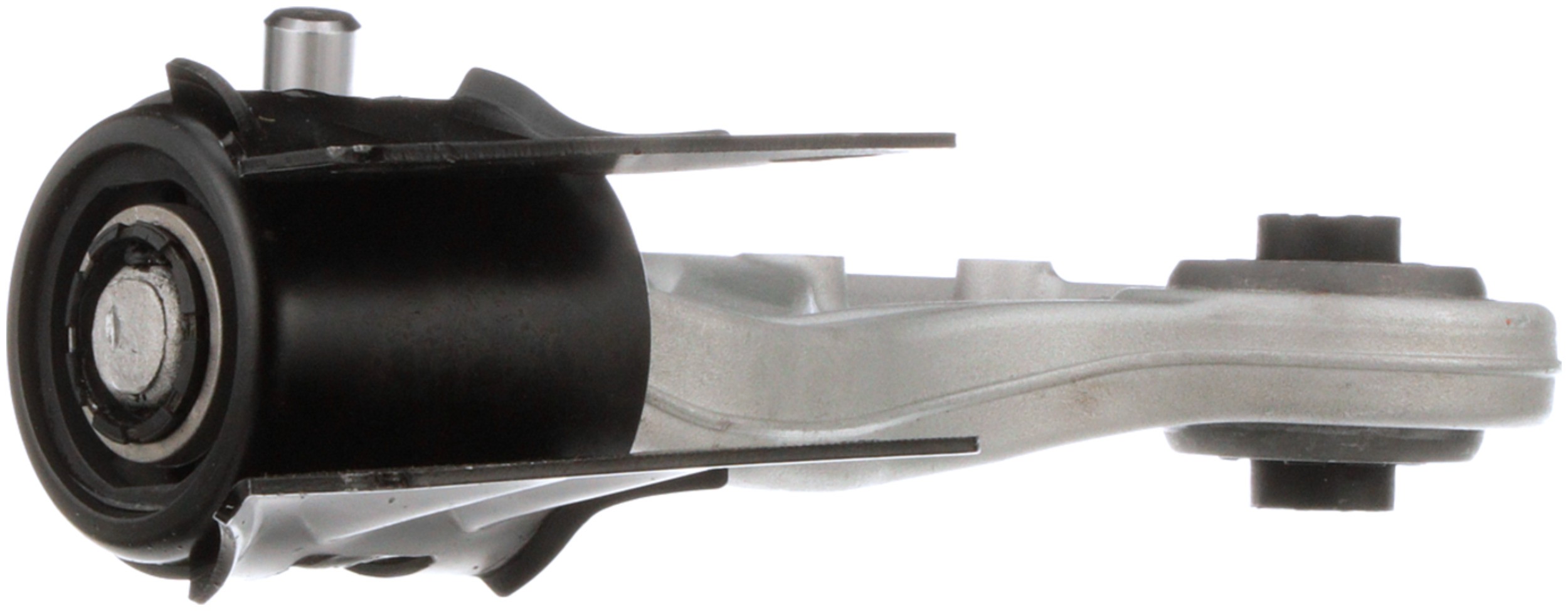

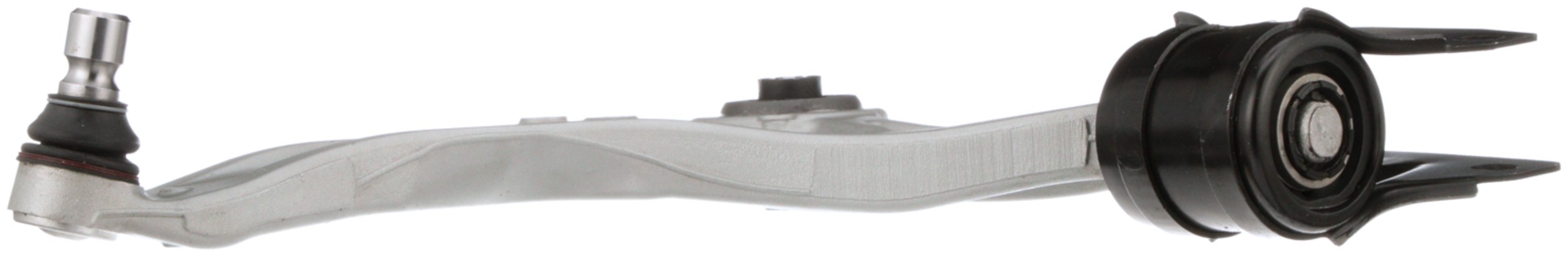

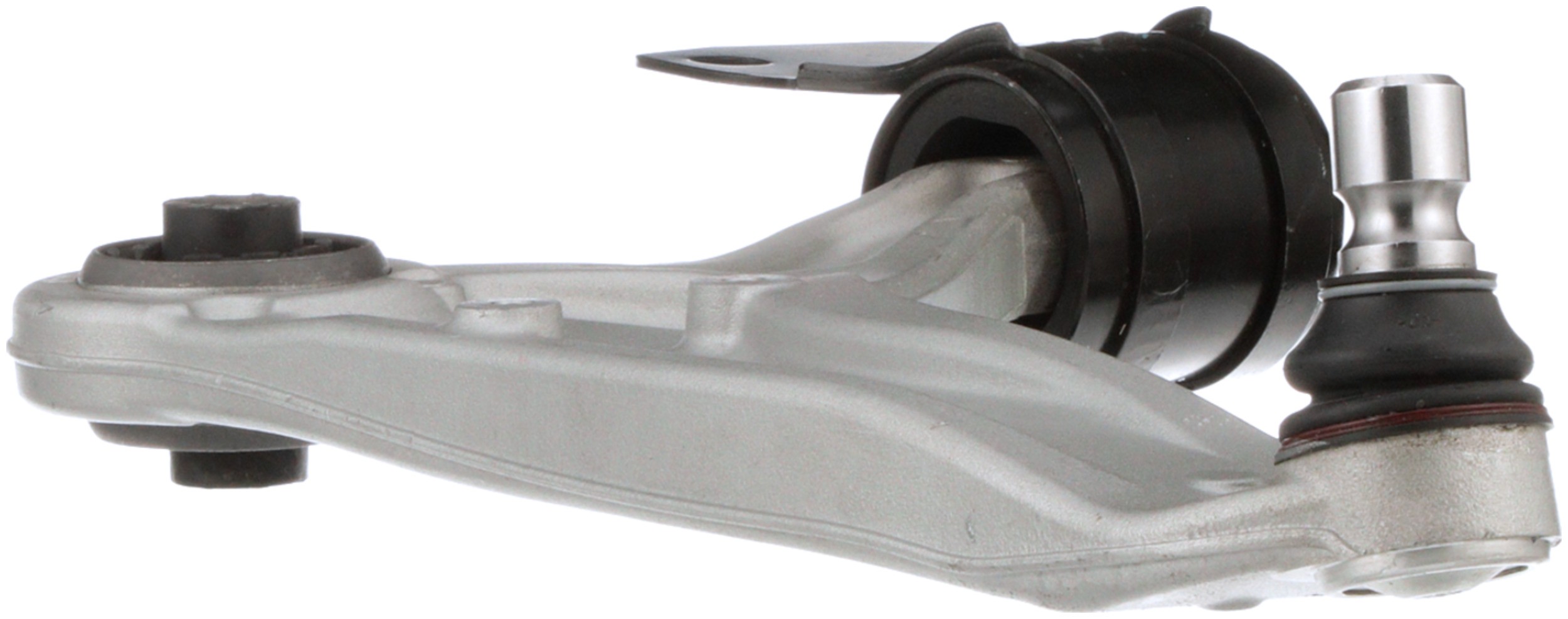

Delphi TC7866 Suspension Control Arm and Ball Joint Assembly

Delphi TC7866 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Finish	Uncoated
Greaseable	No
Finish	Gray
Mounting Hole Diameter	0.638 IN
Mounting Hole Diameter	0.591 IN
Mounting Hole Diameter	0.591 IN
Mounting Hole Diameter	16.20 MM
Mounting Hole Diameter	15.00 MM
Pre-greased	Yes
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
9090	Chloroprene Rubber (CR)
6529	Power
2386	Casting/Forged
2384	Yes
Position(s)	Front Left Lower
Bushings Included	Yes
Length	19.764 IN
Length	502.00 MM
Bushing Colour	Black
Mounting Hole Diameter	15.00 MM
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Grade Type	Premium
Dust Boot Included	Yes
4887	102.00 MM
4887	4.016 IN
Mounting Hole Quantity	3
4890	83.30 MM
4890	3.280 IN
Material	Aluminum
Ball Joint Stud Type	Grooved
