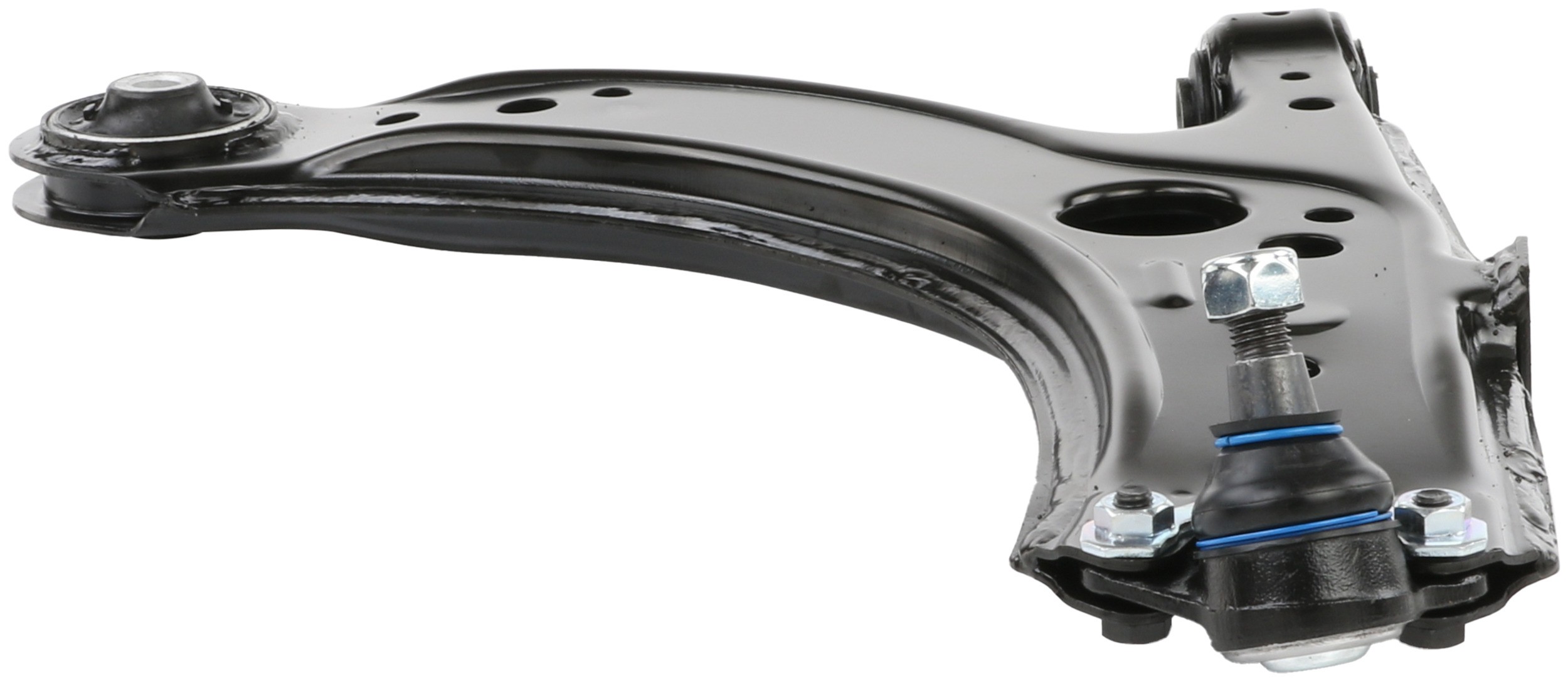

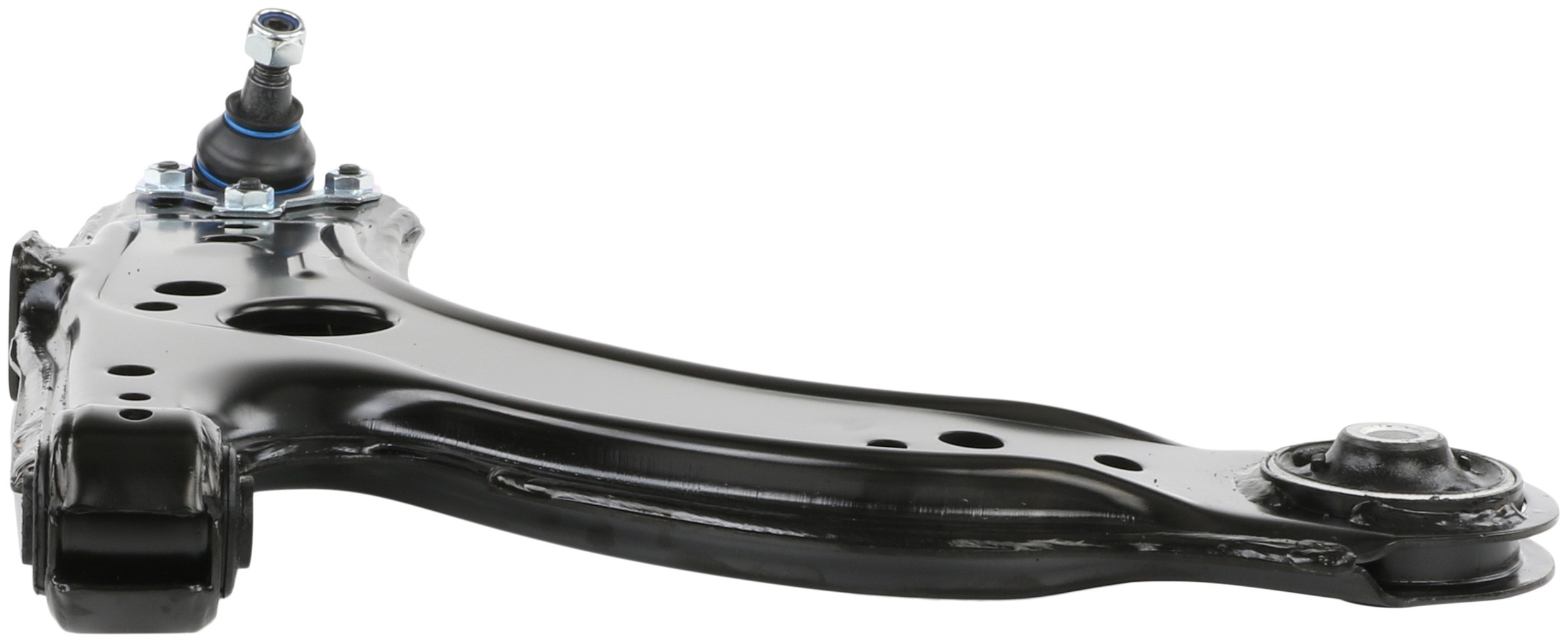

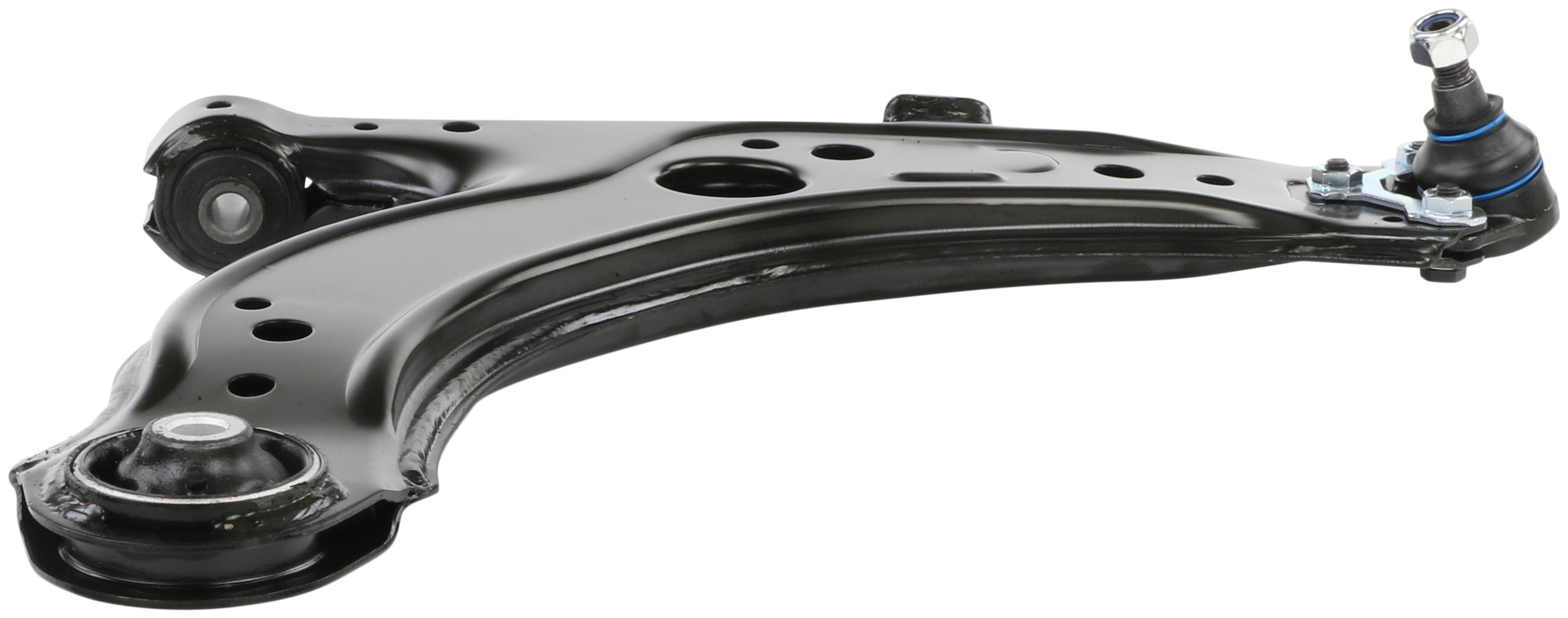

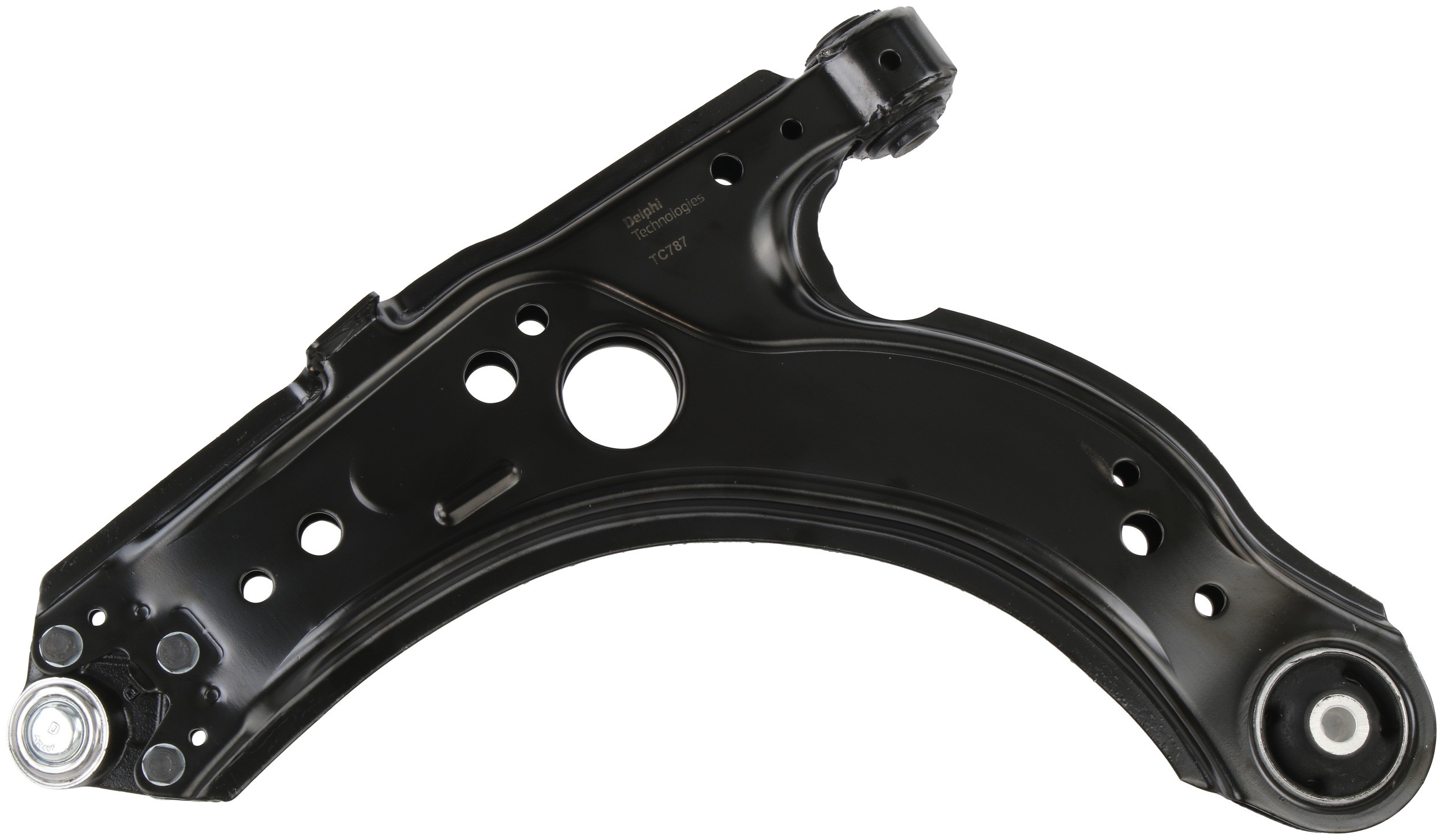

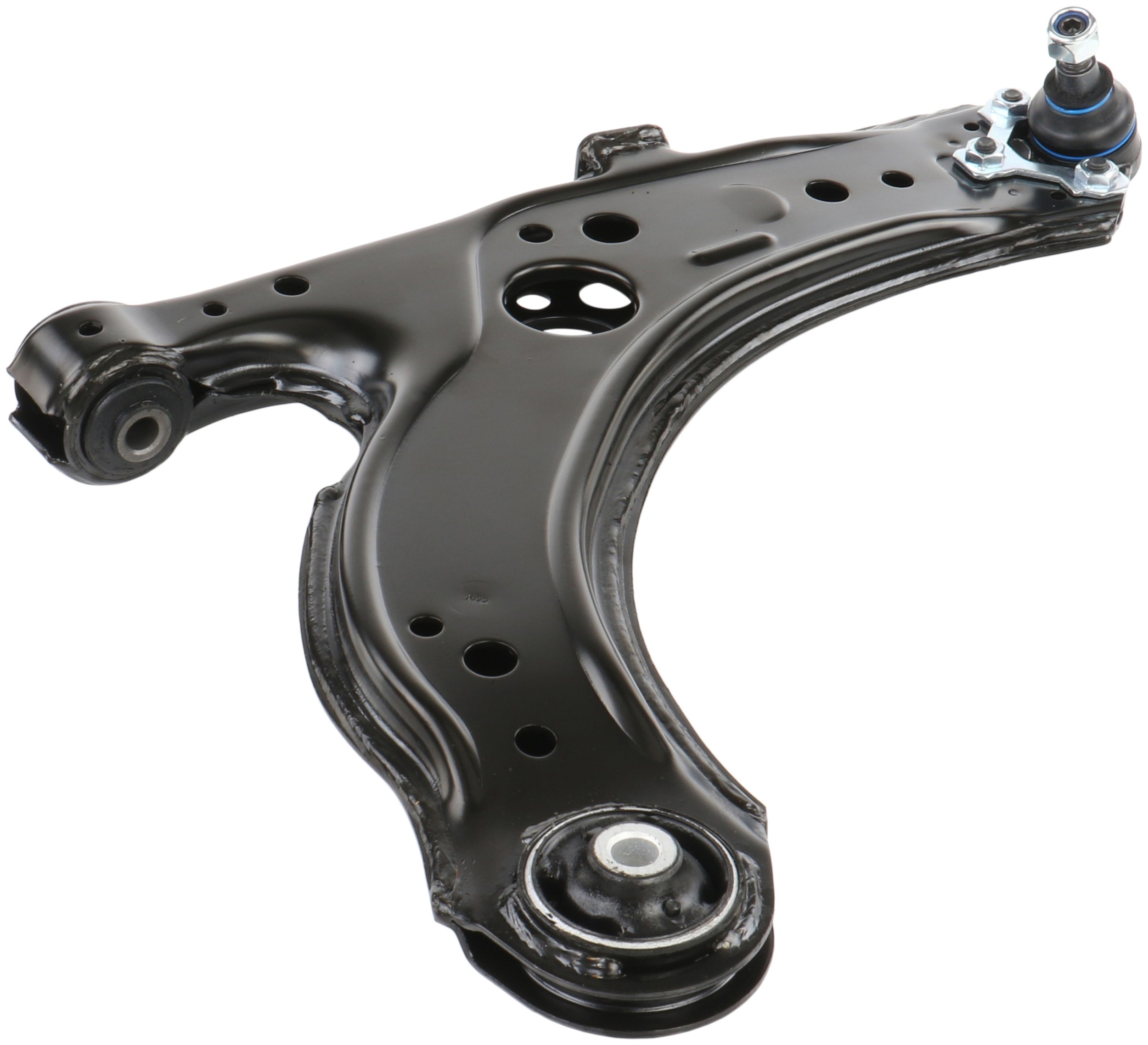

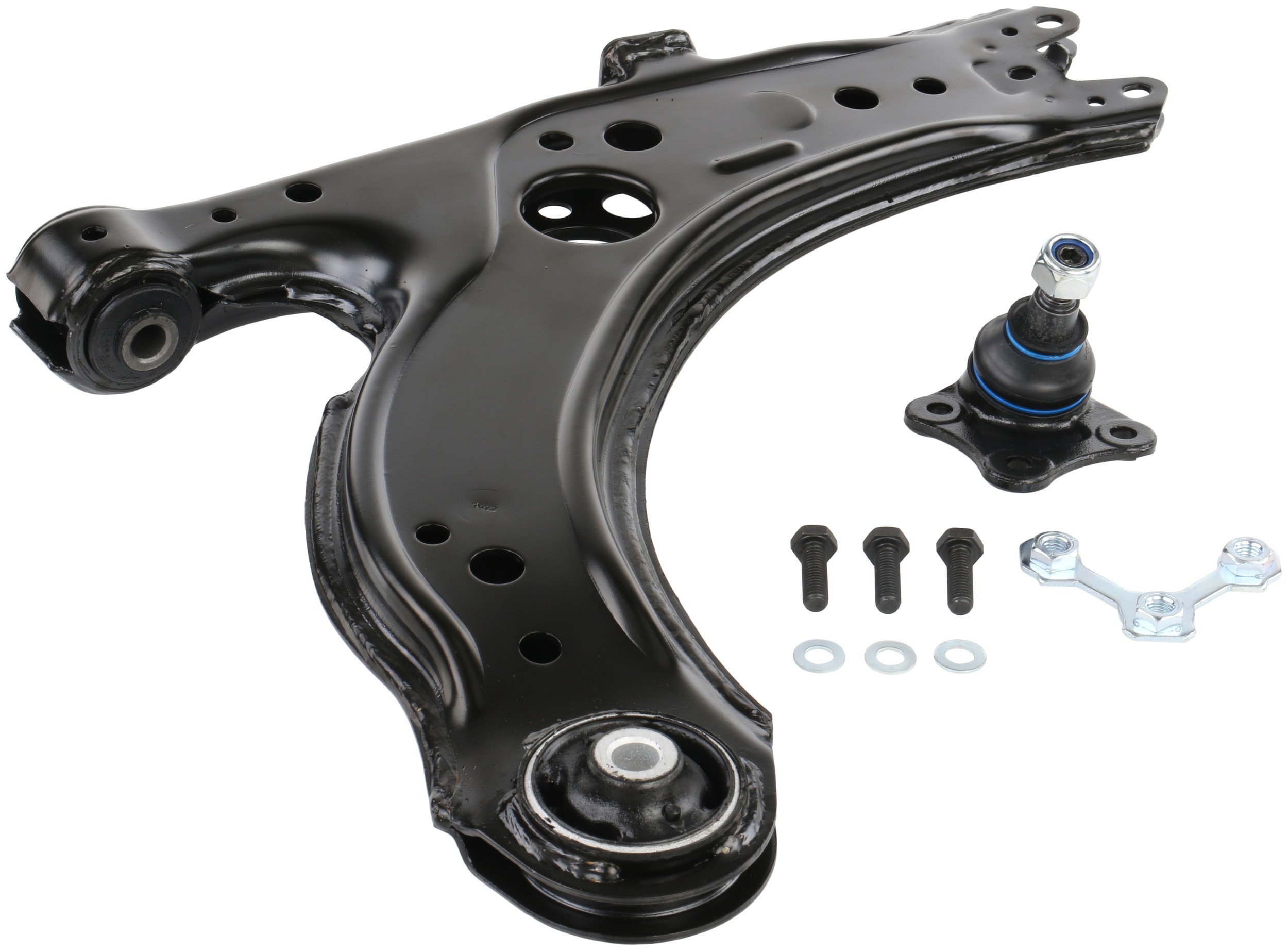

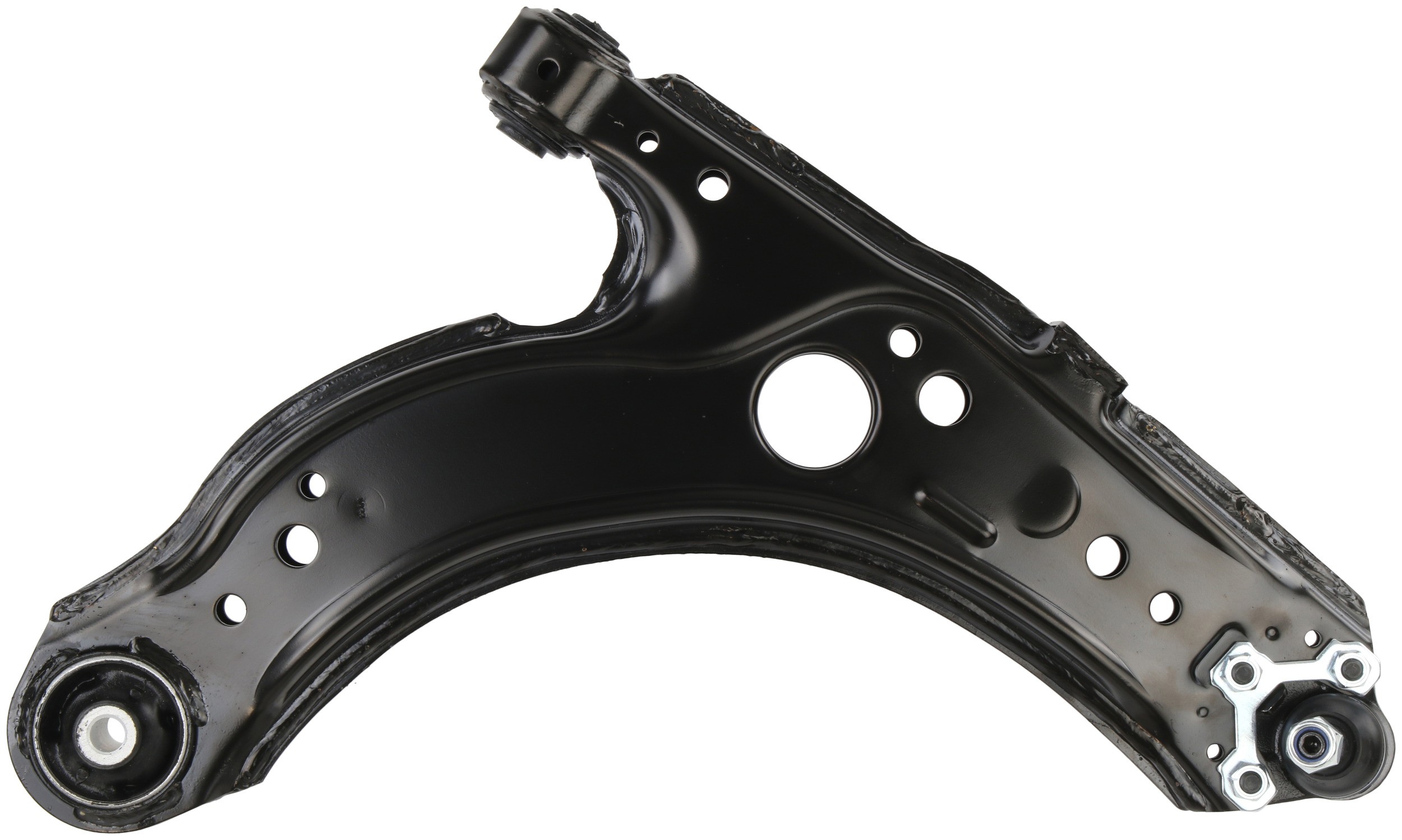

Delphi TC787 Suspension Control Arm and Ball Joint Assembly

Delphi TC787 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Grade Type	Premium
Mounting Hardware Included	Yes
Greaseable	No
Material	Steel
Ball Joint Stud Type	Threaded
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
9090	Chloroprene Rubber (CR)
2384	Yes
Position(s)	Front Right Lower
4887	156.00 MM
4887	6.142 IN
4890	15.50 MM
4890	0.610 IN
Bushing Type	Rubber
Boot Colour	Black
Bearing Material	Plastic
Length	466.10 MM
2386	Stamped
Length	18.350 IN
Thread Direction	Clockwise (Right)
Finish	Black
4241	Yes
6529	Power

Vehicle Applications:

Make	Model	Years
Volkswagen	Beetle	1998 to 2010
Volkswagen	Golf City	2007 to 2010
Volkswagen	Golf	1999 to 2006
Volkswagen	Jetta City	2007 to 2009
Volkswagen	Jetta	1999 to 2005
