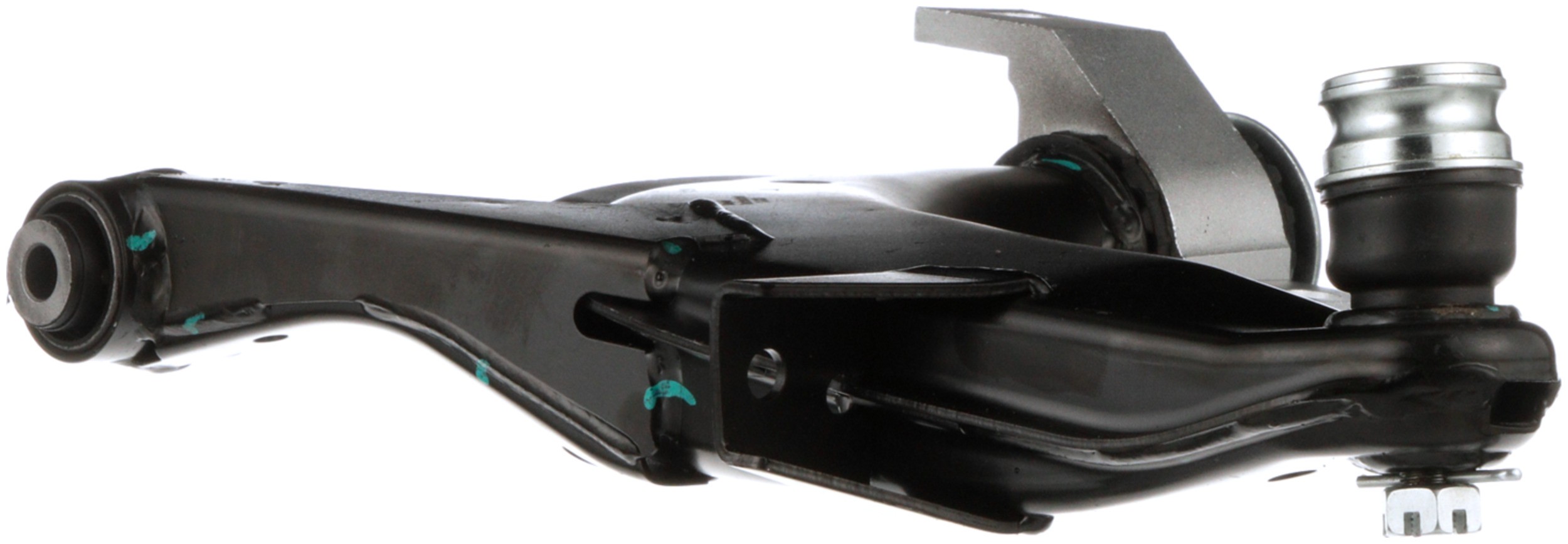

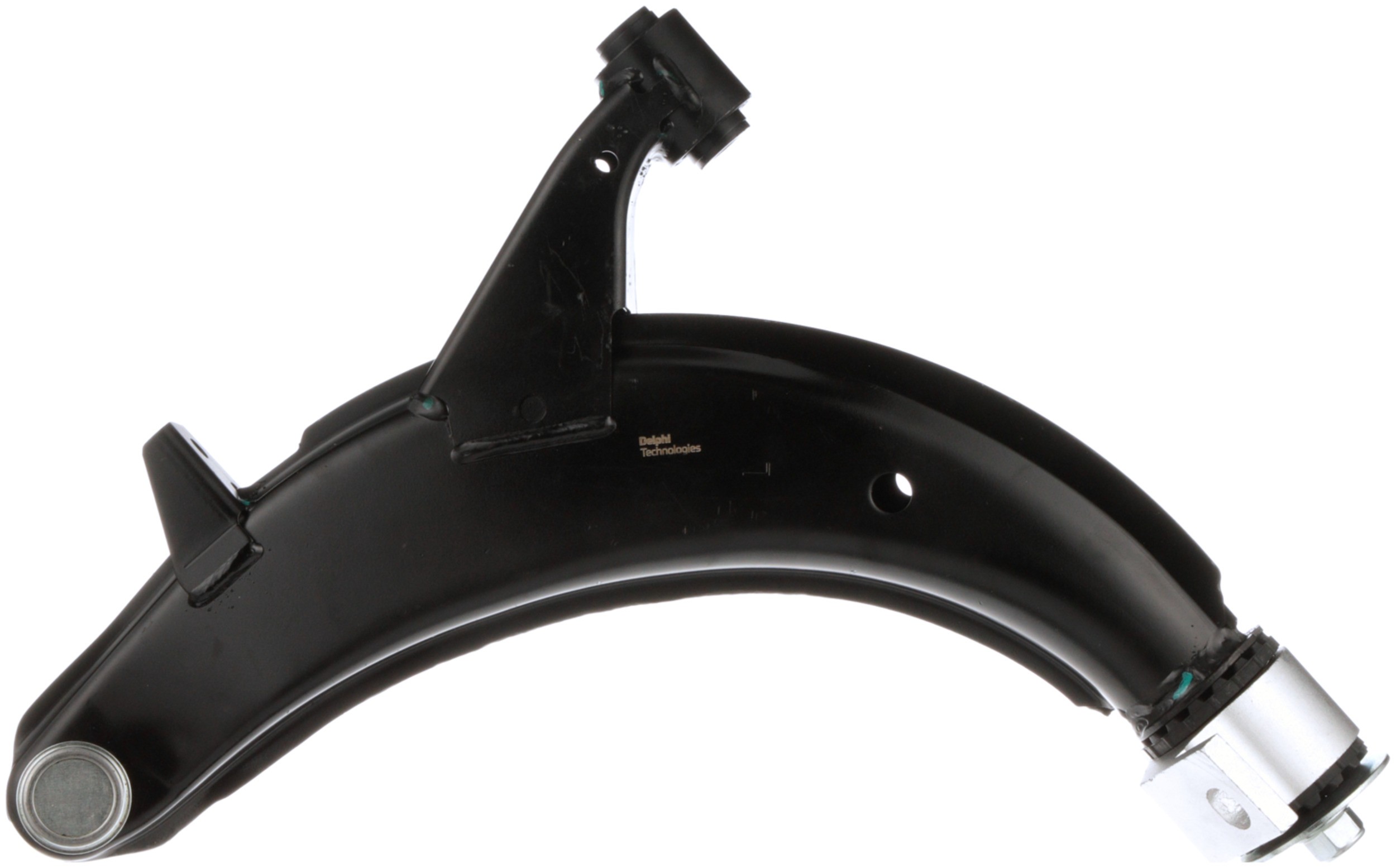

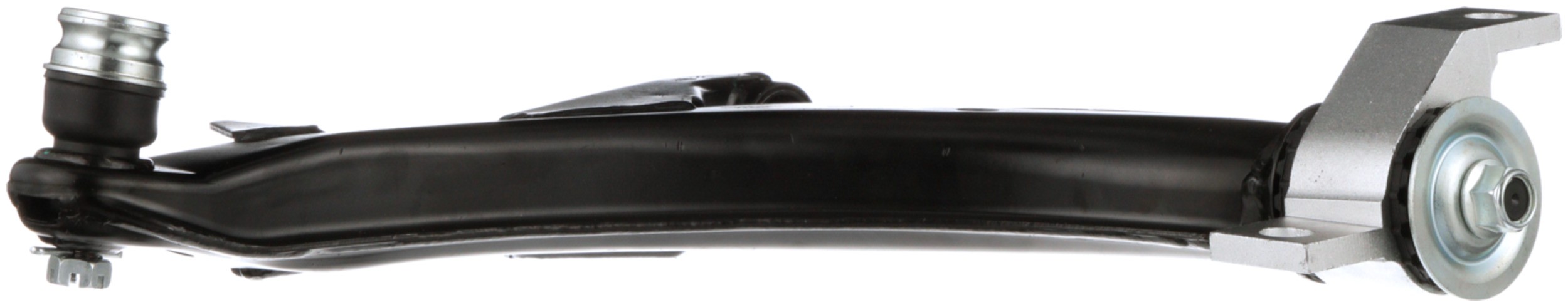

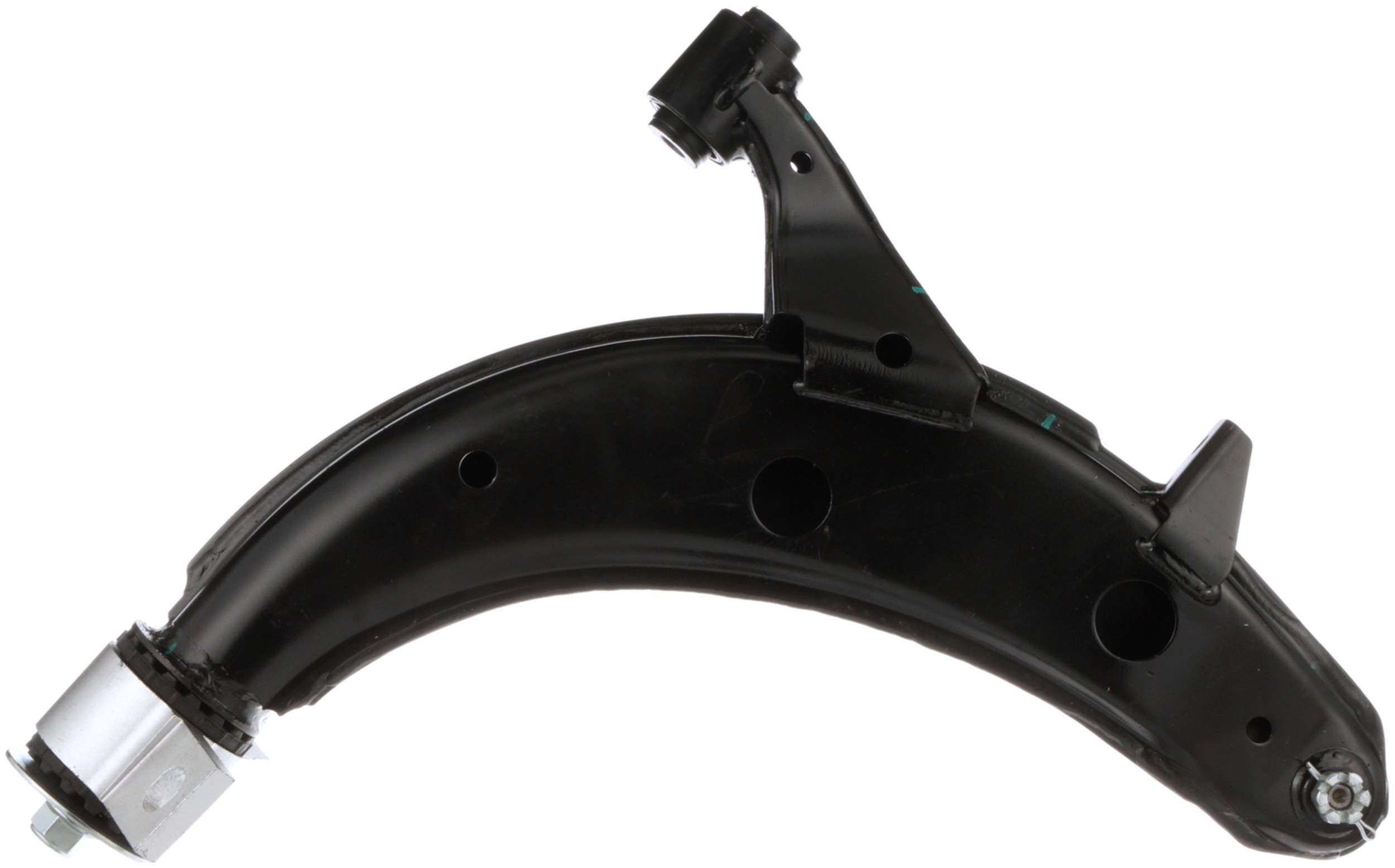

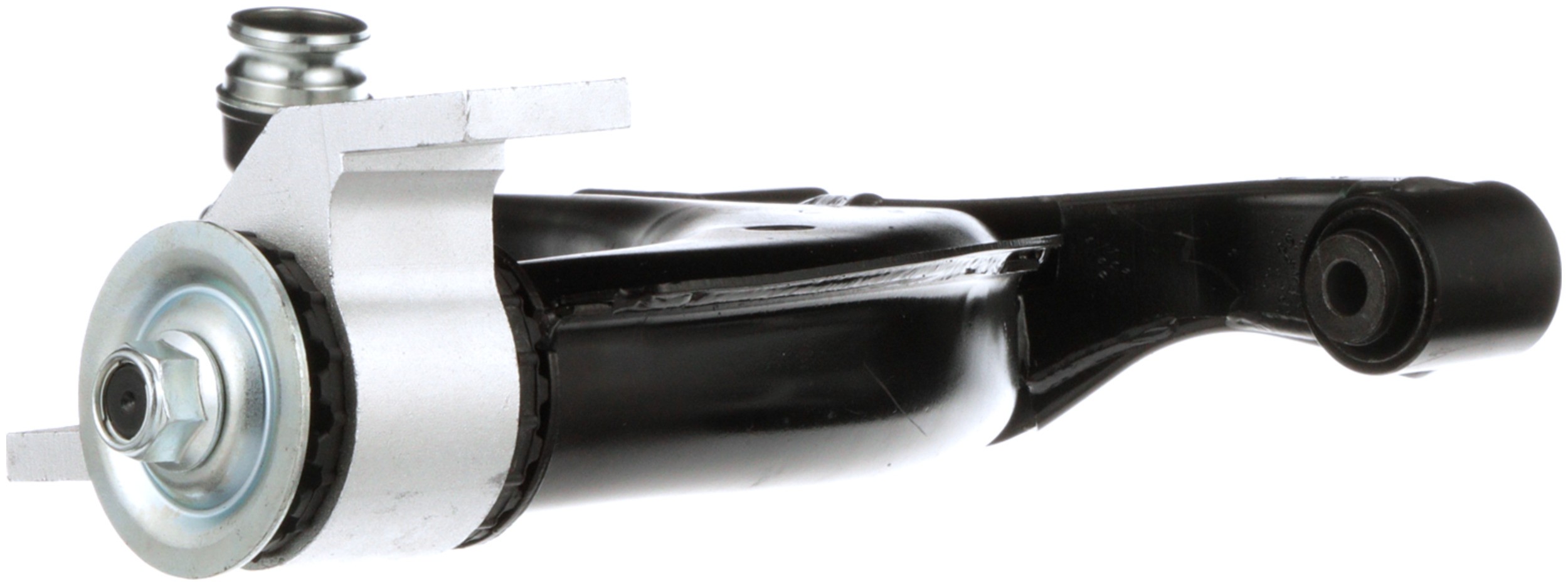

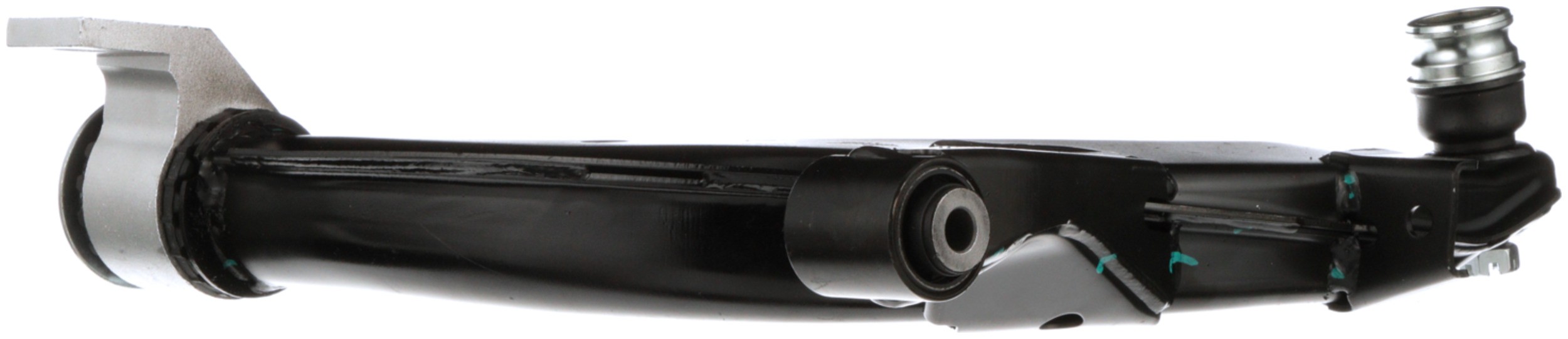

Delphi TC7960 Suspension Control Arm and Ball Joint Assembly

Delphi TC7960 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	Front Left Lower
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Stamped
2384	Yes
Mounting Hole Diameter	0.484 IN
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Mounting Hole Diameter	0.610 IN
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Grade Type	Premium
Mounting Hardware Included	Yes
Mounting Hole Diameter	15.50 MM
Mounting Hole Diameter	15.50 MM
Mounting Hole Diameter	12.30 MM
Length	16.417 IN
Length	417.00 MM
Material	Steel
4887	100.00 MM
4887	3.937 IN
4890	80.20 MM
4890	3.157 IN
Mounting Hole Diameter	0.610 IN
