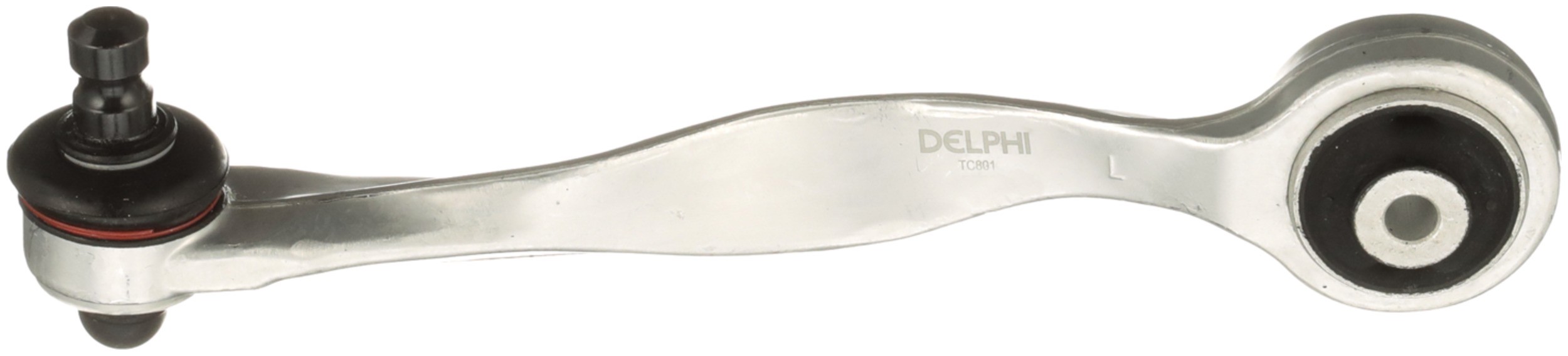

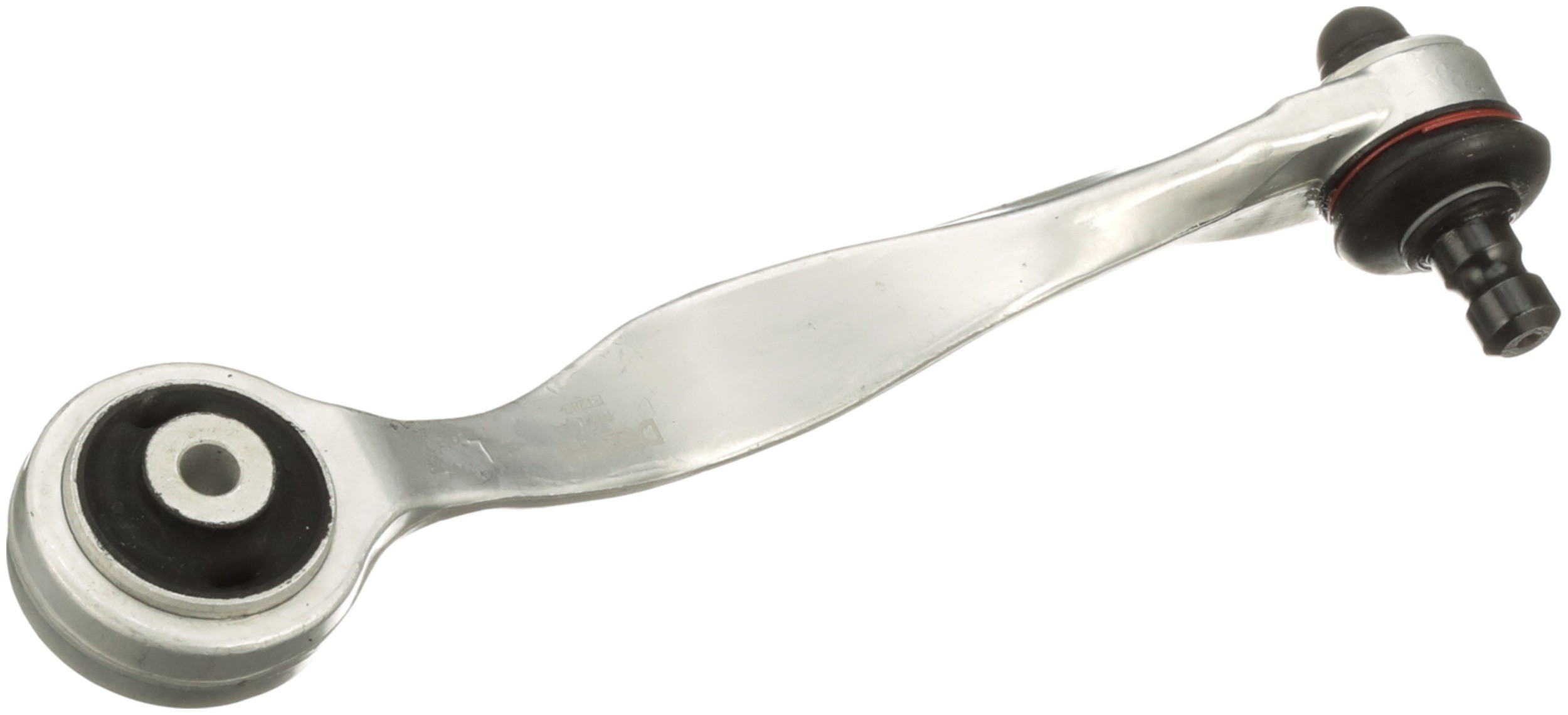

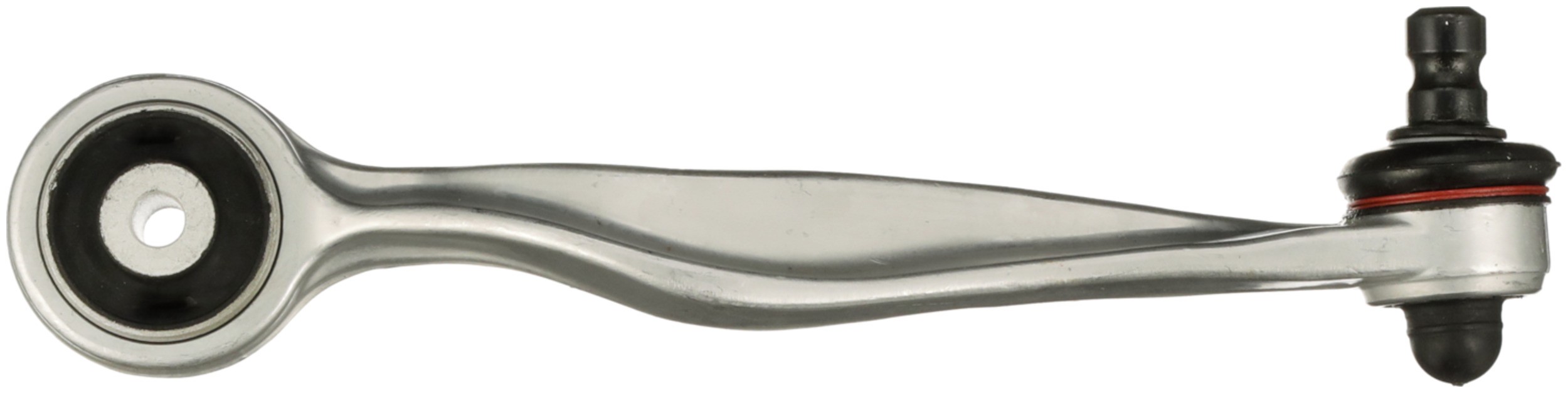

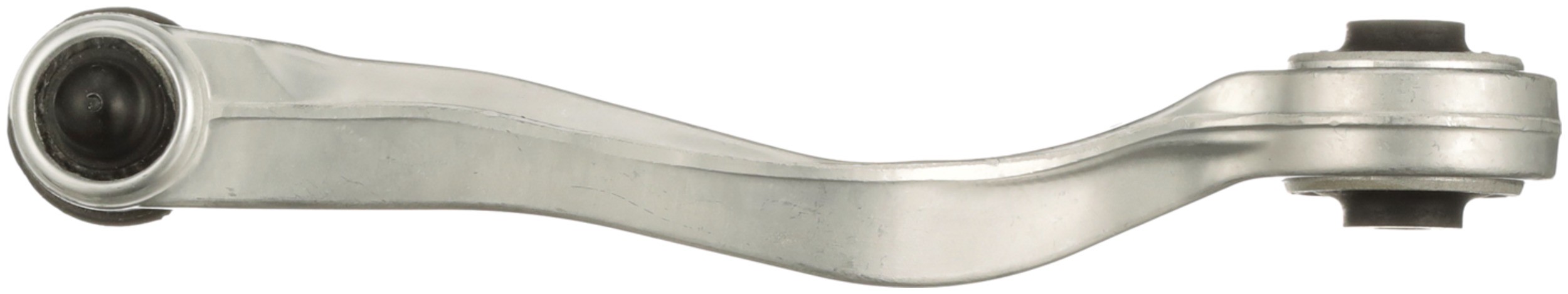

Delphi TC801 Suspension Control Arm and Ball Joint Assembly

Delphi TC801 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Chloroprene Rubber (CR)
Length	300.00 MM
Length	11.811 IN
4887	54.00 MM
4887	2.126 IN
4890	50.00 MM
4890	1.969 IN

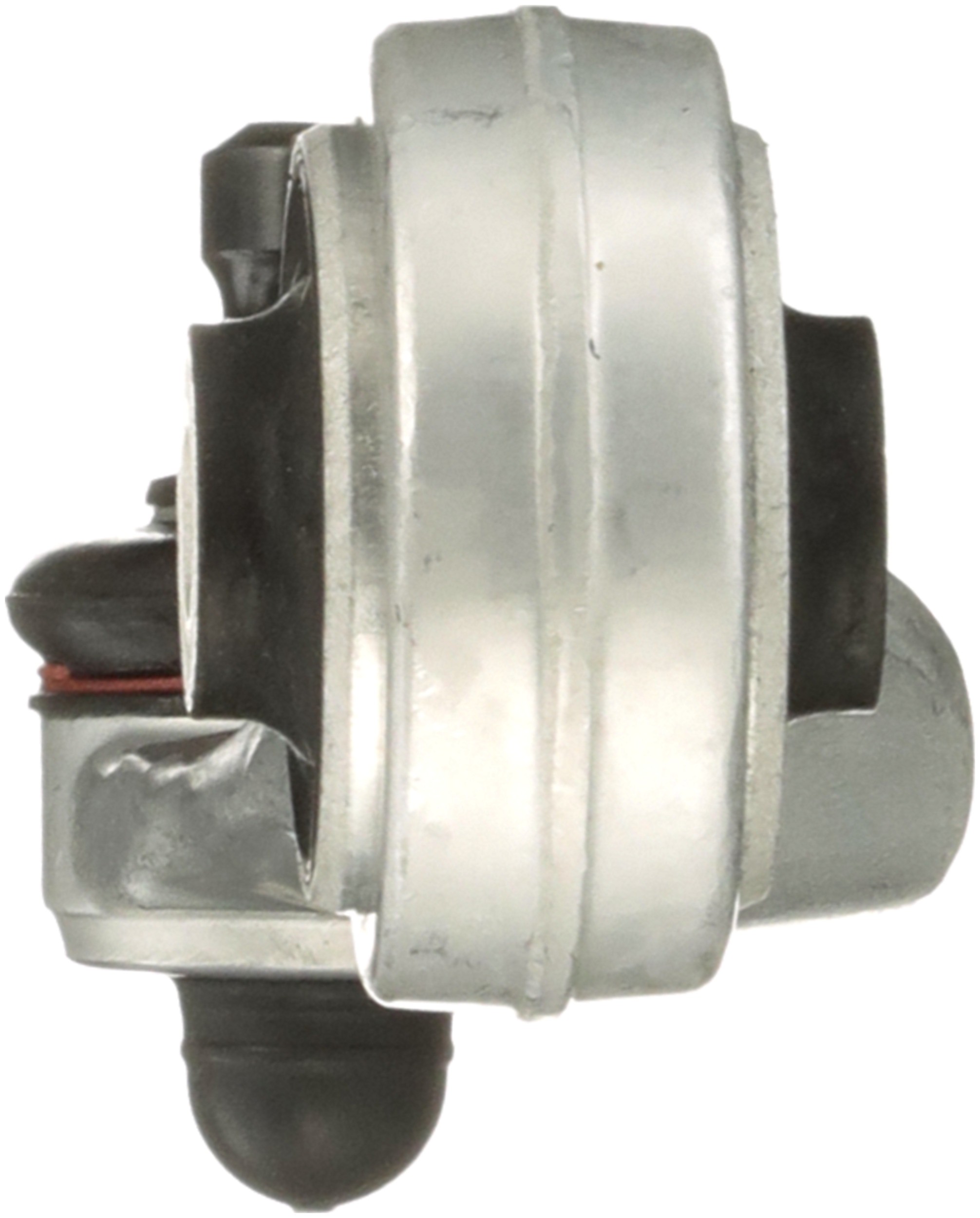

Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium

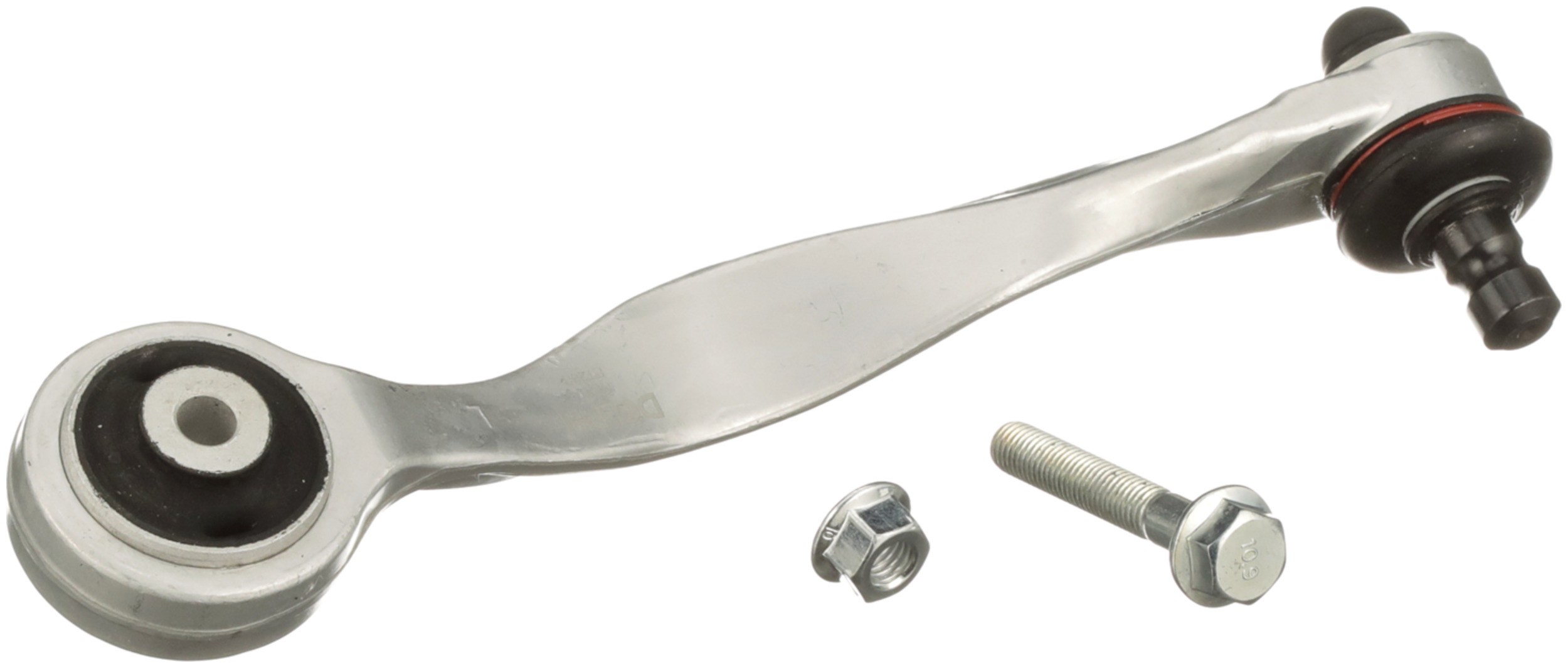

Mounting Hardware Included	Yes
Material	Aluminum

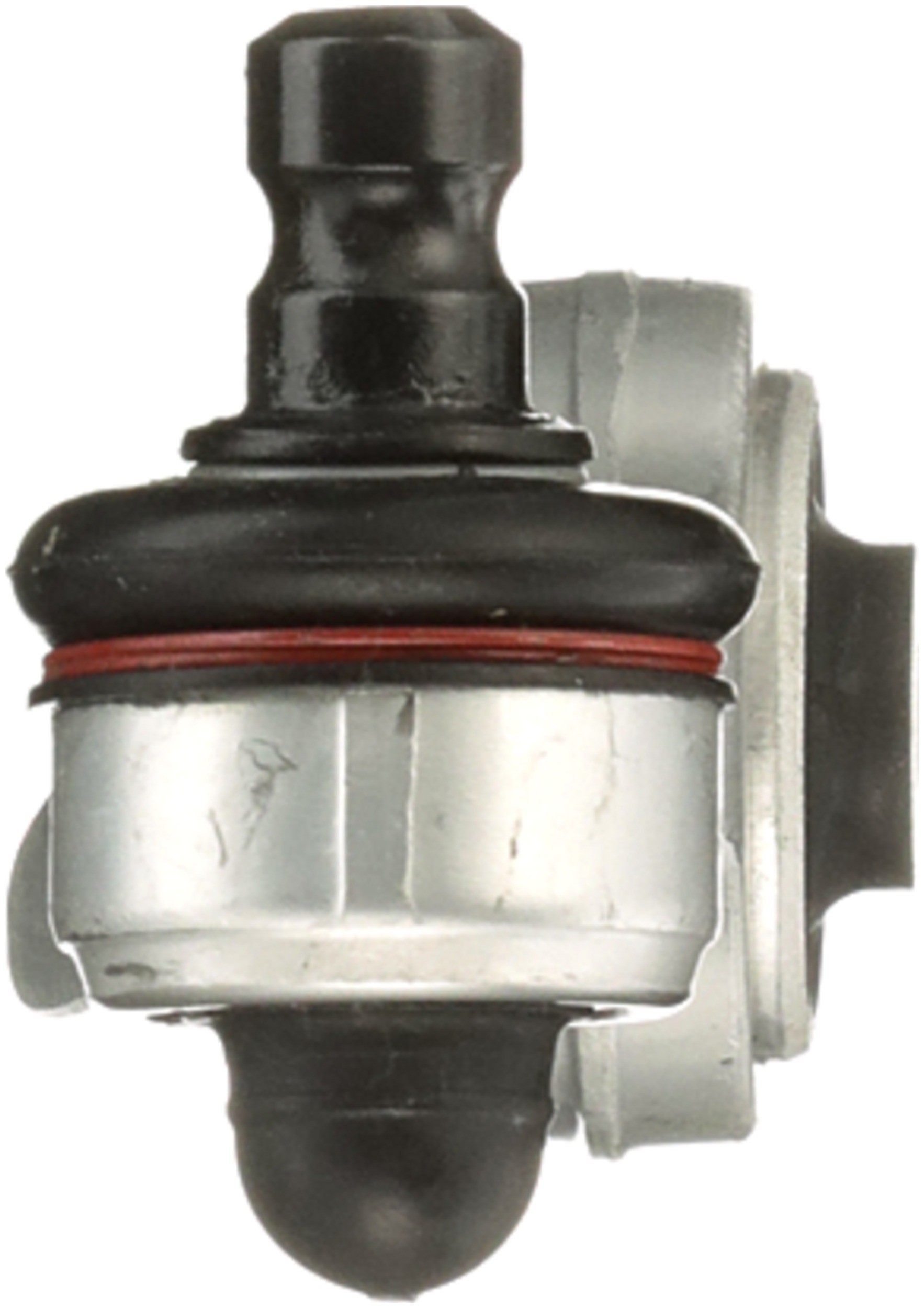

Ball Joint Stud Type	Grooved
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Mounting Hole Diameter	10.20 MM
Mounting Hole Diameter	0.402 IN
6529	Power
2386	Casting/Forged
2384	Yes
Position(s)	Front Left Upper Rearward

Vehicle Applications:

Make	Model	Years
Audi	A4 Quattro	1996 to 2009
Audi	A4	1996 to 2009
Audi	A6 Quattro	1998 to 2004
Audi	A6	1997 to 2004
Audi	A8 Quattro	1997 to 2003
Audi	A8	1997 to 1999
Audi	Allroad Quattro	2001 to 2005
Audi	RS6	2003 to 2004
Audi	S4	2000 to 2006
Audi	S6	2002 to 2003
Audi	S8	2001 to 2003
Volkswagen	Passat	1998 to 2005
