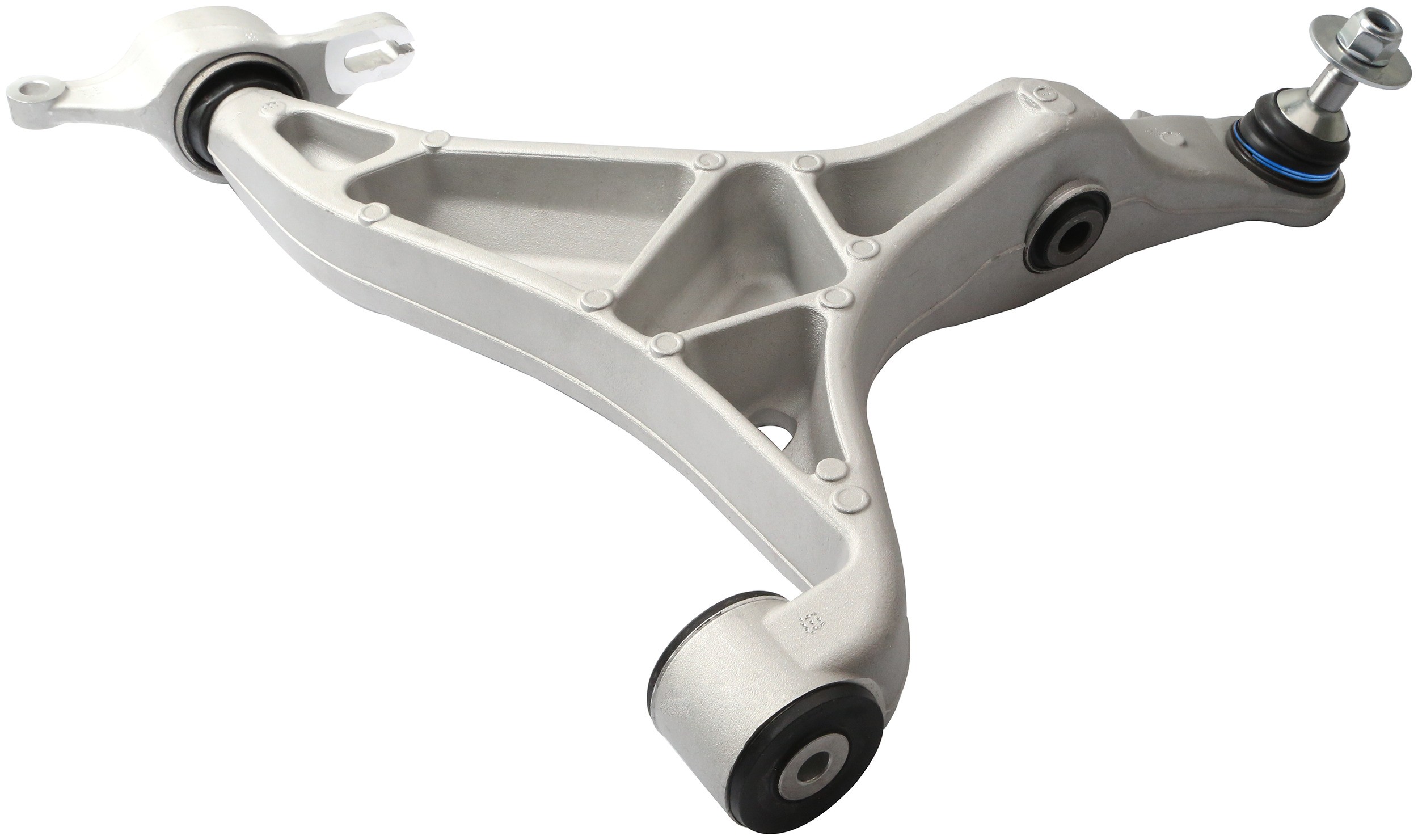

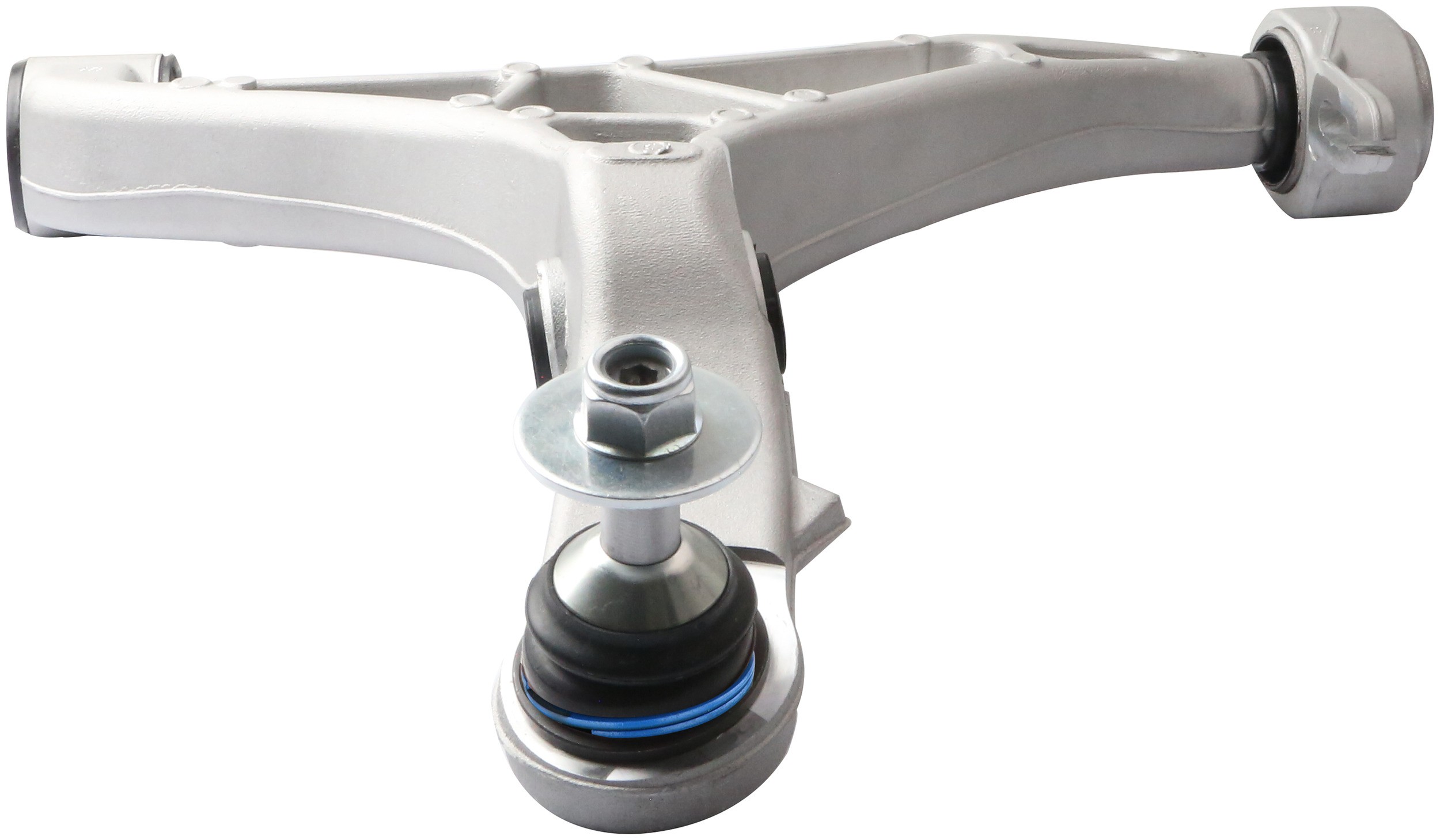

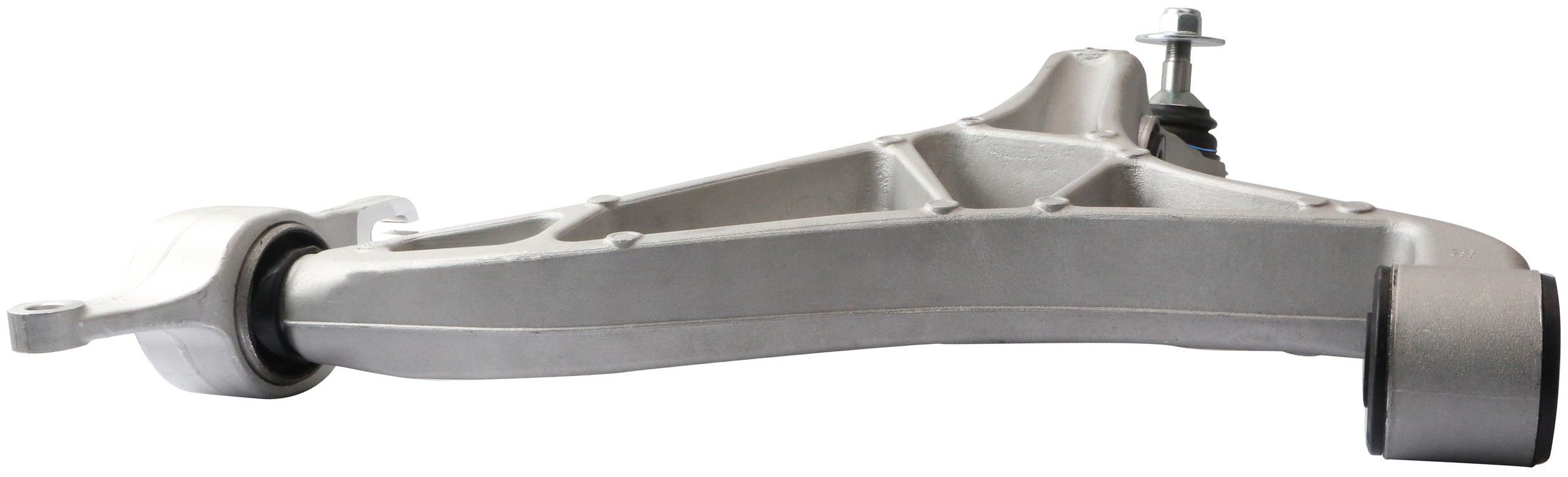

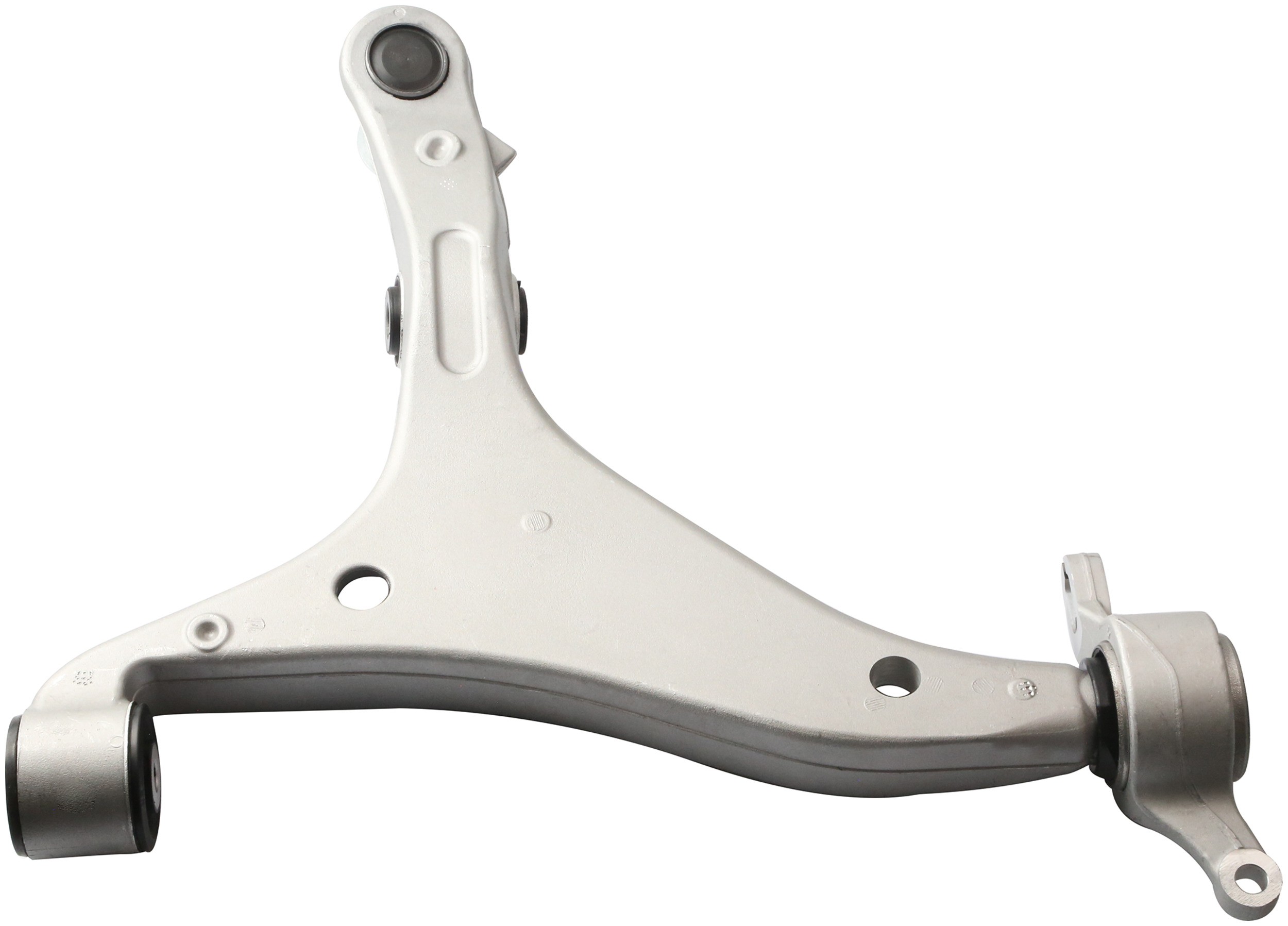

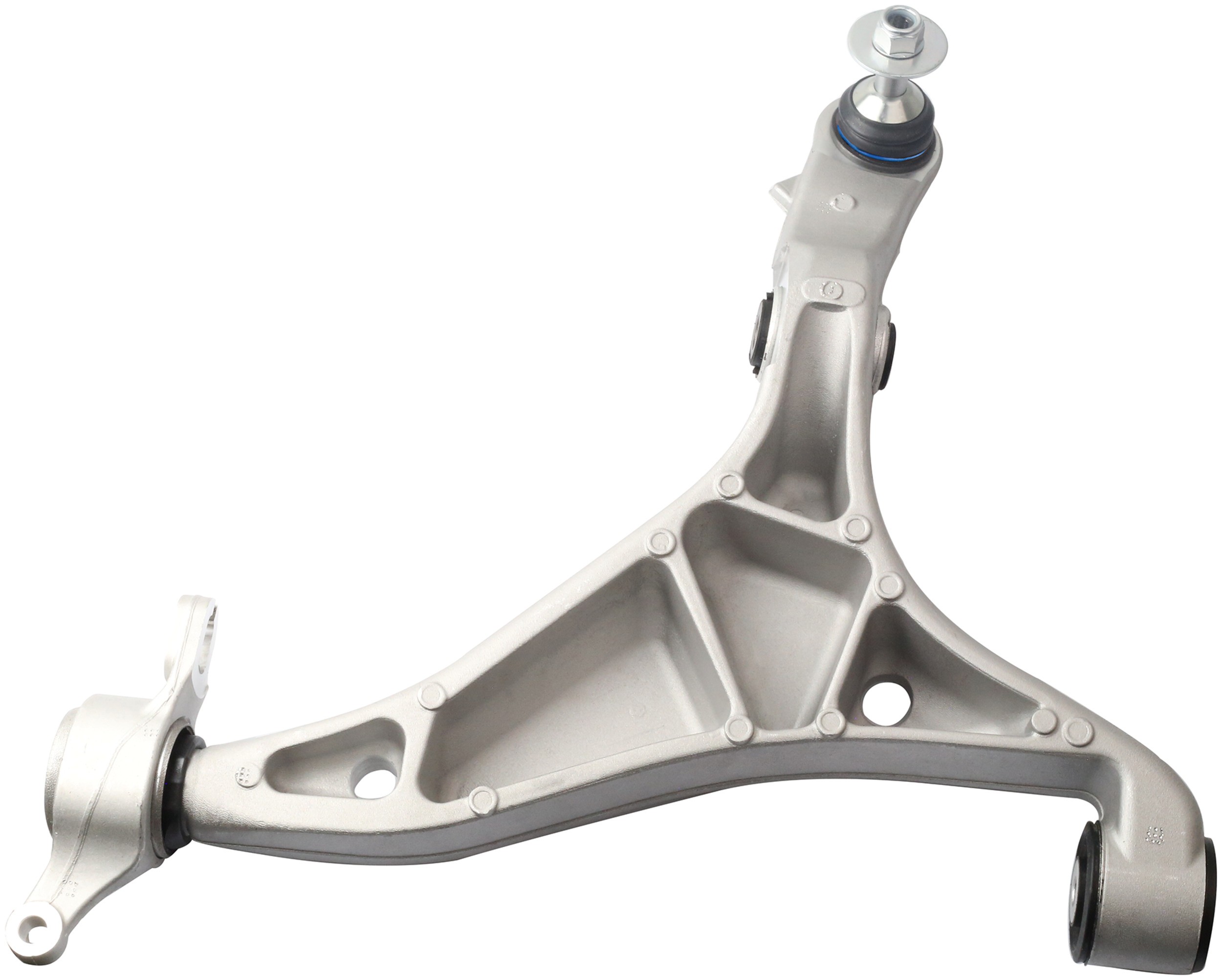

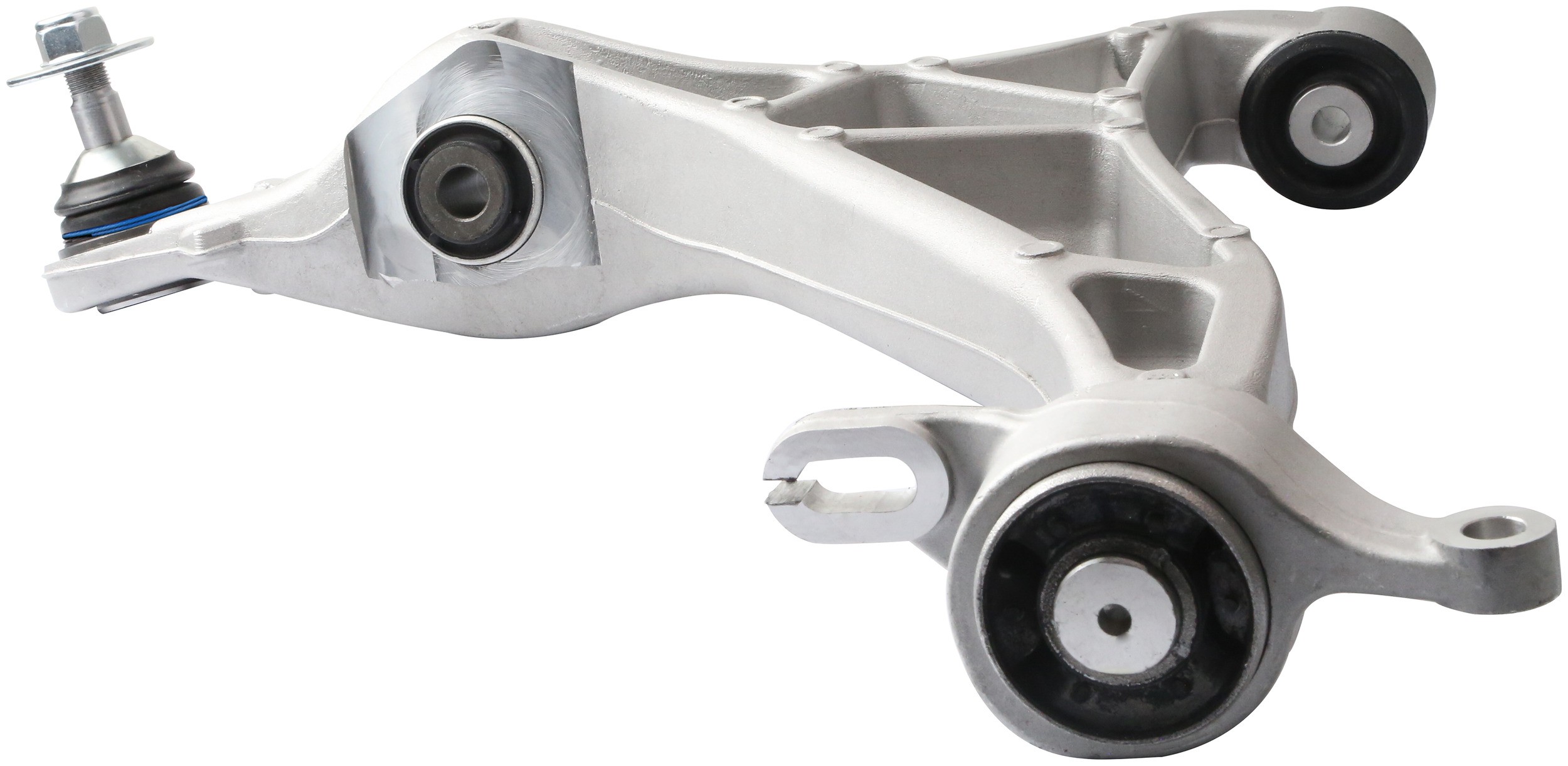

Delphi TC8096 Suspension Control Arm and Ball Joint Assembly

Delphi TC8096 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	14.30 MM
Material	Aluminum
Mounting Hole Diameter	0.555 IN
Mounting Hole Diameter	0.717 IN
Mounting Hole Diameter	0.843 IN
Mounting Hole Diameter	0.638 IN
Finish	Gray
Mounting Hole Diameter	0.563 IN
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Length	22.835 IN
Length	580.00 MM
Thread Direction	Clockwise (Right)
Mounting Hole Diameter	16.20 MM
Mounting Hole Diameter	21.40 MM
Mounting Hole Diameter	18.20 MM
Mounting Hole Diameter	14.10 MM
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
4890	0.992 IN
4890	25.20 MM
2384	Yes
Bushing Length	64.50 MM
Bushing Length	2.835 IN
Bushing Length	2.539 IN
Position(s)	Front Right Lower
4241	Yes
9090	Chloroprene Rubber (CR)
Mounting Hole Quantity	3
6529	Power
Bushing Type	Rubber
Bearing Material	Plastic
Bushing Inside Diameter	18.20 MM
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Bushing Inside Diameter	14.10 MM
Boot Colour	Black
Bushing Inside Diameter	0.717 IN
Bushing Inside Diameter	0.555 IN
Bushing Length	72.00 MM
Grade Type	Premium
Mounting Hardware Included	Yes
9532	503.00 MM
9532	19.803 IN
4887	22.835 IN
4887	580.00 MM
2386	Casting/Forged
