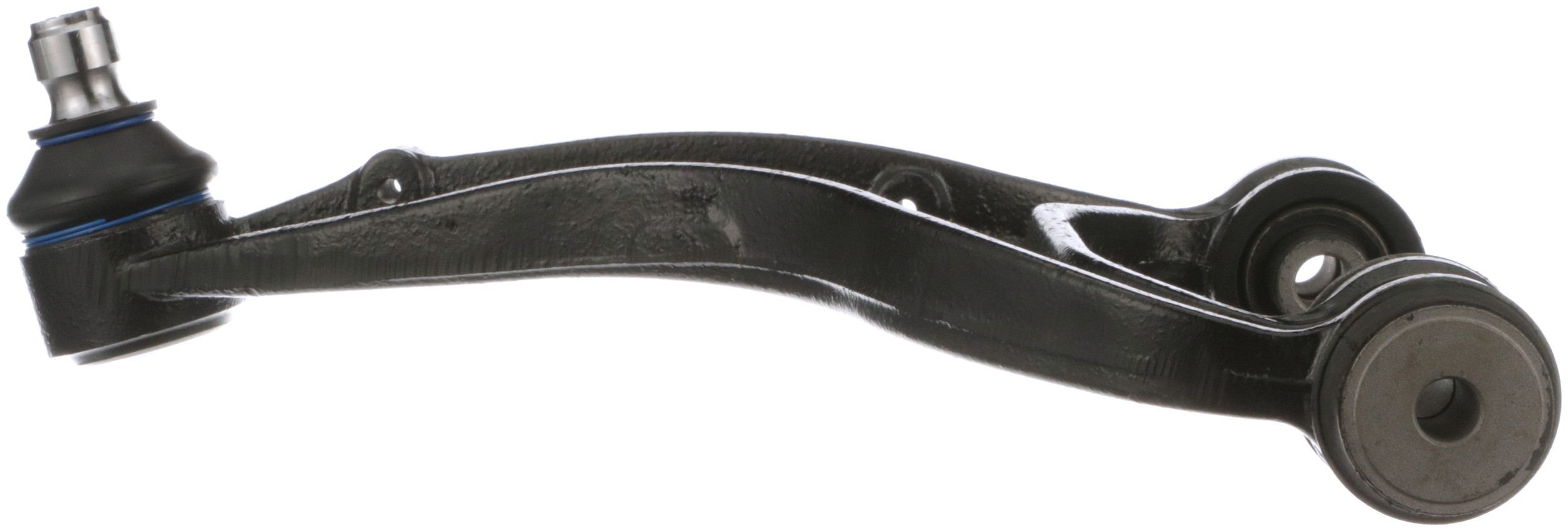

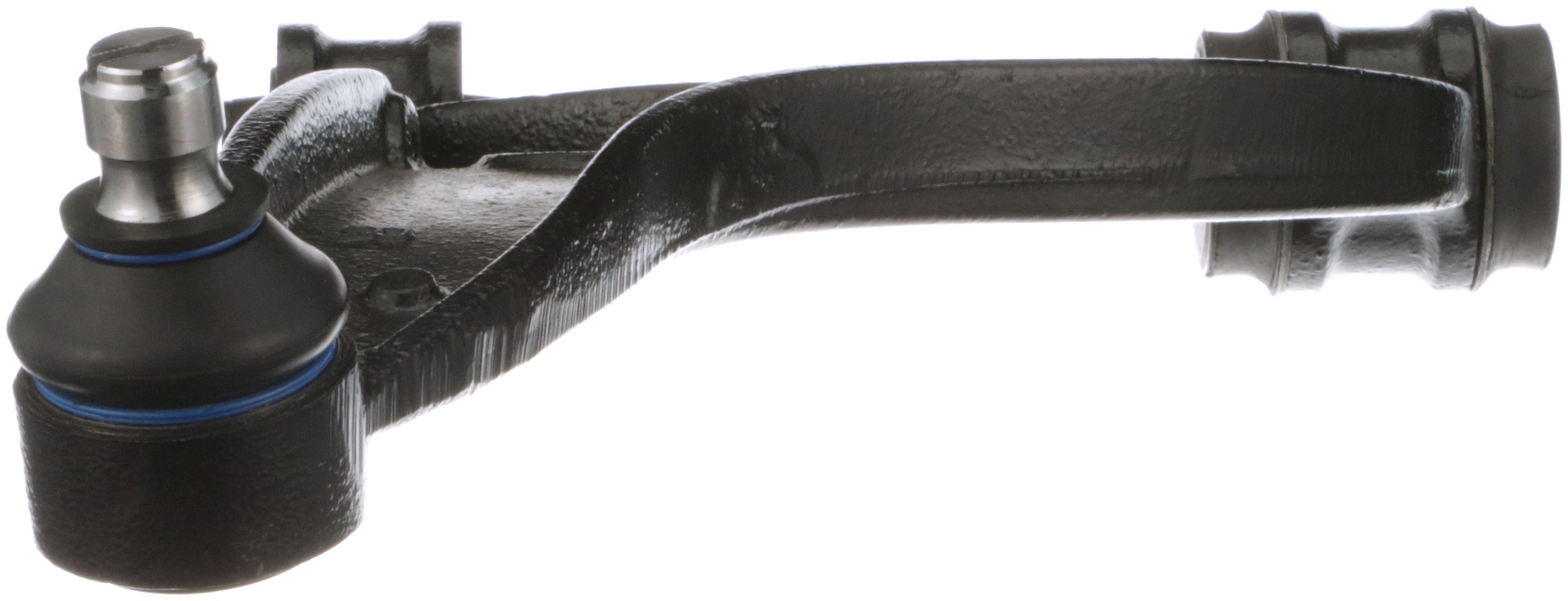

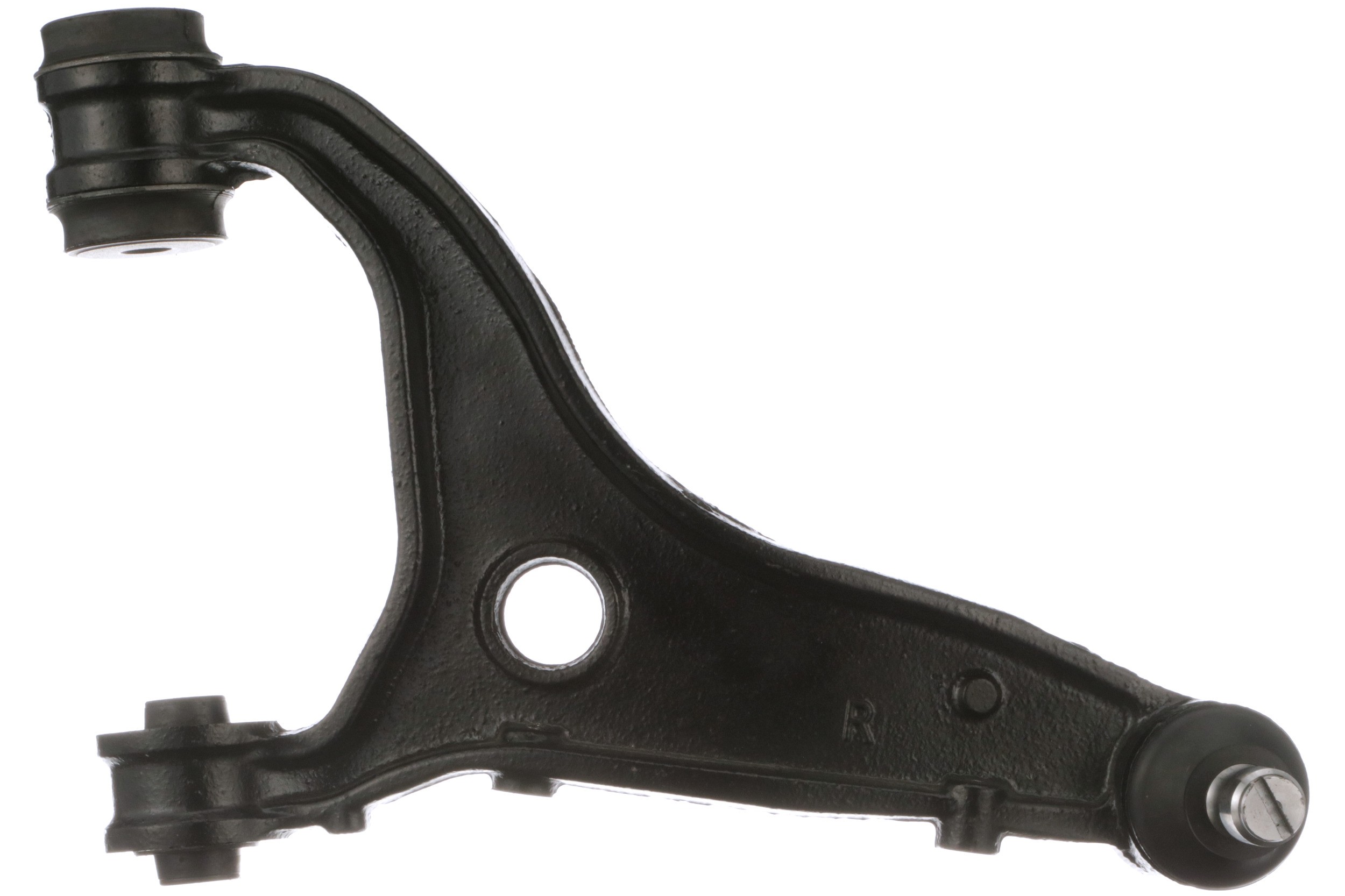

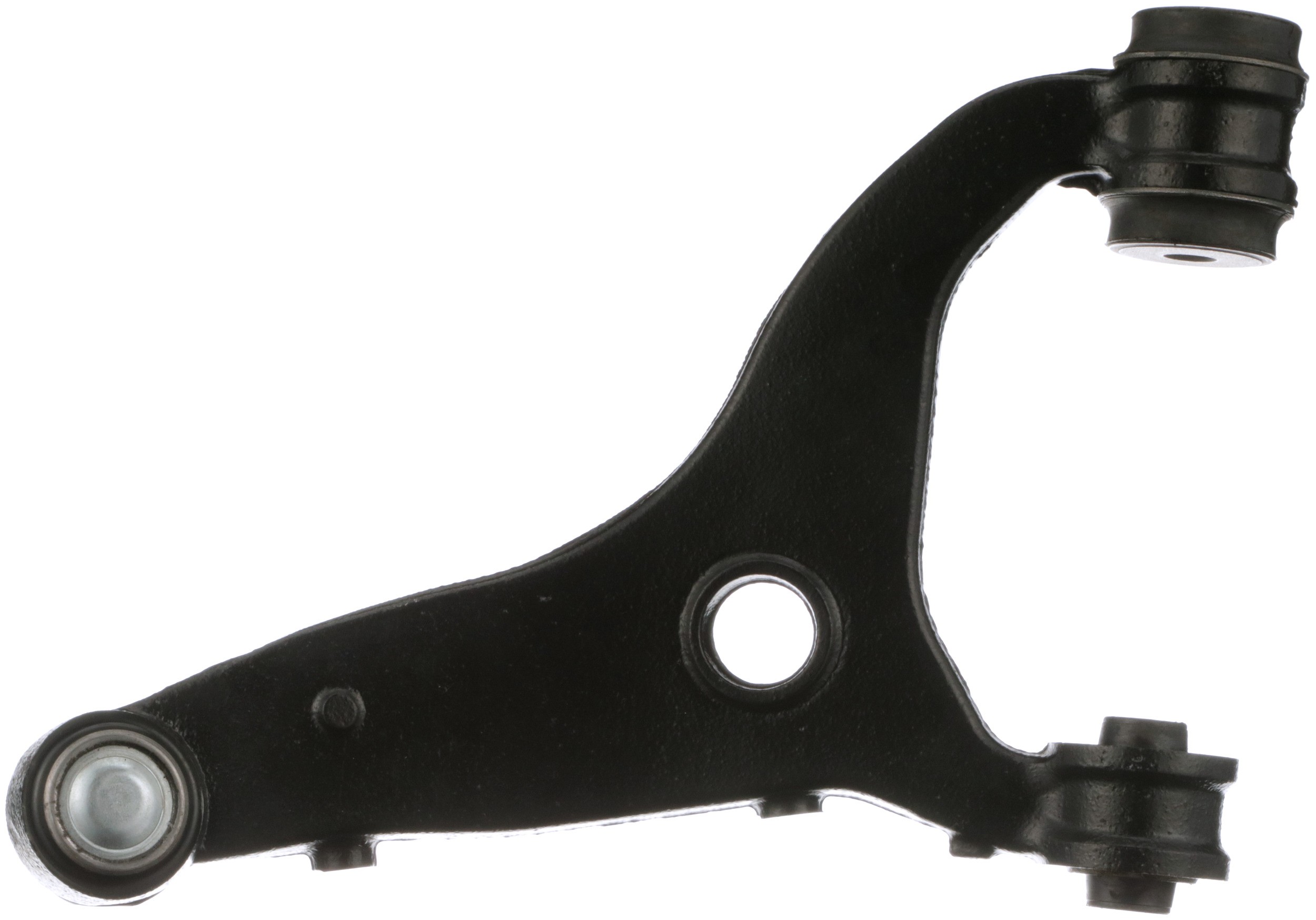

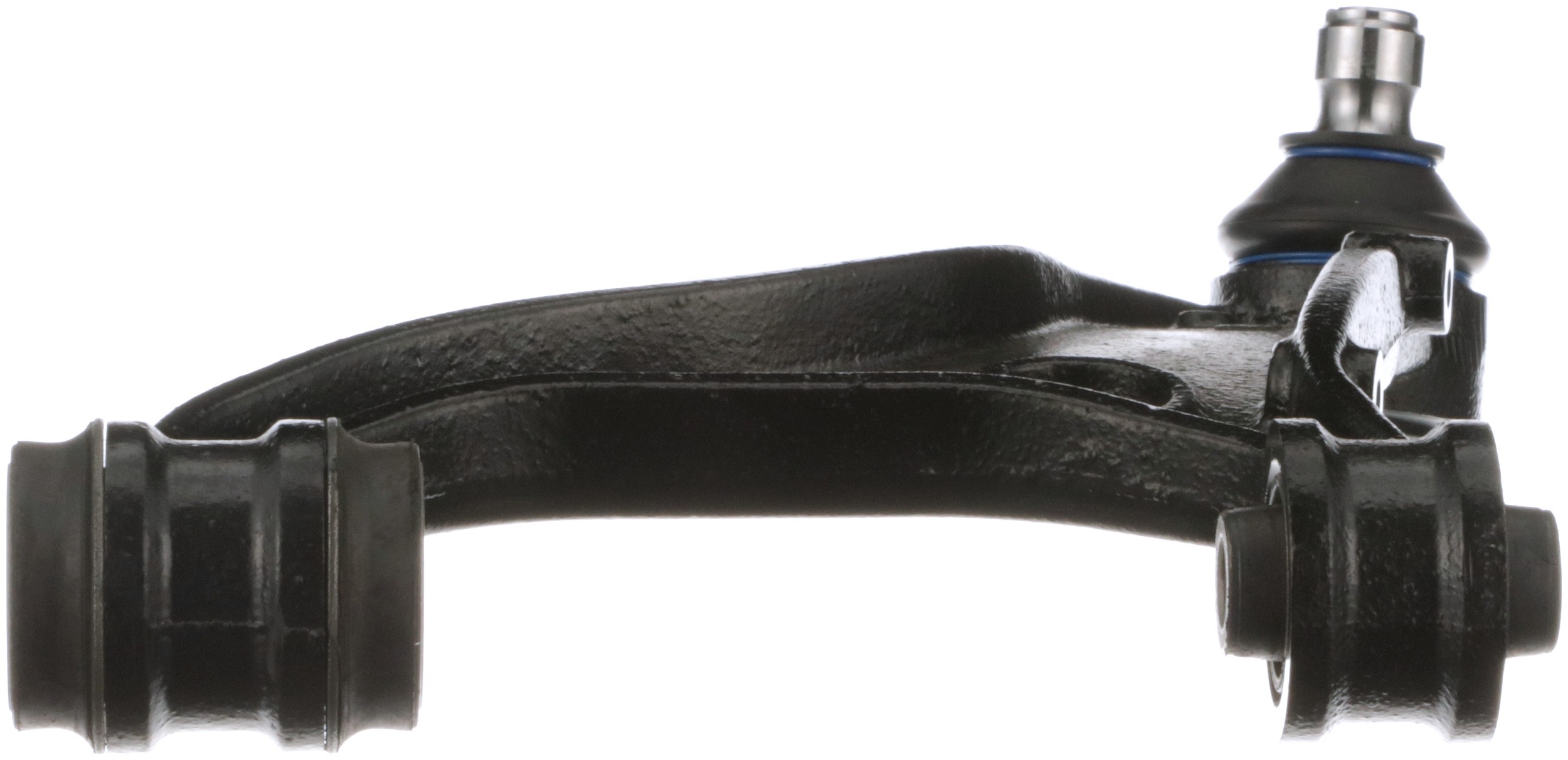

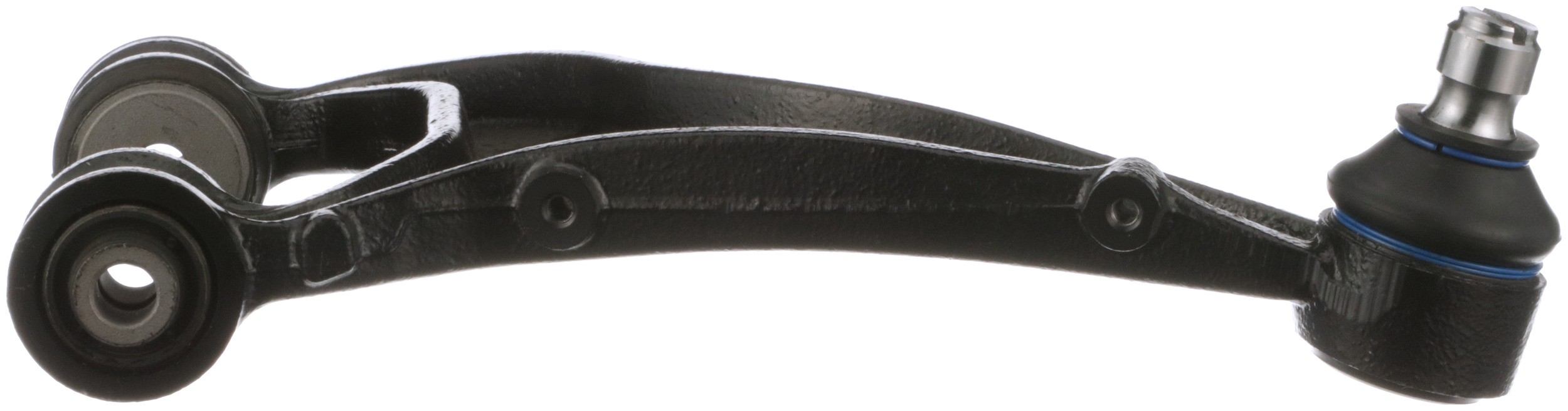

Delphi TC8309 Suspension Control Arm and Ball Joint Assembly

Delphi TC8309 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Attachment Type	Machined
Length	12.205 IN
Length	310.00 MM
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Stud Type	Grooved
Material	Cast Iron
Mounting Hardware Included	No
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Position(s)	Rear Right Upper
2384	Yes
2386	Casting/Forged
6529	Power
9090	Chloroprene Rubber (CR)
Bushing Length	1.949 IN
Bushing Length	2.362 IN
Bushing Length	49.50 MM
Bushing Length	60.00 MM
Bushing Inside Diameter	0.492 IN
Bushing Inside Diameter	0.492 IN
Bushing Inside Diameter	12.50 MM
Bushing Inside Diameter	12.50 MM
4887	255.00 MM
4887	10.039 IN
4890	70.50 MM
4890	2.776 IN
9532	228.00 MM
9532	8.976 IN
