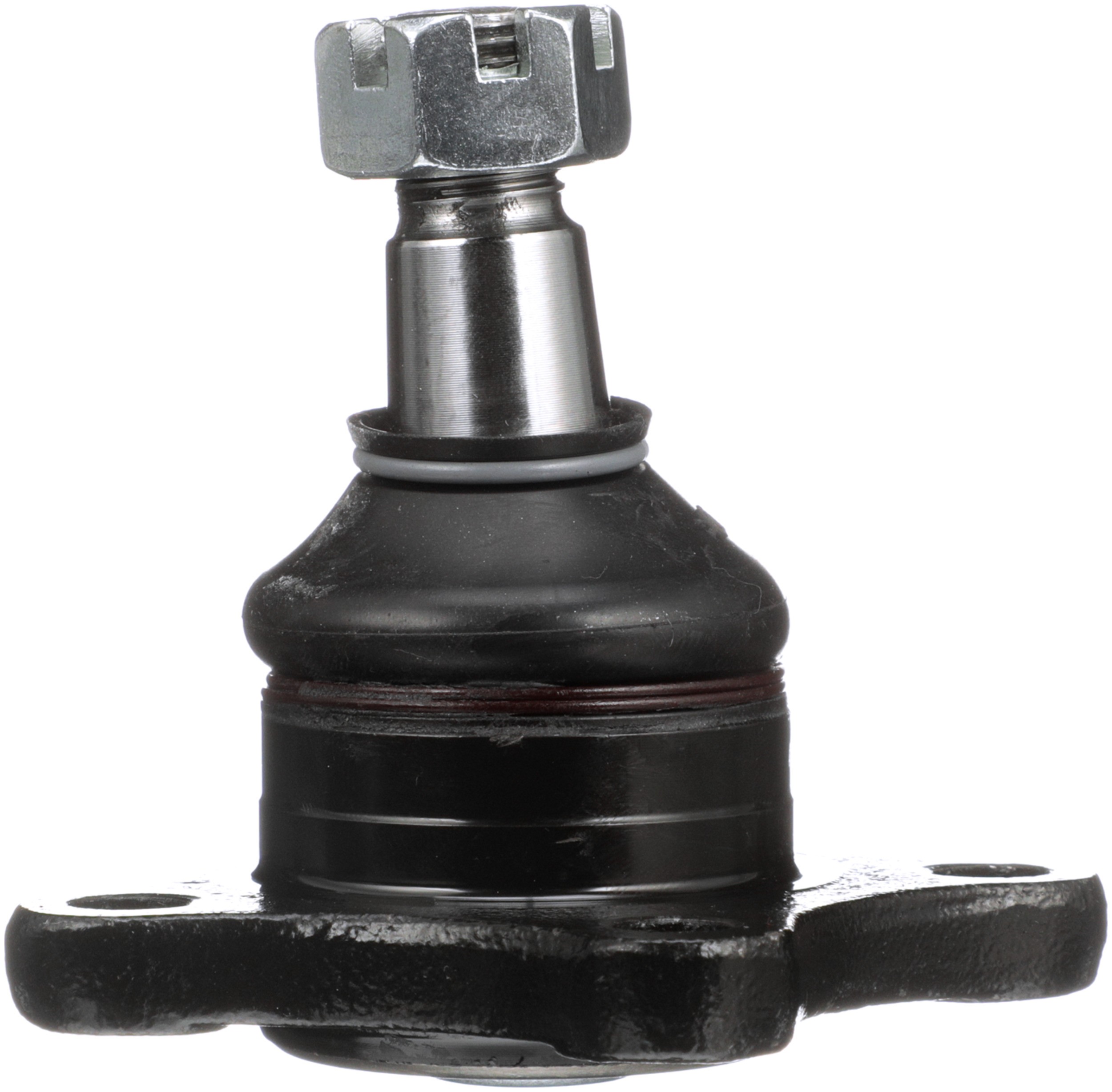

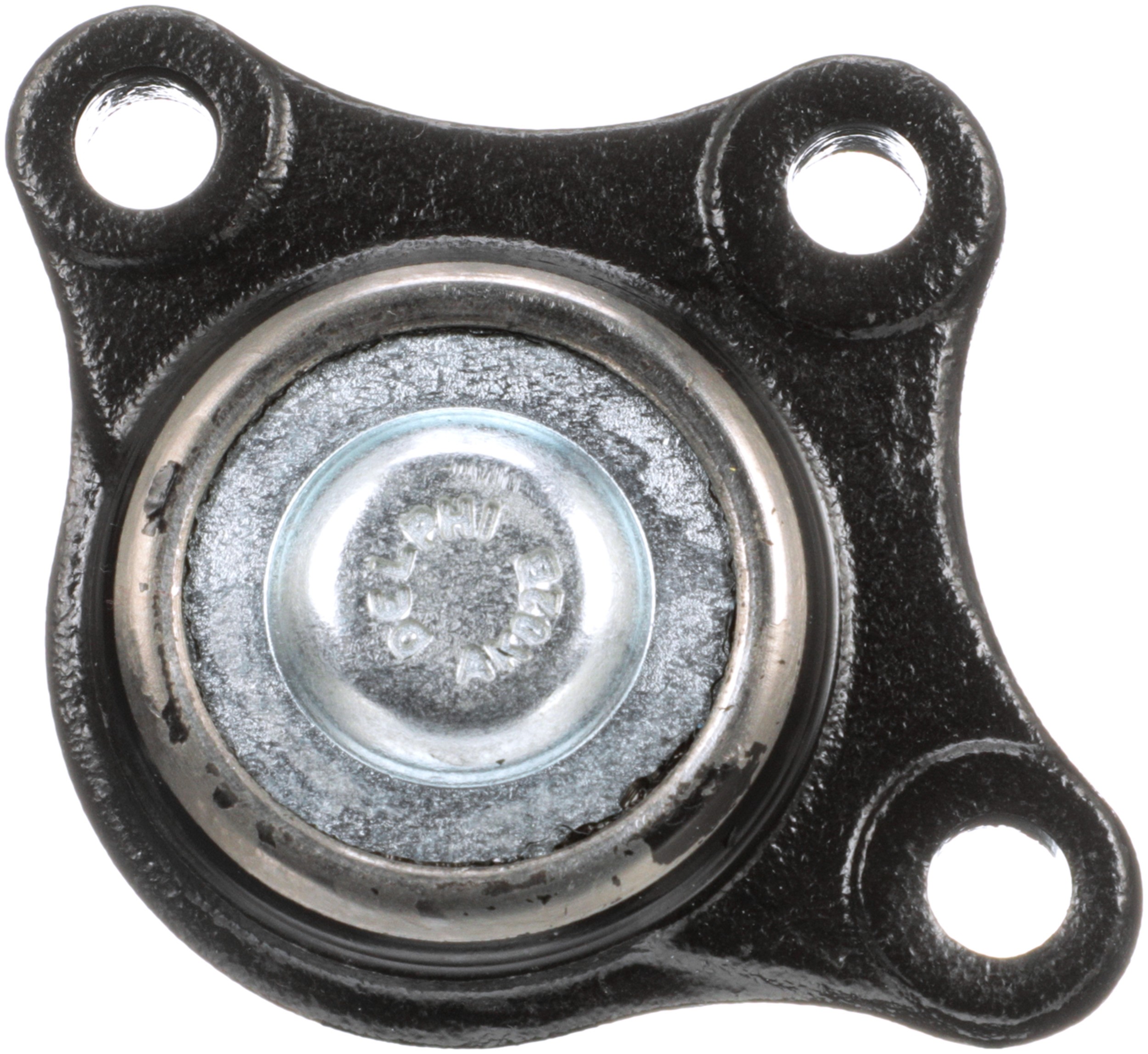

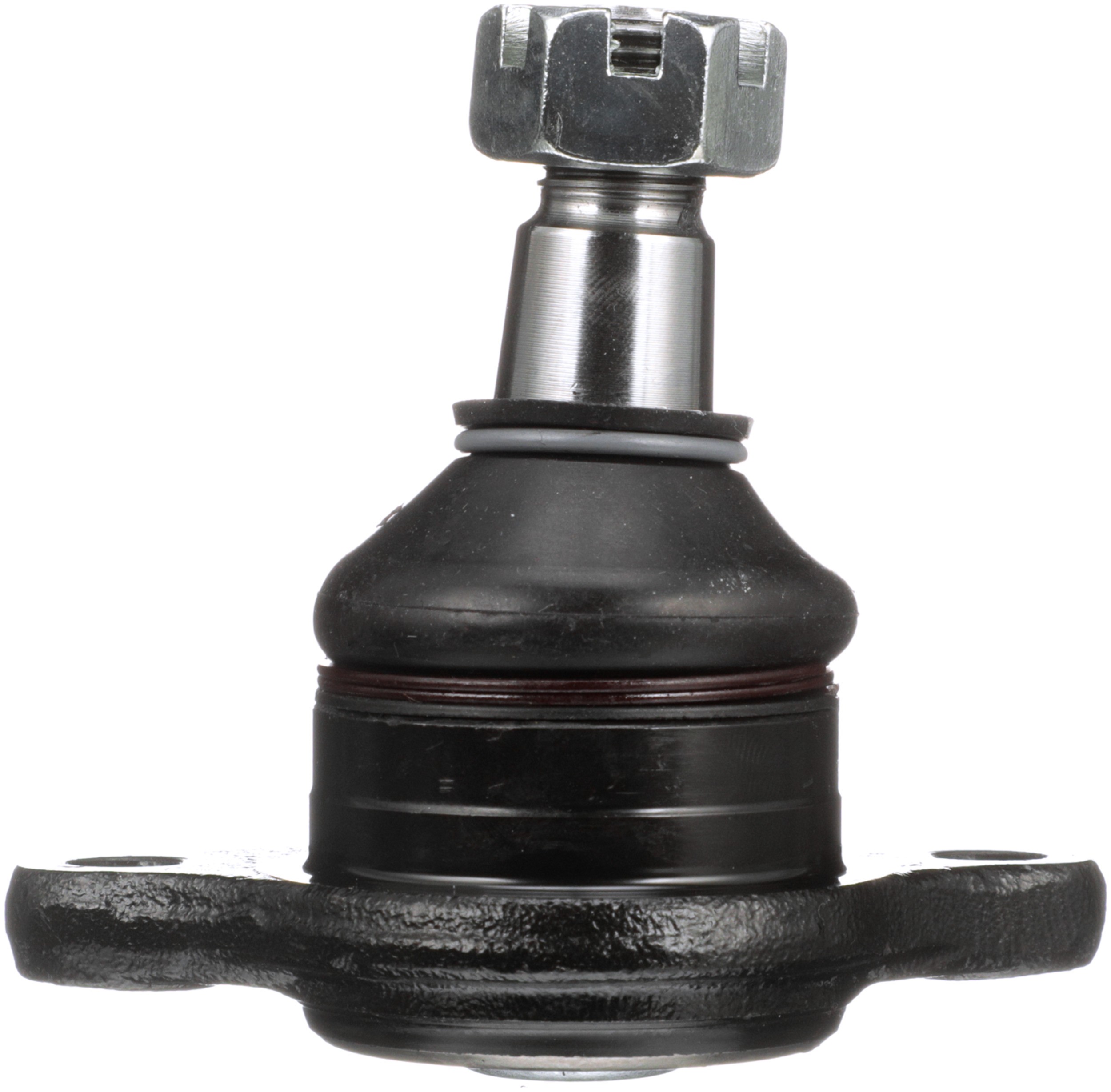

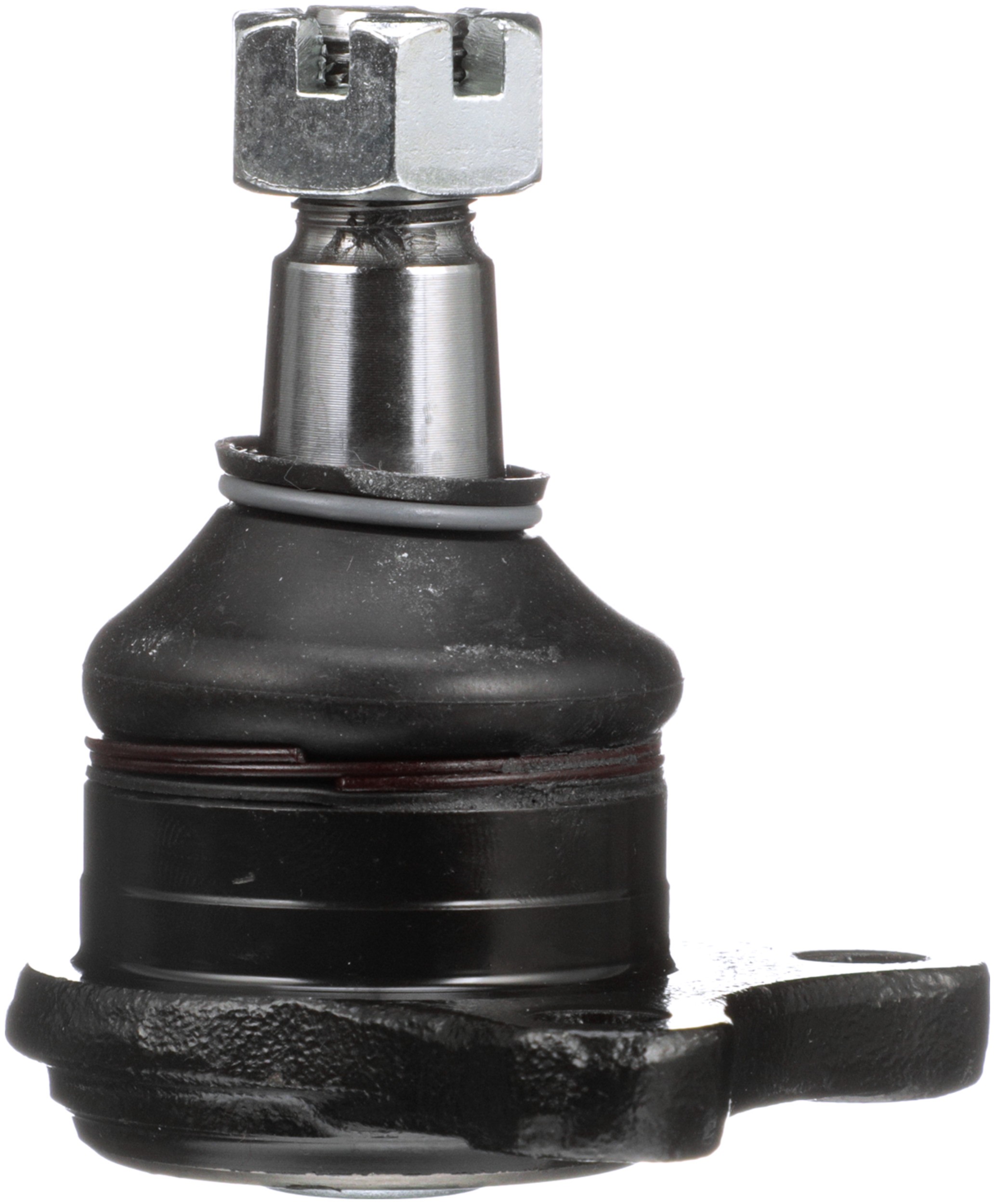

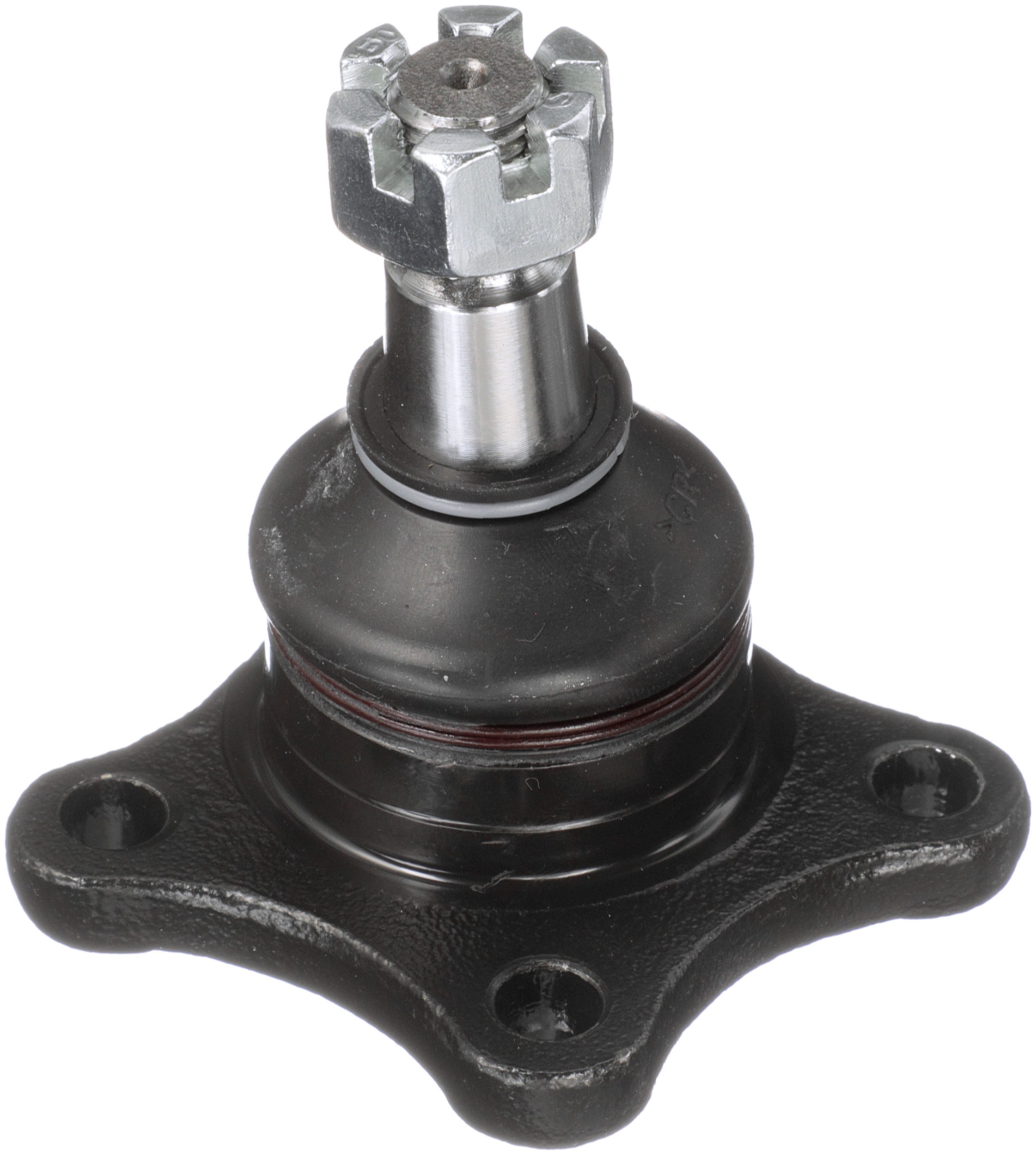

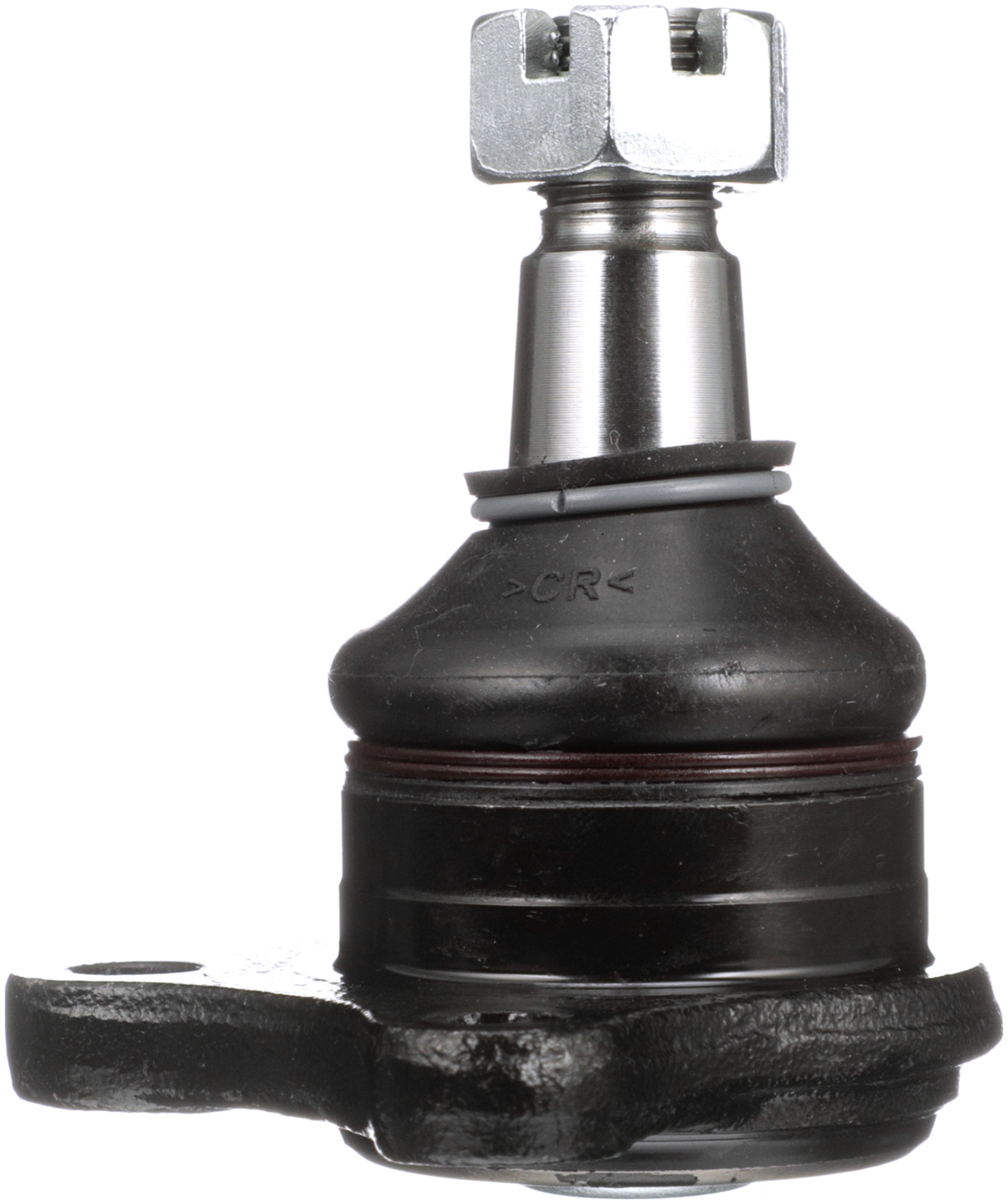

Delphi TC831 Suspension Ball Joint

Delphi TC831 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Washers Included	Yes
9090	Rubber
9204	Yes
9209	No
9210	Yes
3068	0.984 IN
9203	15.00 MM

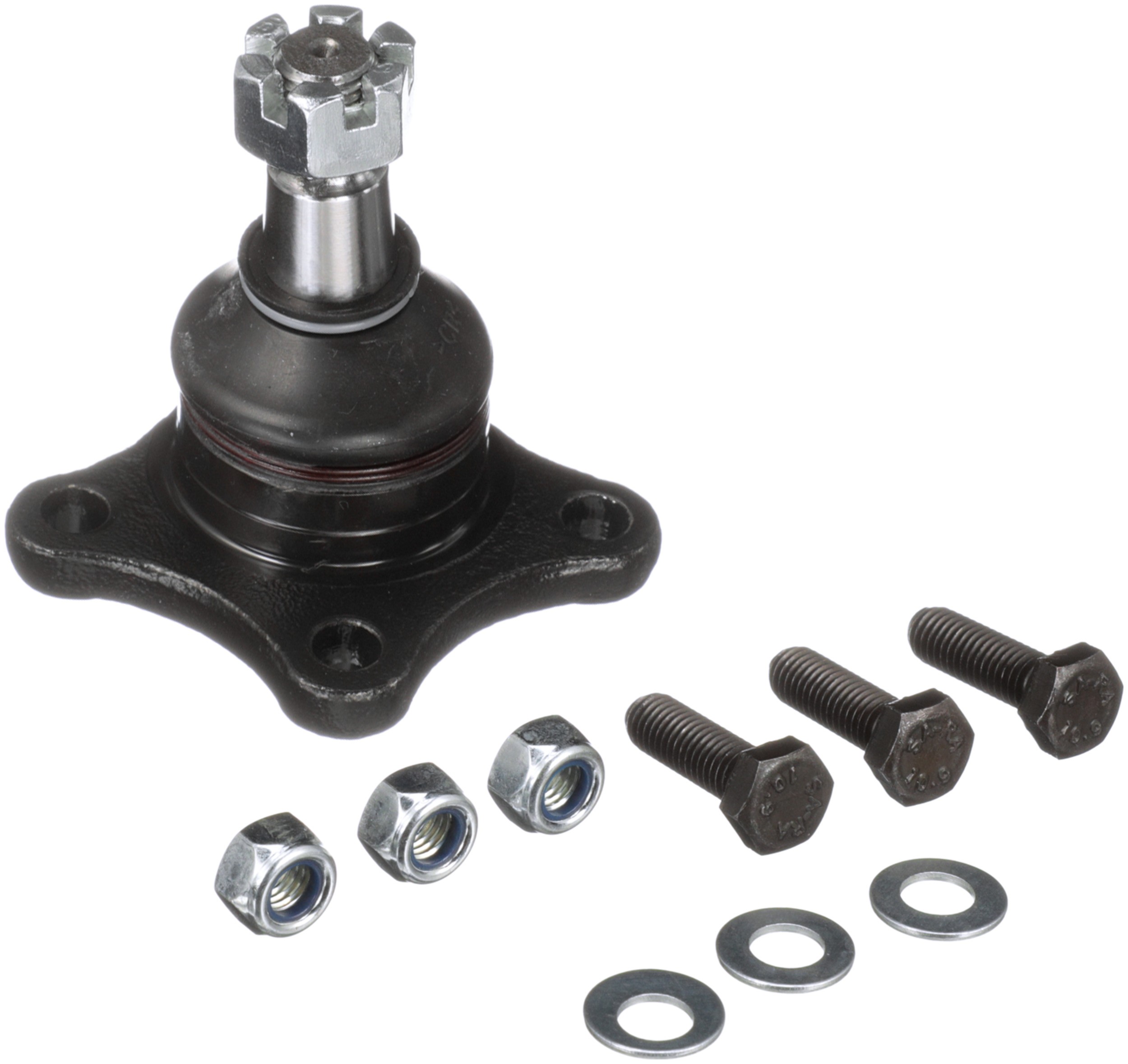

Mounting Hardware Included	Yes
9207	0.984 IN
9207	25.00 MM
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
Greaseable	No
Adjustable	No
Mounting Hole Quantity	3
Material	Steel
Color	Black
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes
2827	No
2381	Yes
2334	No
839	13mm
9058	70.00 MM
9202	0.315 IN
9202	8.00 MM
Position(s)	Front Upper
4966	13.5 MM
4966	0.531 IN
3068	25.00 MM
9212	0.709 IN
9212	18 MM
9213	0.628 IN
9213	15.95 MM
9203	0.591 IN
Height	84.00 MM
Height	3.307 IN
Width	71 MM
Length	2.800 IN
Length	71.00 MM
Maximum Outside Diameter	88.00 MM
Maximum Outside Diameter	3.465 IN
881	Threaded
