Delphi TC832 Suspension Ball Joint

Delphi TC832 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Quantity	4
Greaseable	No
Mounting Type	Bolt-In
Suspension Grade Type	Standard Replacement
9204	Yes
9209	No
9210	Yes
4966	0.787 IN
4966	20 MM
9058	46.00 MM
9202	0.472 IN
9202	12.00 MM
9203	0.866 IN
9203	22.00 MM
9207	1.181 IN
9207	30.00 MM
9212	0.87 IN
3068	48.00 MM
3068	1.890 IN
9212	22.1 MM
9213	0.766 IN
Height	94.50 MM
Height	3.720 IN
Width	98.5 MM
Length	5.390 IN
Length	137.00 MM
Maximum Outside Diameter	56.50 MM
Maximum Outside Diameter	2.224 IN
9213	19.45 MM
Position(s)	Front Left Lower
2334	No
2381	Yes
2827	No
839	19mm
881	Threaded
9090	Rubber
Material	Steel
Color	Black
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No

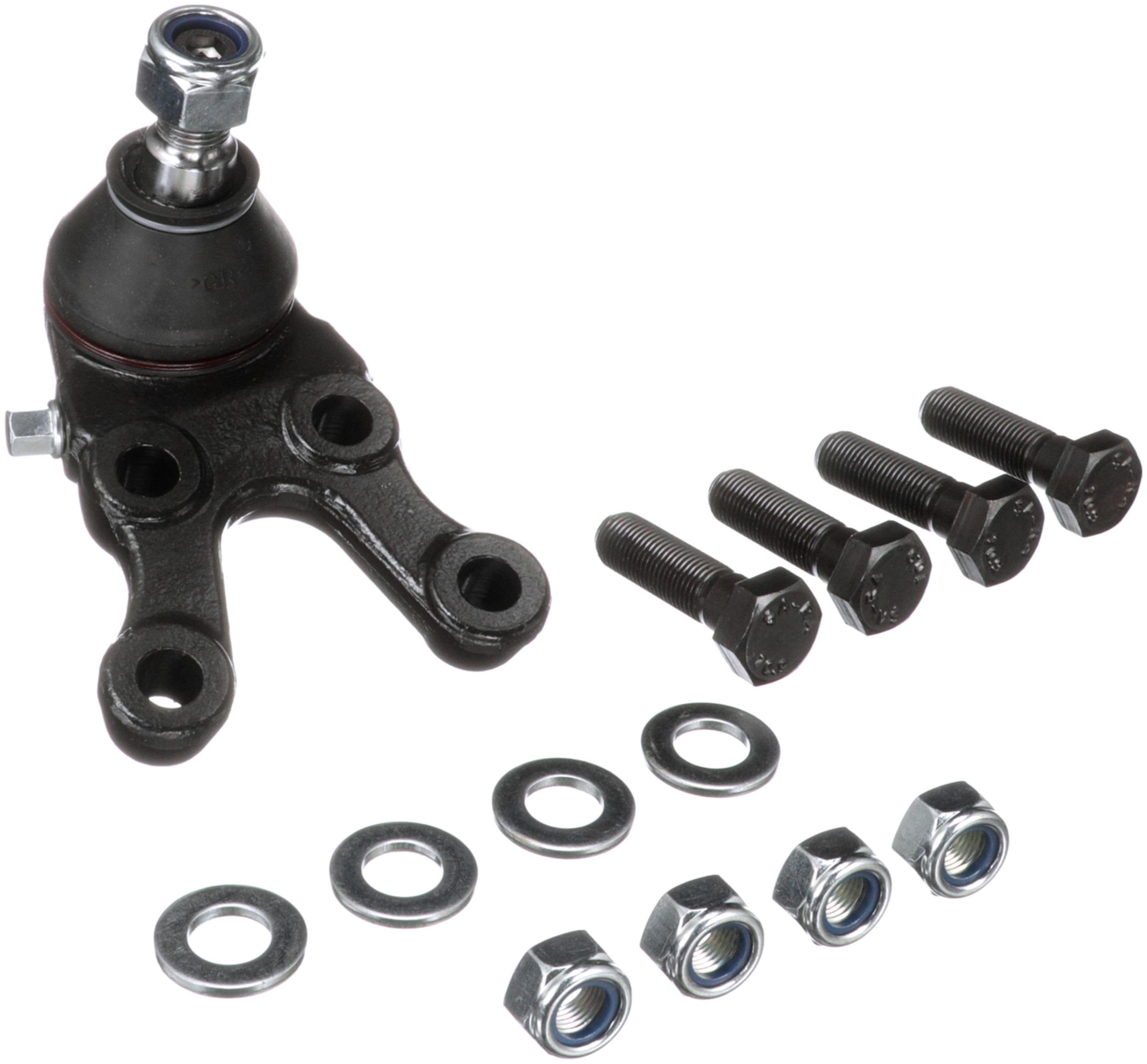

Mounting Hardware Included	Yes
Washers Included	Yes
Adjustable	No
