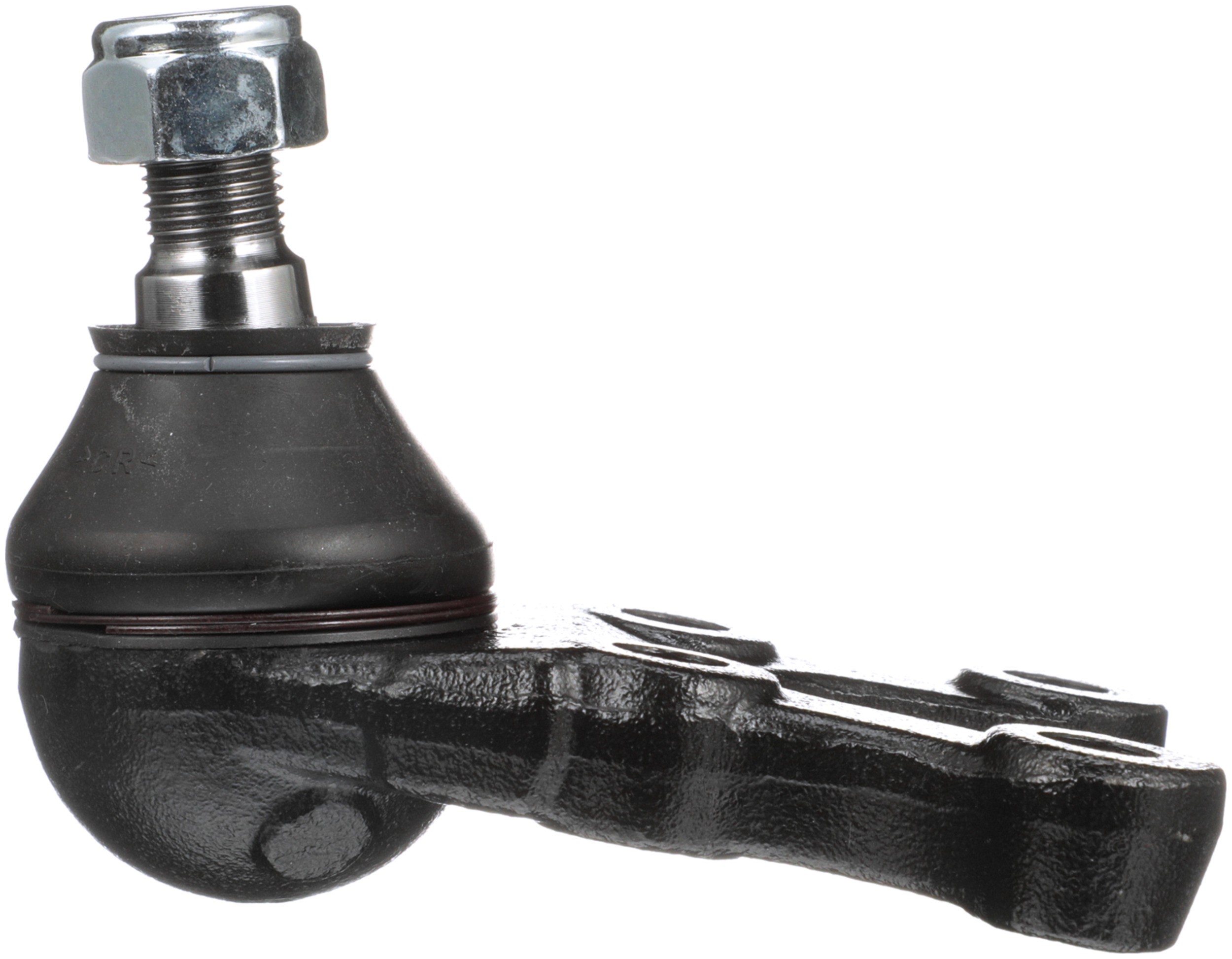

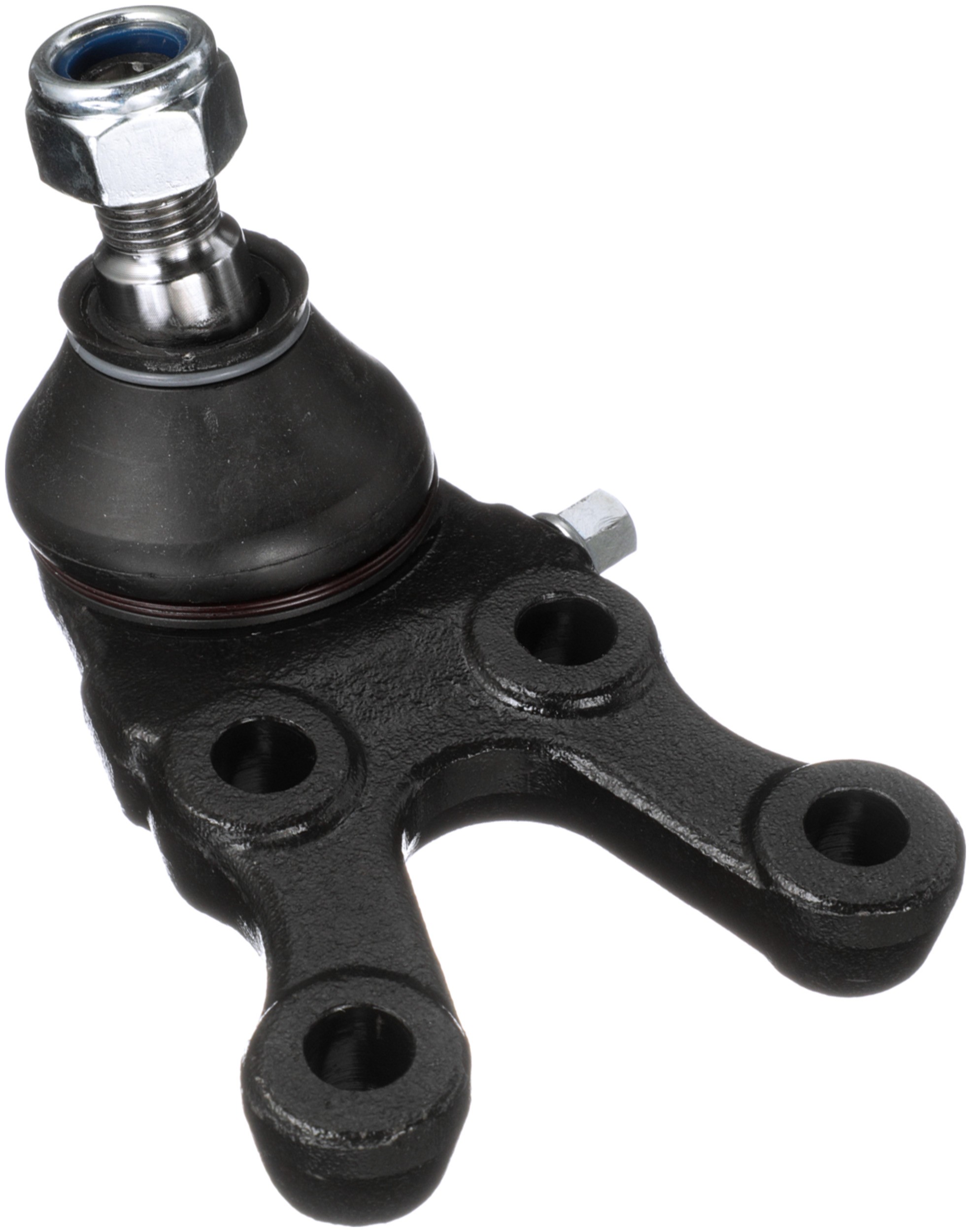

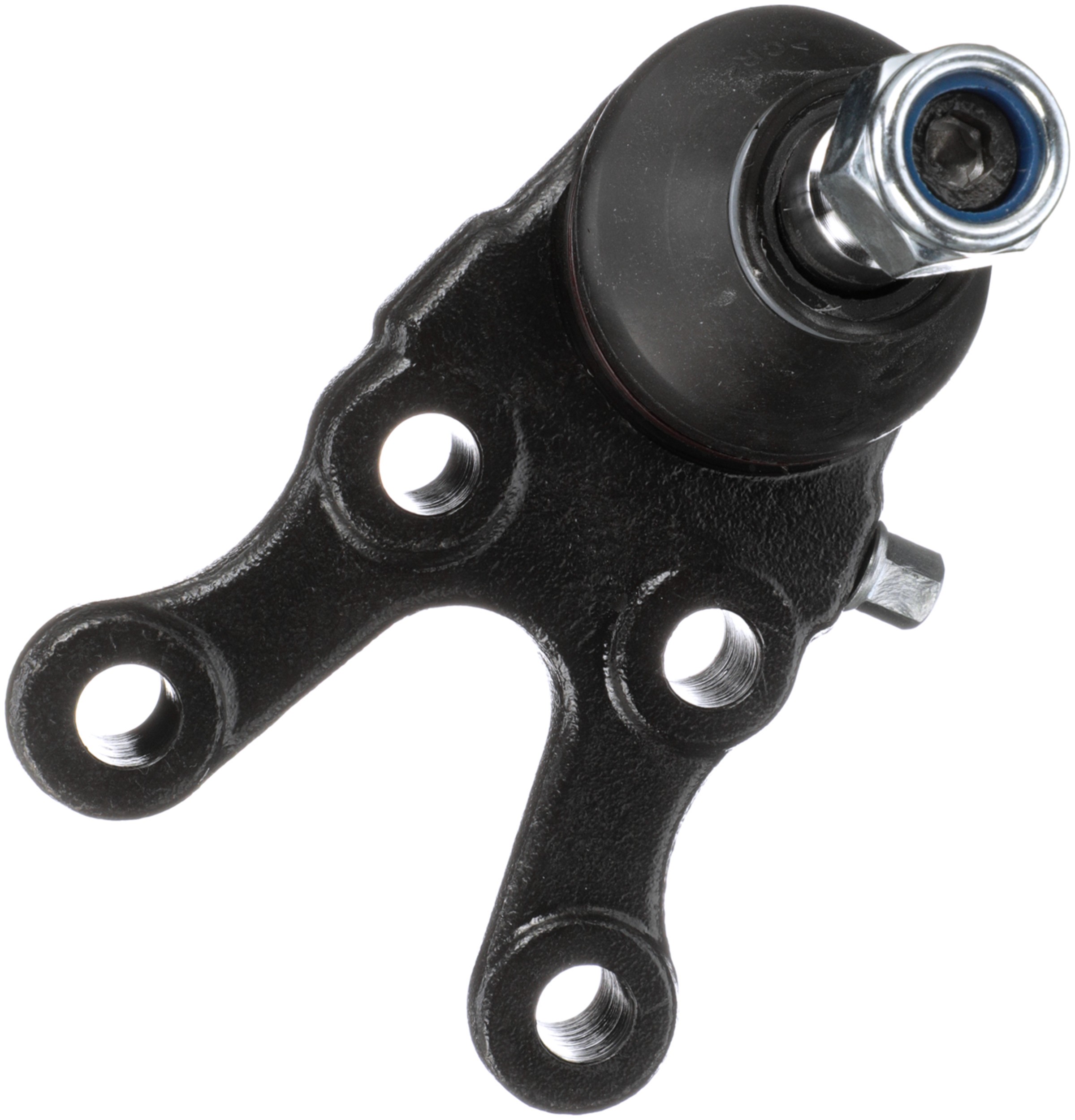

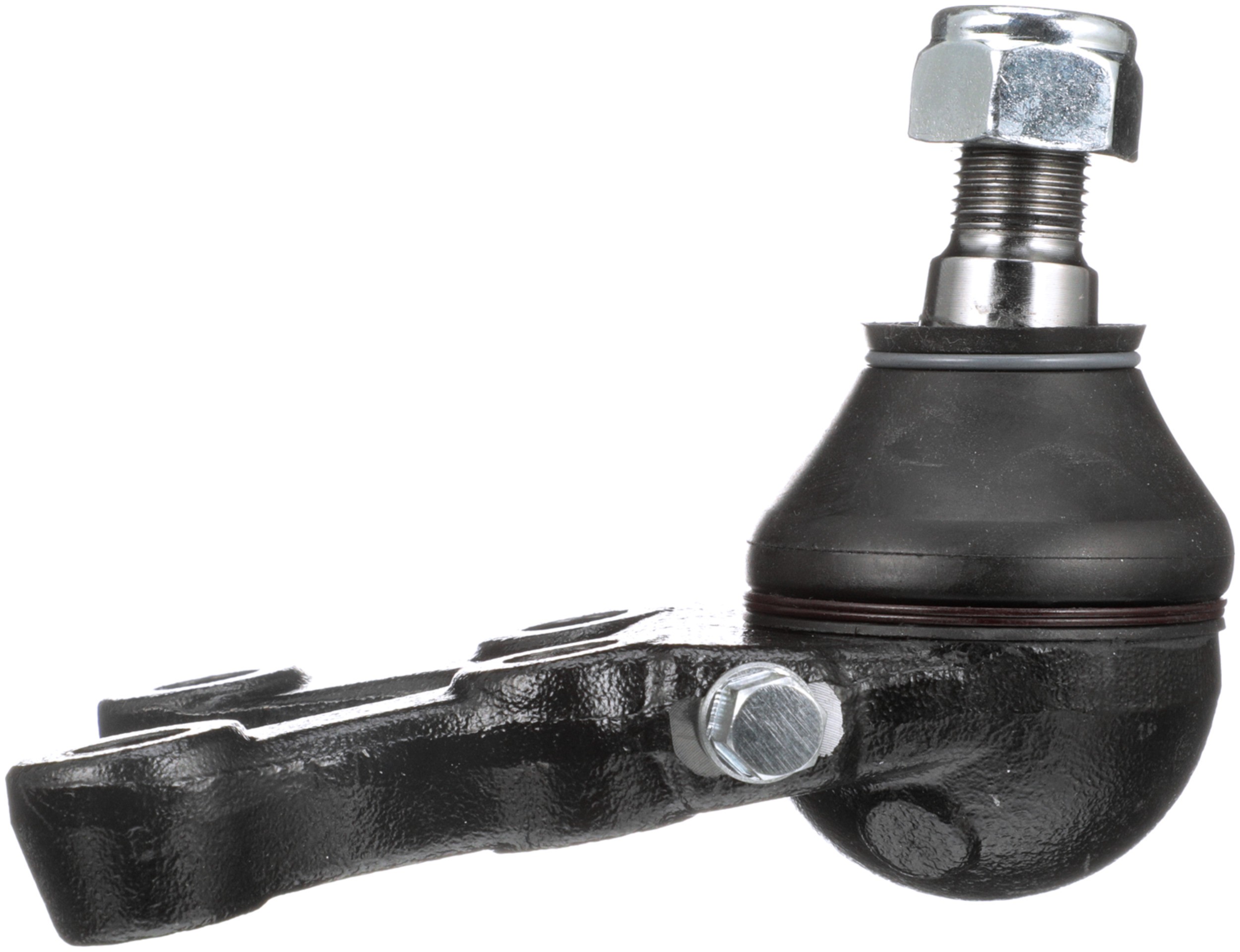

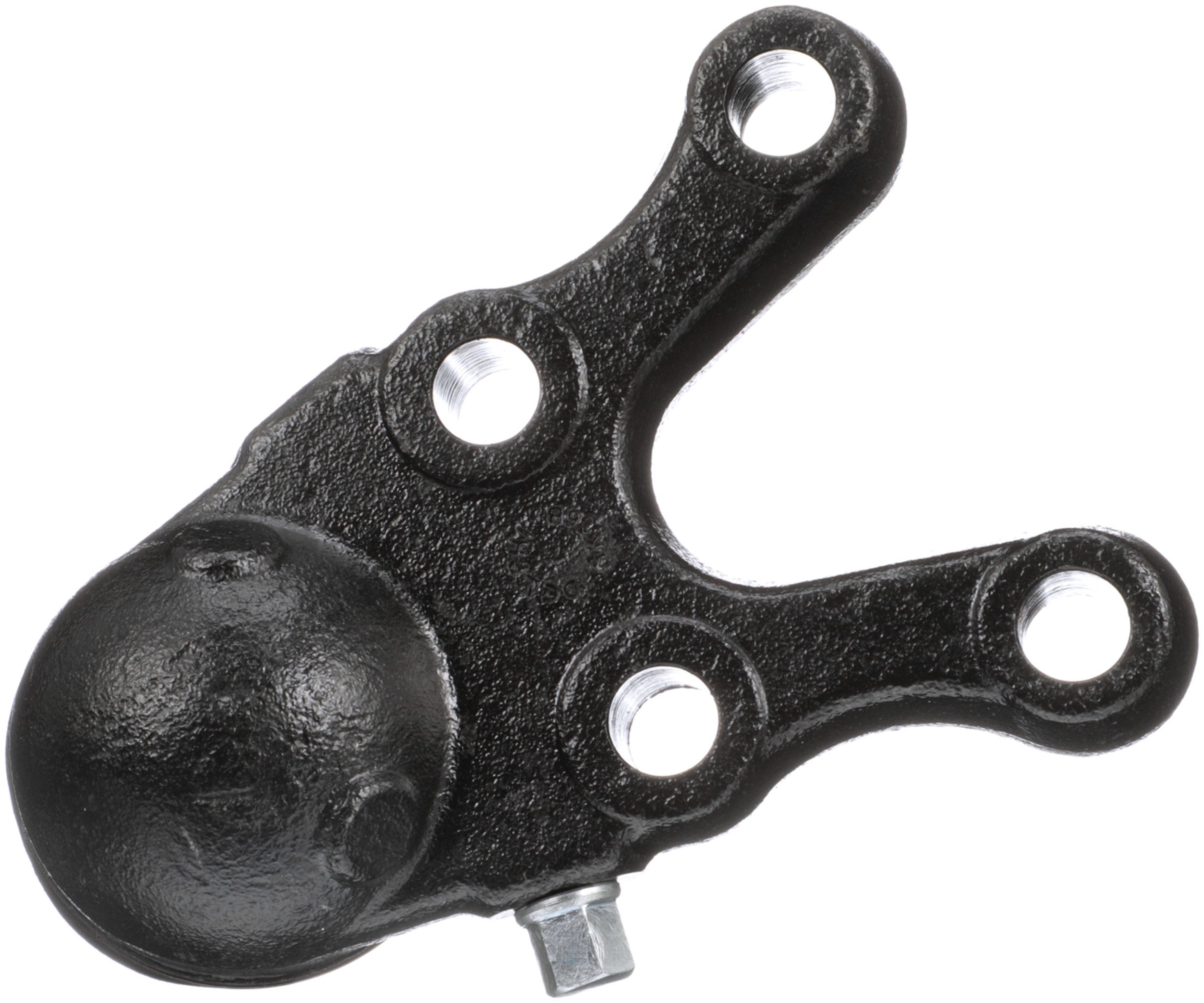

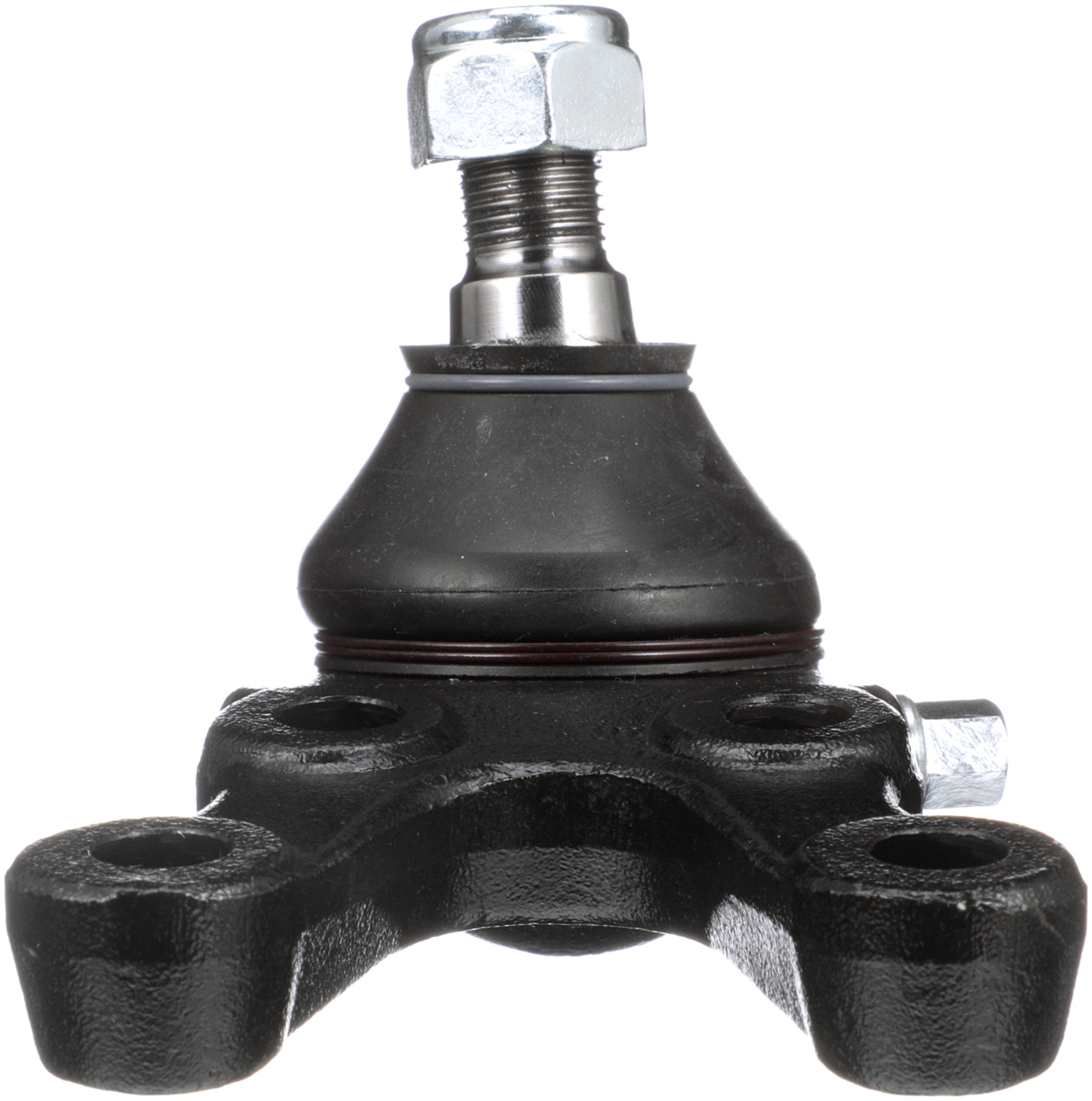

Delphi TC833 Suspension Ball Joint

Delphi TC833 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Washers Included	Yes
Mounting Hole Quantity	4
Adjustable	No
Greaseable	No
Mounting Type	Bolt-In
9209	No
9210	Yes
Suspension Grade Type	Standard Replacement
9204	Yes
3068	1.890 IN
4966	20 MM
3068	48.00 MM
9090	Rubber
881	Threaded
9213	19.45 MM
4966	0.787 IN
9207	1.181 IN
9203	22.00 MM
9203	0.866 IN
9202	12.00 MM
9202	0.472 IN
9058	46.00 MM
839	19mm
2827	No
2381	Yes
2334	No
Position(s)	Front Right Lower
Grease Fitting Included	No
Color	Black
Material	Steel
Maximum Outside Diameter	2.224 IN
Maximum Outside Diameter	56.50 MM
Length	137.00 MM
Length	5.390 IN
Width	98.5 MM
Height	3.720 IN
Height	94.50 MM
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No

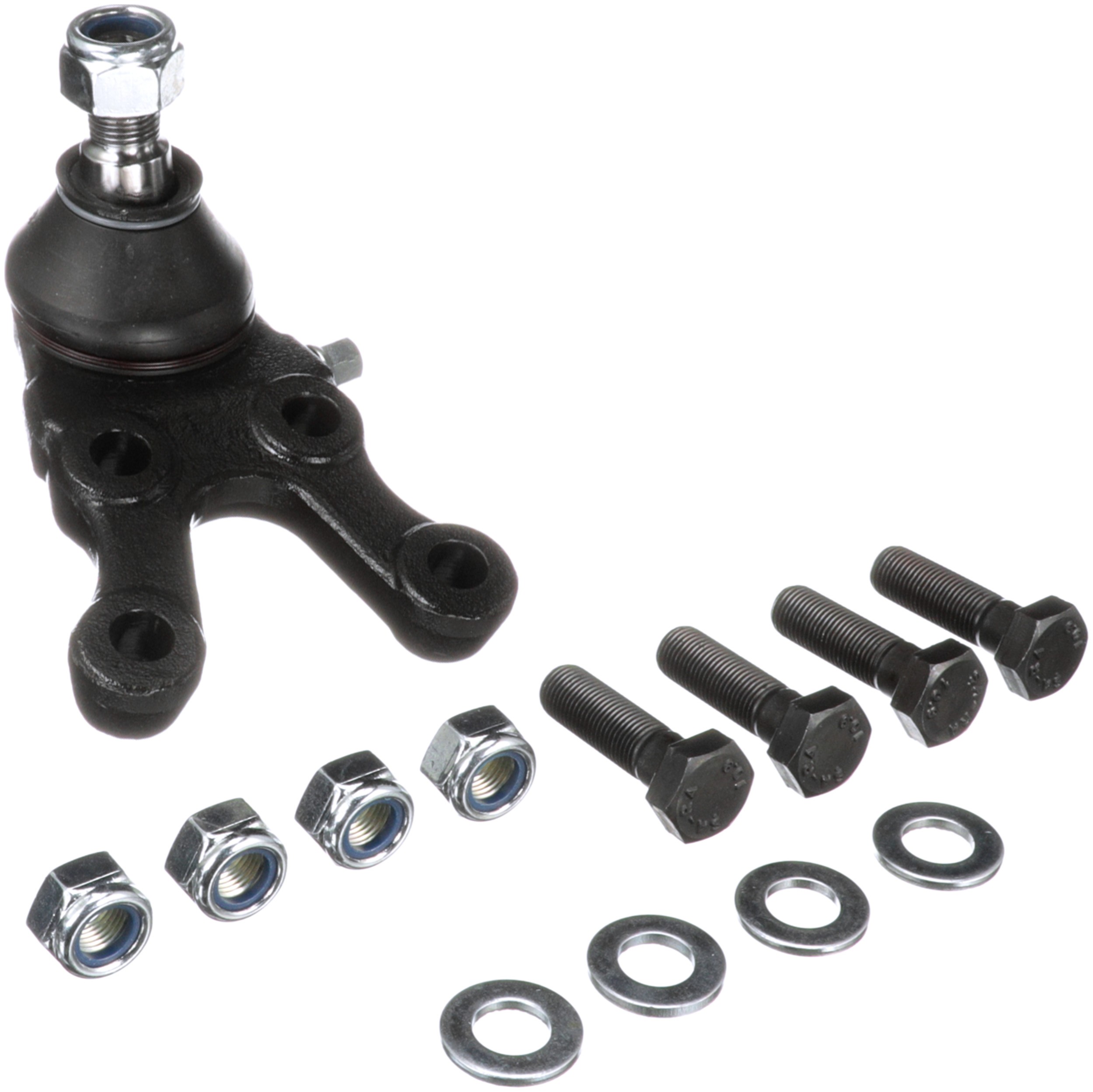

Mounting Hardware Included	Yes
9213	0.766 IN
9212	22.1 MM
9212	0.87 IN
9207	30.00 MM
