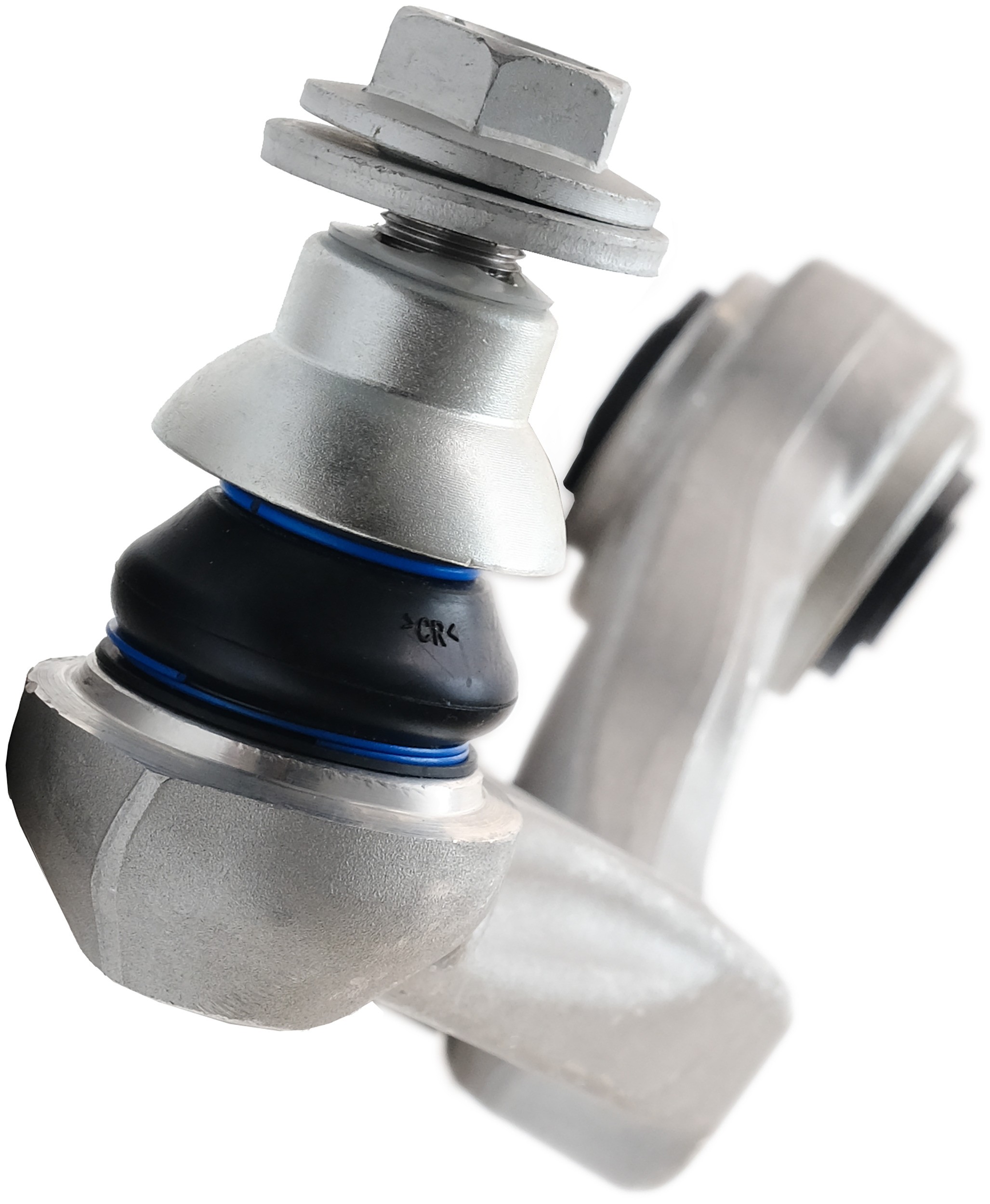

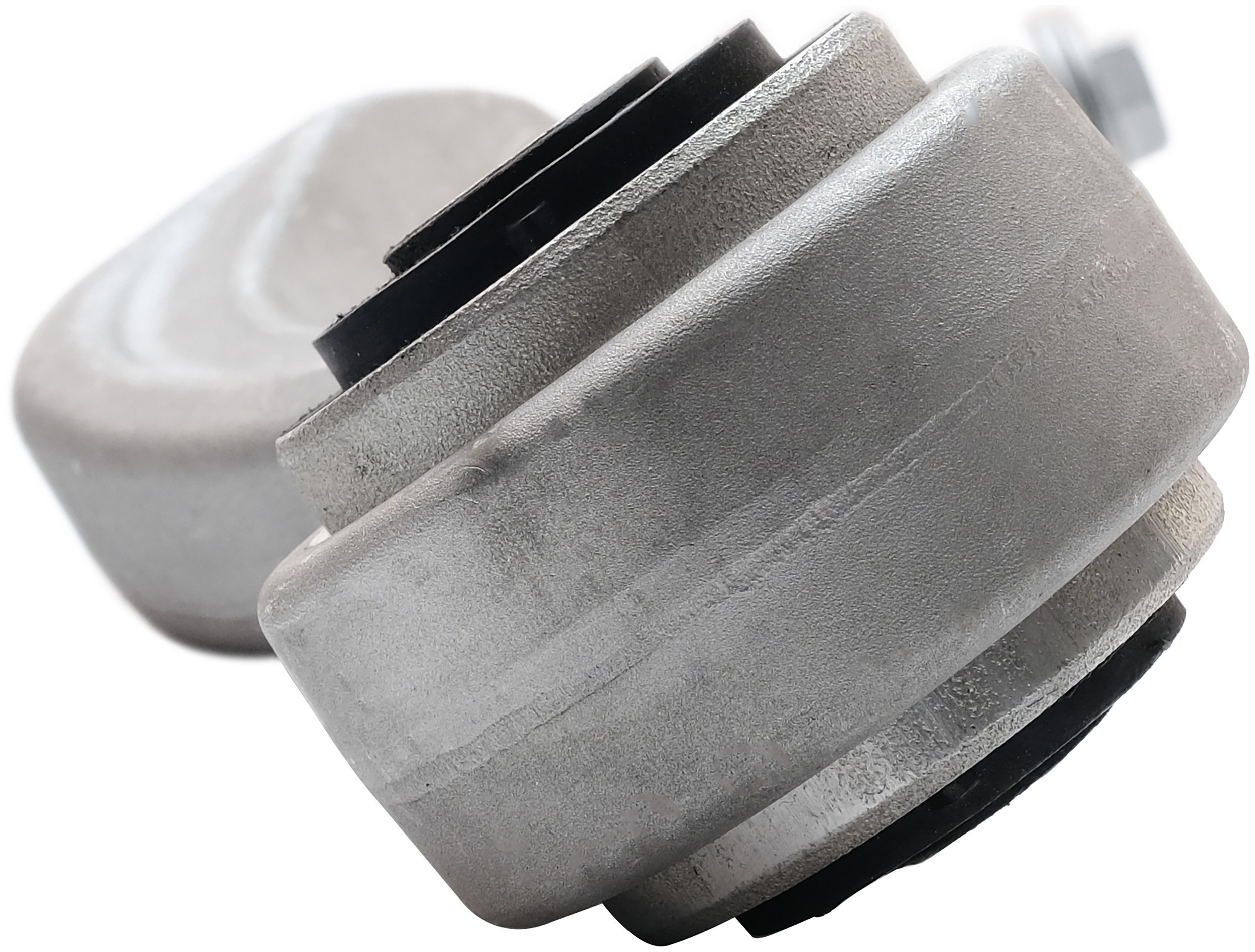

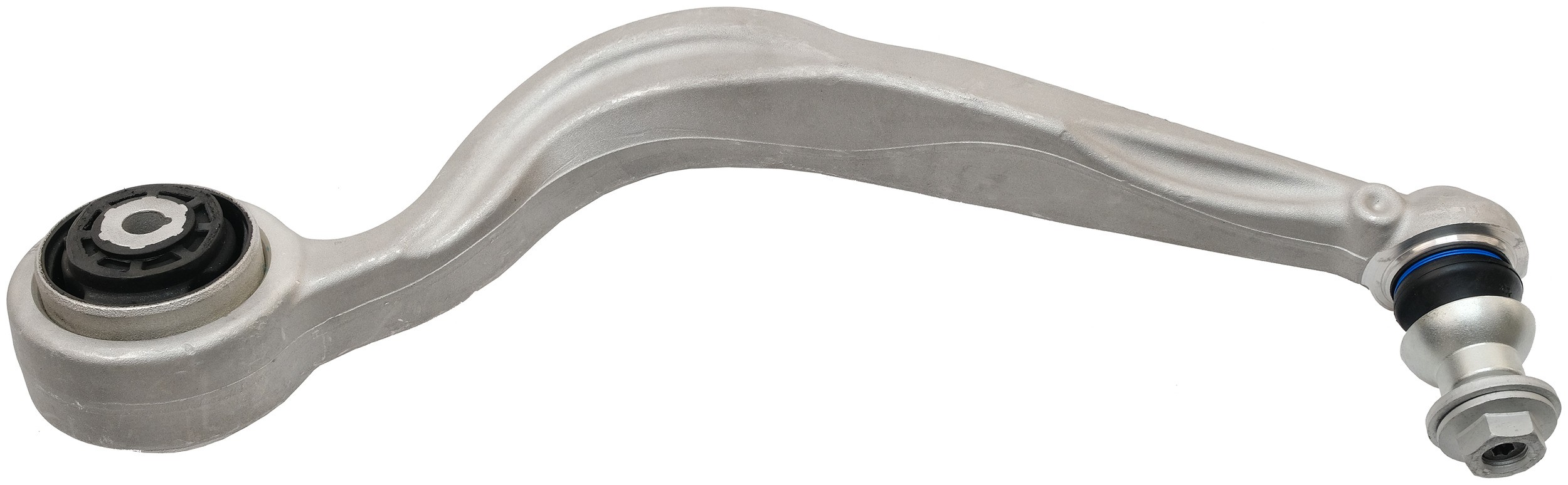

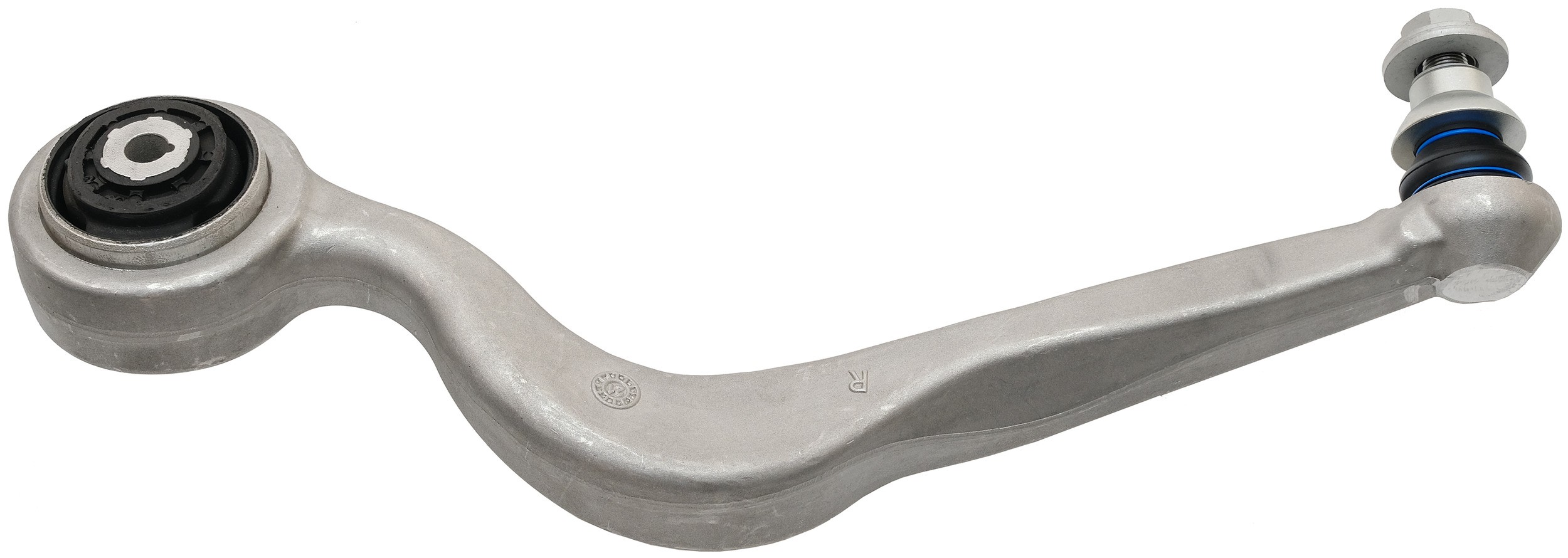

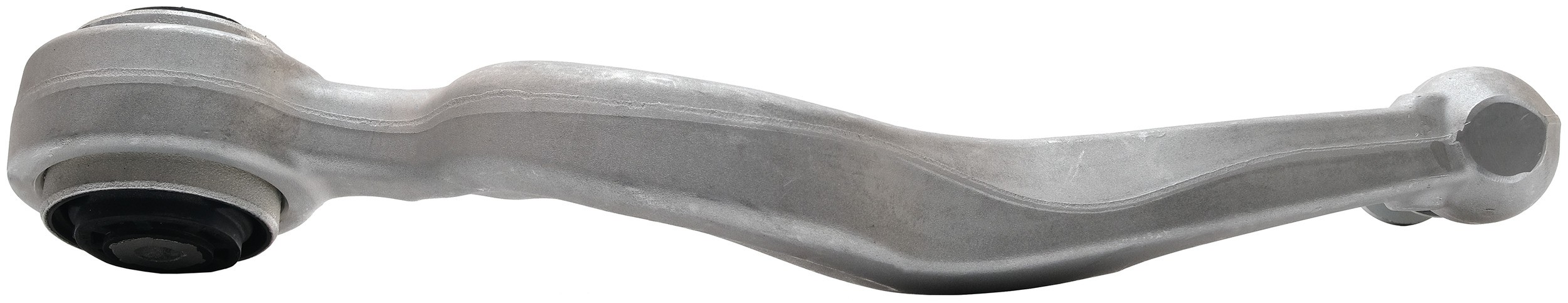

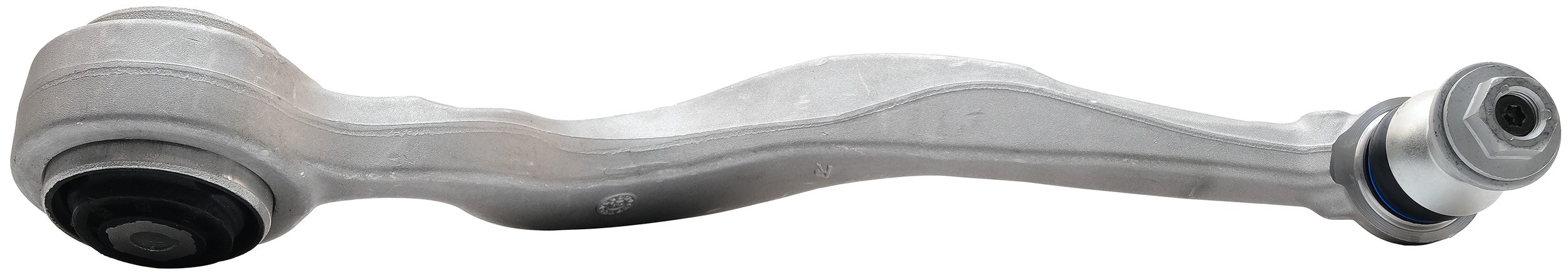

Delphi TC8387 Suspension Control Arm and Ball Joint Assembly

Delphi TC8387 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2386	Casting/Forged
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
9532	17.579 IN
9532	446.50 MM
4890	1.043 IN
4890	26.50 MM
4887	4.205 IN
4887	106.80 MM
2384	Yes
Position(s)	Front Right Lower
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Length	526.00 MM
Length	20.709 IN
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	0.559 IN
Bushing Inside Diameter	14.20 MM
Bushing Inside Diameter	0.559 IN
Bushing Length	80.00 MM
Bushing Length	3.150 IN
