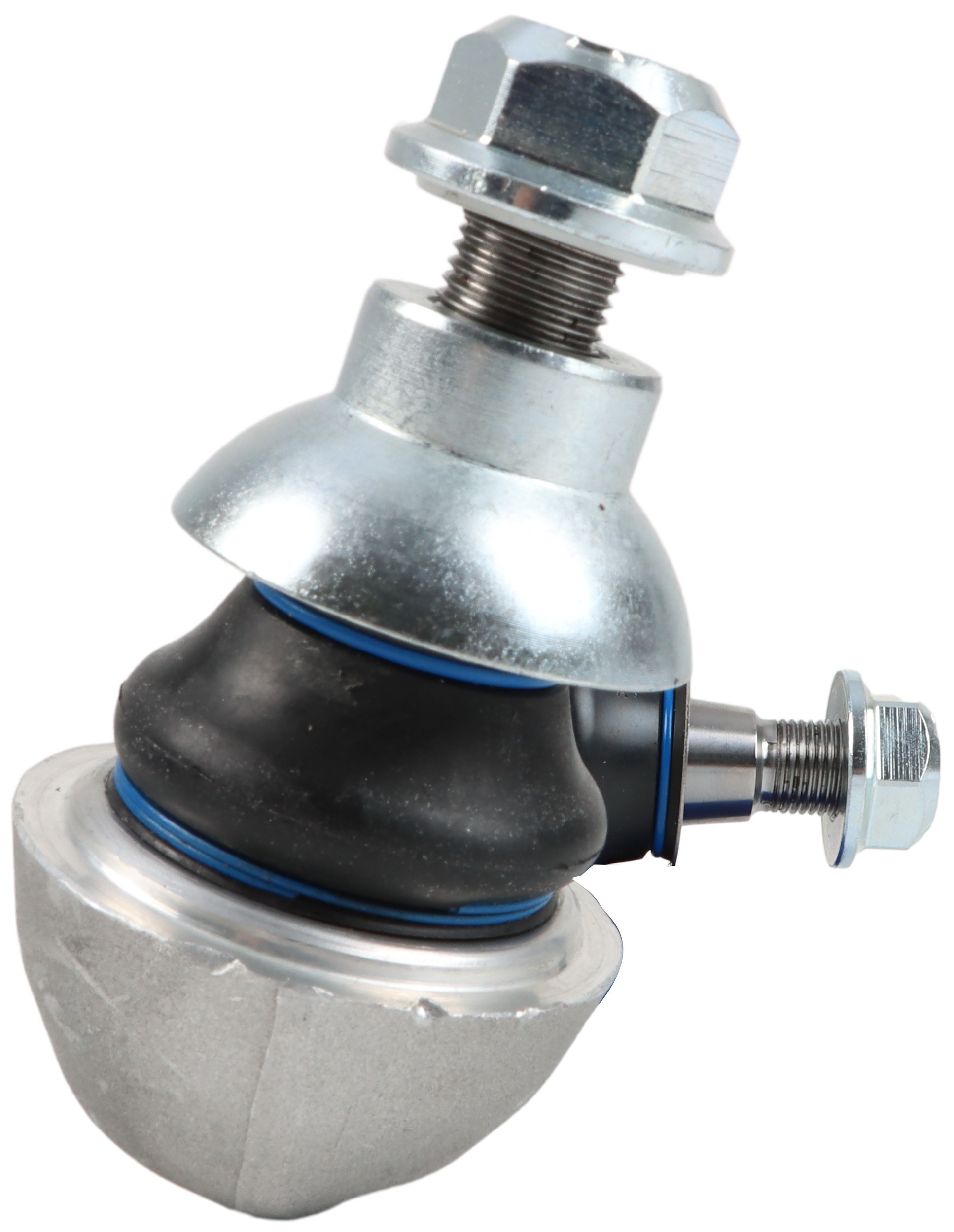

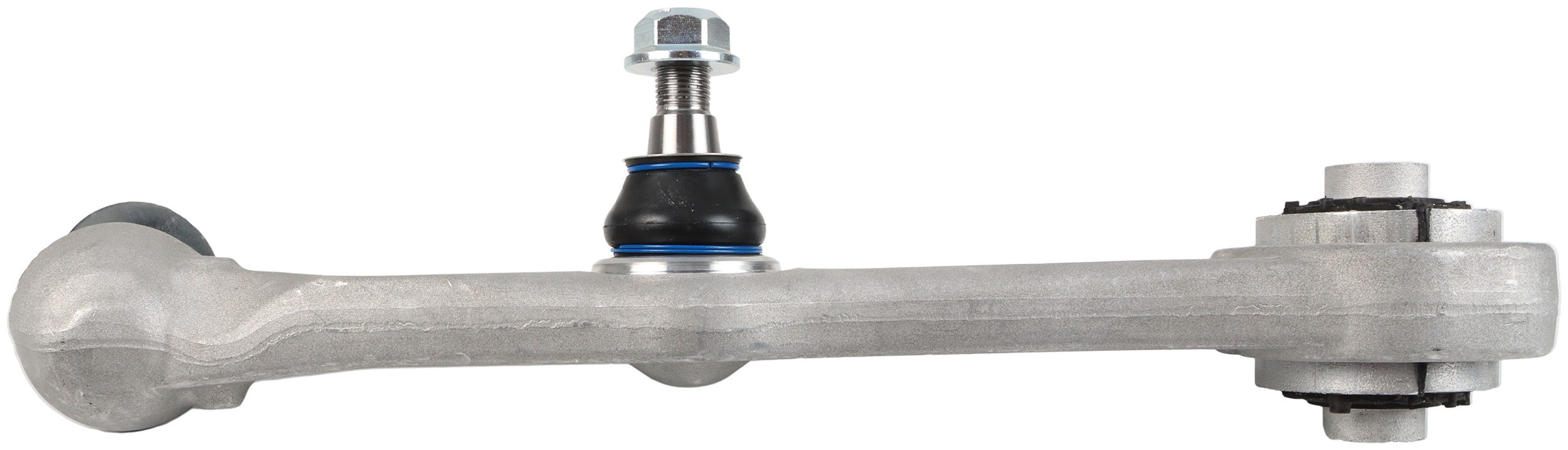

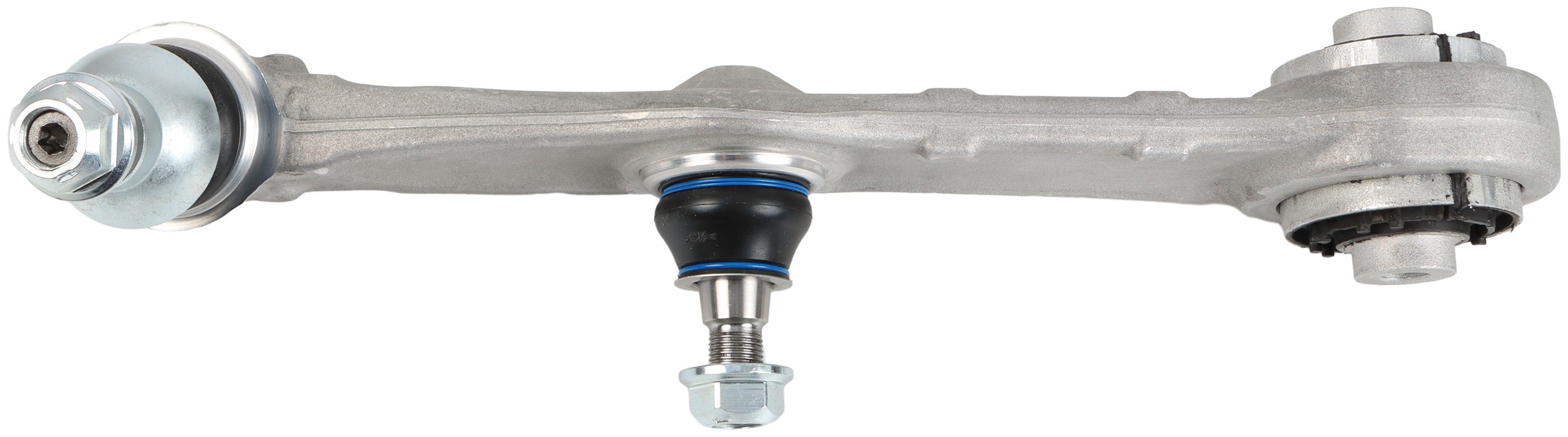

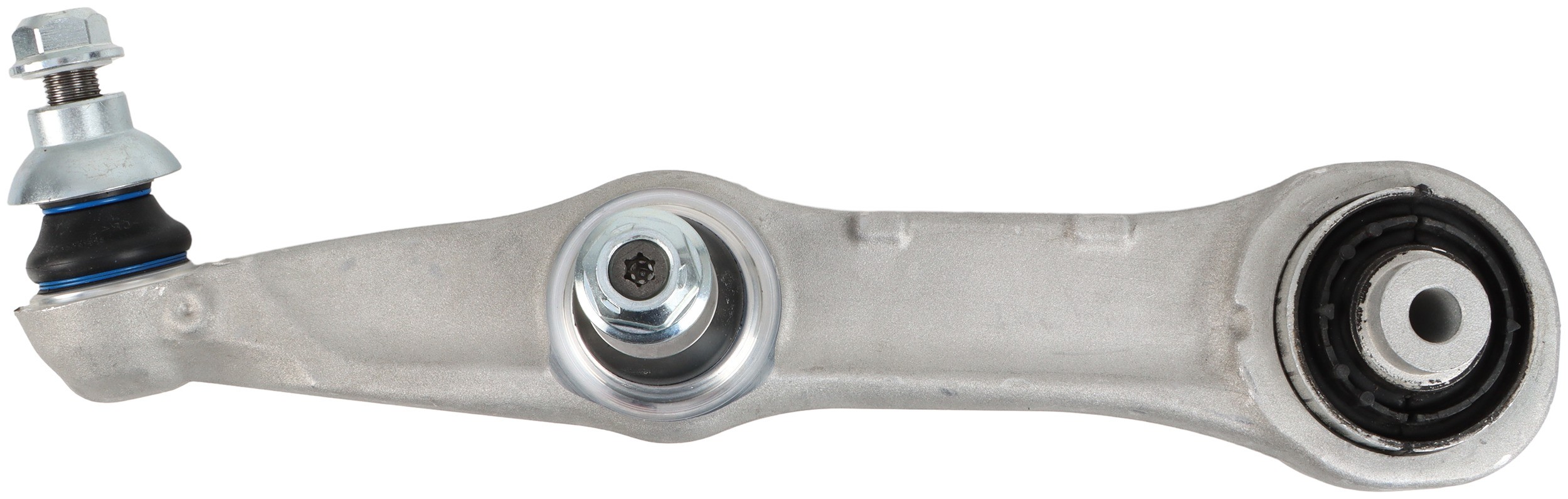

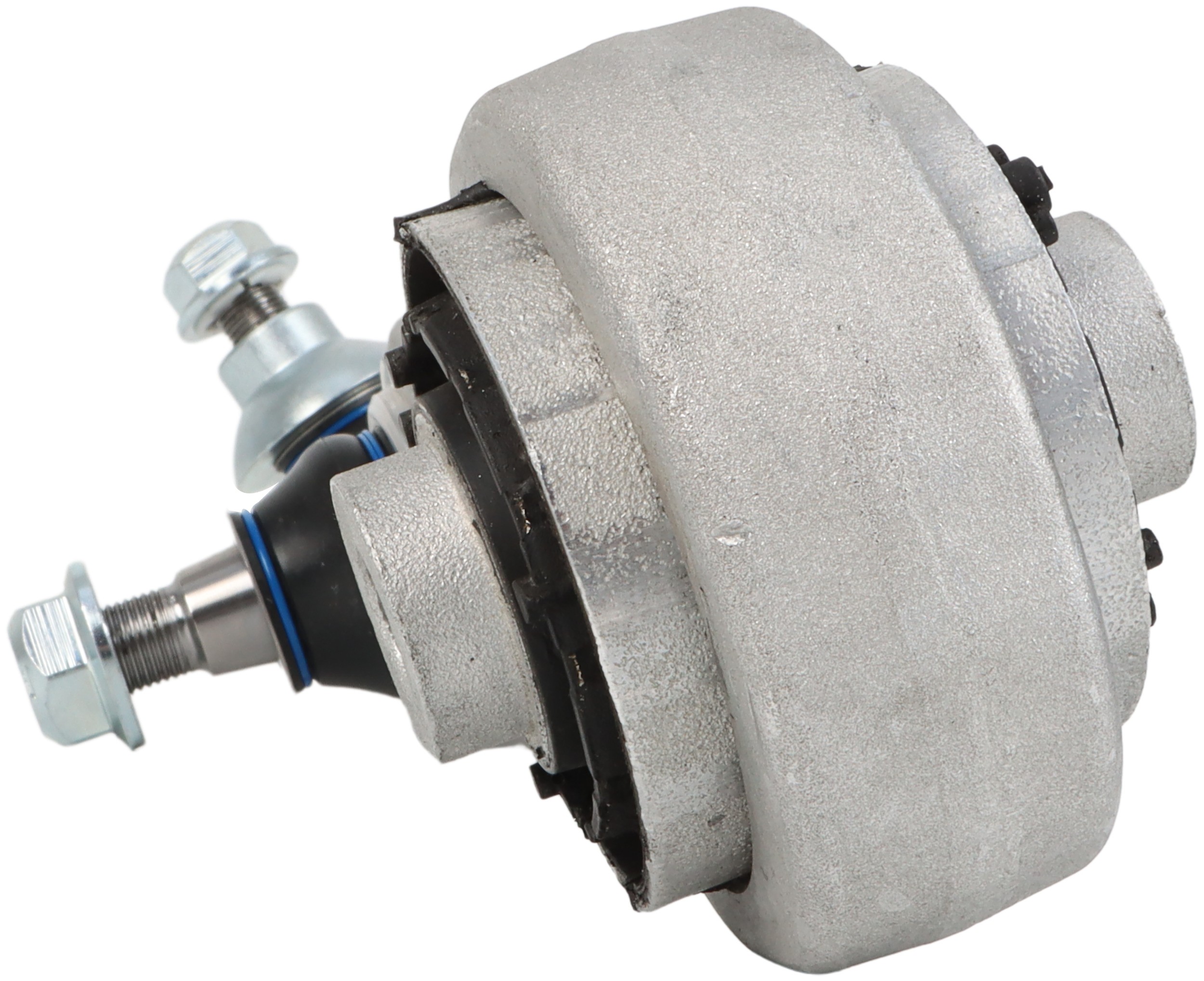

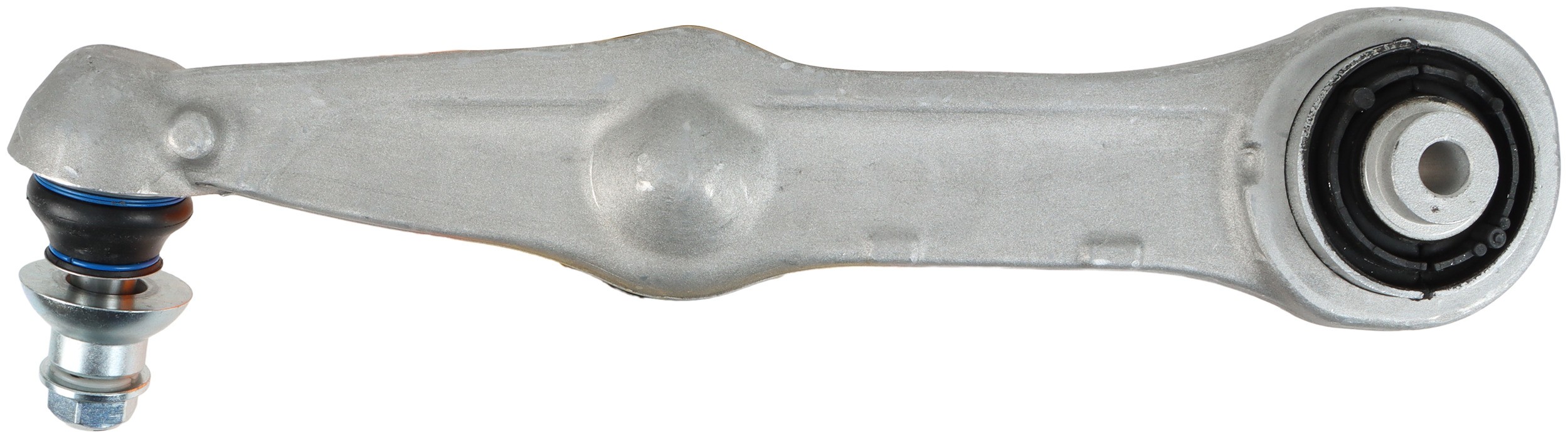

Delphi TC8396 Suspension Control Arm and Ball Joint Assembly

Delphi TC8396 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	438.50 MM
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Threaded
Material	Aluminum
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Length	17.264 IN
Mounting Hole Diameter	14.30 MM
Mounting Hole Diameter	0.563 IN
4887	121.00 MM
4887	4.764 IN
9532	359.60 MM
9532	14.157 IN
Position(s)	Front Right Lower Rearward
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	S450	2018 to 2020
Mercedes-Benz	S550	2014 to 2017
Mercedes-Benz	S560	2018 to 2021
Mercedes-Benz	S560e	2019 to 2020
Mercedes-Benz	S600	2015 to 2017
