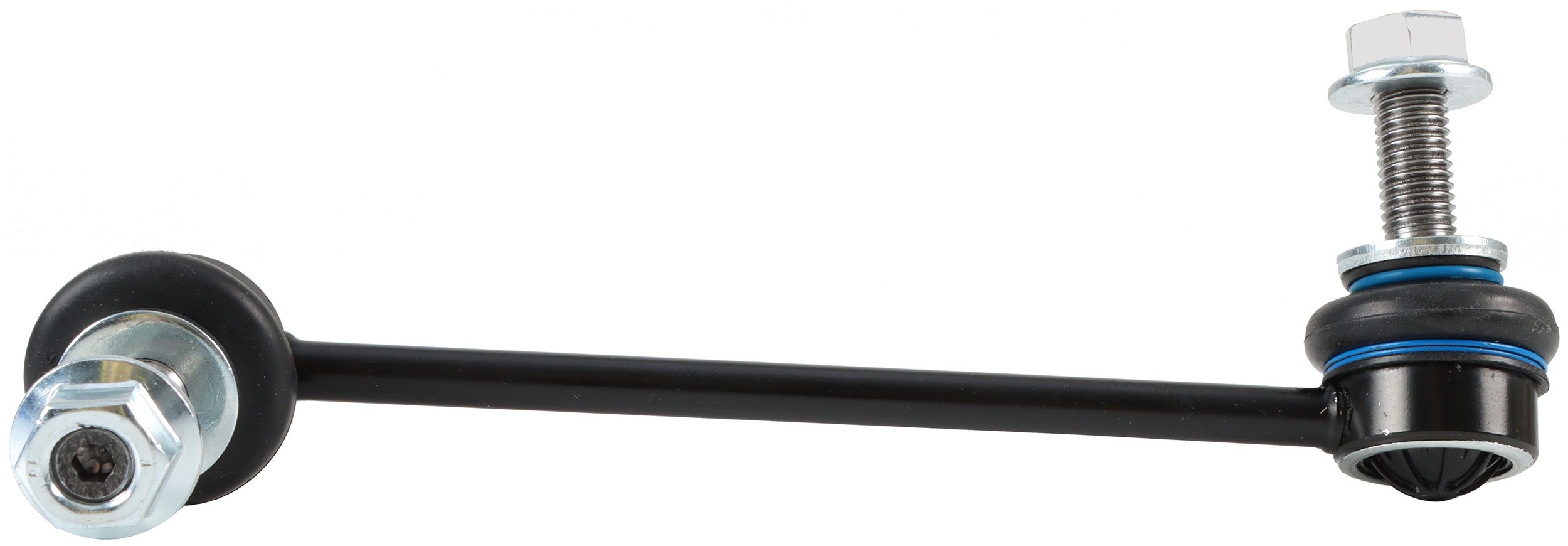

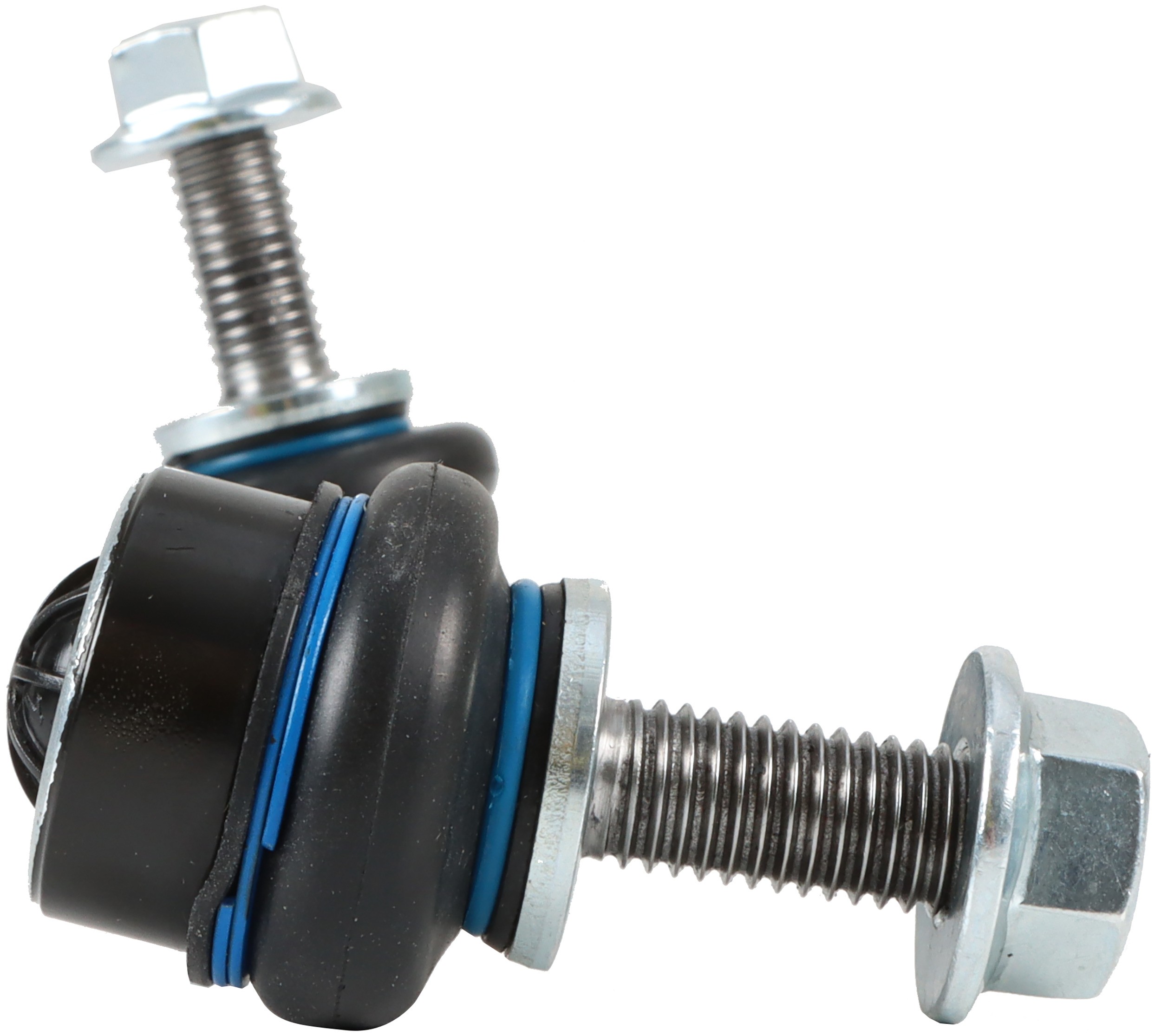

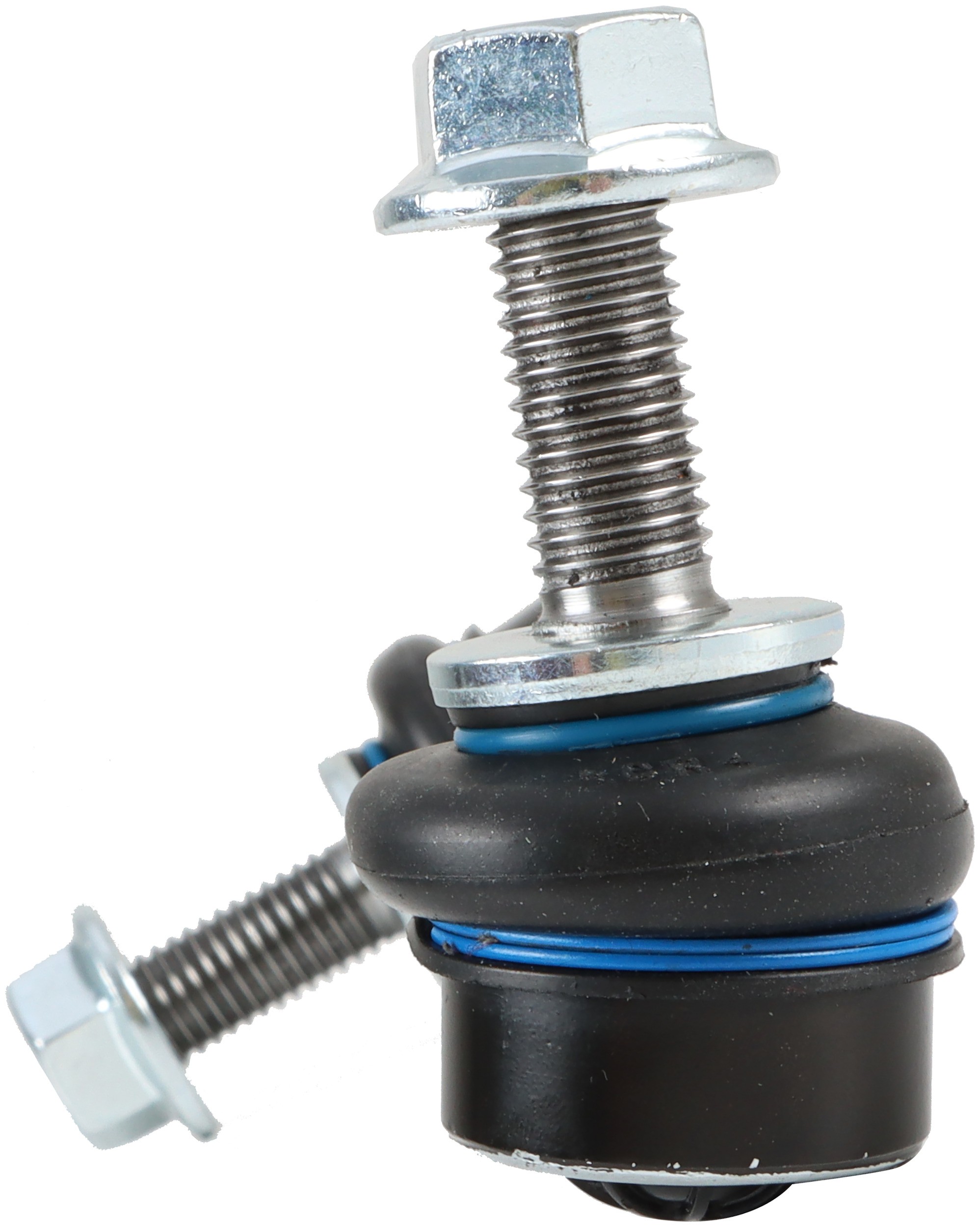

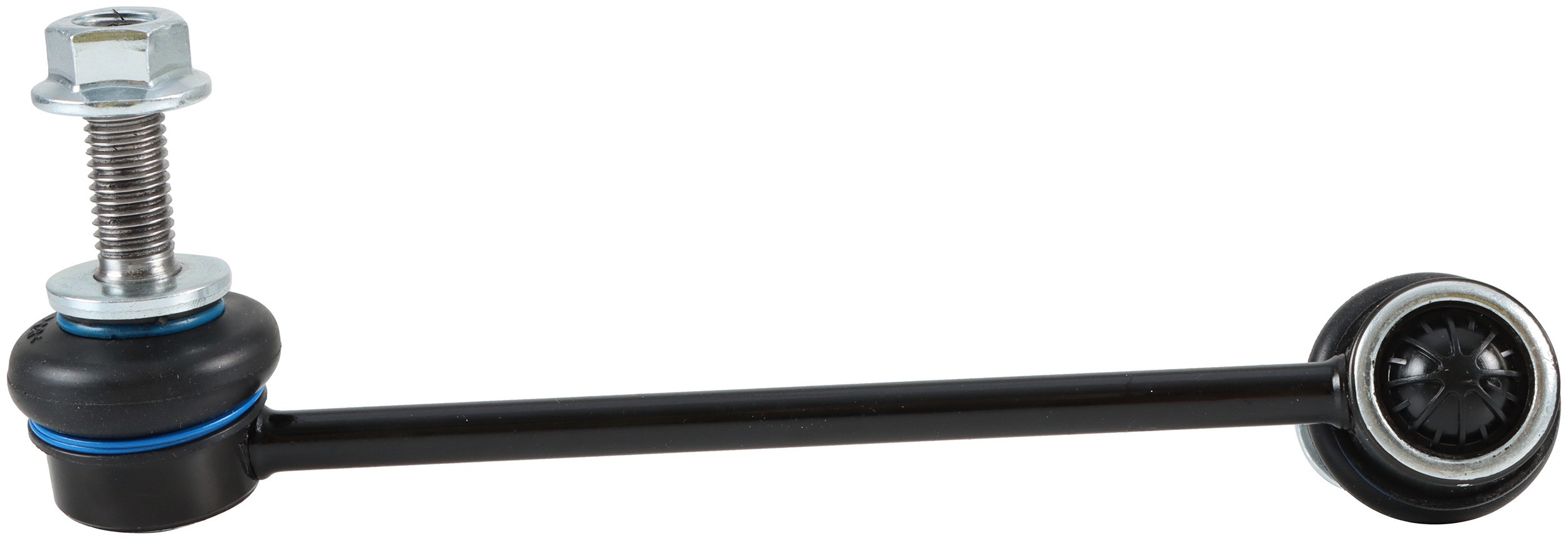

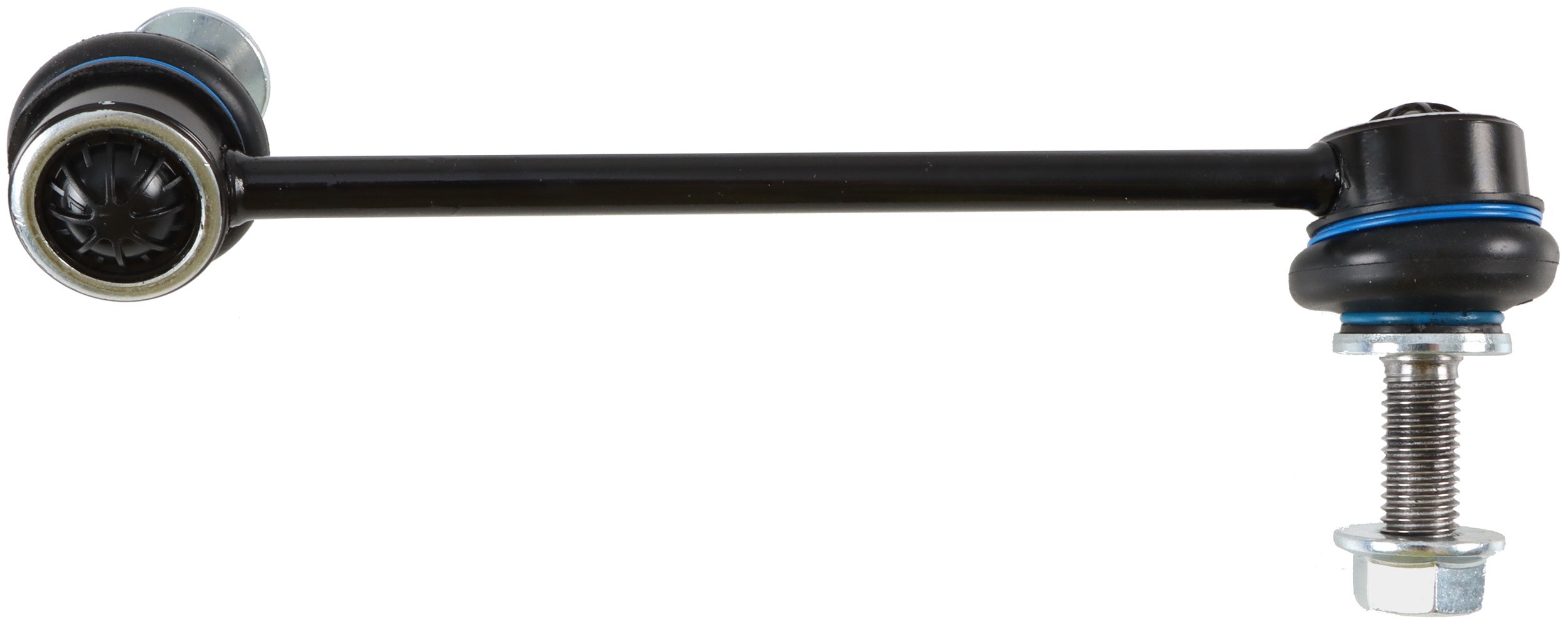

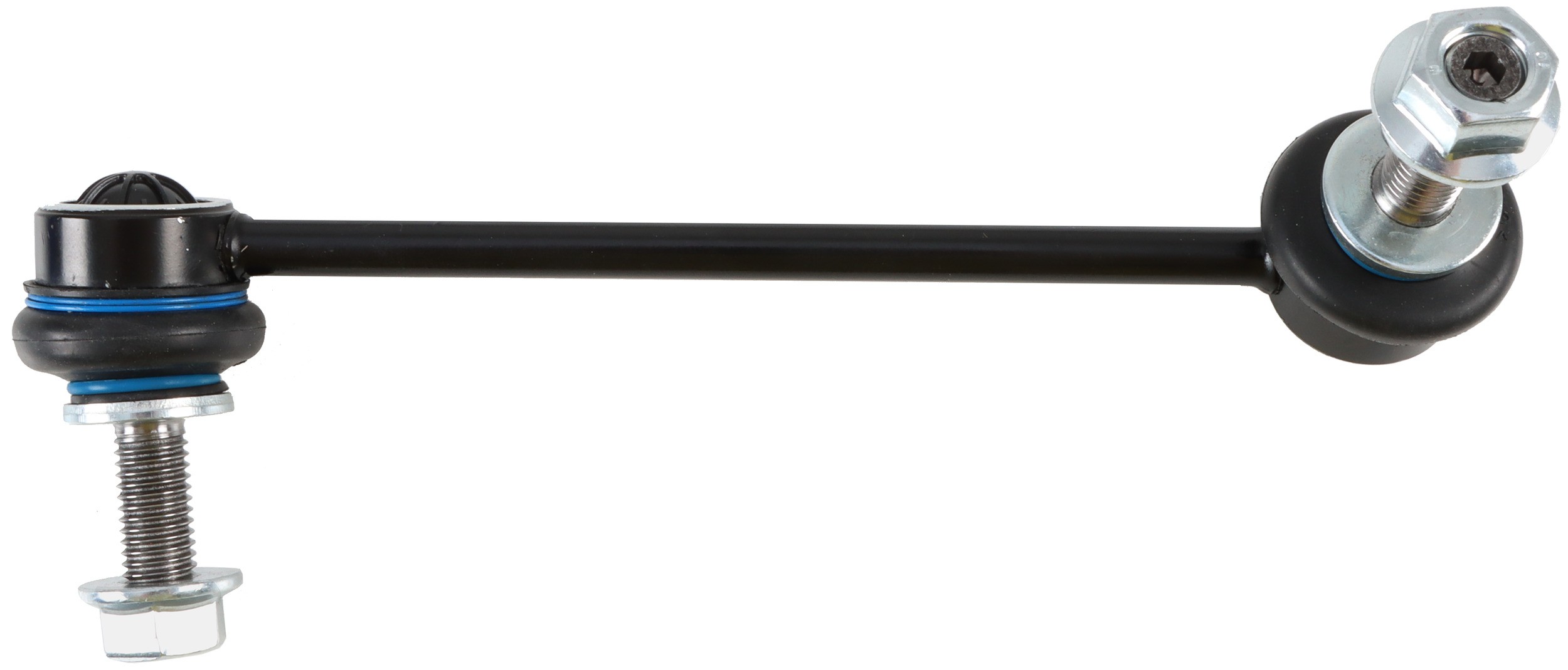

Delphi TC8414 Suspension Stabilizer Bar Link

Delphi TC8414 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Boot Material	Rubber
Bolt Length	36.60 MM
Bolt Length	1.430 IN
Height	4.380 IN
Height	111.20 MM
Width	2.79 IN
Bushing Colour	Black
End 1 Type	Ball Joint
End 2 Type	Ball Joint
Bushings Included	No
Dust Boot Included	Yes
Washers Included	No
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Polyoxymethylene (POM)
Hardware Included	Yes
Width	70.9 MM
9058	192.00 MM
Length	9.130 IN
Length	231.80 MM
Position(s)	Front Left
627	1.01 LB
9296	Yes
839	5mm
