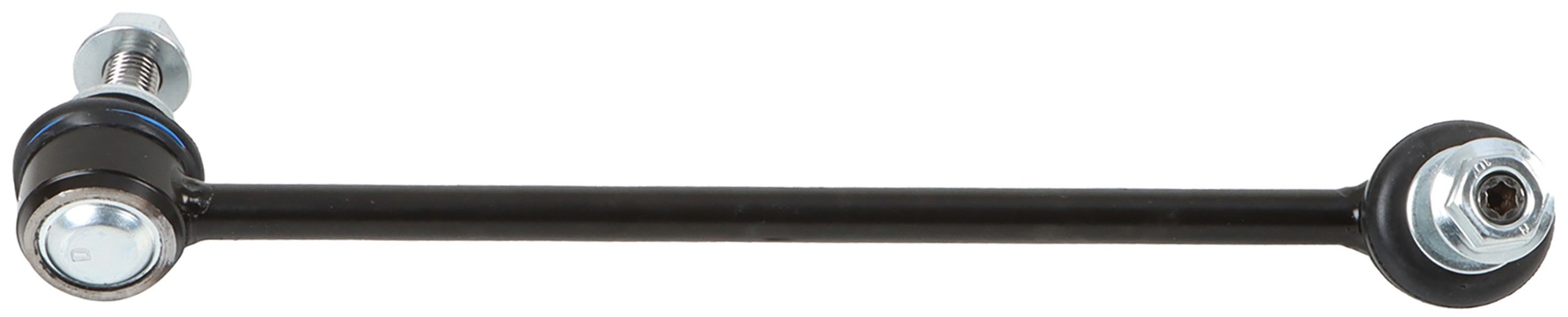

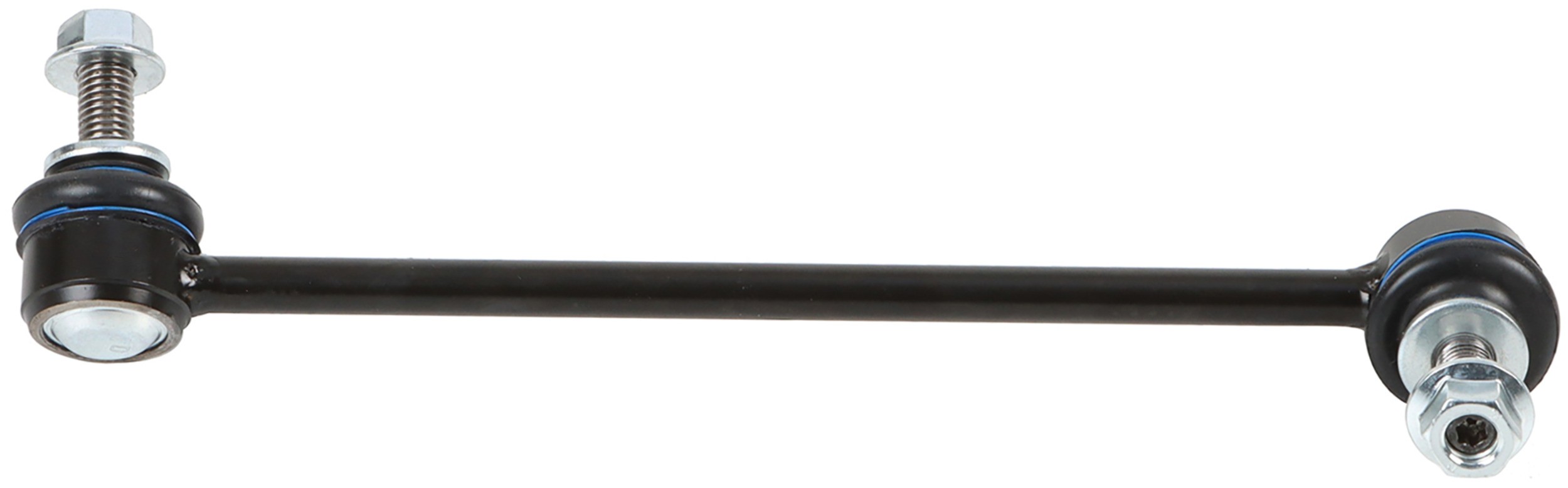

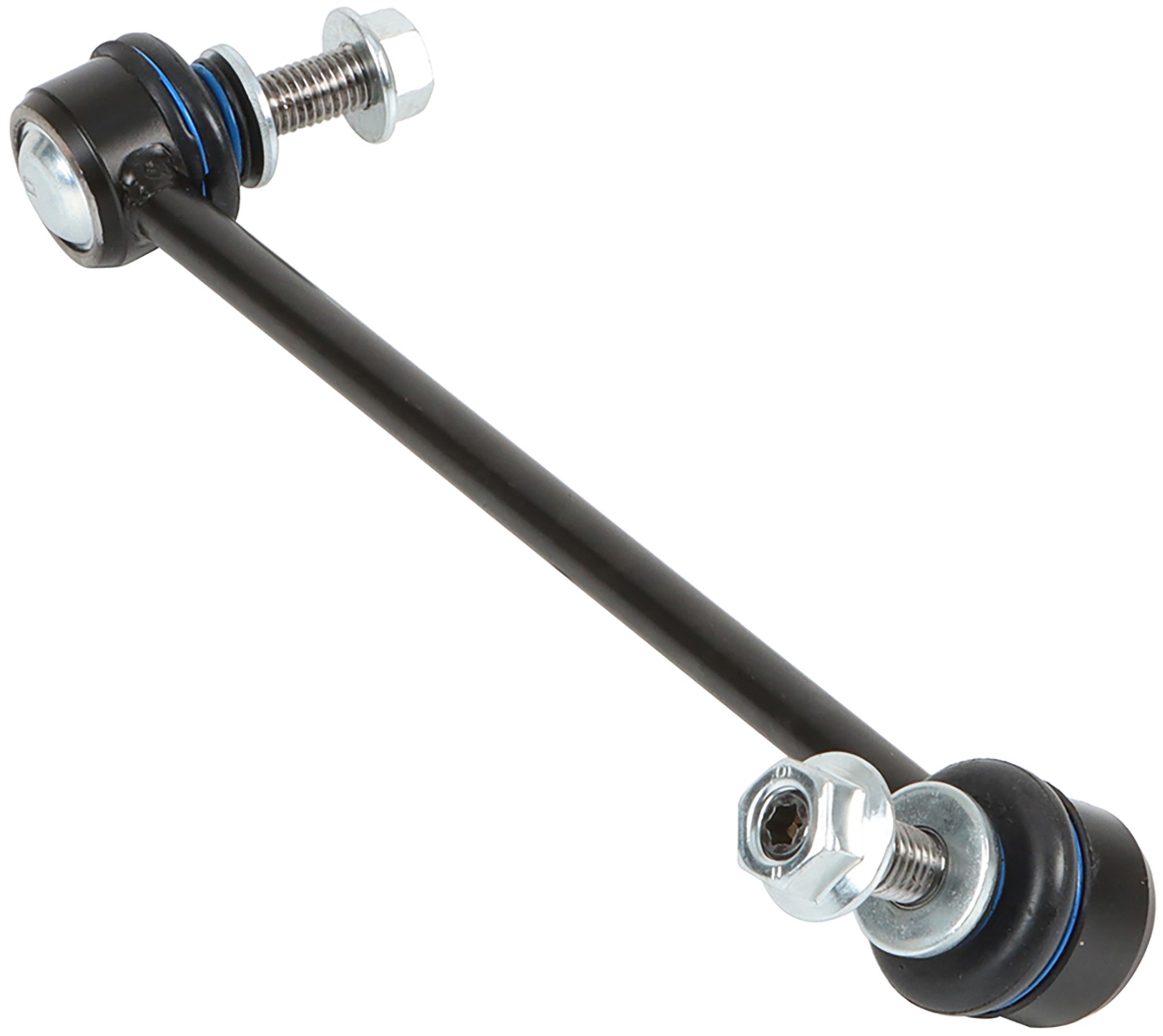

Delphi TC8509 Suspension Stabilizer Bar Link

Delphi TC8509 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Type	Ball Joint
627	1.576 LB
Washers Included	No
Position(s)	Front Left
Dust Boot Included	Yes
Grade Type	Standard Replacement
Hardware Included	Yes
Greaseable	No
End 2 Type	Ball Joint
Bar Diameter	12.00 MM
Bar Diameter	0.472 IN
Height	57.60 MM
Height	2.268 IN
Length	280.00 MM
Length	11.024 IN
Boot Material	Rubber
Housing Material	Steel
10829	No
1182	Suspension Rod
1260	No
839	T40
9296	Yes
