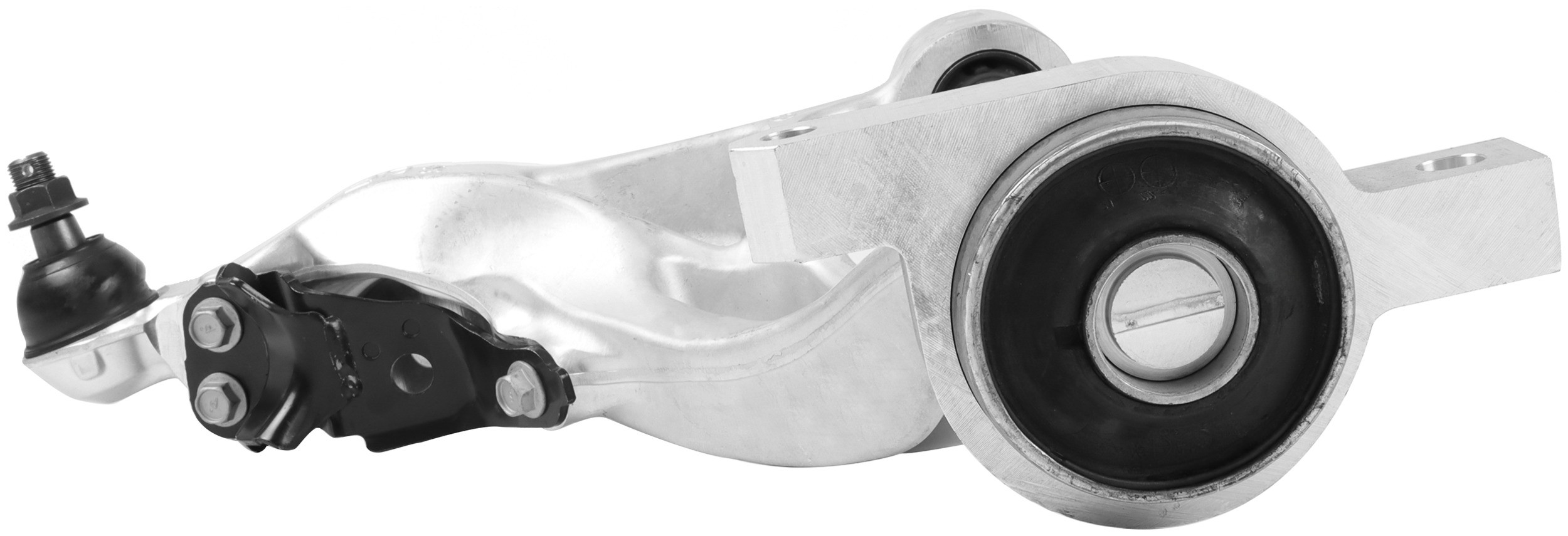

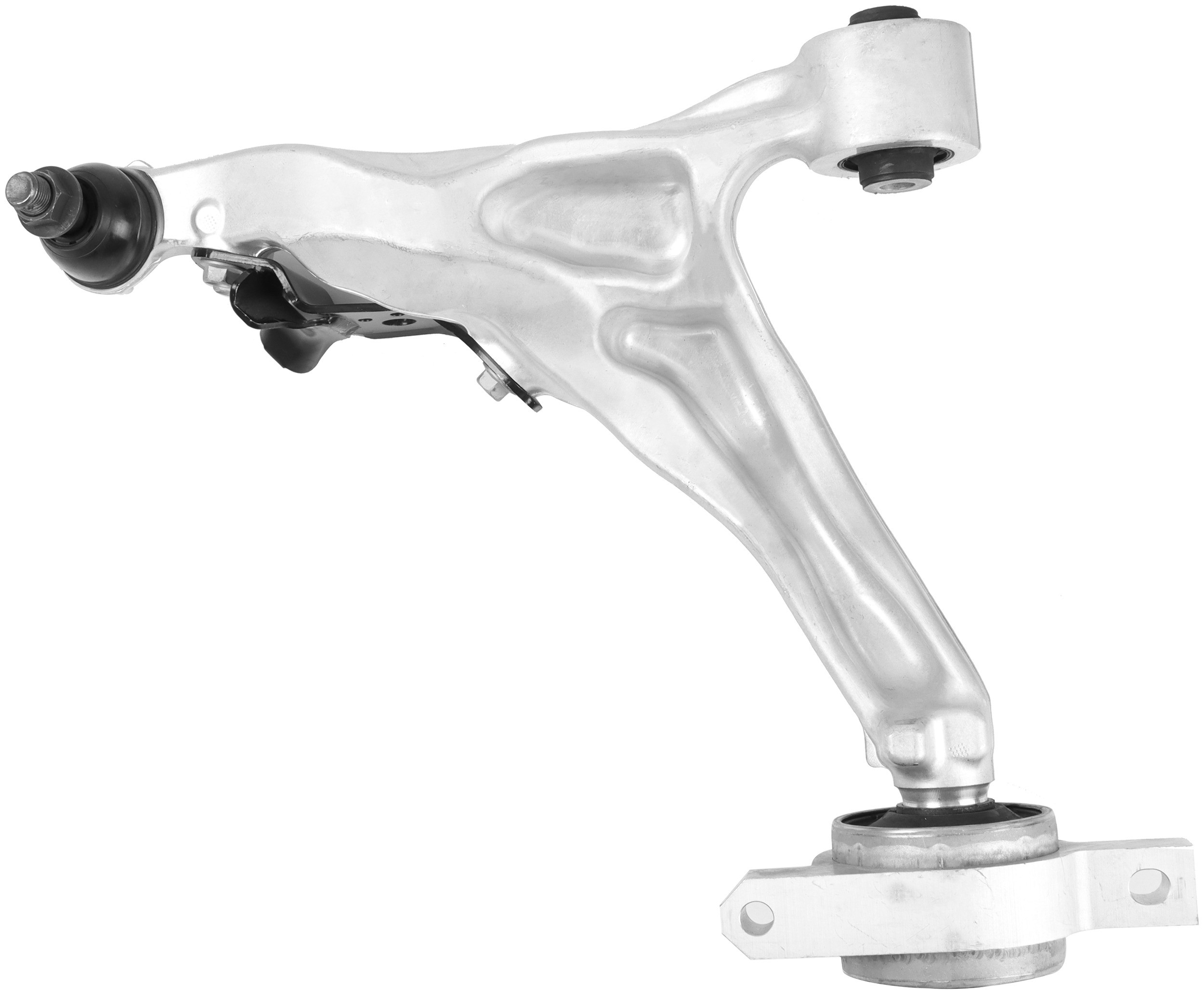

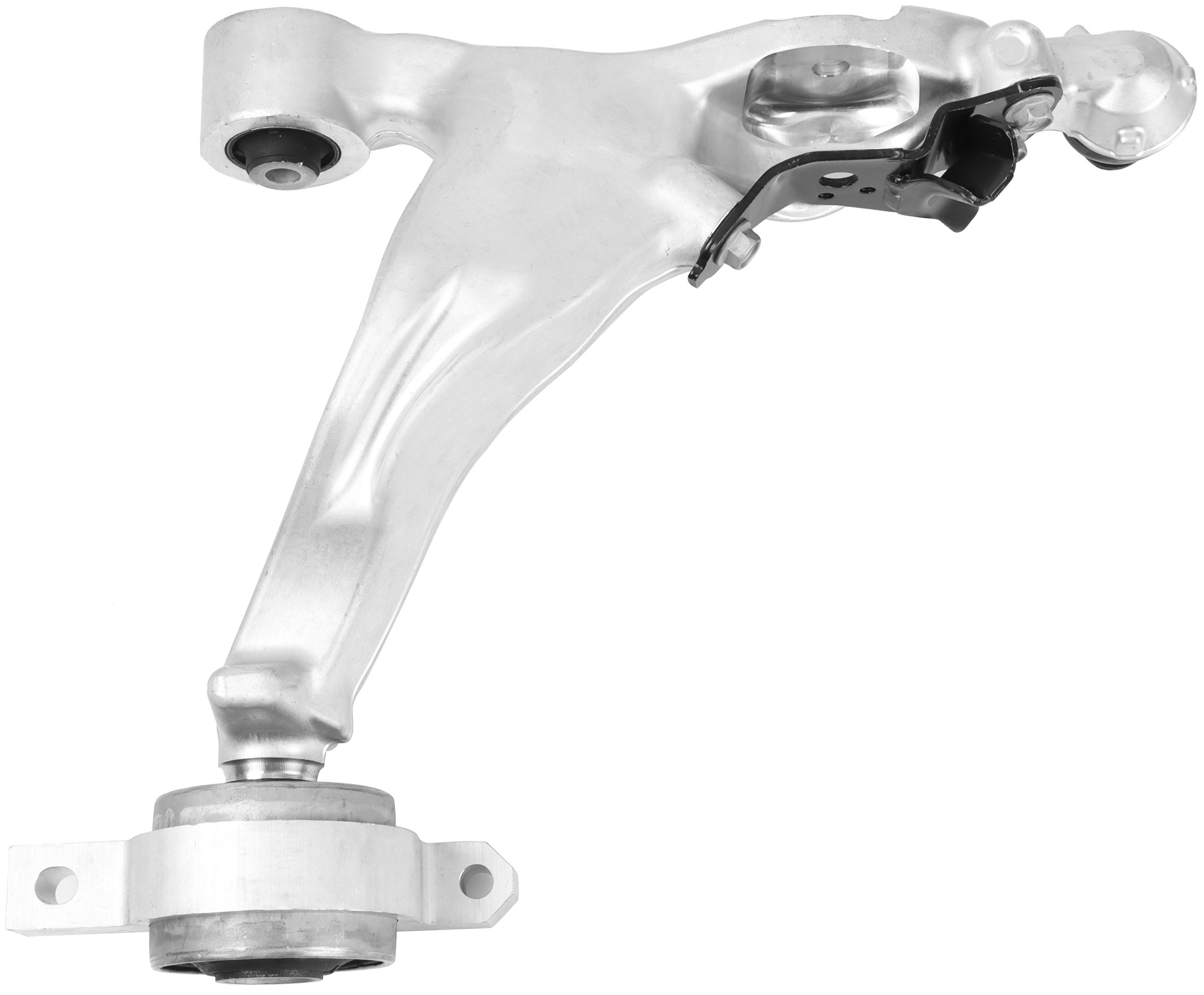

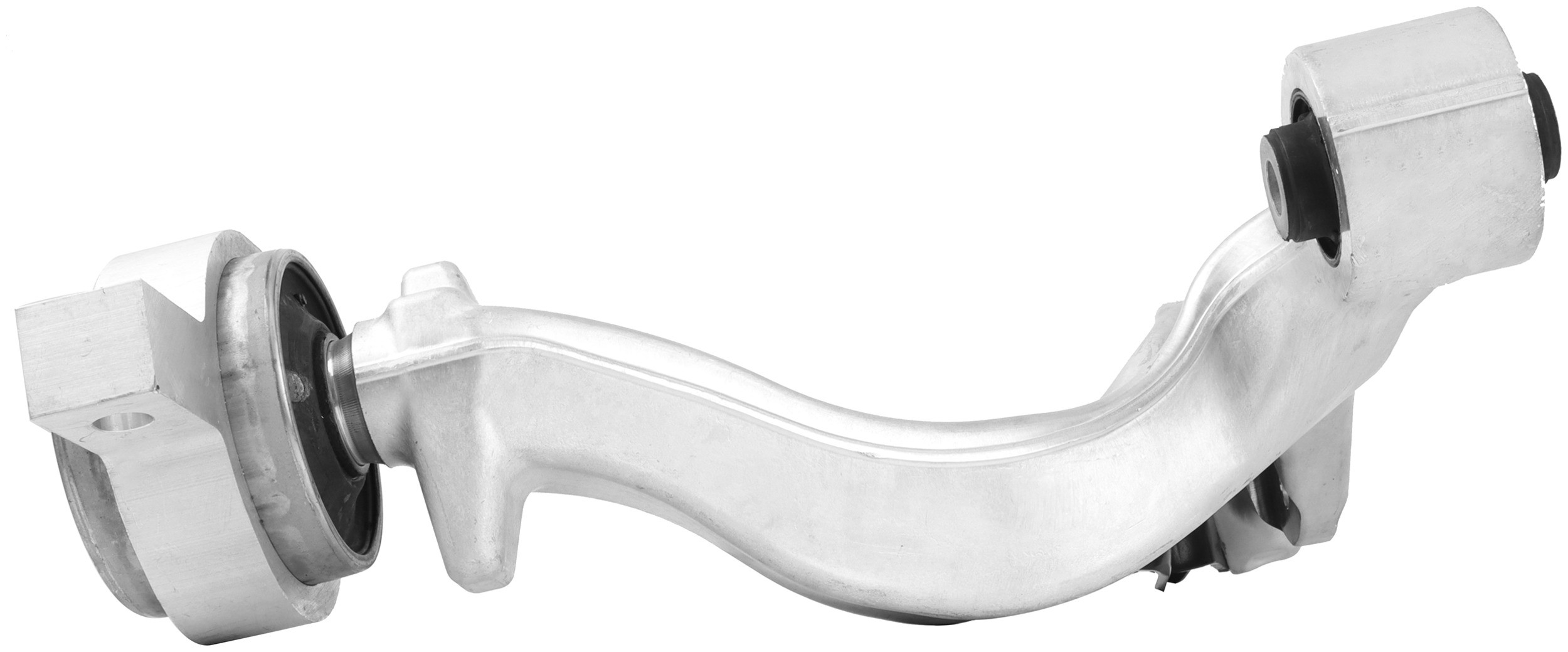

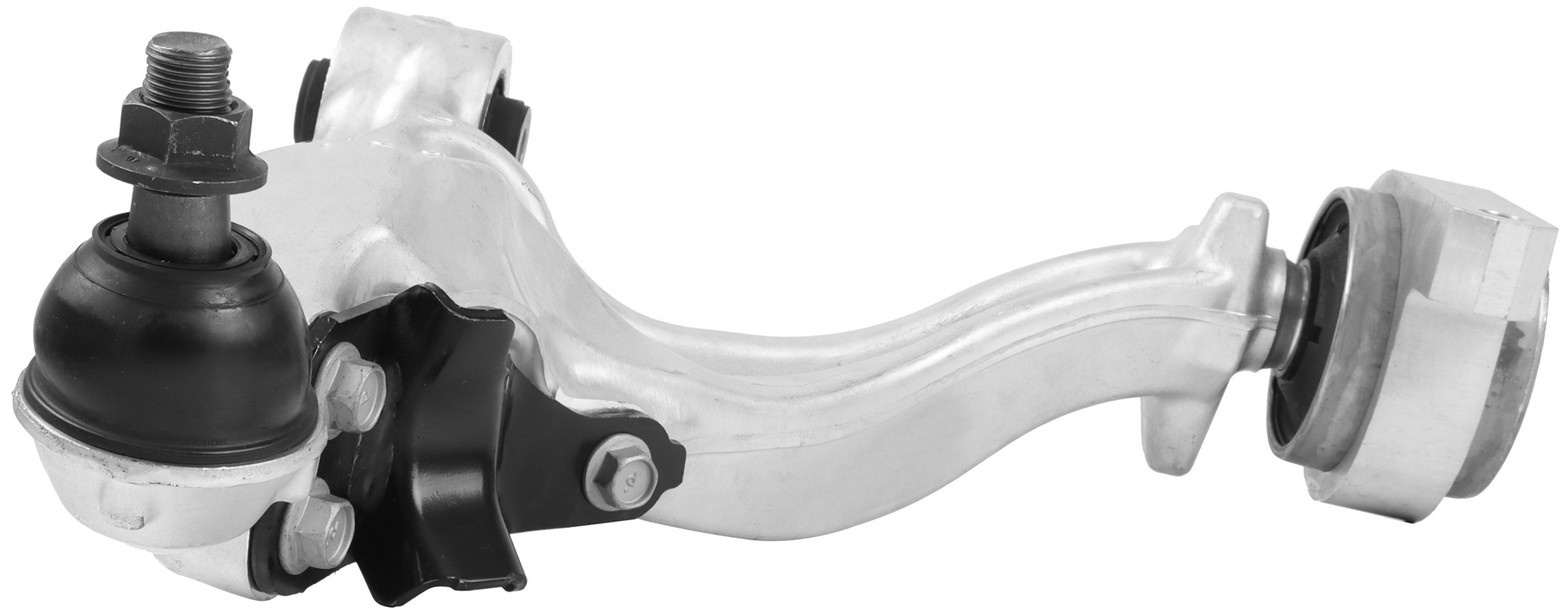

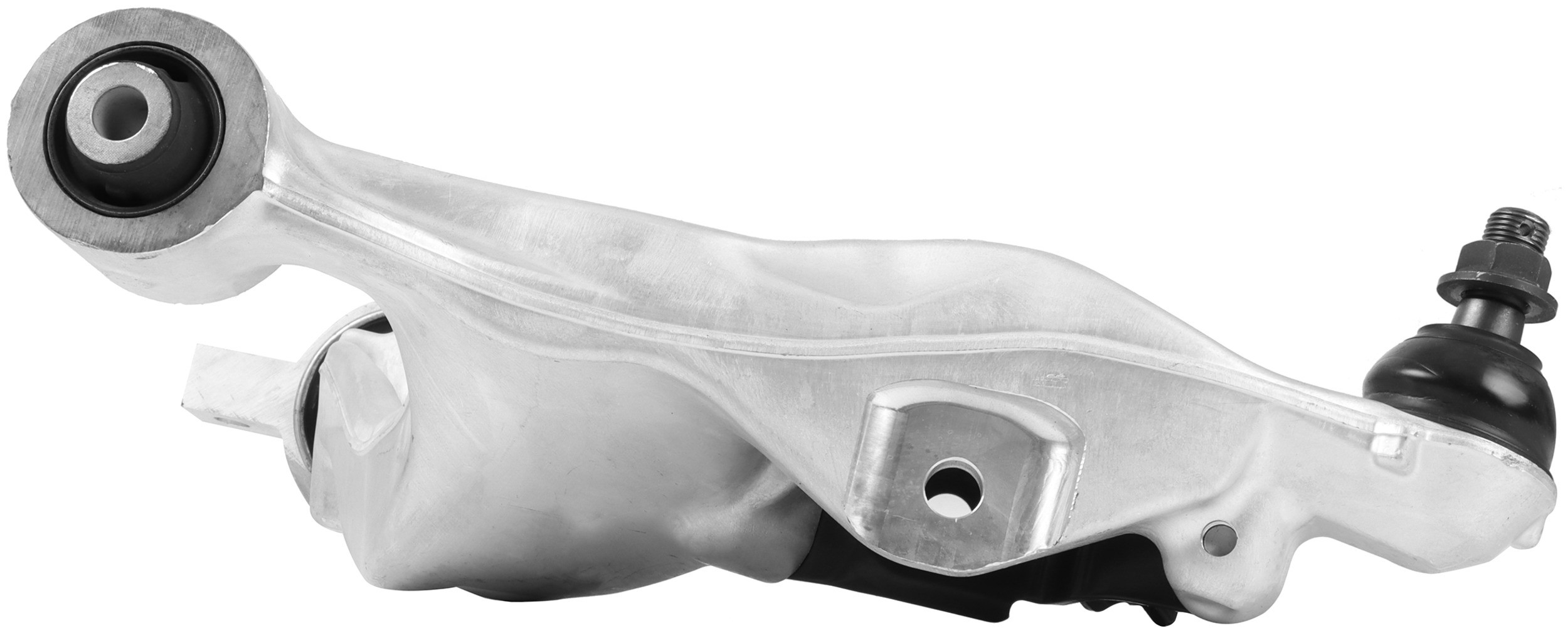

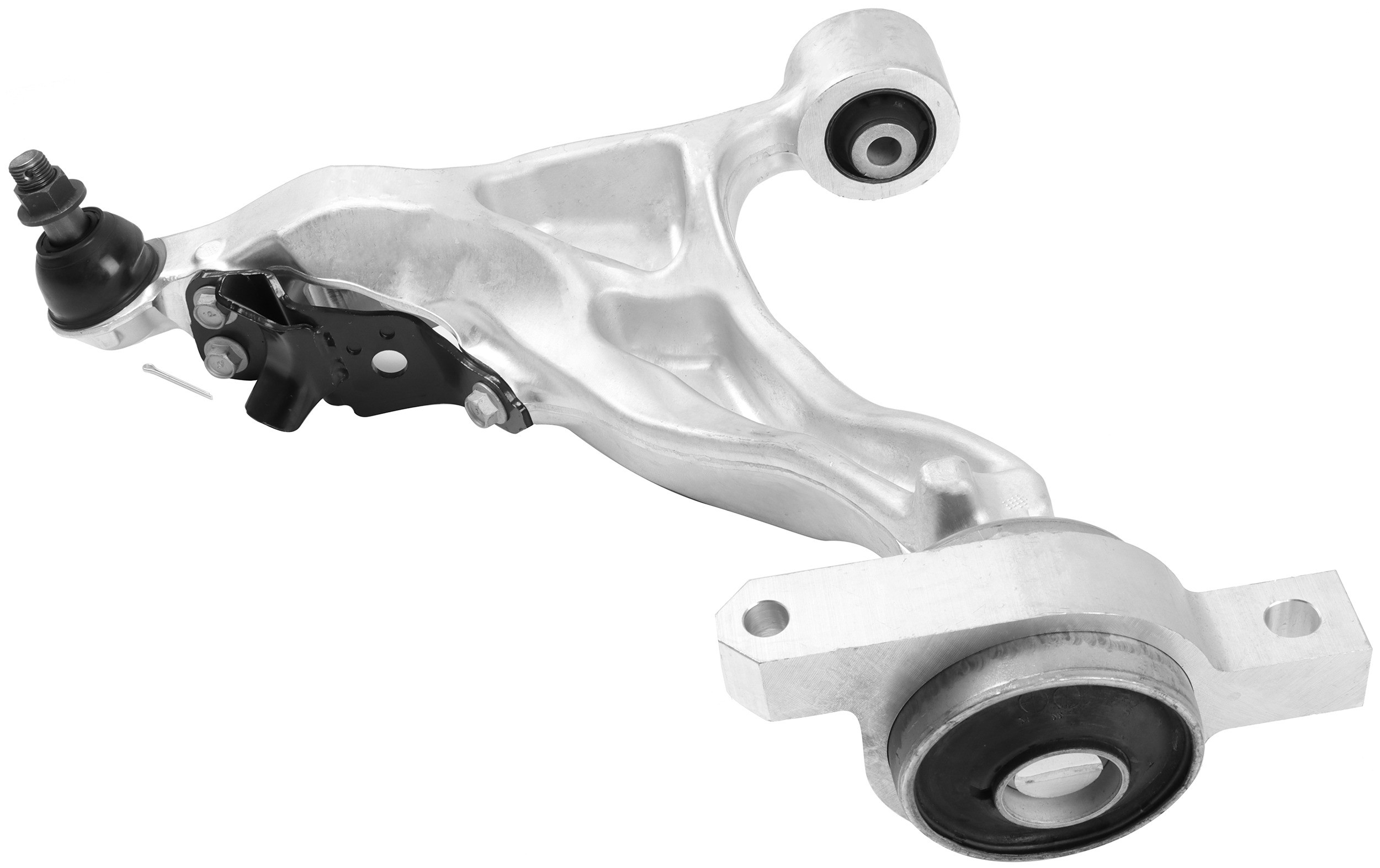

Delphi TC8784 Suspension Control Arm and Ball Joint Assembly

Delphi TC8784 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4887	15.150 IN
Grade Type	Standard Replacement
Bushing Type	Rubber
Bearing Material	Polyoxymethilen (POM)
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
4887	385.00 MM
4890	1.020 IN
662	20.60 MM
9532	13.770 IN
9532	350.00 MM
Boot Material	Chloroprene Rubber(CR)
Mounting Hole Quantity	3
Position(s)	Front Right Lower
1260	No
2334	No
2384	Yes
2386	Casting/Forged
2827	Yes
4241	Yes
6529	Power
9090	Chloroprene Rubber(CR)
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
4890	26.00 MM
Grease Fitting Included	No
Pre-greased	Yes
Bushing Length	70.00 MM
Bushing Length	2.750 IN
Bushing Inside Diameter	14.20 MM
Bushing Inside Diameter	0.550 IN
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	0.550 IN
Length	463.00 MM
Length	18.220 IN
Length	150.00 MM
Length	5.900 IN
Finish	Uncoated
Bushing Colour	Black
Thread Direction	Clockwise (Right)

Vehicle Applications:

Make	Model	Years
INFINITI	EX35	2009 to 2012
INFINITI	EX37	2013 to 2013
INFINITI	G37	2008 to 2013
INFINITI	Q50	2014 to 2023
INFINITI	Q60	2014 to 2022
INFINITI	QX50	2014 to 2017
Nissan	370Z	2009 to 2020
Nissan	Z	2023 to 2023
