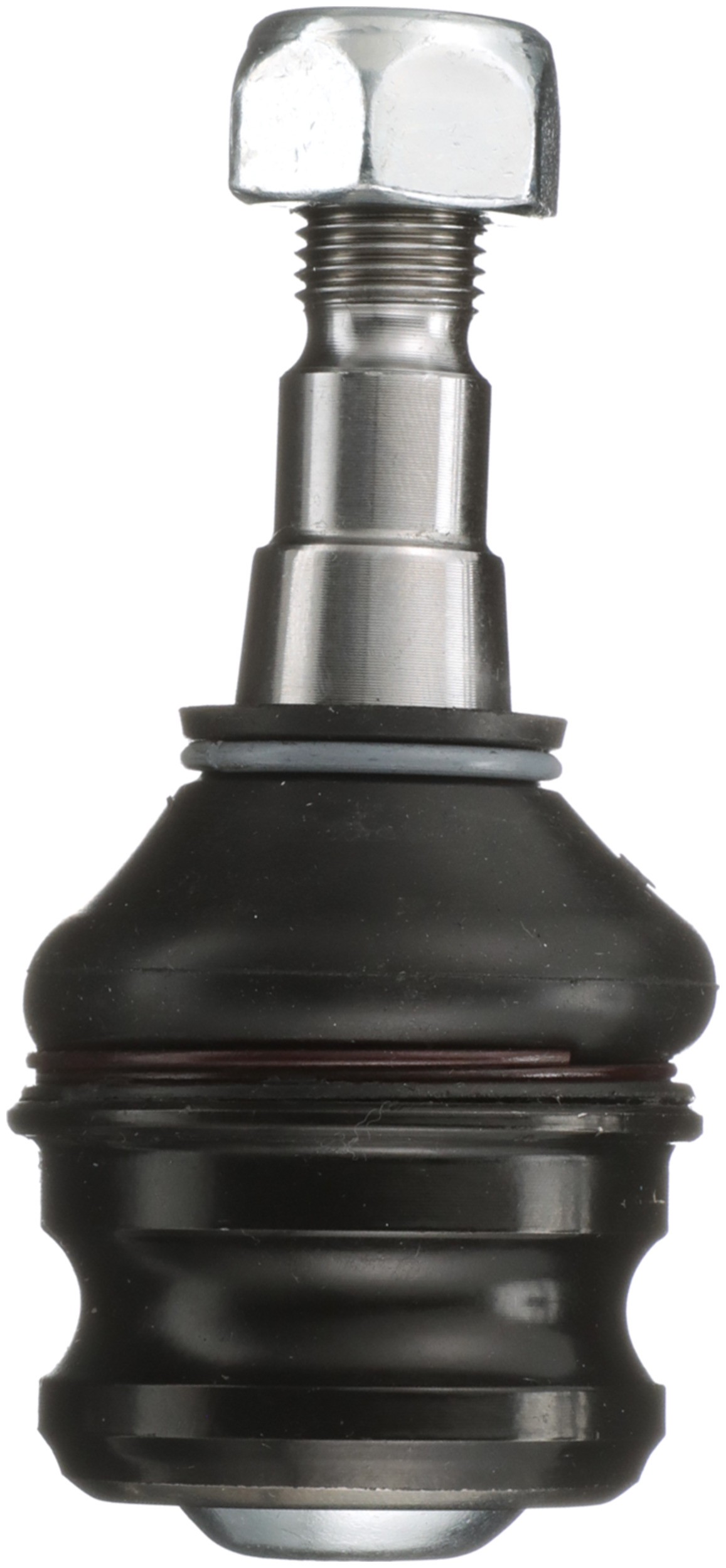

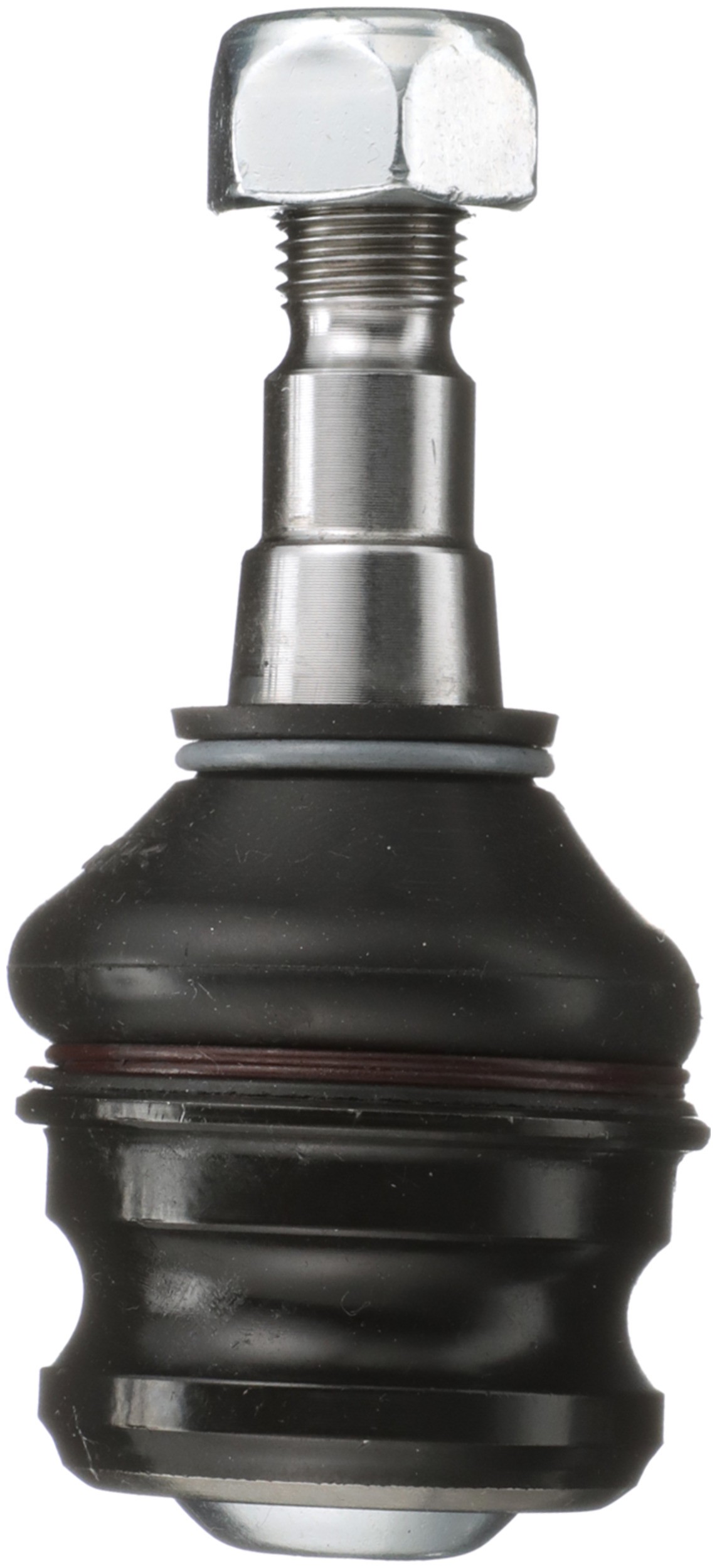

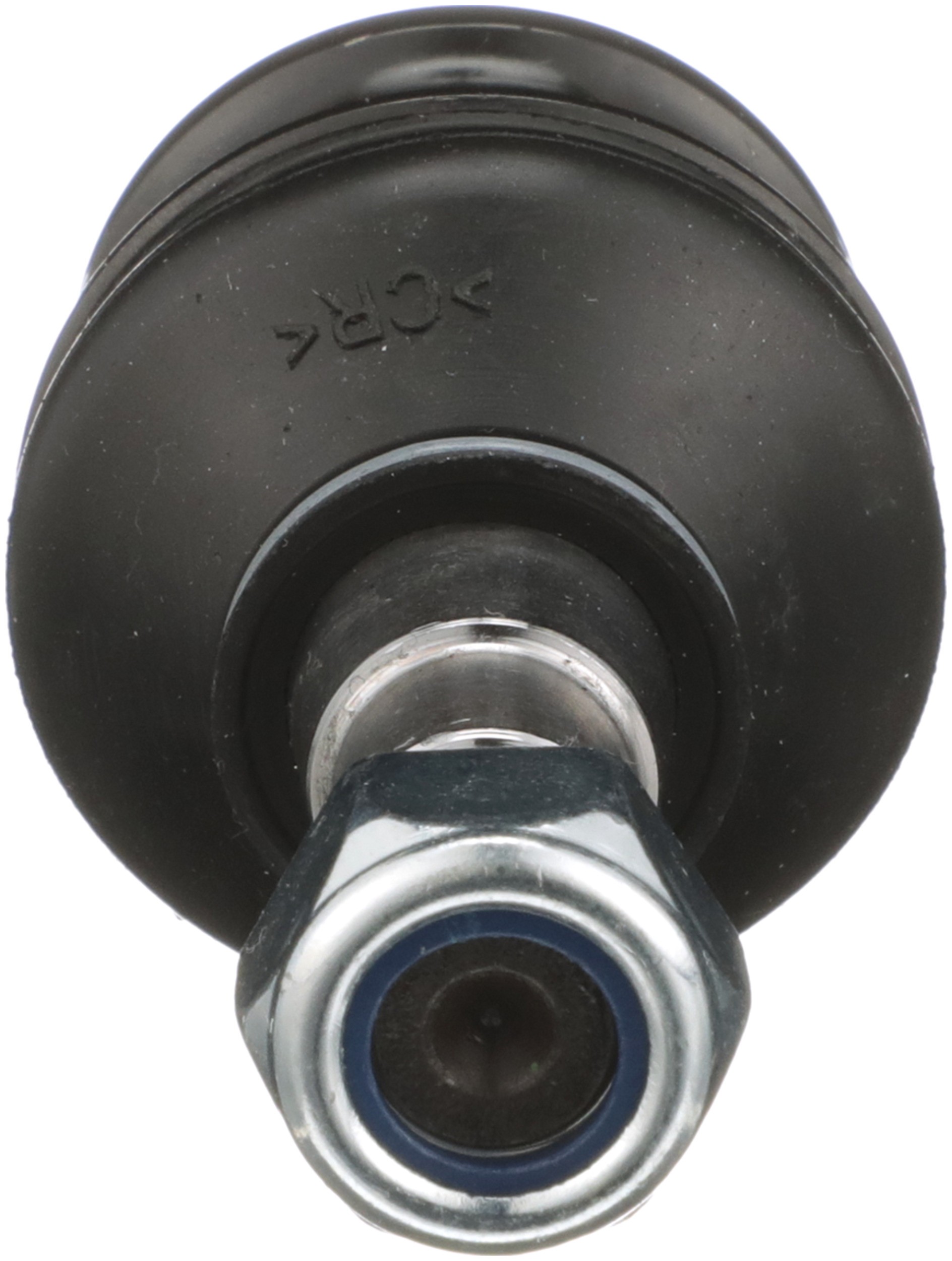

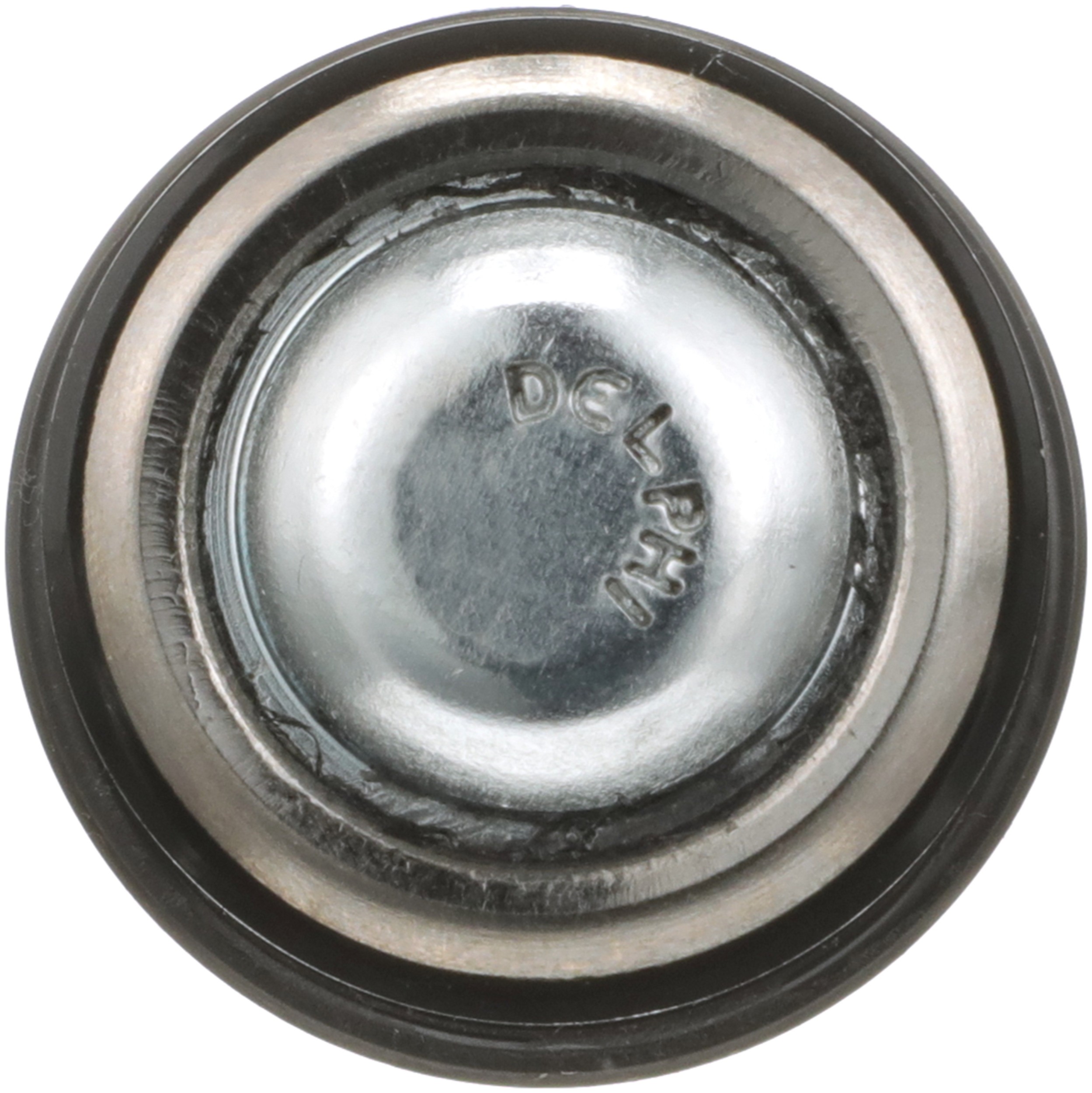

Delphi TC959 Suspension Ball Joint

Delphi TC959 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	86.20 MM
Adjustable	No
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
Greaseable	No
Mounting Type	Press-In
4966	14.5 MM
4966	0.571 IN
3068	59.00 MM
3068	2.323 IN
Suspension Grade Type	Standard Replacement
9213	15.45 MM
9213	0.608 IN
9212	18.7 MM
9212	0.736 IN
9207	26.00 MM
9207	1.024 IN
9203	15.00 MM
9203	0.591 IN
9202	10.00 MM
9202	0.394 IN
Height	3.394 IN
Width	41.8 MM
Maximum Outside Diameter	41.80 MM
Maximum Outside Diameter	1.646 IN
9210	Yes
9209	No
9204	Yes
9090	Rubber
881	Threaded
839	19mm
Material	Steel
Color	Black
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0

Vehicle Applications:

Make	Model	Years
Subaru	Baja	2003 to 2006
Subaru	Crosstrek	2016 to 2023
Subaru	Forester	1998 to 2018
Subaru	Impreza	1993 to 2016
Subaru	Legacy	1990 to 2019
Subaru	Outback	2000 to 2019
Subaru	WRX STI	2013 to 2021
Subaru	WRX	2013 to 2021
Subaru	XT	1988 to 1991
Subaru	XV Crosstrek	2013 to 2015
