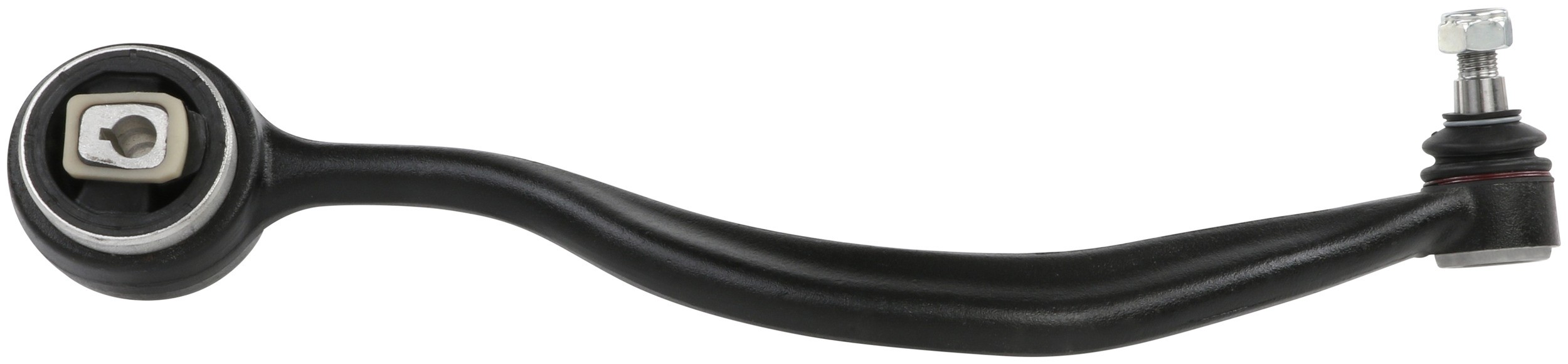

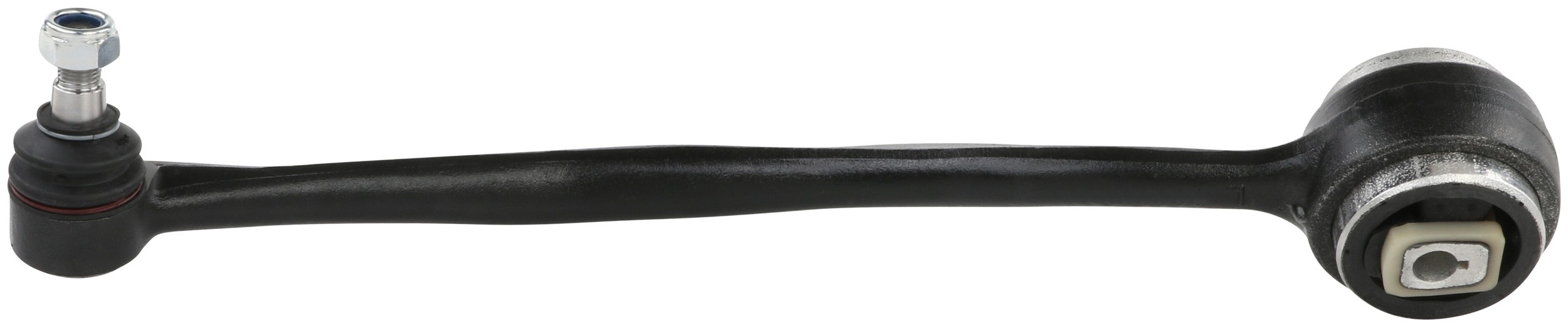

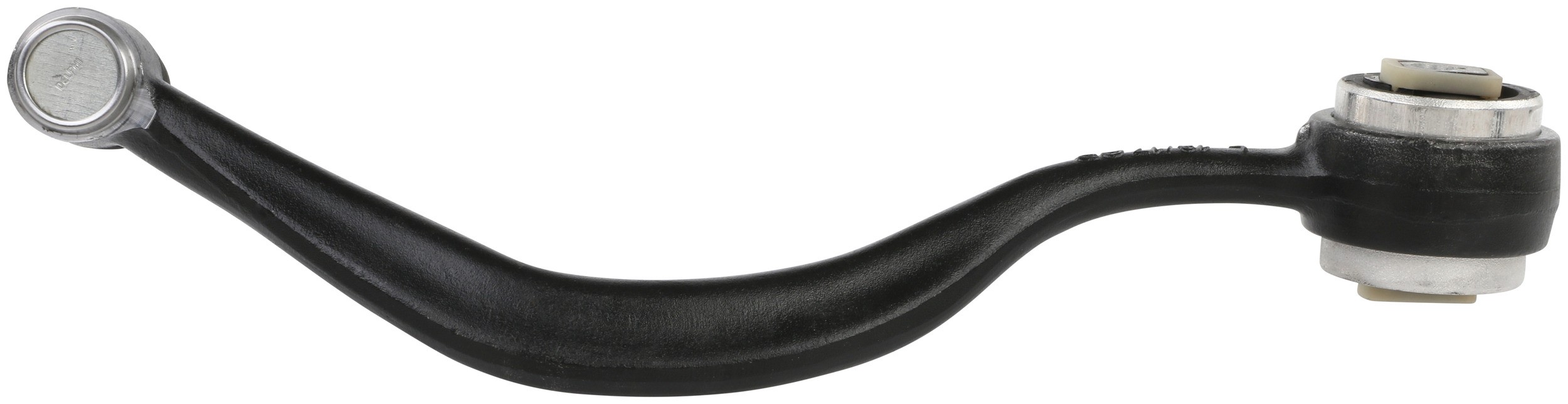

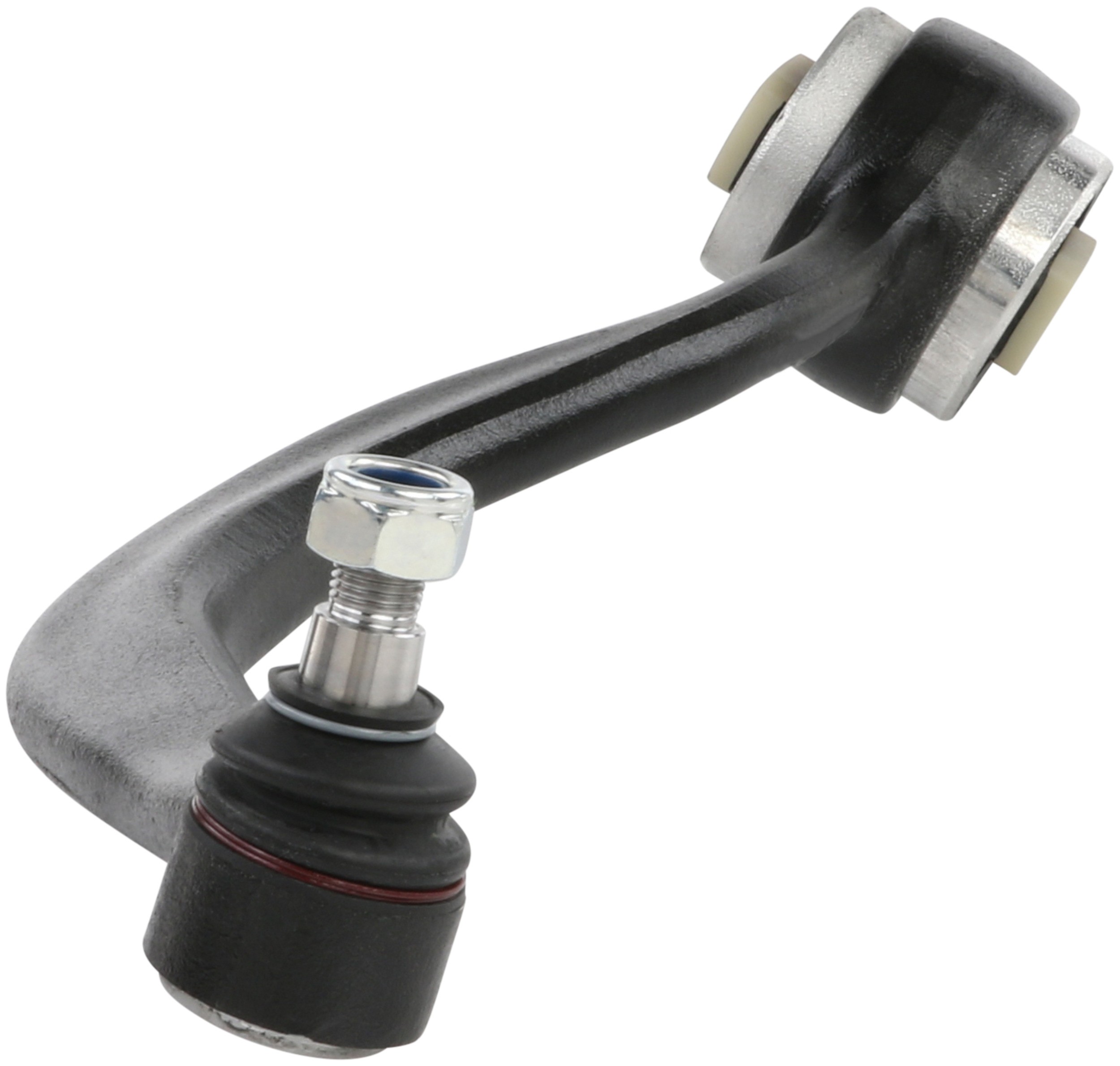

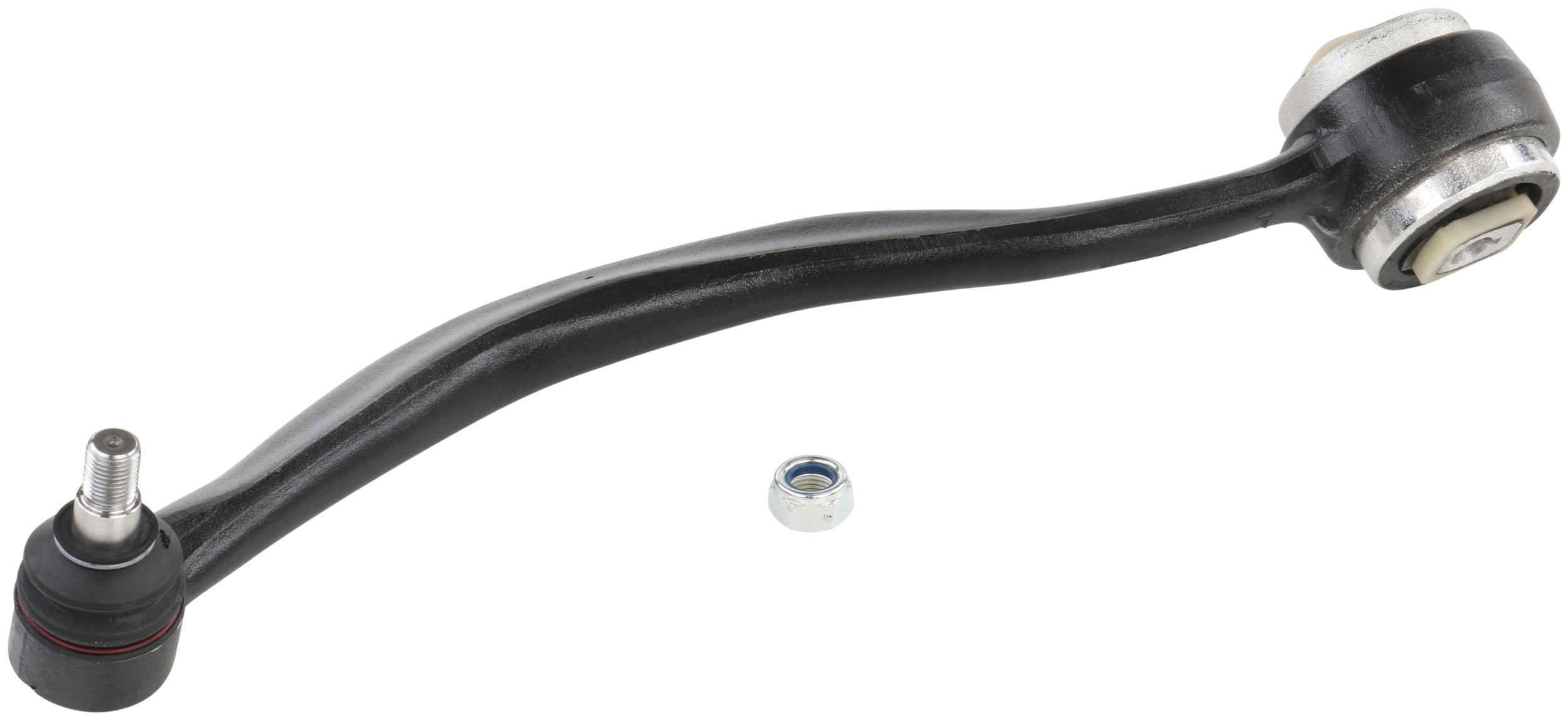

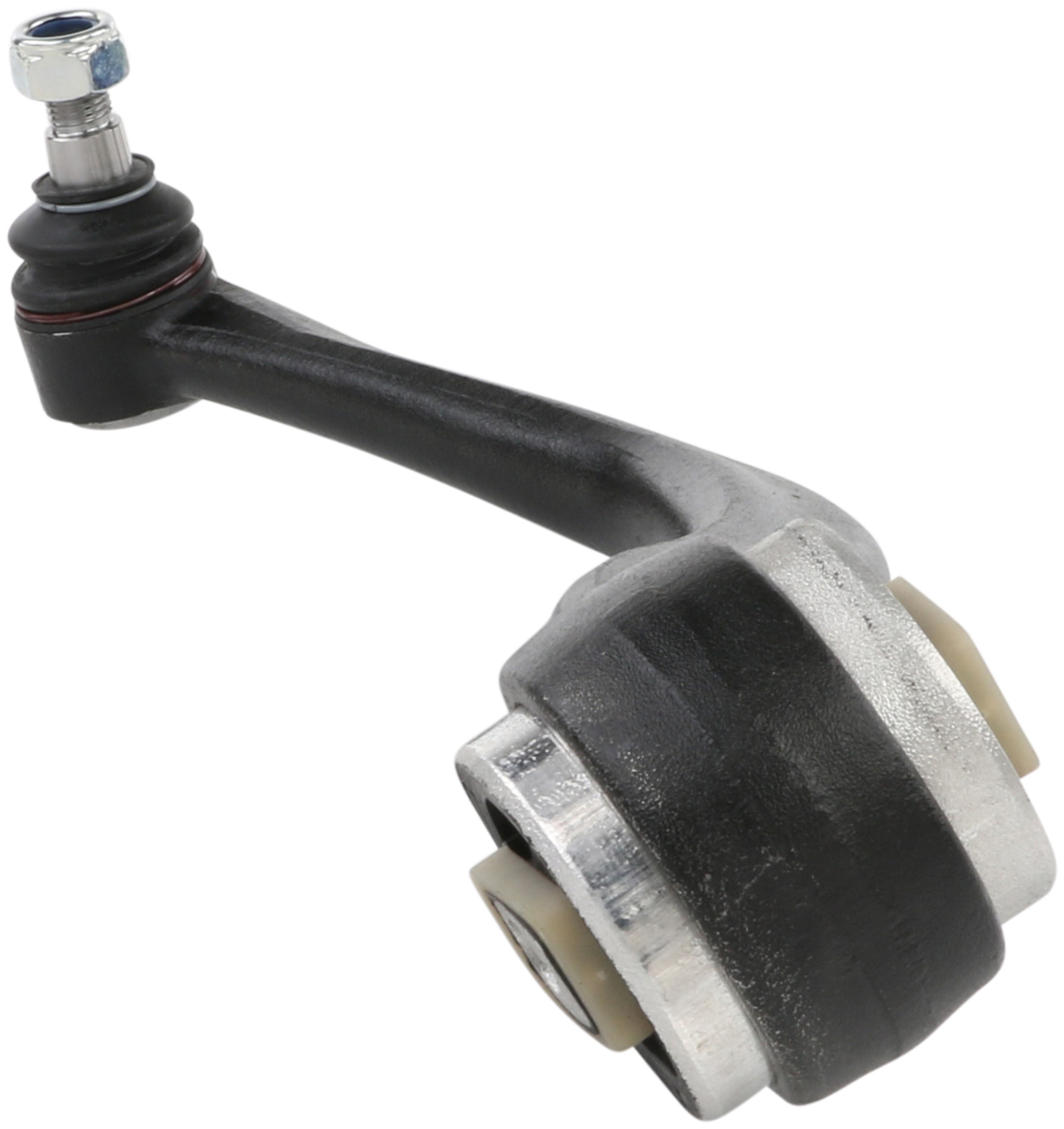

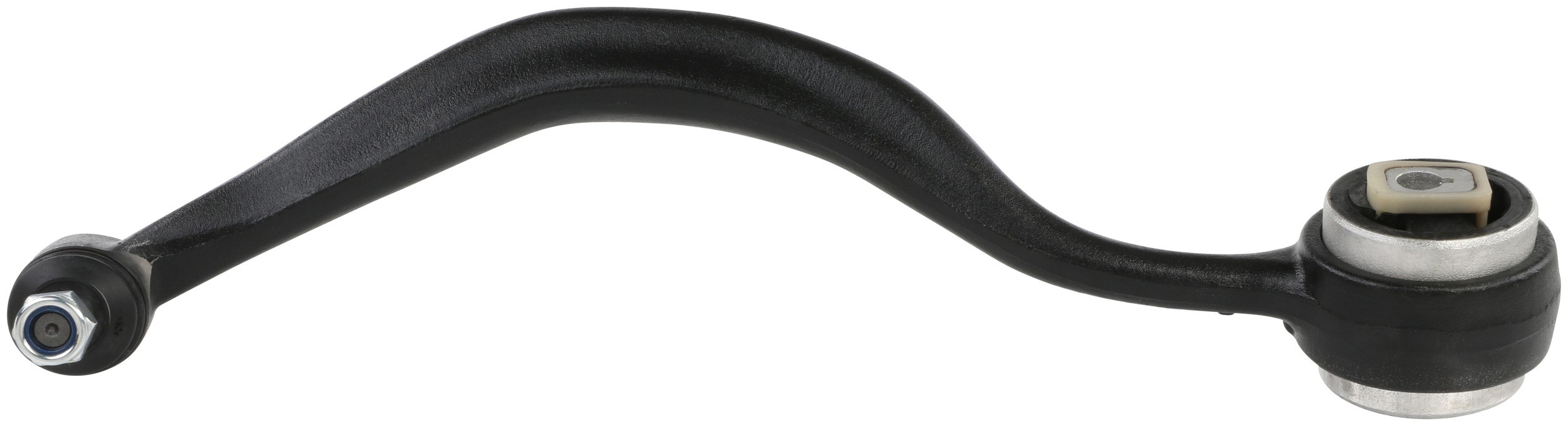

Delphi TC968 Suspension Control Arm and Ball Joint Assembly

Delphi TC968 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2384	Yes
Position(s)	Front Left Lower Rearward
Ball Joint Stud Type	Threaded
Bushing Colour	Black
Finish	Painted
Length	500.00 MM
Length	19.685 IN
Mounting Hole Diameter	17.50 MM
Mounting Hole Diameter	0.689 IN
Material	Steel
9090	Chloroprene Rubber (CR)
6529	Power
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
4241	Yes
4890	2.874 IN
4890	73.00 MM
4887	4.528 IN
4887	115.00 MM
2386	Casting/Forged
Boot Material	Chloroprene Rubber (CR)
Pre-greased	Yes
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Bushings Included	Yes
Dust Boot Included	Yes
Thread Direction	Clockwise (Right)
