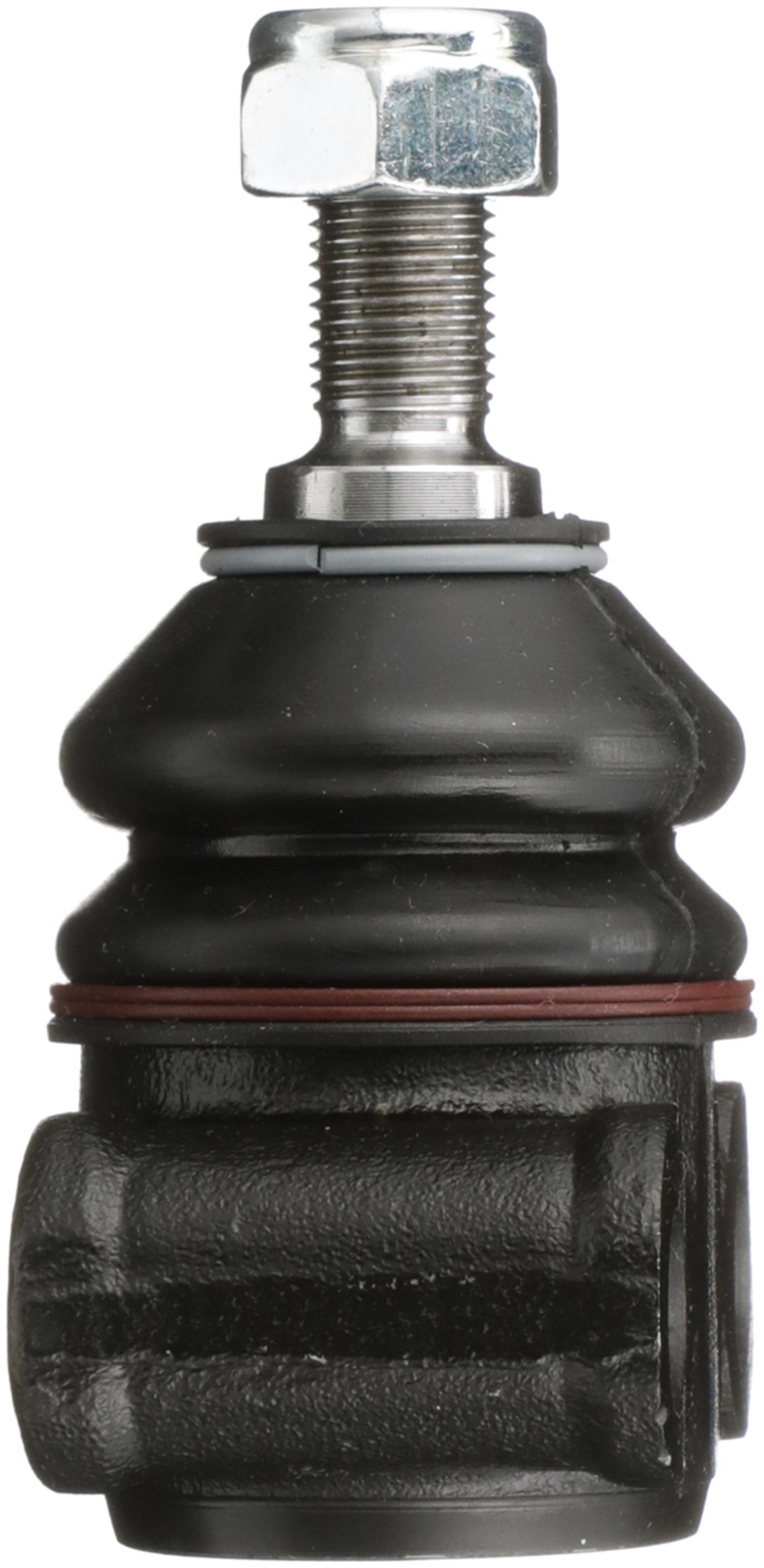

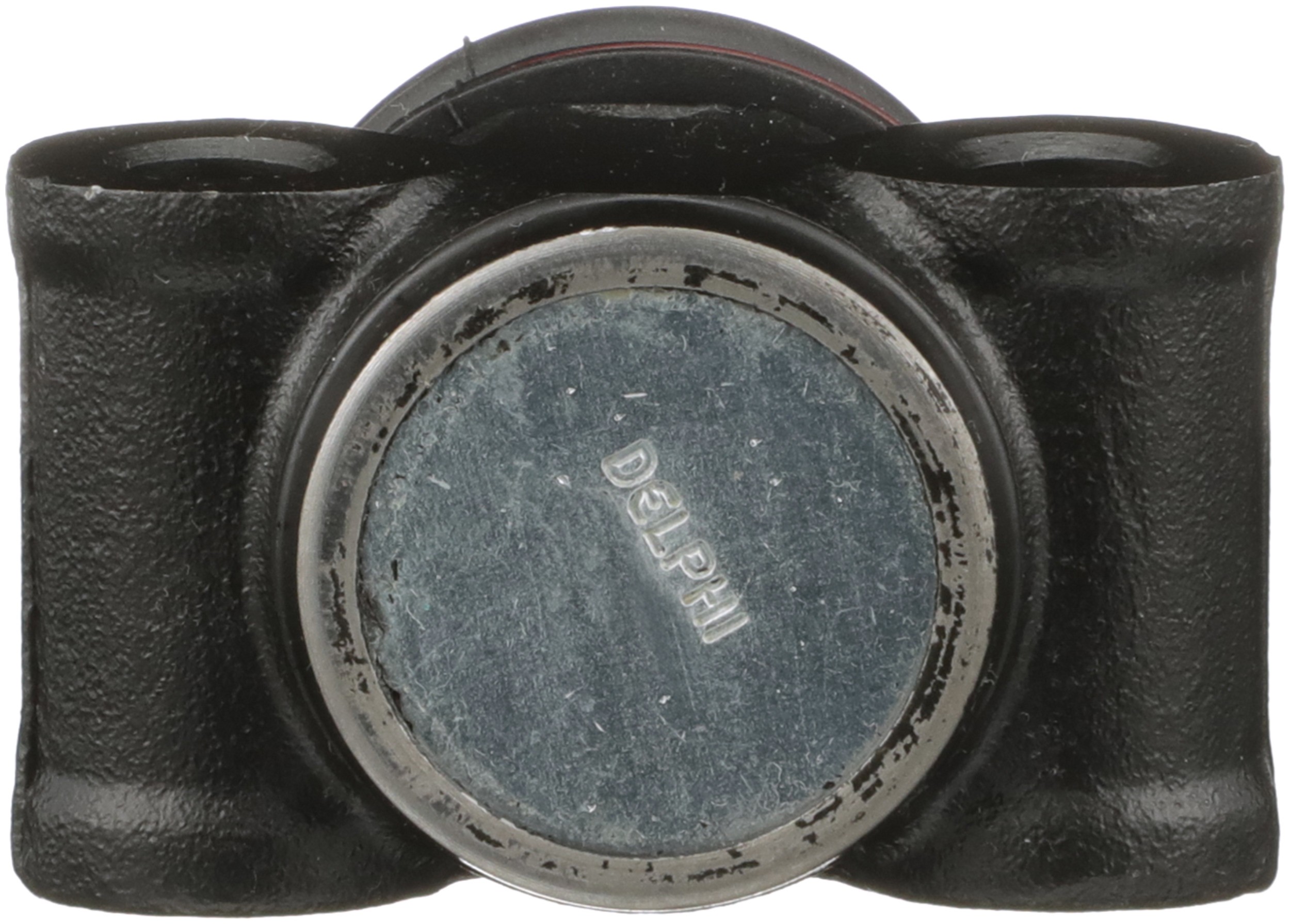

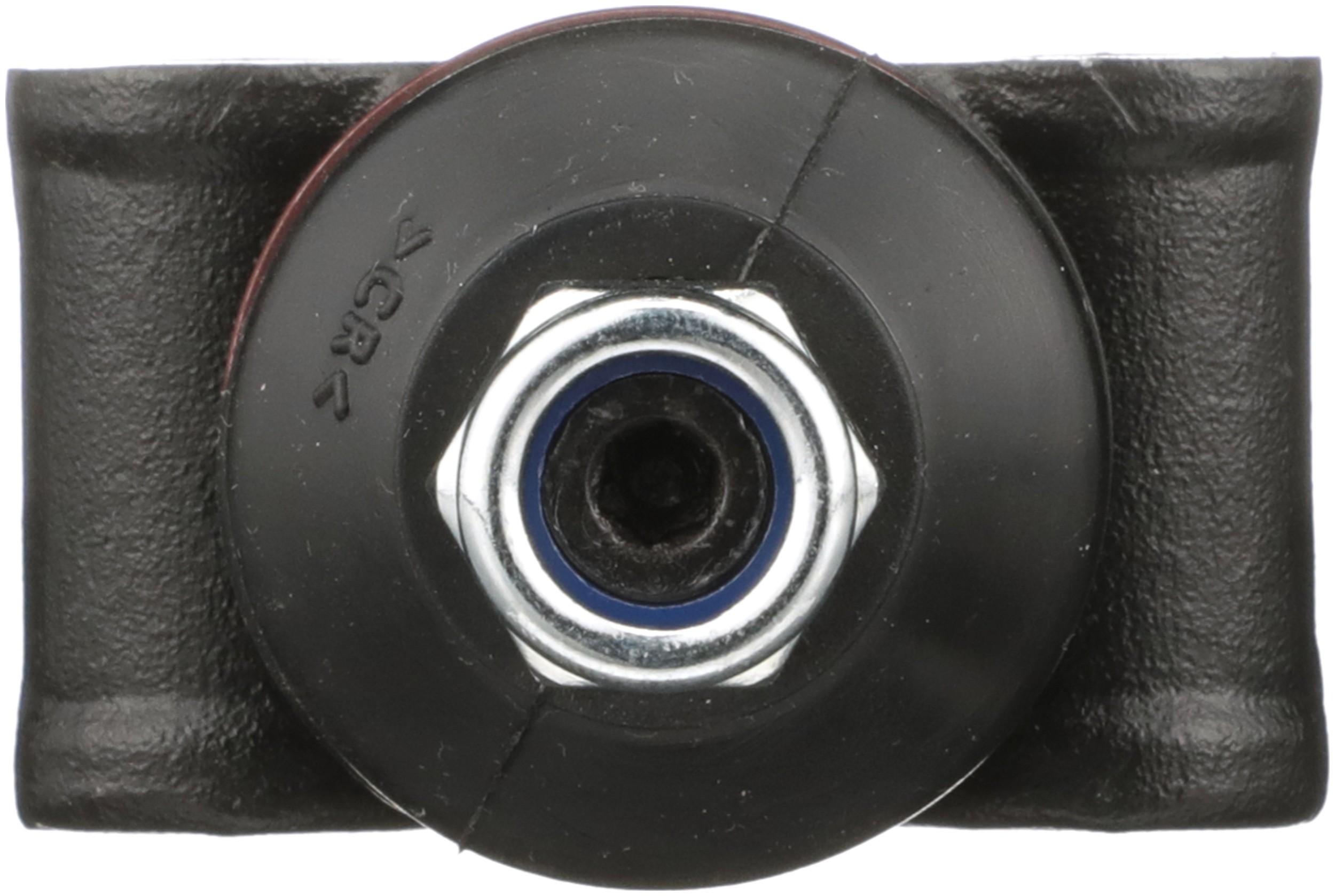

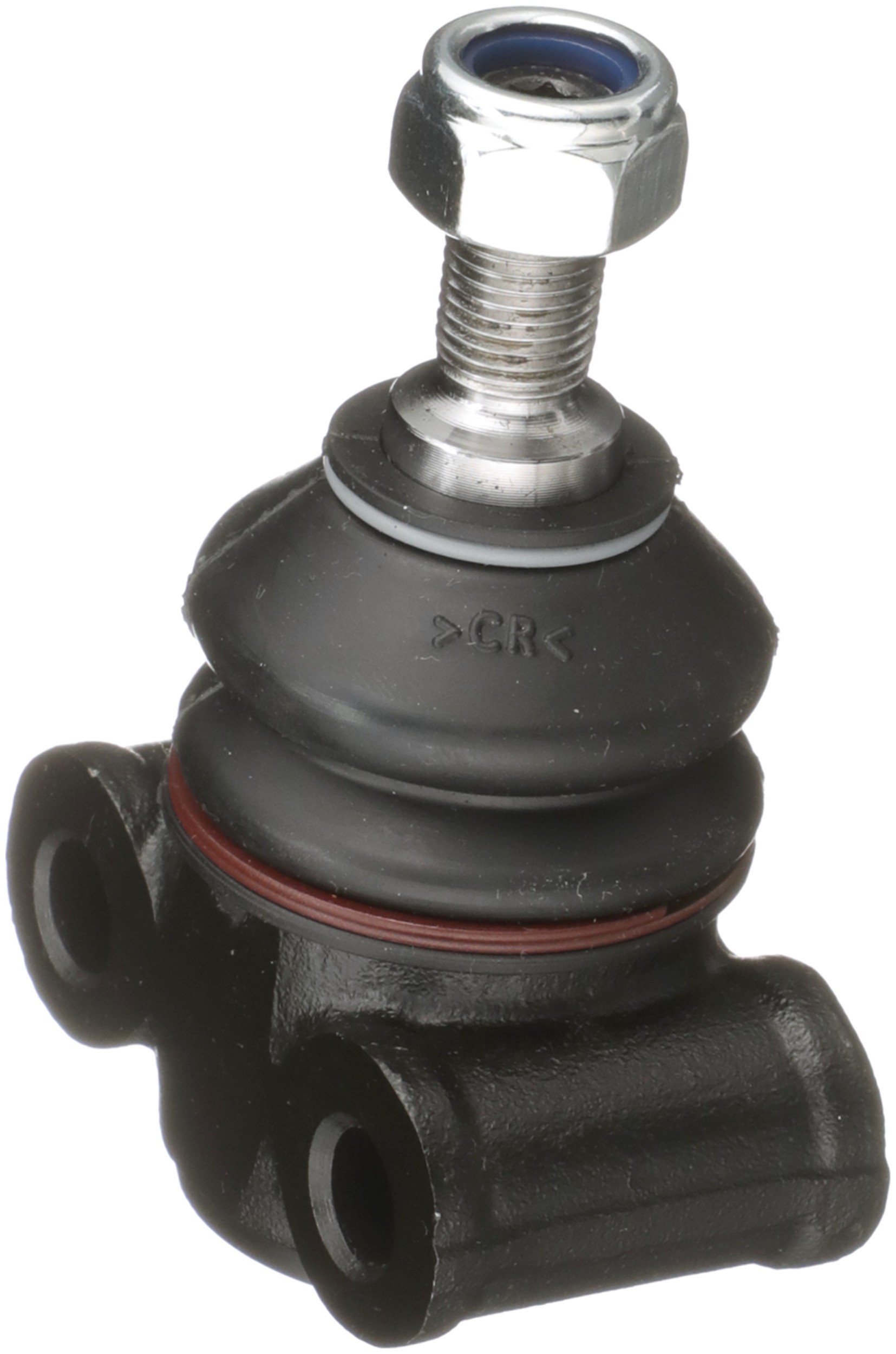

Delphi TC98 Suspension Ball Joint

Delphi TC98 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
Type	Premium
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Material	Steel
Mounting Hole Quantity	2
Height	40.00 MM
Height	1.575 IN
Width	67 MM
Length	3.660 IN
Length	93.00 MM
Maximum Outside Diameter	67.00 MM
Maximum Outside Diameter	2.638 IN
4966	0.843 IN
9213	19.2 MM
9213	0.756 IN
9212	17.3 MM
9212	0.681 IN
9058	44.50 MM
4966	21.4 MM
Position(s)	Front Upper
2334	No
2381	Yes
2827	No
881	Threaded
9204	No
9209	No
9210	Yes
Suspension Grade Type	Standard Replacement
Bushing Quantity	0
Adjustable	No
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	No

Vehicle Applications:

Make	Model	Years
Aston Martin	DB6	1965 to 1970
Aston Martin	DB7	2000 to 2004
Aston Martin	Lagonda	1977 to 1988
Aston Martin	Vanquish	2002 to 2003
Jaguar	Mark X	1962 to 1966
Jaguar	Vanden Plas	1986 to 1997
Jaguar	XJ12	1994 to 1996
Jaguar	XJ6	1972 to 1997
Jaguar	XJ	1969 to 1971
Jaguar	XJR	1995 to 1997
Jaguar	XJS	1976 to 1996
