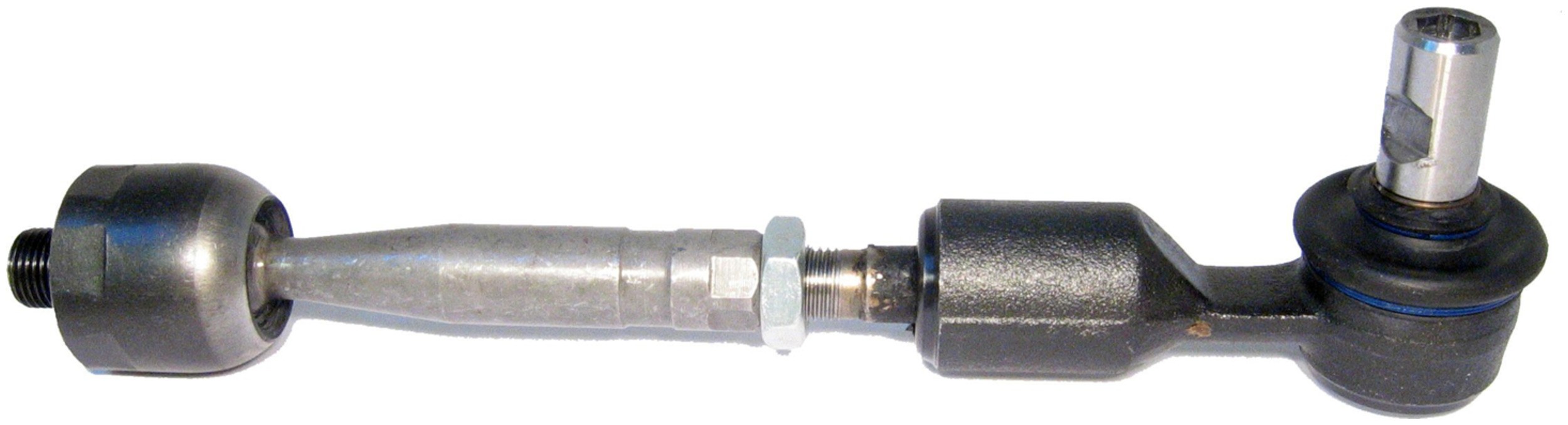

Delphi TL501 Steering Tie Rod End Assembly

Delphi TL501 Steering Tie Rod End Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
Length – Stud Centre to End	246.0 MM
Length – Stud Centre to End	9.685 IN
Position(s)	Front
9090	Chloroprene Rubber (CR)
9091	Steel
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Greaseable	No
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Finish	Cataphoresis
End 2 Gender	Male
End 1 Gender	Female

Vehicle Applications:

Make	Model	Years
Audi	A4 Quattro	1996 to 2001
Audi	A4	1996 to 2002
Audi	A6 Quattro	1998 to 2002
Audi	A6	1998 to 2002
Audi	A8 Quattro	1997 to 2003
Audi	A8	1997 to 1999
Audi	Allroad Quattro	2001 to 2005
Volkswagen	Passat	1998 to 2005
