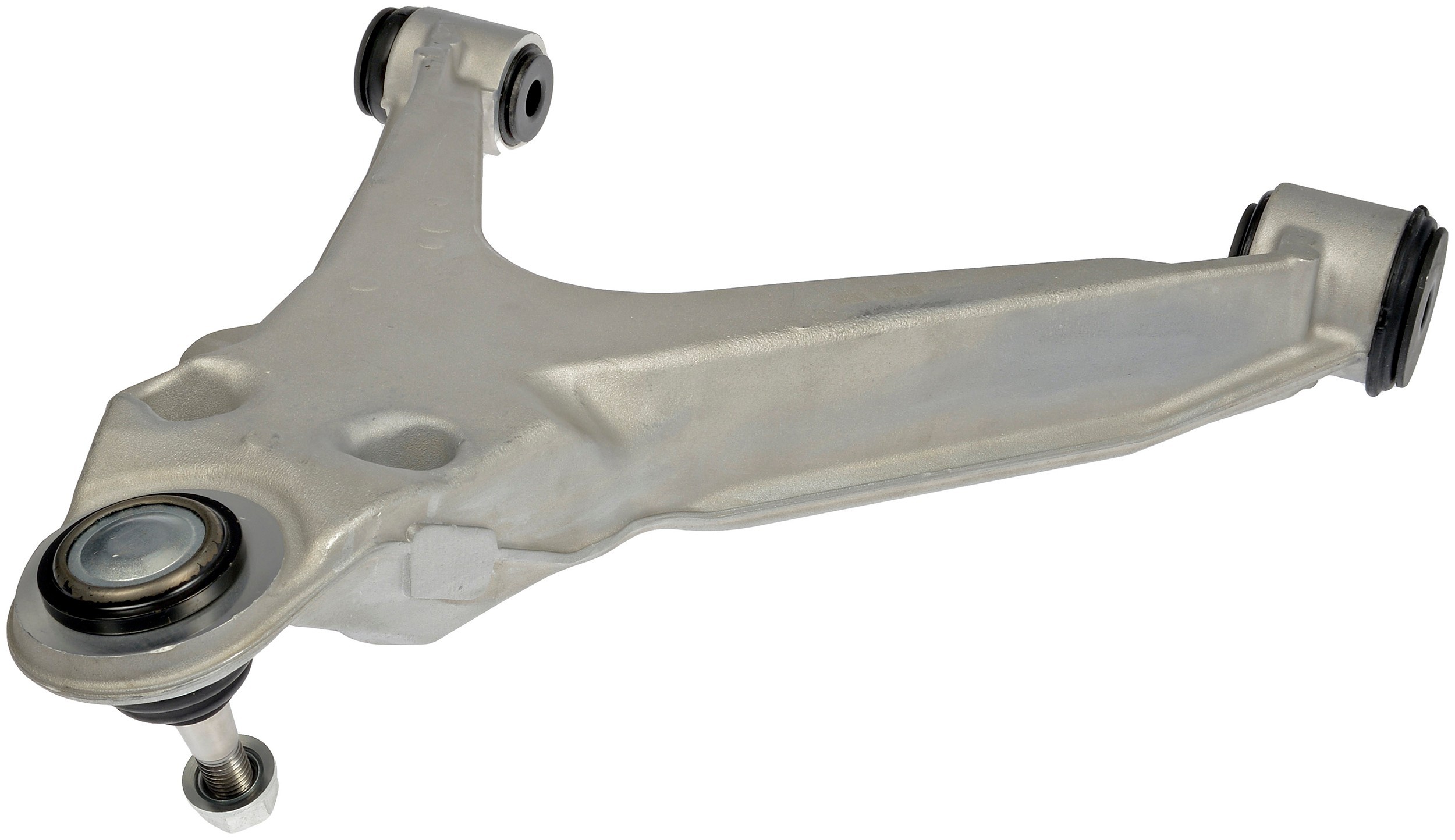

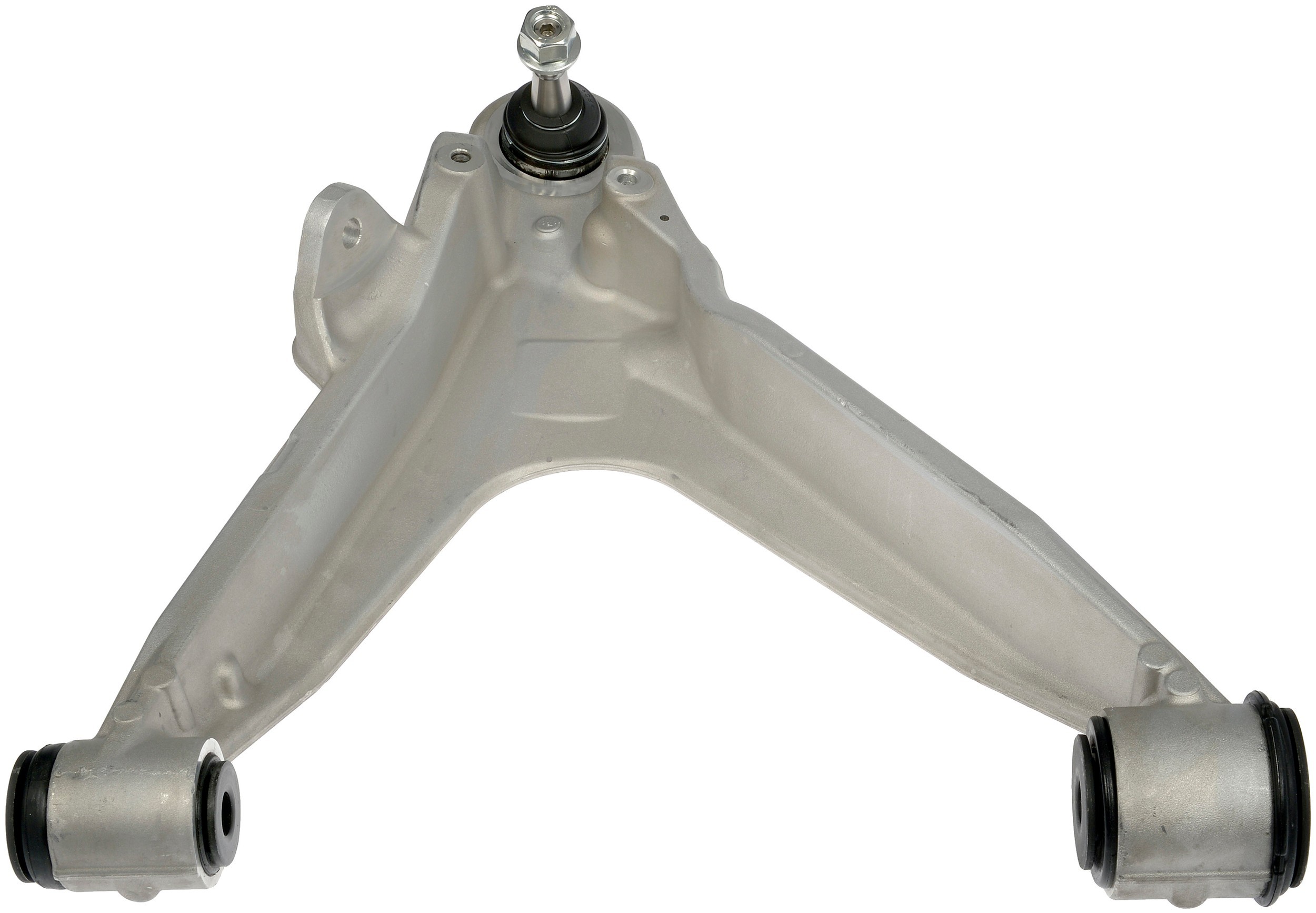

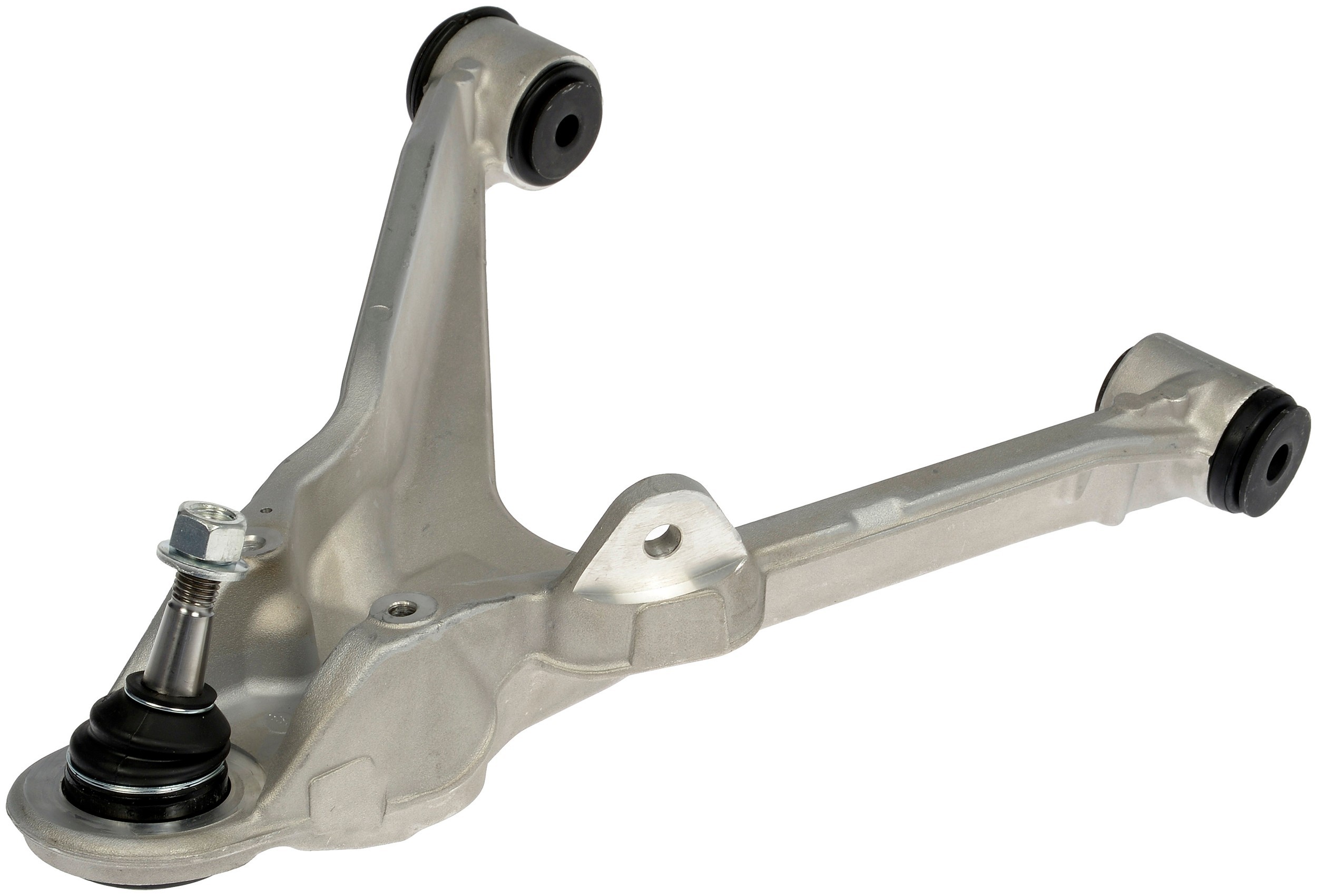

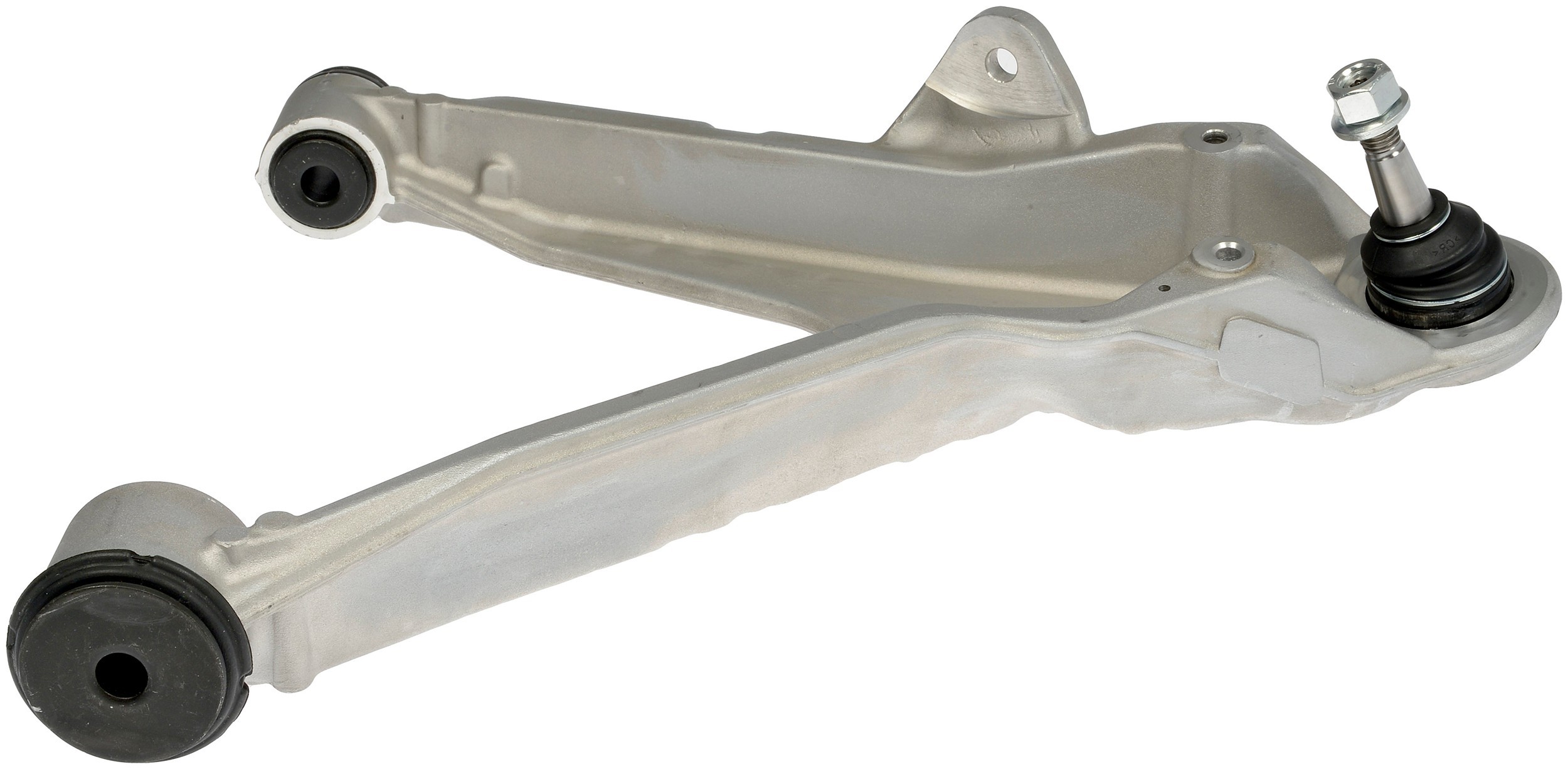

Dorman 520-054 Suspension Control Arm And Ball Joint Assembly

Dorman 520-054 Suspension Control Arm And Ball Joint Assembly

Features:

Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Direct replacement – fits and performs like the original equipment on specific vehicles
Reliable fit – precision-engineered to match the design and dimensions of original components

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

2827	No
Bushing Colour	Black
Bushing Type	Rubber
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	2 mm MM
Length	400 MM
Bushing Inside Diameter	14.5 MM
Bushing Length	69 MM
Mounting Hole Diameter	14.5 MM
Length	400 MM
Thread Size	14 mm MM
End 2 Thread Size	14 mm MM
Attachment Type	Press In
Dust Boot Included	Yes
662	14.33 MM
4887	420 MM
Bushings Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Bearing Material	Polymer
Boot Colour	Black
Mounting Hole Quantity	0
Finish	Silver
Greaseable	No
1260	No
2334	No
Grade Type	Standard Replacement
Material	Aluminum
Ball Joint Included	Yes
2386	Casting/Forged
Finish	Painted
Ball Joint Stud Type	Threaded
Adjustable	No
Mounting Hardware Included	Yes
Thread Direction	Clockwise (Right)
4241	Yes
Thread Diameter	14 mm MM
Thread Pitch	2 mm MM
6529	Power
9090	Polychloroprene
Attachments Included	Yes
Ball Joint Installed	Yes
Control Arm Type	Casting/Forged
Package Contents	1 Control Arm
Not In Connection With	No
4890	27 MM
9532	279 MM
Ball Joint Thread Diameter	14 mm MM
Suspension Grade Type	Standard Replacement
Set	No
Package Contents	1 Nut
