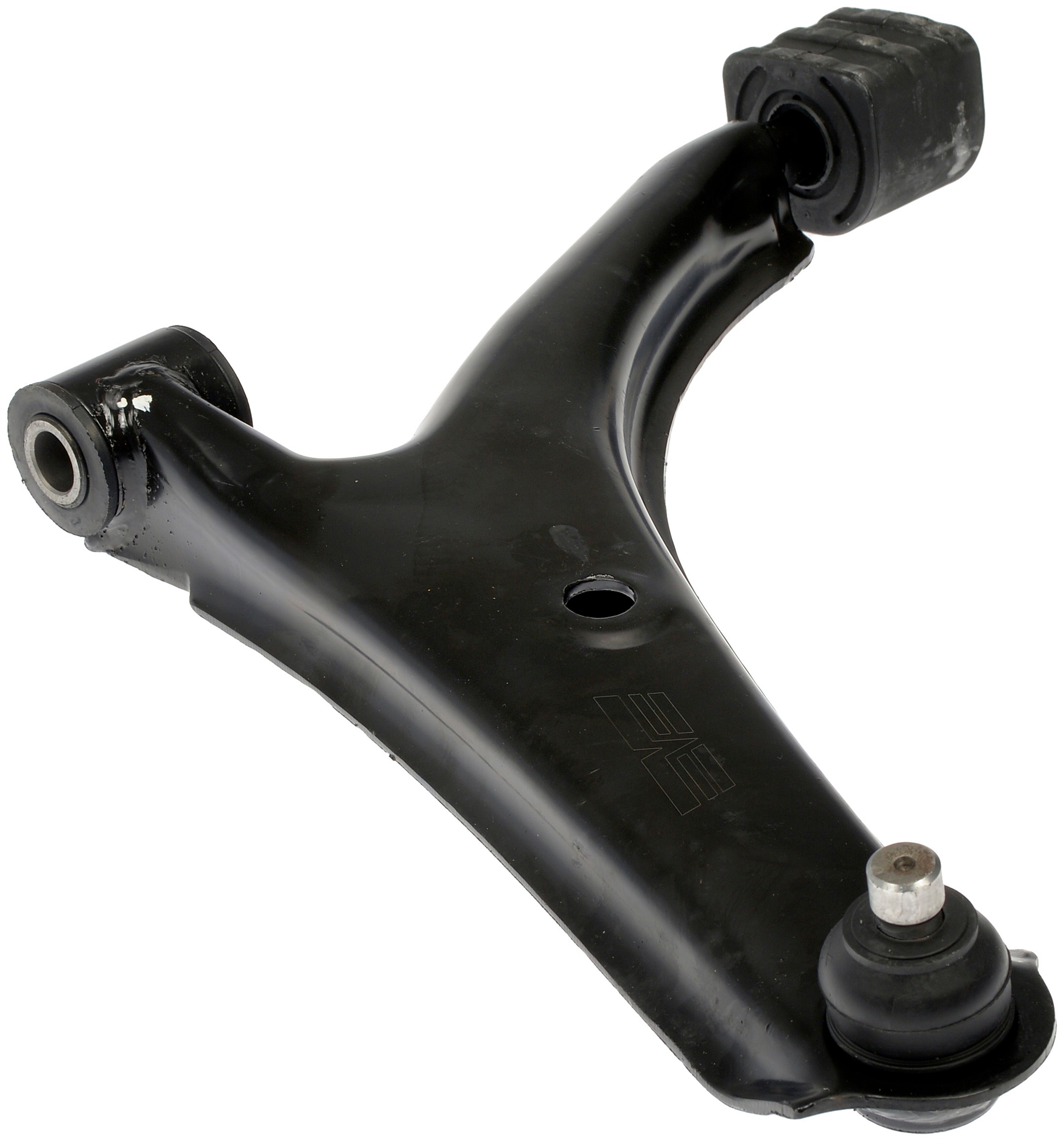

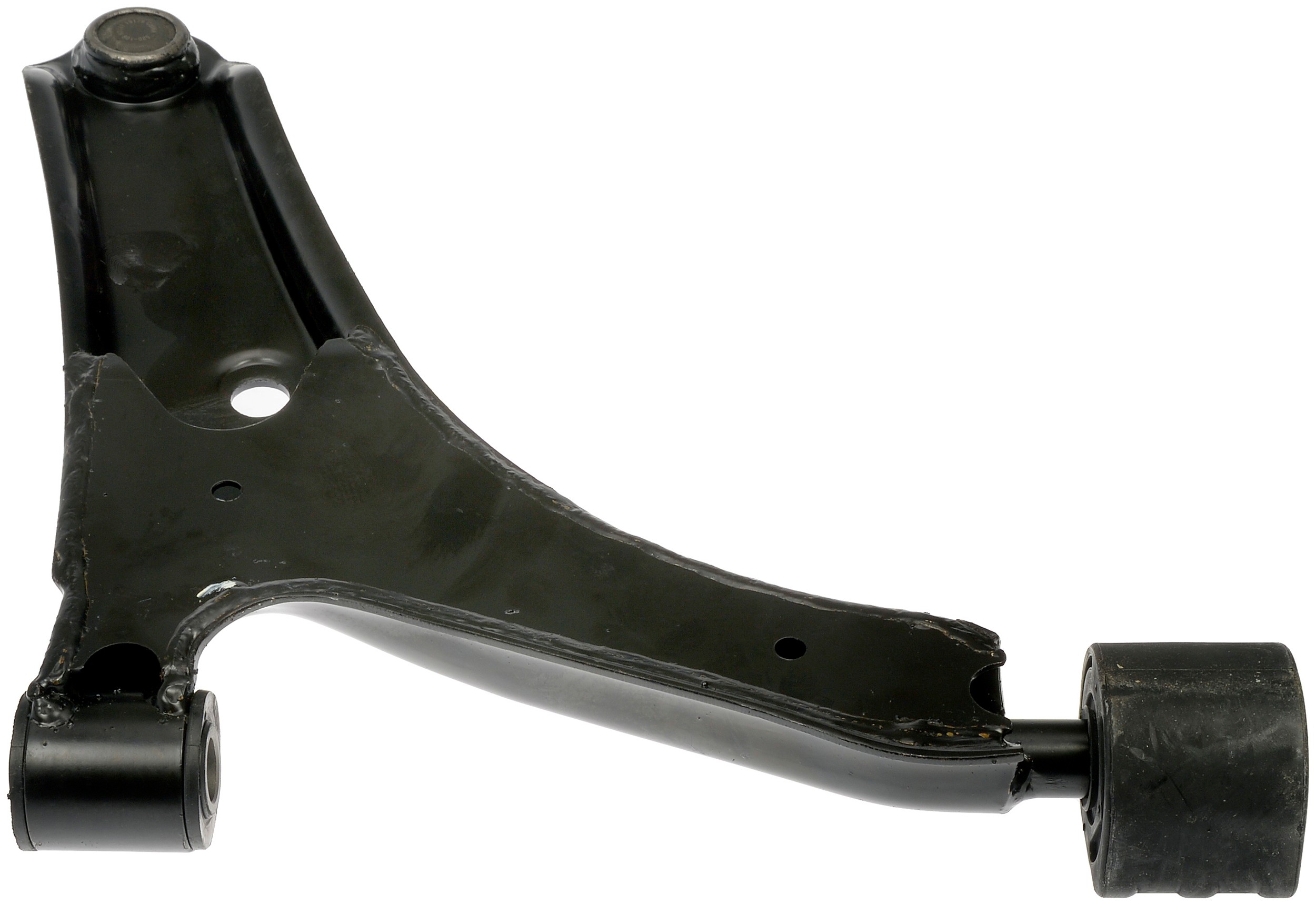

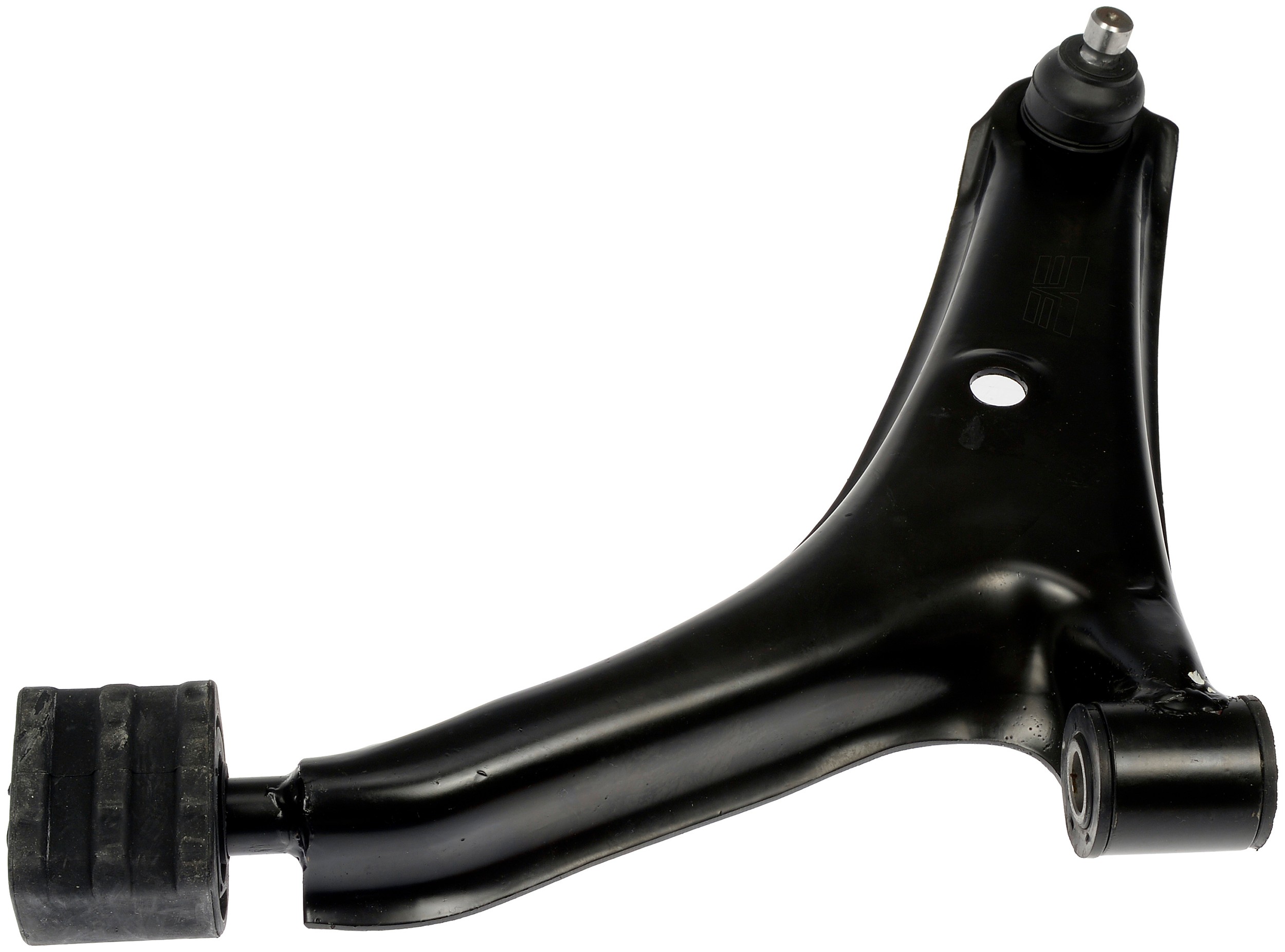

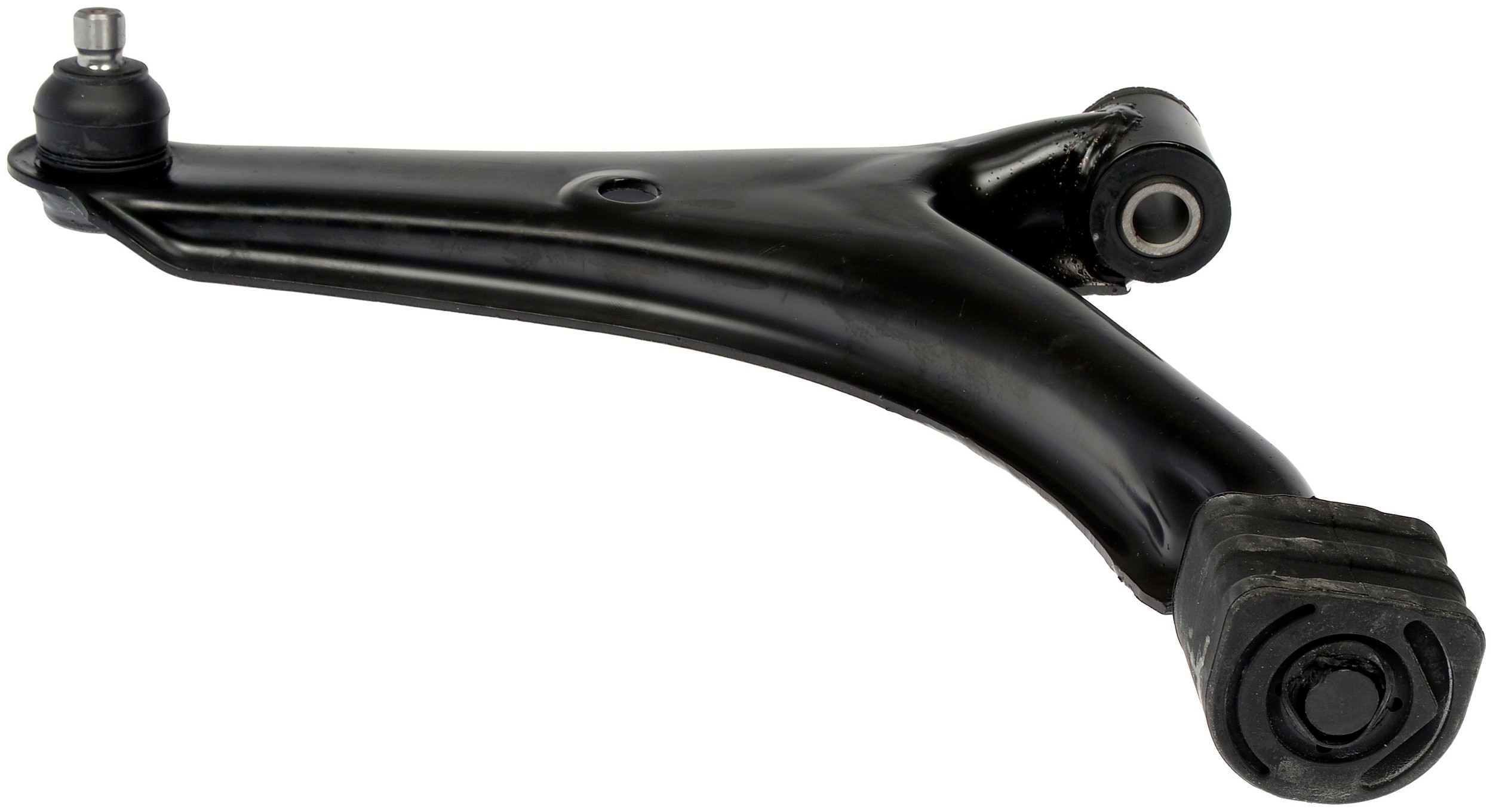

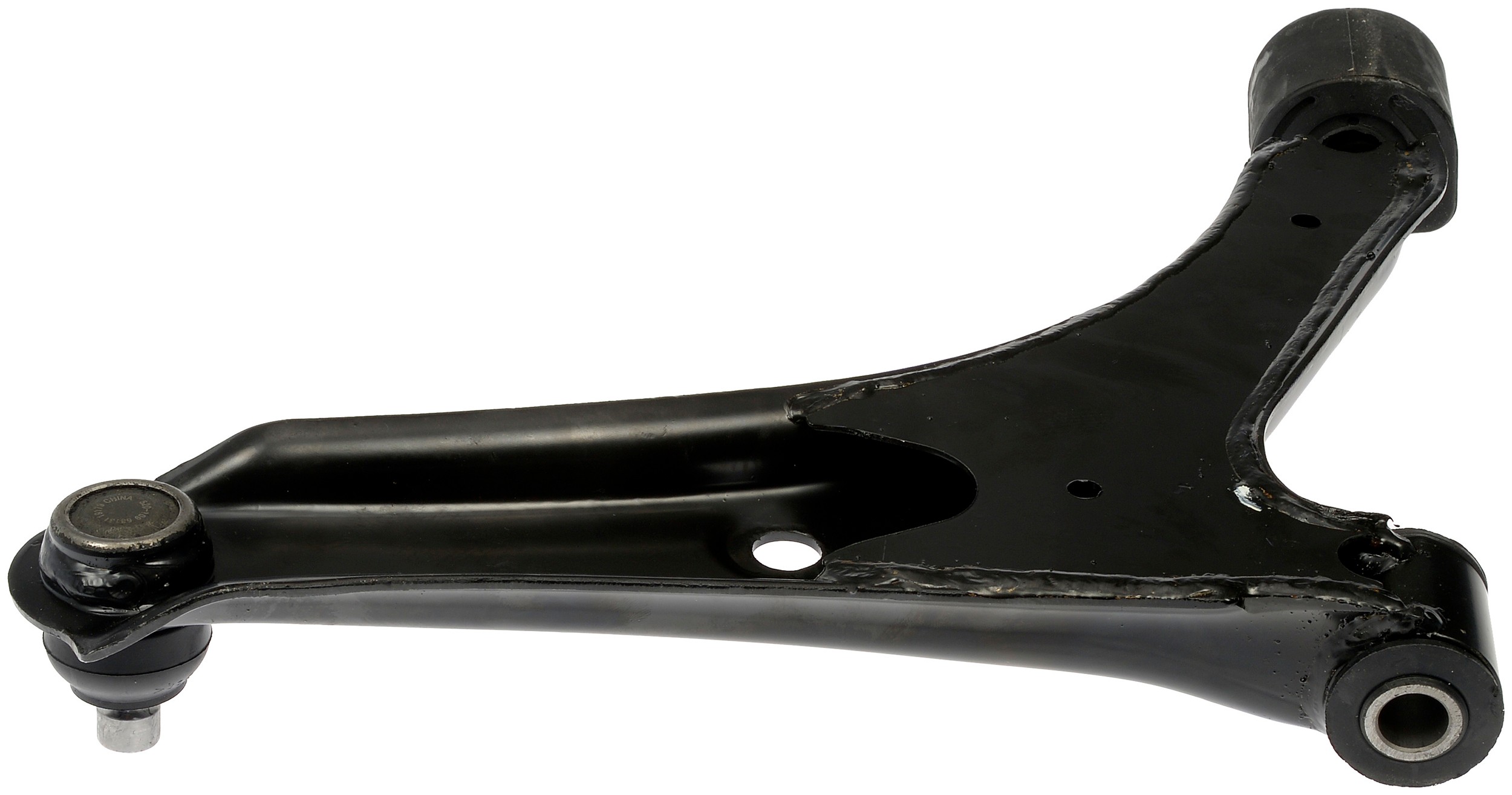

Dorman 520-109 Suspension Control Arm And Ball Joint Assembly

Dorman 520-109 Suspension Control Arm And Ball Joint Assembly

Features:

Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

Package Contents	Control Arm and Ball Joint Assembly
Ball Joint Included	Yes
Ball Joint Thread Diameter	14 mm MM
4887	288.5 MM
Bushings Included	Yes
Grease Fitting Included	No
Material	Steel
Pre-greased	Yes
Grade Type	Standard Replacement
Bushing Type	Rubber
Adjustable	No
Finish	Black
Mounting Hardware Included	Yes
Ball Joint Stud Type	Pinch
Length	237 MM
Mounting Hole Diameter	12.3 MM
Mounting Hole Quantity	1 IN
Ball Joint Installed	Yes
Control Arm Type	Casting/Forged

Vehicle Applications:

Make	Model	Position	Years	Notes
Chevrolet	Metro	Front Left Lower	1992 to 1992
Chevrolet	Sprint	Front Left Lower	1989 to 1991
Geo	Metro	Front Left Lower	1989 to 1994
Pontiac	Firefly	Front Left Lower	1989 to 1994
Suzuki	Swift	Front Left Lower	1989 to 1994
