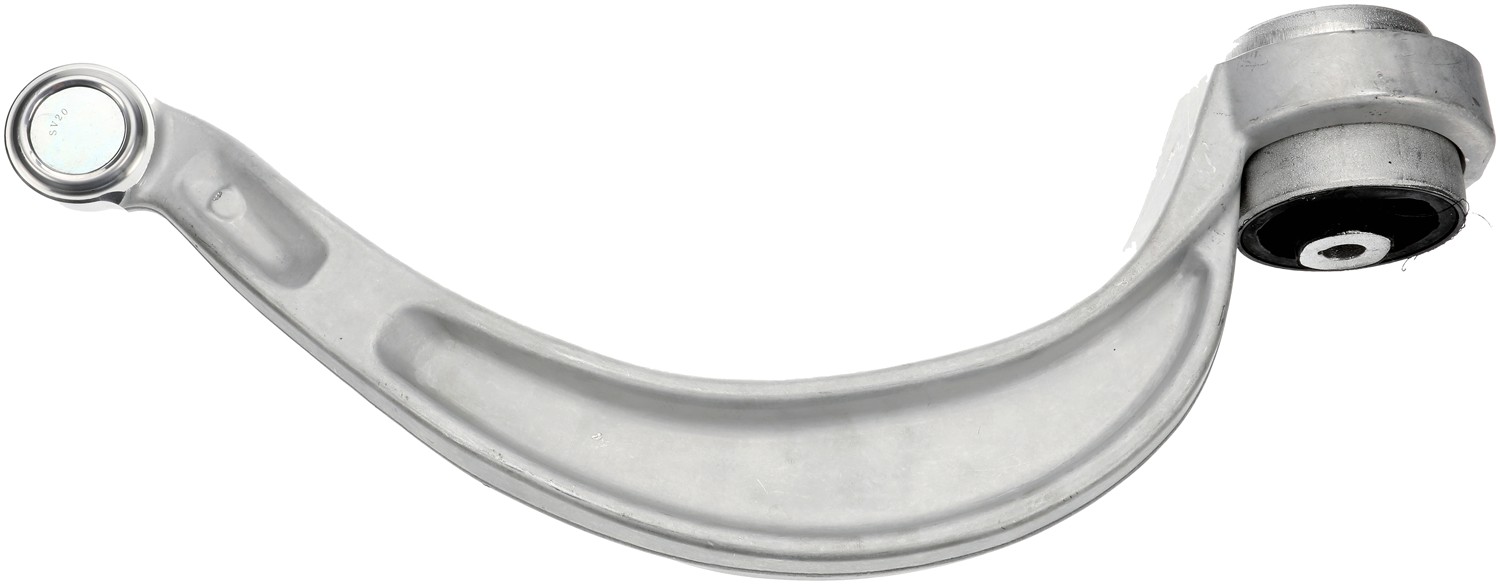

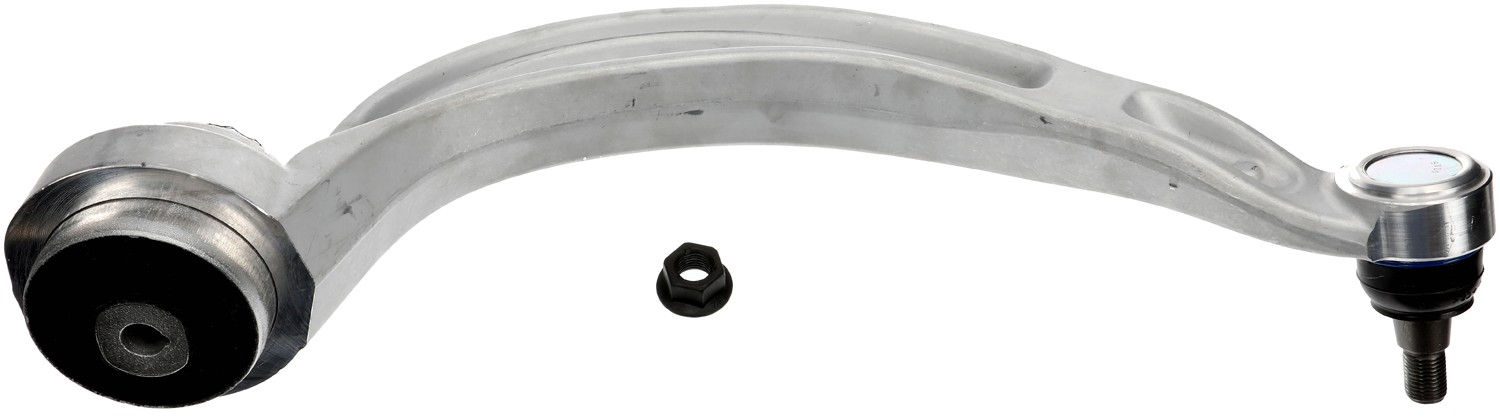

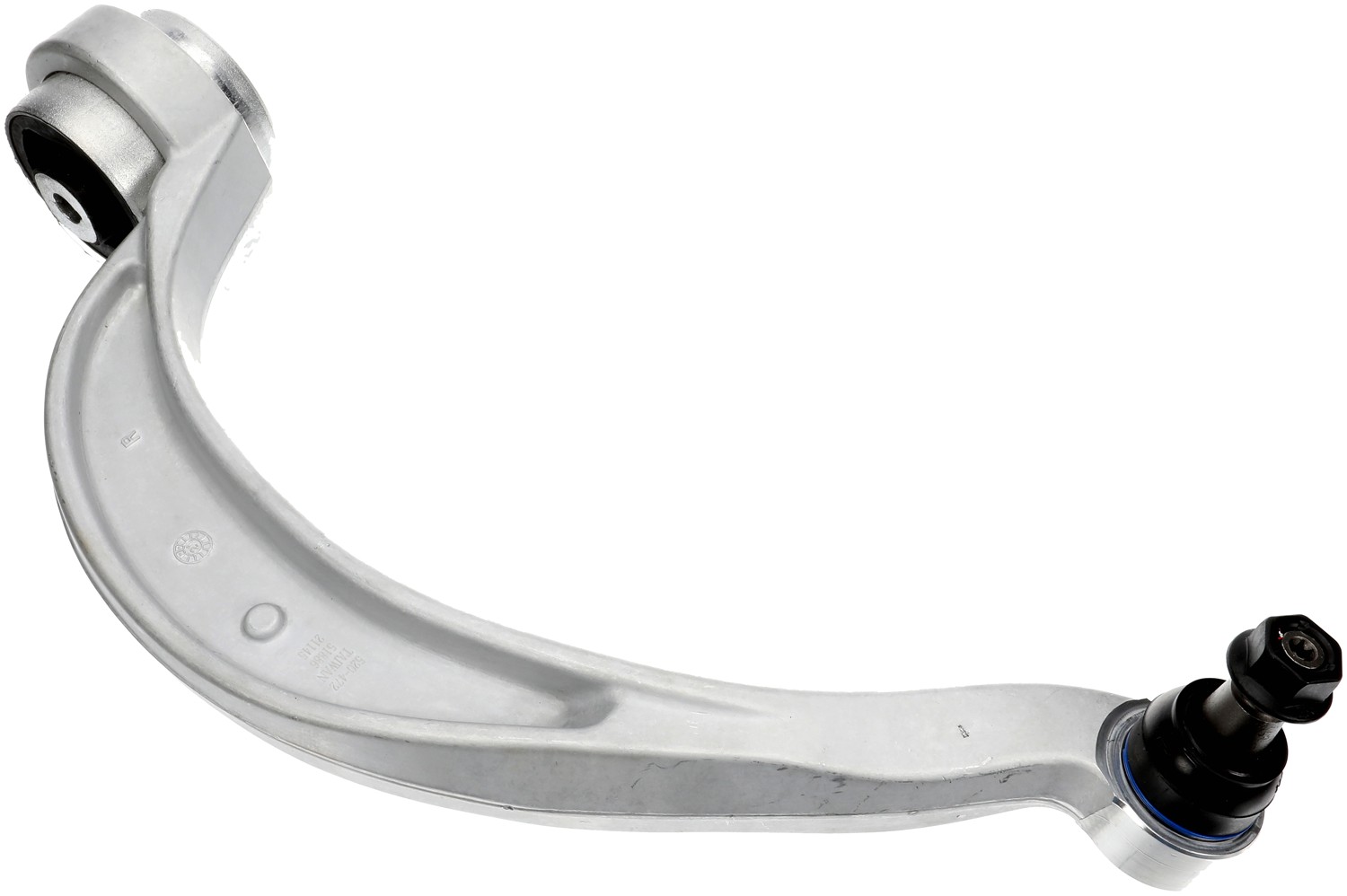

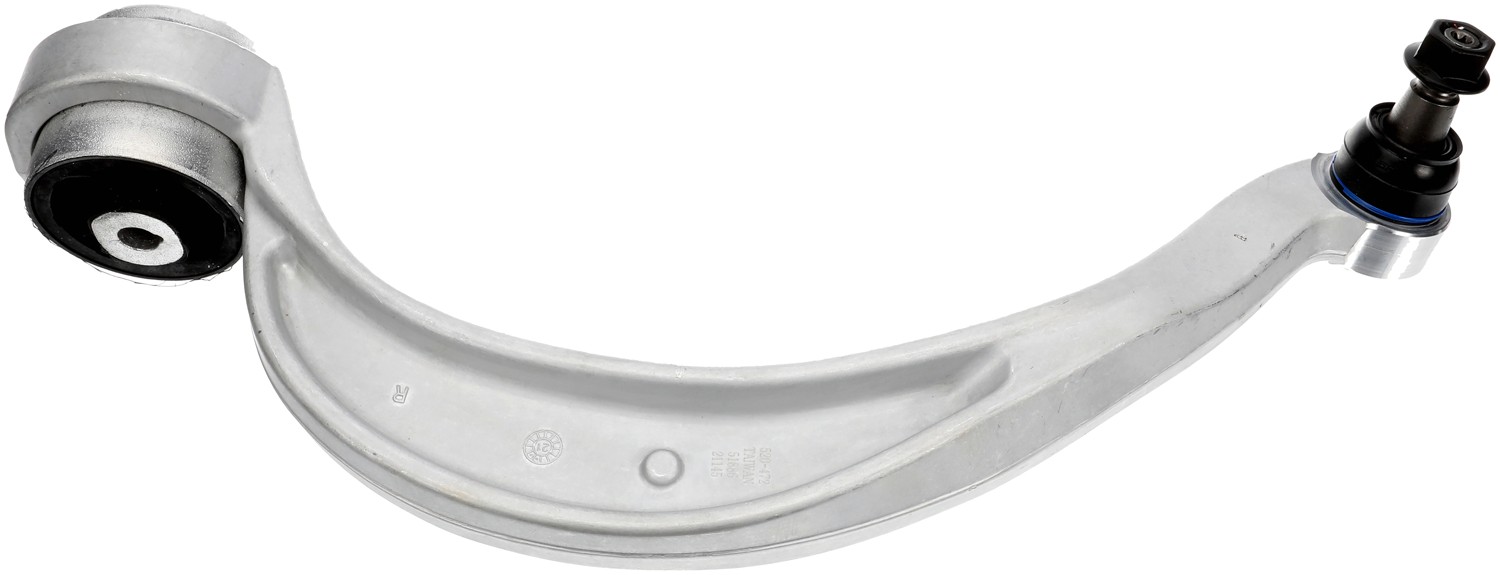

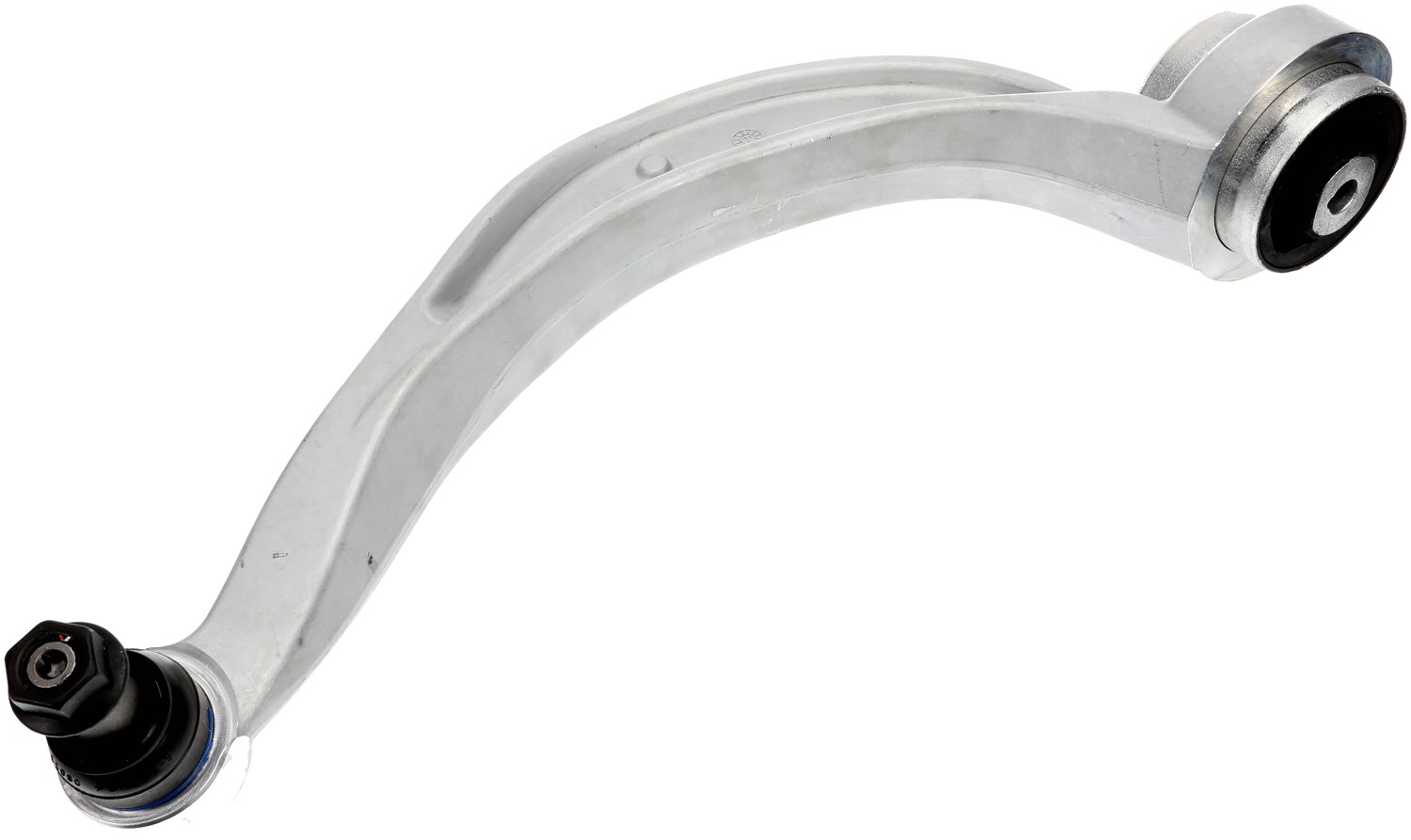

Dorman 520-472 Suspension Control Arm And Ball Joint Assembly
Features:
- Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed – additional coatings offer long-lasting rust and corrosion resistance
- Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
Attributes:
| Grease Fitting Included | No |
| Pre-greased | Yes |
| Bushing Type | Rubber |
| Adjustable | No |

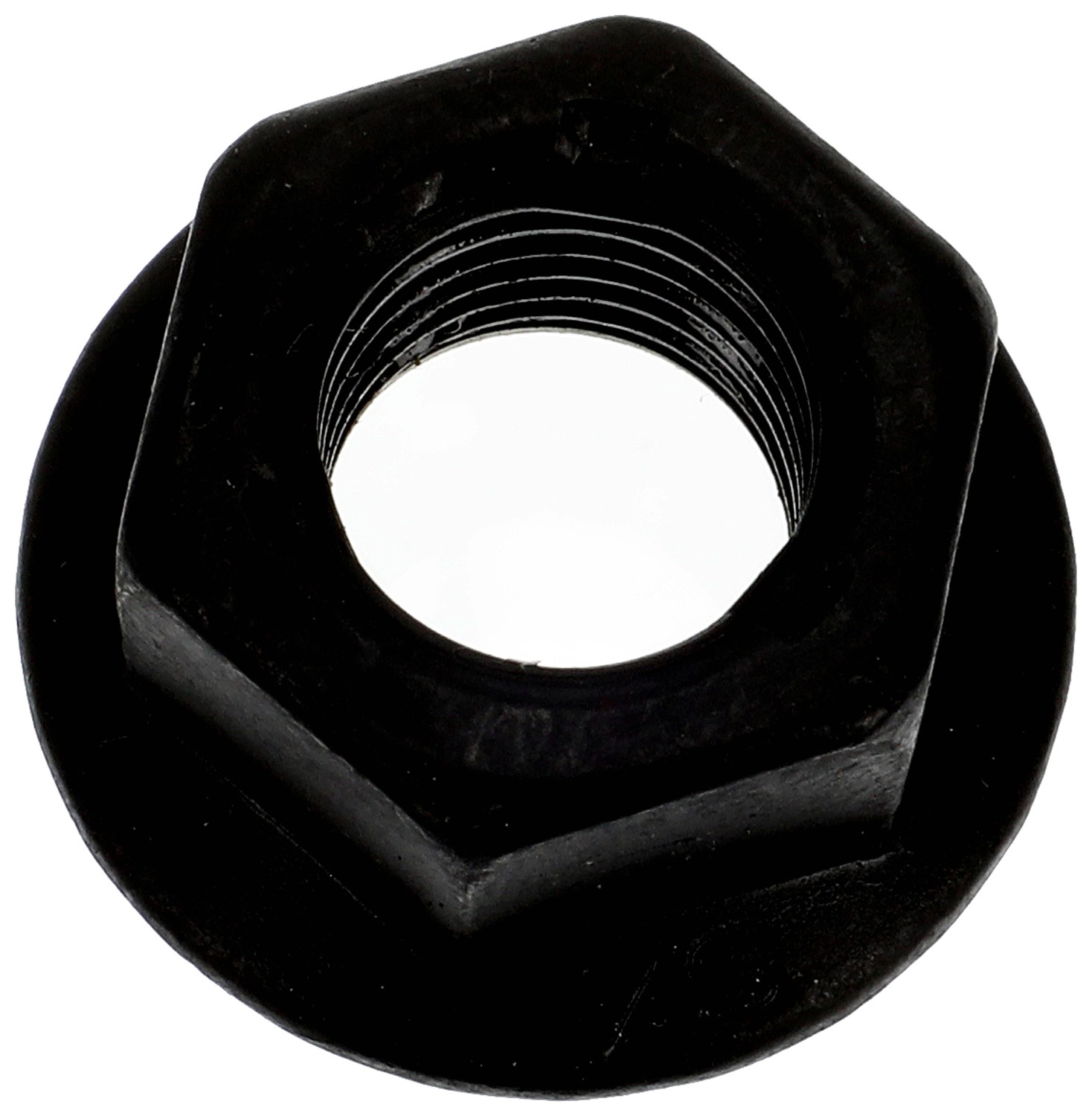

| Mounting Hardware Included | Yes |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Material | Aluminum |
| Grade Type | Standard Replacement |
| Finish | Black |
| Length | 237 MM |
| Mounting Hole Diameter | 12.3 MM |
| Mounting Hole Quantity | 1 IN |
| Package Contents | Suspension Control Arm and Ball Joint Assembly |
| Control Arm Type | Casting/Forged |
| Ball Joint Installed | Yes |
| 2386 | Casting/Forged |
| Ball Joint Thread Diameter | 14 mm MM |
| 4890 | 16.6 MM |
| 4887 | 288.5 MM |
Vehicle Applications:
| Make | Model | Position | Years | Notes |
| Audi | A4 Quattro | Front Right Lower Rearward | 2010 to 2016 | |
| Audi | A4 allroad | Front Right Lower Rearward | 2013 to 2016 | |
| Audi | A4 | Front Right Lower Rearward | 2010 to 2016 | |
| Audi | A5 Quattro | Front Right Lower Rearward | 2010 to 2017 | |
| Audi | A5 | Front Right Lower Rearward | 2010 to 2016 | |
| Audi | Q5 | Front Right Lower Rearward | 2010 to 2017 | |
| Audi | RS5 | Front Right Lower Rearward | 2011 to 2016 | |
| Audi | S4 | Front Right Lower Rearward | 2010 to 2016 | |
| Audi | S5 | Front Right Lower Rearward | 2010 to 2017 | |
| Audi | SQ5 | Front Right Lower Rearward | 2014 to 2017 | |
| Audi | allroad | Front Right Lower Rearward | 2013 to 2016 | |
| Porsche | Macan | Front Right Lower Rearward | 2015 to 2025 |
