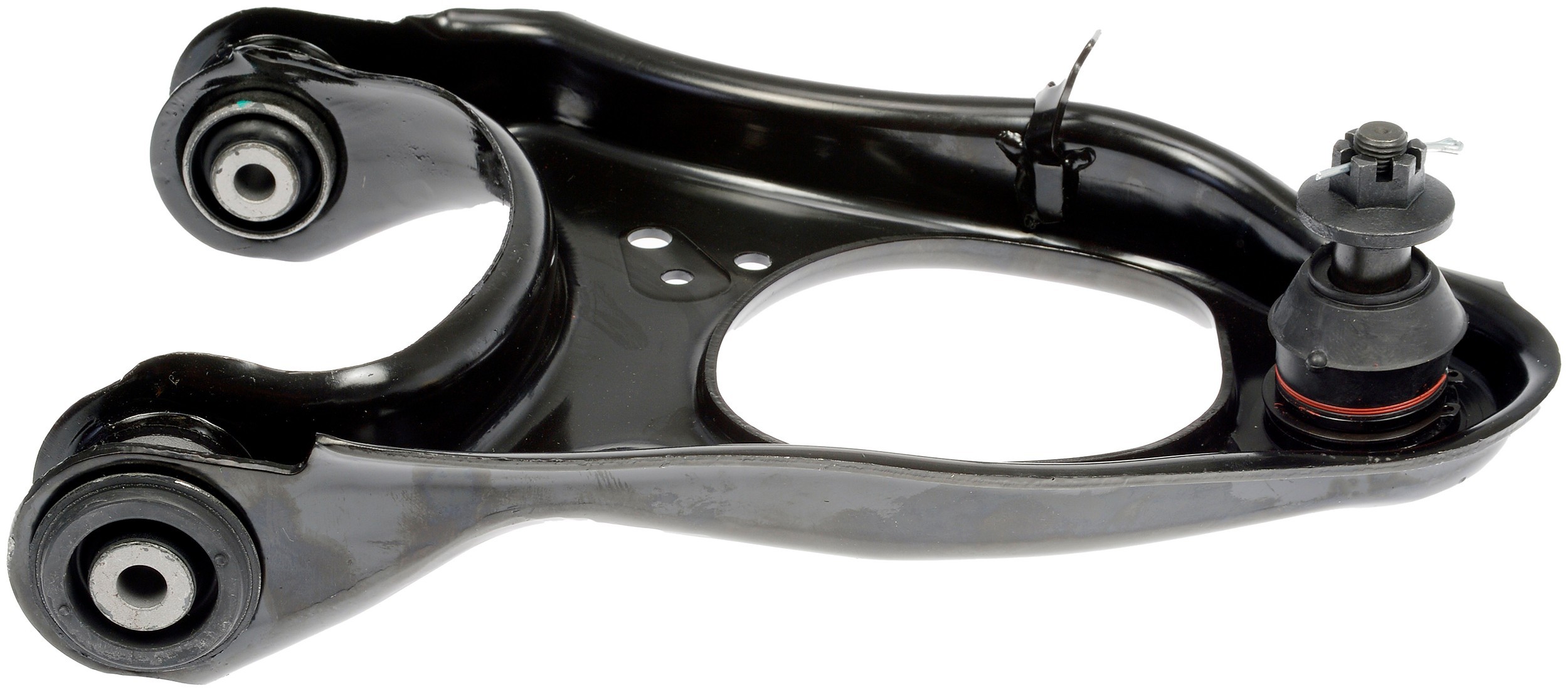

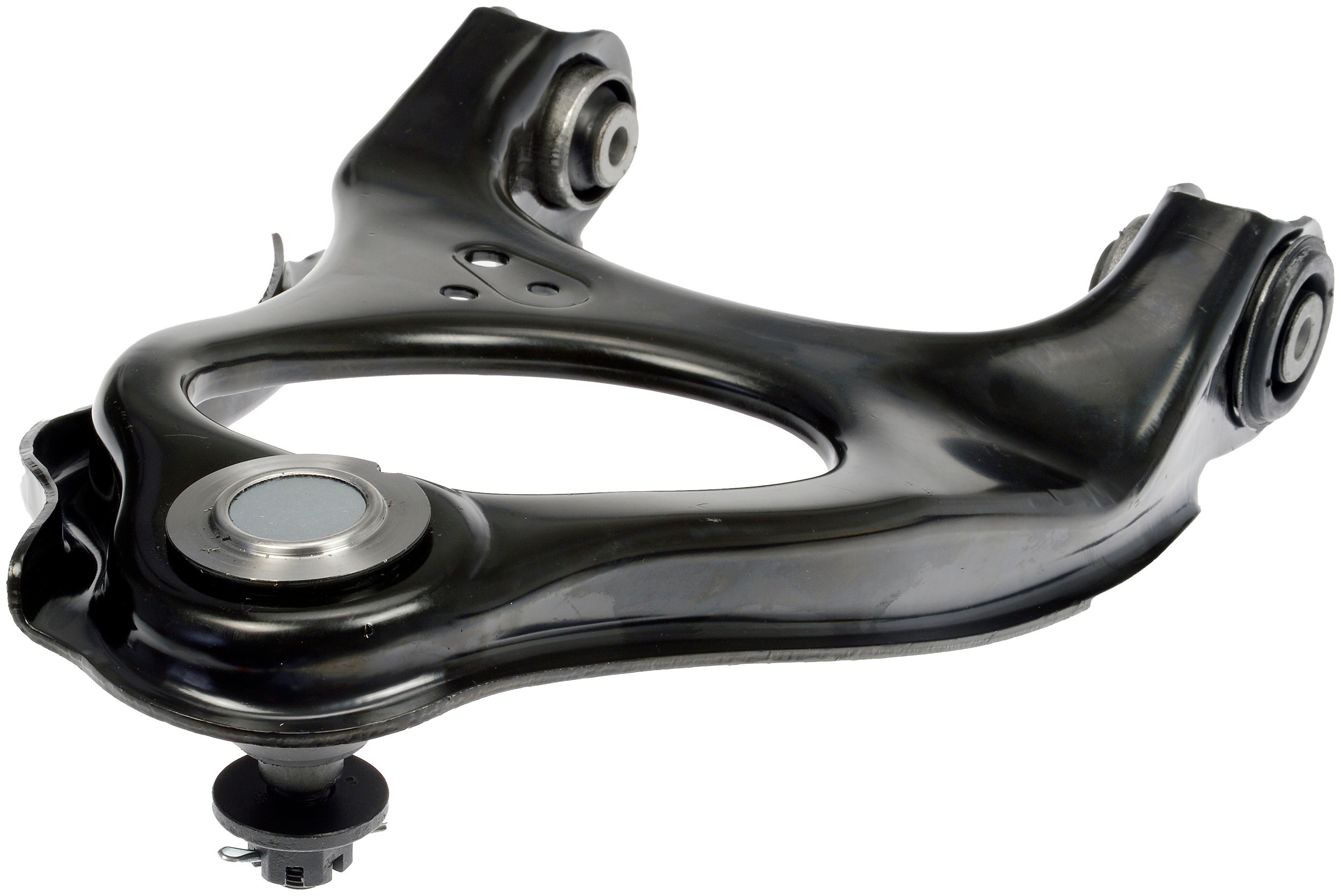

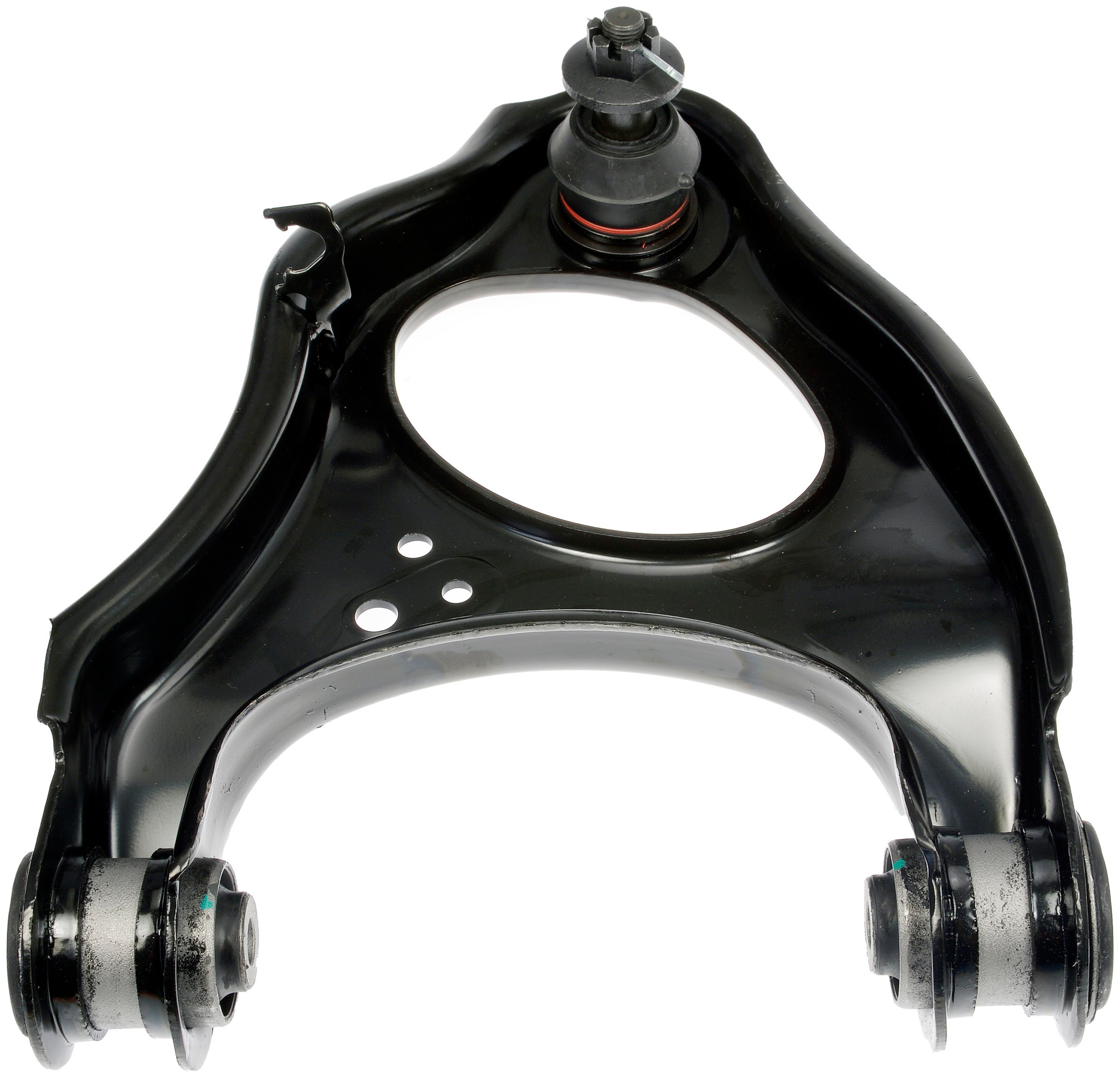

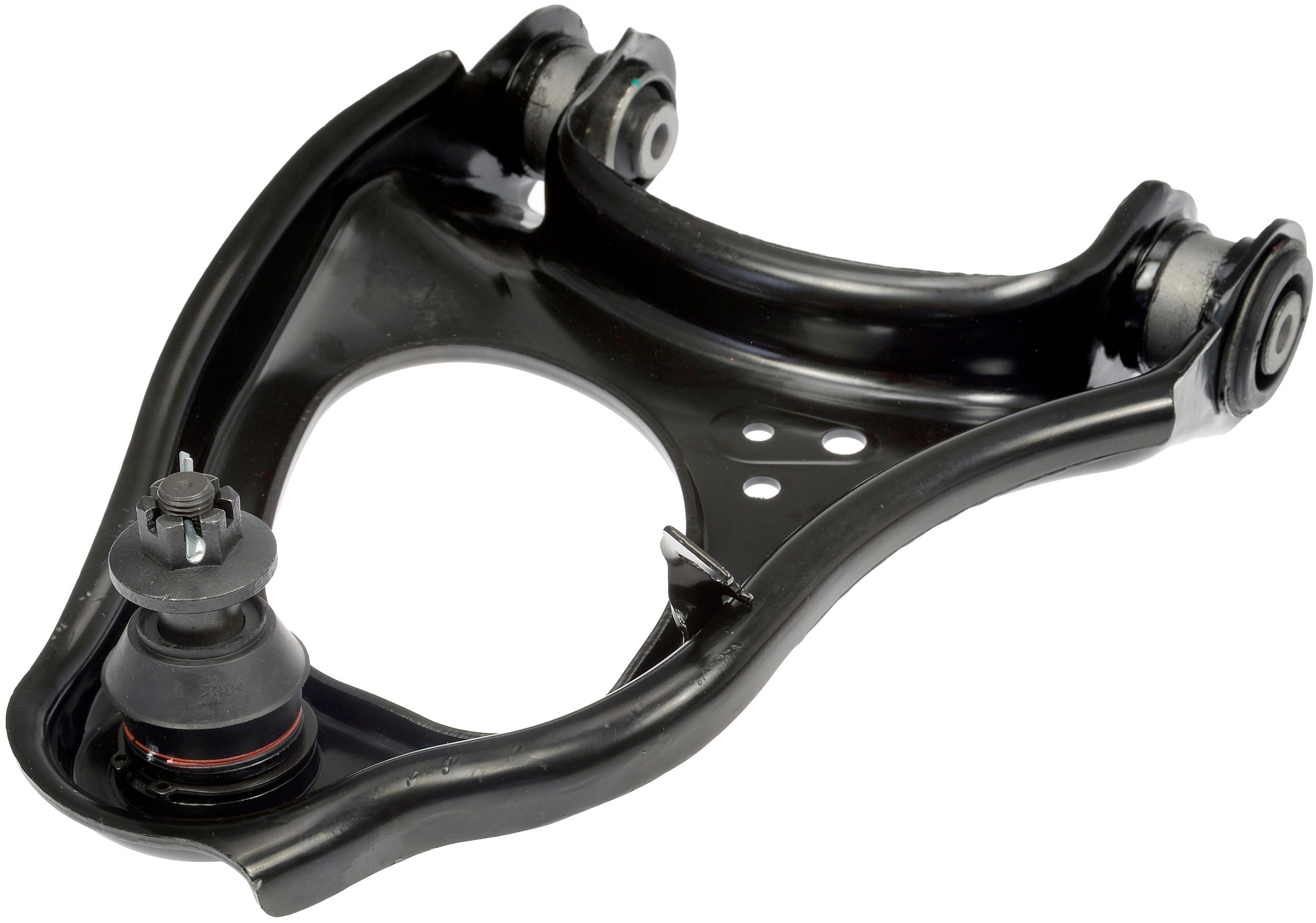

Dorman 520-741 Suspension Control Arm And Ball Joint Assembly

Dorman 520-741 Suspension Control Arm And Ball Joint Assembly

Features:

Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

4887	280.5 MM
Thread Size	14 mm MM
Thread Size	1.5 mm MM
End 1 Thread Size	14 mm MM
End 1 Thread Size	1.5 mm MM
End 2 Thread Size	14 mm MM
End 2 Thread Size	1.5 mm MM
4890	42 MM
9532	280.5 MM
Ball Joint Thread Diameter	28 mm MM
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
Finish	Black
End 2 Thread Pitch	1.5 mm MM
Greaseable	No
Not In Connection With	No
Grade Type	Standard Replacement
Thread Diameter	14 mm MM
Thread Pitch	1.5 mm MM
Control Arm Type	Stamped
Material	Steel
Ball Joint Included	Yes
Ball Joint Installed	Yes
Attachments Included	Yes
6529	Power
4241	Yes
2827	Yes
2386	Stamped
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Bearing Material	Polymer
Boot Colour	Black
Mounting Hole Quantity	2
Finish	Painted
2334	Yes
1260	No
Length	309.5 MM
Bushing Type	Rubber
Thread Direction	Clockwise (Right)
Suspension Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Bushing Inside Diameter	12.2 MM
Adjustable	No
Bushing Length	60 MM
Mounting Hole Diameter	12.2 MM
Set	No
Package Contents	Hardware
662	19.25 MM
Length Centre Bore To Centre Bore	280.5 MM
Package Contents	1 Control Arm
Length	309.5 MM
Bushing Colour	Black
