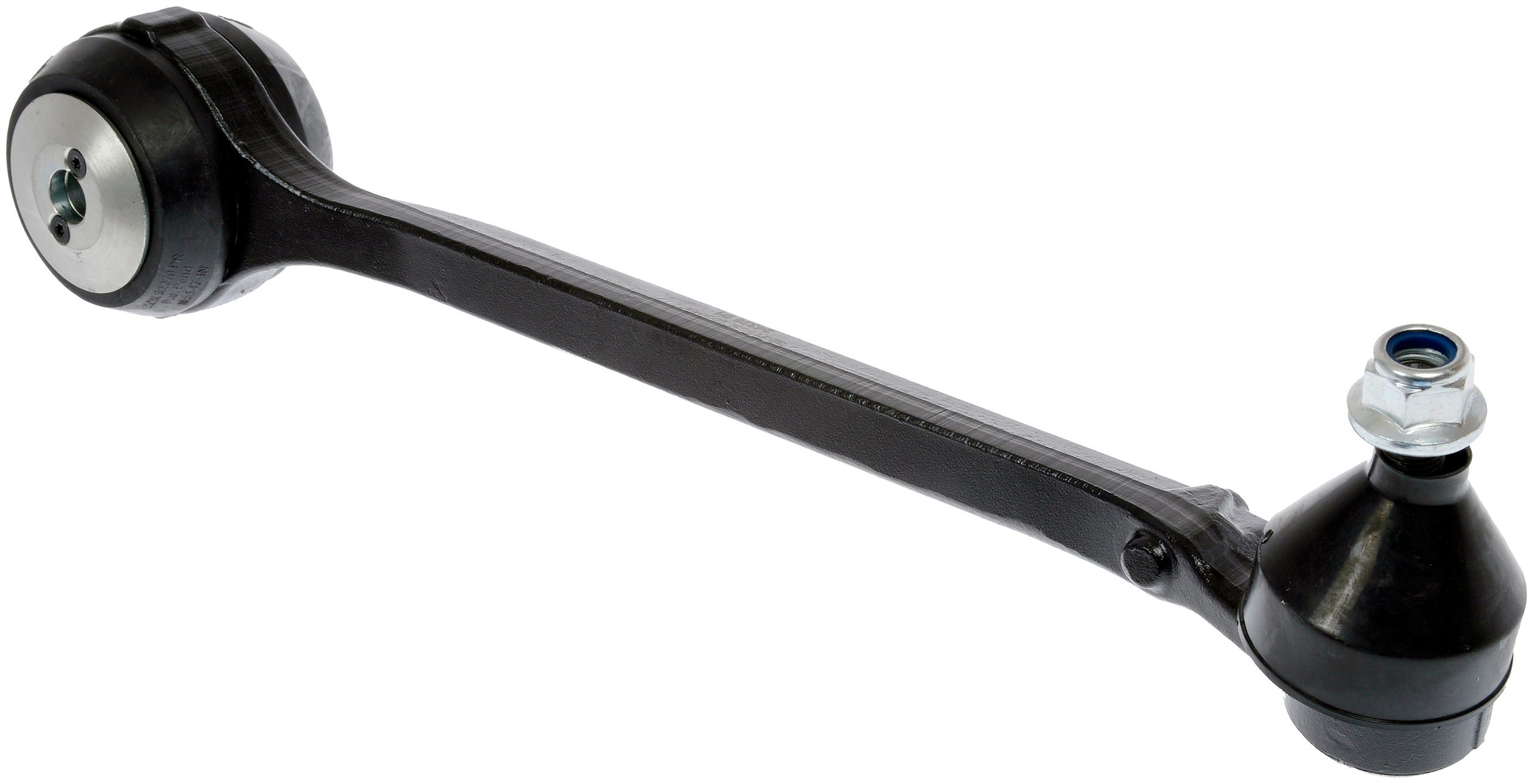

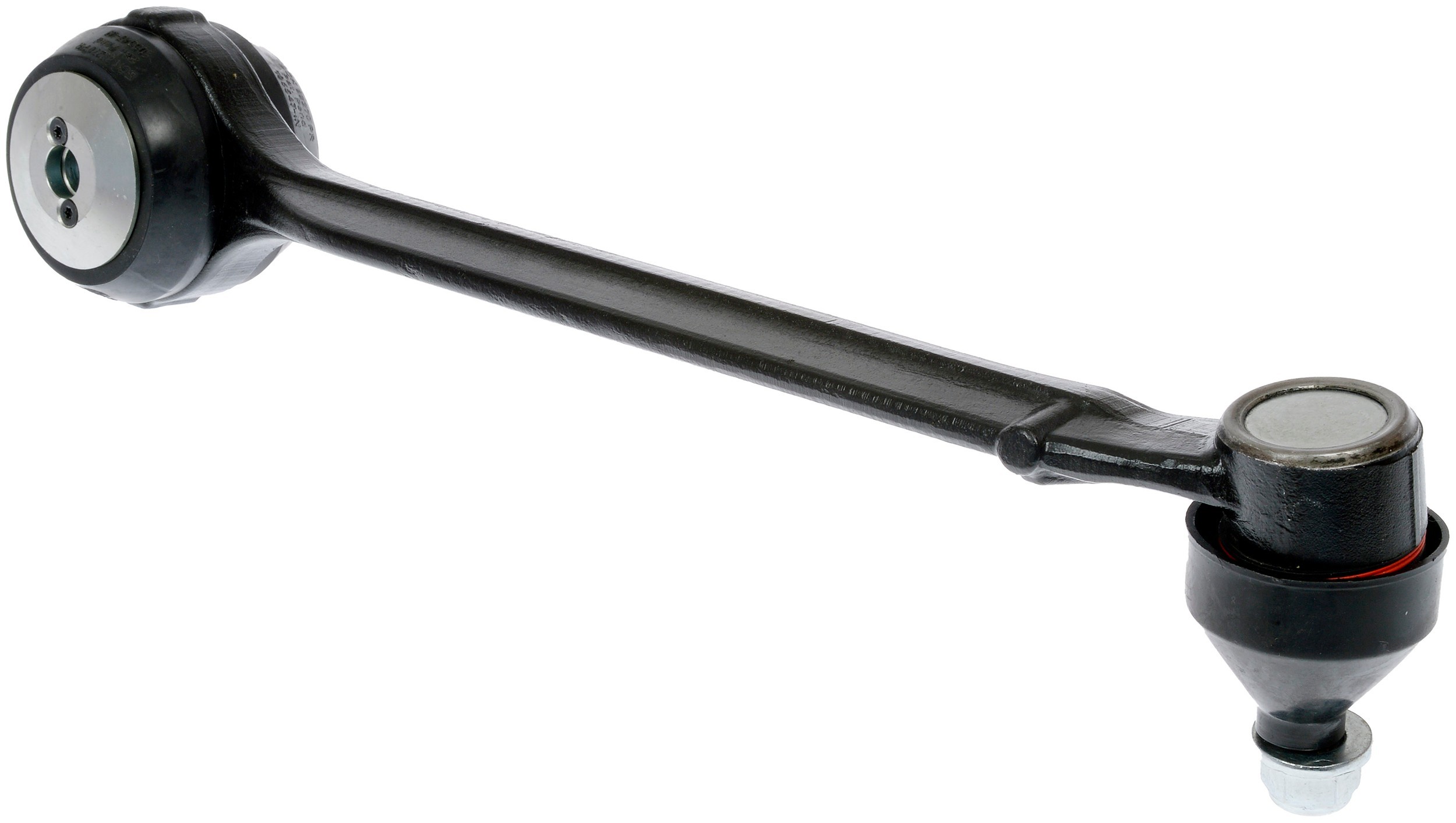

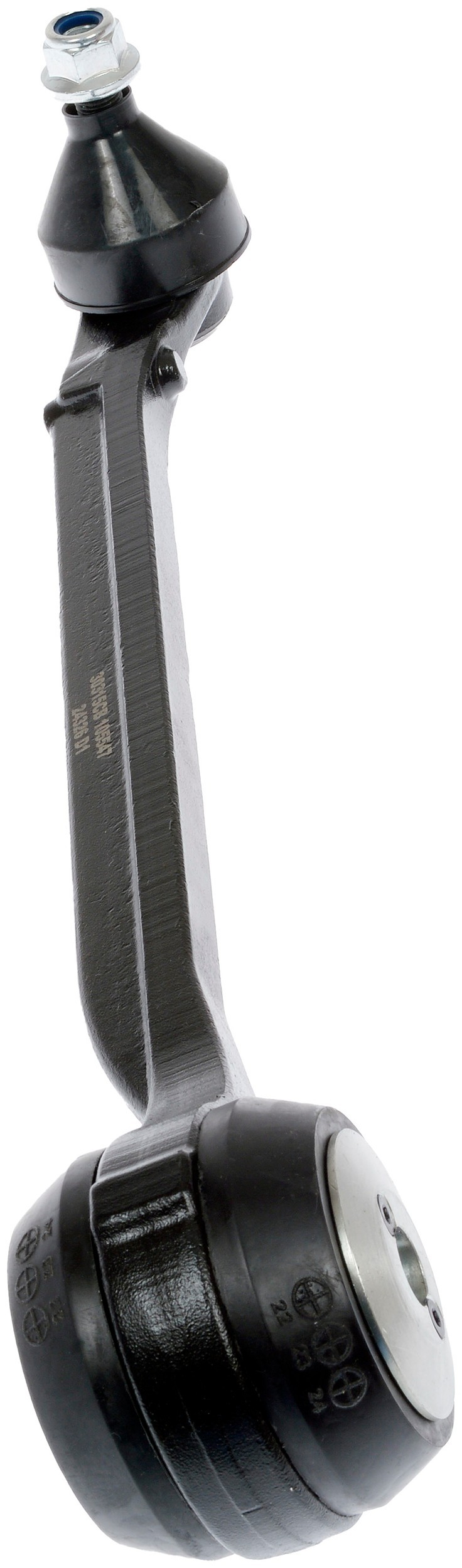

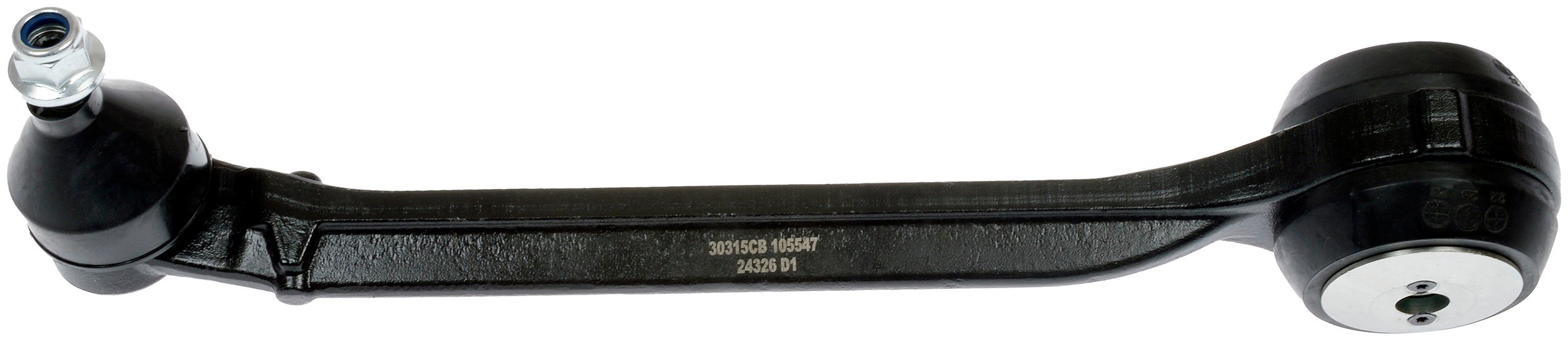

Dorman 524-344 Suspension Control Arm And Ball Joint Assembly

Dorman 524-344 Suspension Control Arm And Ball Joint Assembly

Features:

Cost-effective – replacing the factory-style control arms can increase uptime and decrease maintenance costs for fleet vehicles; for optimal performance, replacing both control arms is recommended
Position-specific – this control arm is engineered exclusively to replace a failed front right lower forward arm on specified RWD Chrysler and Dodge vehicles with high-performance suspensions
Simple installation – professional technicians and experienced DIYers can install this assembly without any special tools, with no shop press needed

When the original equipment front right lower forward control arm and ball joint assembly fails on certain RWD Chrysler 300 and Dodge Charger, Challenger and Magnum vehicles, the bushings are often the reason. The factory bushings are undersized for certain applications and made from rubber that prematurely weakens and breaks down. Replacing that failed assembly with another OE or aftermarket product that lacks a more durable bushing can lead to similar future failures and potential driveabilty issues. The costs of those repetitive repairs and chronic downtime can add up in a hurry, particularly for vehicles used by car service, limousine and law enforcement fleets. This Dorman OE FIX control arm and ball joint assembly features an oversized, heavy-duty two-piece bushing that distributes the suspension load over a greater area and is manufactured from denser, more durable rubber, eliminating the primary reason for control arm failure. This upgraded assembly has been engineered and tested to help ensure a seamless, predictable installation on specified vehicles. For optimal performance and service life, both assemblies should be replaced.

Attributes:

662	16.7 MM
Thread Pitch	1.5 mm MM
Thread Diameter	14 mm MM
Bushing Inside Diameter	16 MM
2827	No
Thread Size	14 mm MM
Length	475 MM
End 2 Thread Diameter	14 mm MM
Mounting Hole Diameter	16 MM
End 2 Thread Pitch	1.5 mm MM
Mounting Hole Quantity	1 IN
Thread Direction	Clockwise (Right)
Mounting Hardware Included	Yes
Adjustable	No
Length	475 MM
Bushing Type	Rubber
Bushing Colour	Black
Finish	Painted
Boot Colour	Black
Bearing Material	Polymer
Pre-greased	Yes
Grease Fitting Included	No
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Material	Steel
Grade Type	Standard Replacement
Greaseable	No
Finish	Black
Ball Joint Thread Diameter	14 mm MM
4890	25 MM
4887	78 MM
6529	Power
Attachments Included	Yes
Ball Joint Installed	Yes
Control Arm Type	Casting/Forged
Package Contents	1 Control Arm
Package Contents	1 Ball Joint
Package Contents	1 Nut
Bushing Length	78 MM
Suspension Grade Type	Standard Replacement
2386	Casting/Forged
End 1 Thread Size	14 mm MM
1260	Yes
2334	No
4241	Yes

Vehicle Applications:

Make	Model	Position	Years	Notes
Chrysler	300	Front Right Lower Forward	2005 to 2010	Improved Design
Dodge	Challenger	Front Right Lower Forward	2008 to 2010	Improved Design
Dodge	Charger	Front Right Lower Forward	2006 to 2010	Improved Design
Dodge	Magnum	Front Right Lower Forward	2005 to 2008	Improved Design
