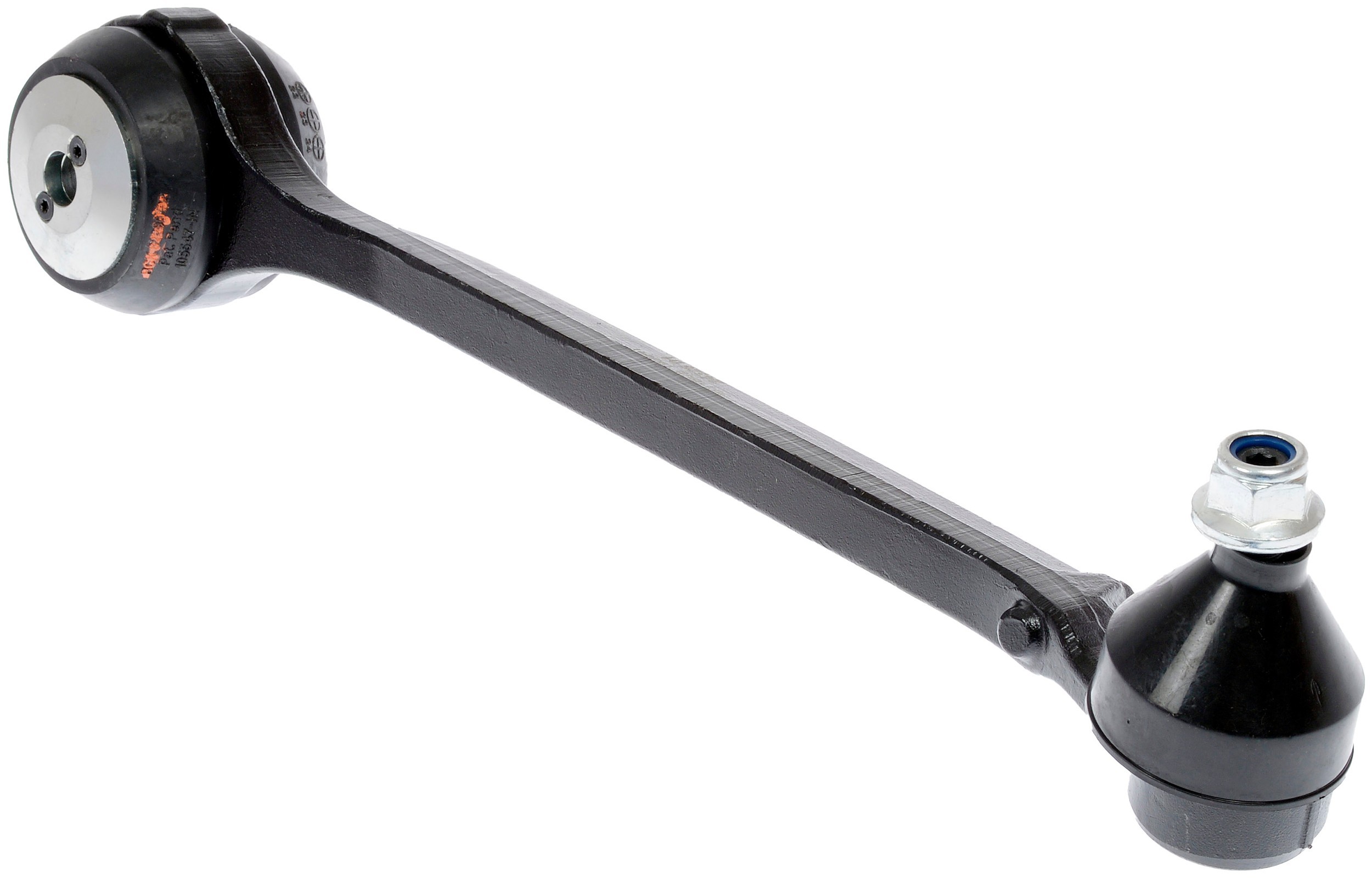

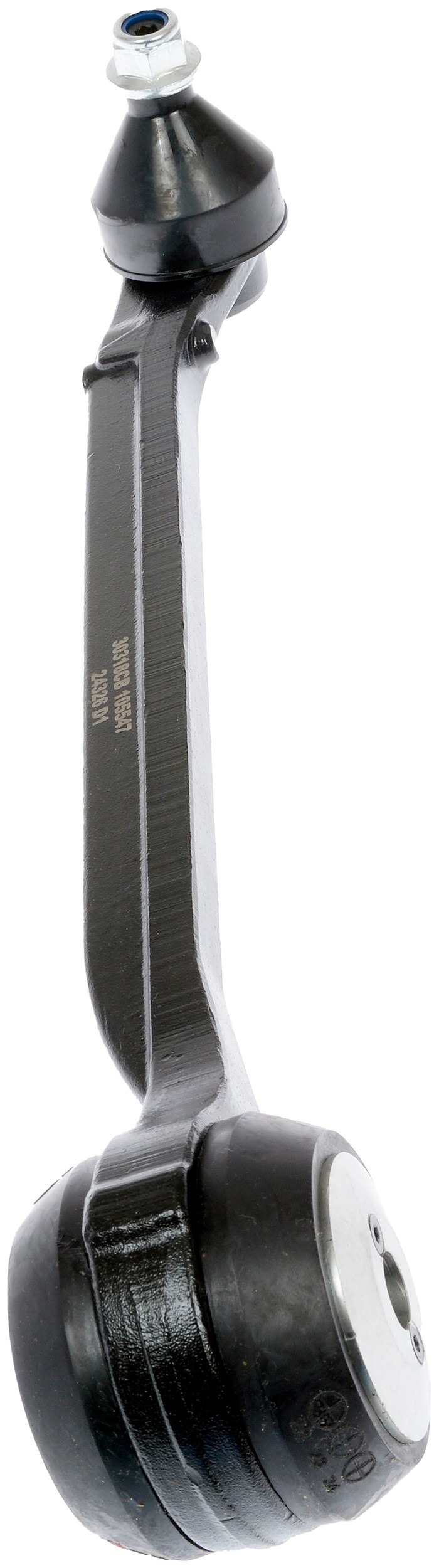

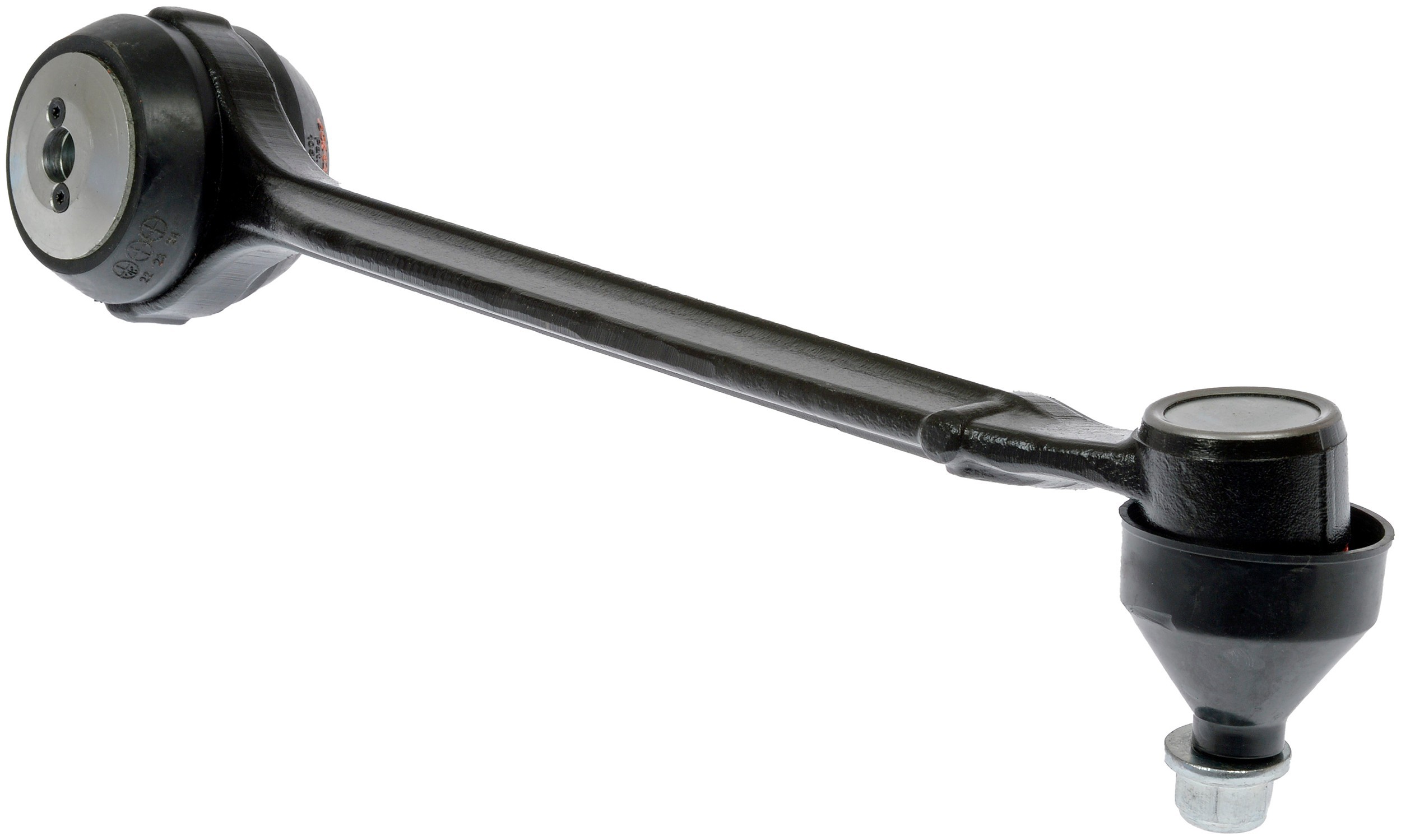

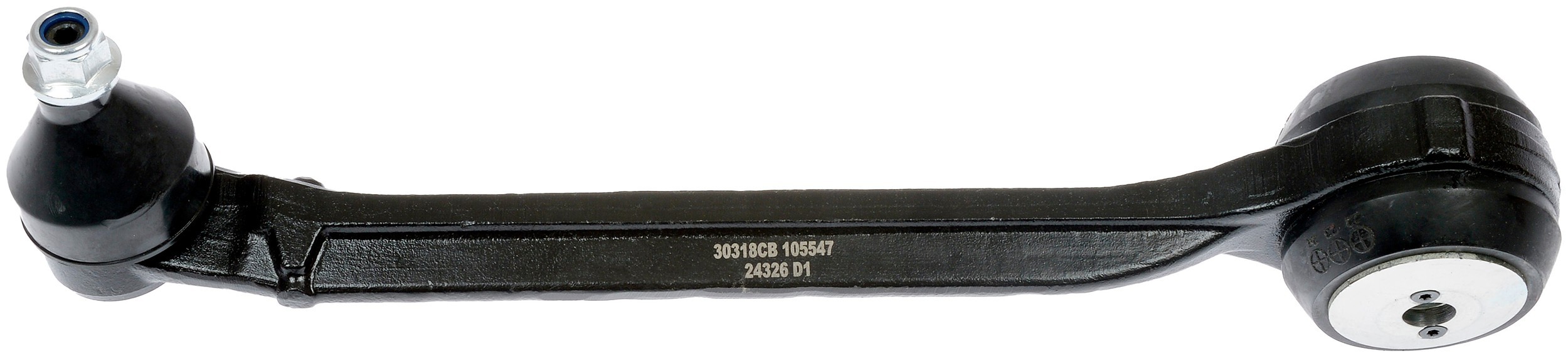

Dorman 524-382 Suspension Control Arm And Ball Joint Assembly

Dorman 524-382 Suspension Control Arm And Ball Joint Assembly

Features:

Simple installation – professional technicians and experienced DIYers can install this assembly without any special tools, with no shop press needed
Direct replacement – fits and performs like the original equipment track bar on specific vehicles

When the original equipment front right lower forward control arm and ball joint assembly fails on certain RWD Chrysler 300, Dodge Charger and Dodge Challenger vehicles, the bushings are often the reason. The factory bushings are undersized for certain applications and made from rubber that prematurely weakens and breaks down. Replacing that failed assembly with another OE or aftermarket product that lacks a more durable bushing can lead to similar future failures and potential driveabilty issues. The costs of those repetitive repairs and chronic downtime can add up in a hurry, particularly for vehicles used by car service, limousine and law enforcement fleets. This Dorman OE FIX control arm and ball joint assembly features an oversized, heavy-duty two-piece bushing that distributes the suspension load over a greater area and is manufactured from denser, more durable rubber, eliminating the primary reason for control arm failure. This upgraded assembly has been engineered and tested to help ensure a seamless, predictable installation on specified vehicles. For optimal performance and service life, both assemblies should be replaced.

Attributes:

Material	Steel
Bushing Type	Rubber
Ball Joint Included	Yes
Control Arm Type	Casting/Forged
Package Contents	1 Control Arm
Ball Joint Installed	Yes
Attachments Included	Yes
Ball Joint Stud Type	Threaded
Thread Diameter	14 mm MM
Grease Fitting Included	No
End 2 Thread Pitch	1.5 mm MM
Package Contents	1 Ball Joint
6529	Power
Bushing Colour	Black
Pre-greased	Yes
Bearing Material	Polymer
Thread Pitch	1.5 mm MM
4241	Yes
Boot Colour	Black
Package Contents	1 Nut
Finish	Painted
2827	No
2386	Casting/Forged
2334	No
Suspension Grade Type	Standard Replacement
End 2 Thread Diameter	14 mm MM
1260	Yes
Ball Joint Thread Diameter	14 mm MM
Adjustable	No
4890	25 MM
Mounting Hardware Included	Yes
Thread Direction	Clockwise (Right)
662	16.75 MM
4887	78 MM
Grade Type	Standard Replacement
Bushings Included	Yes
Mounting Hole Quantity	1 IN
Length	475 MM
Greaseable	No
Finish	Black
Thread Size	14 mm MM
End 1 Thread Size	14 mm MM
Length	475 MM
Mounting Hole Diameter	16 MM
Attachment Type	Press In
Dust Boot Included	Yes

Vehicle Applications:

Make	Model	Position	Years	Notes
Chrysler	300	Front Right Lower Forward	2011 to 2023	Improved Design
Dodge	Challenger	Front Right Lower Forward	2011 to 2023	Improved Design
Dodge	Charger	Front Right Lower Forward	2011 to 2023	Improved Design
