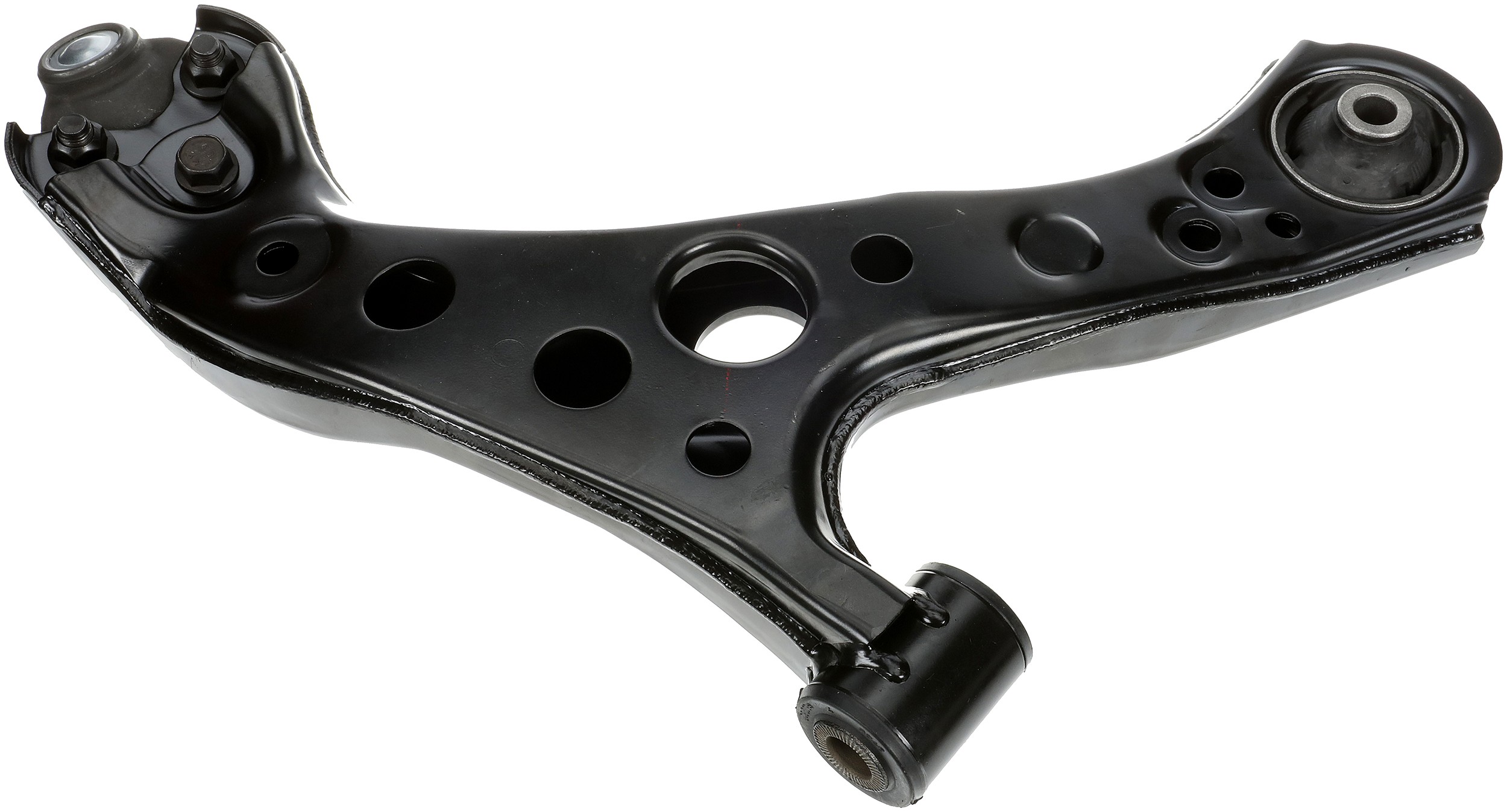

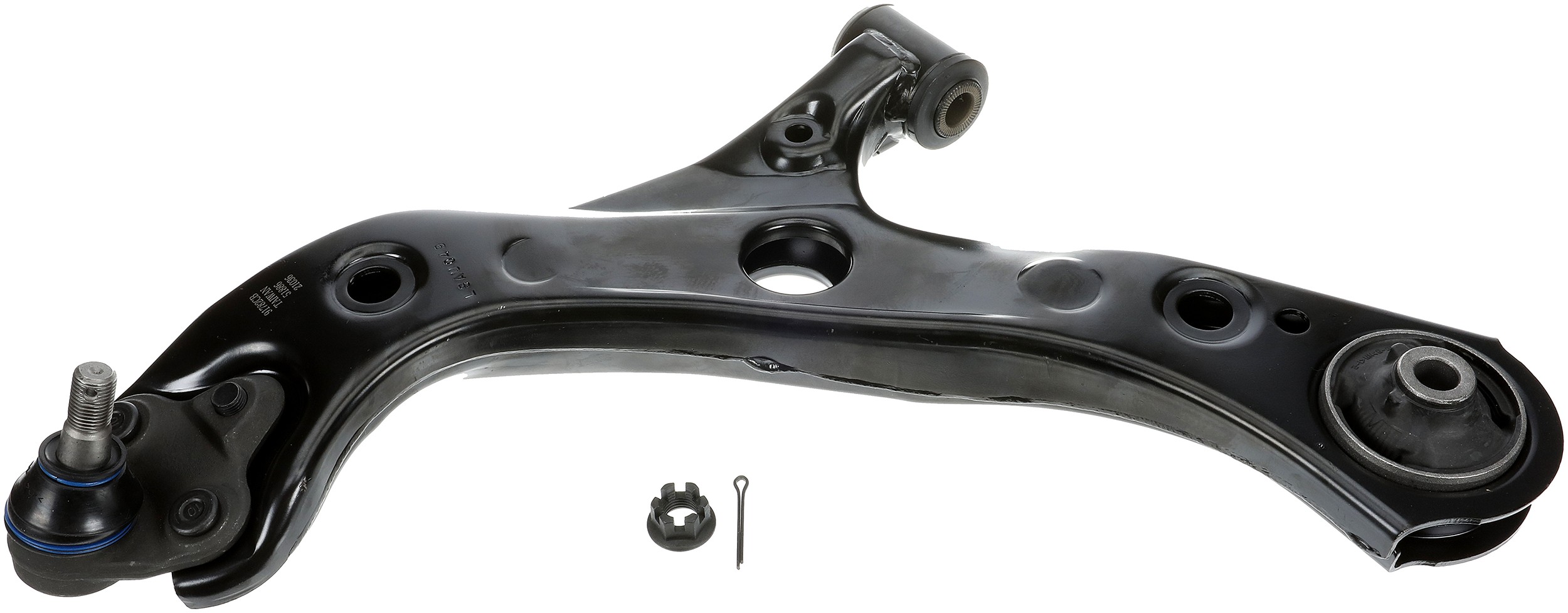

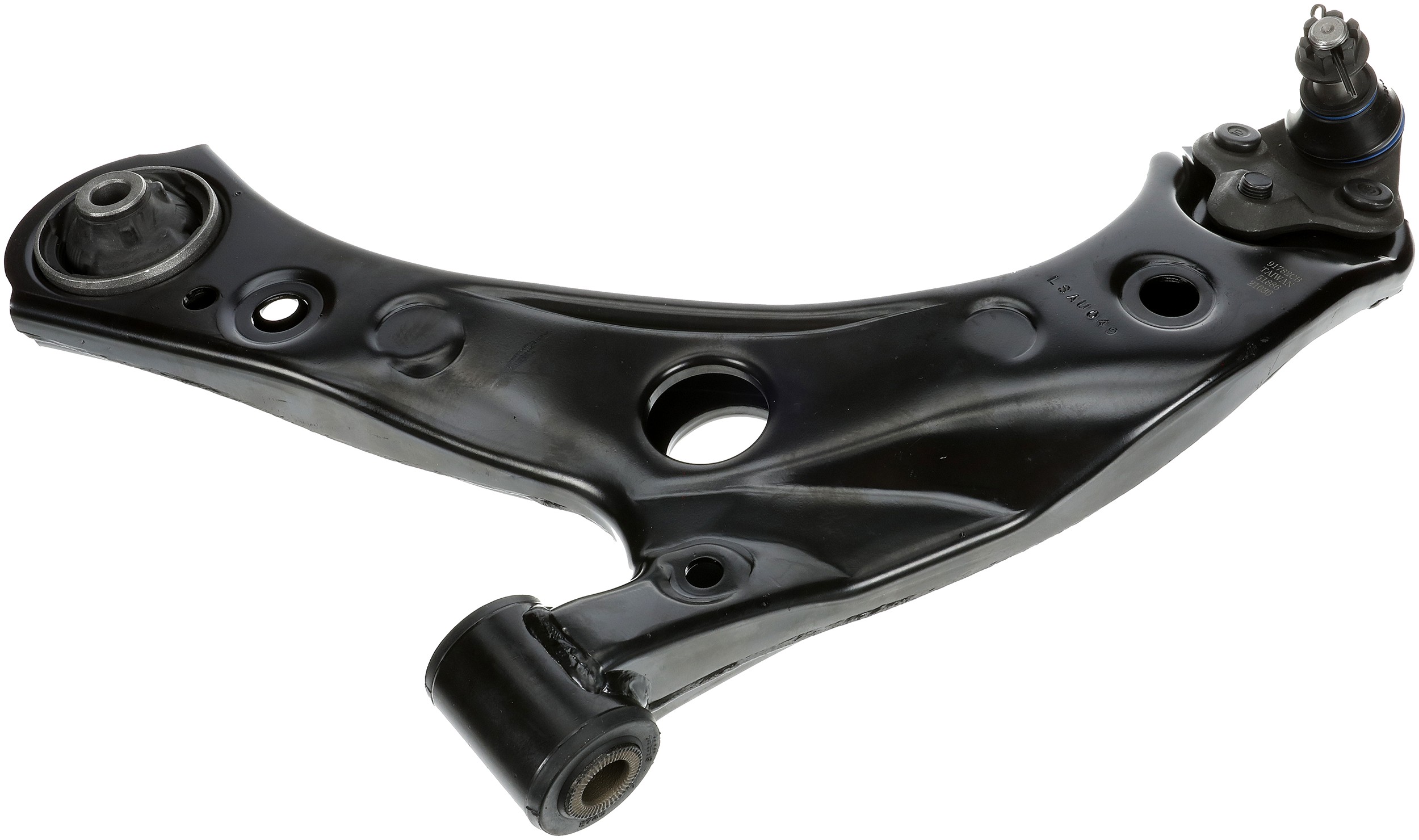

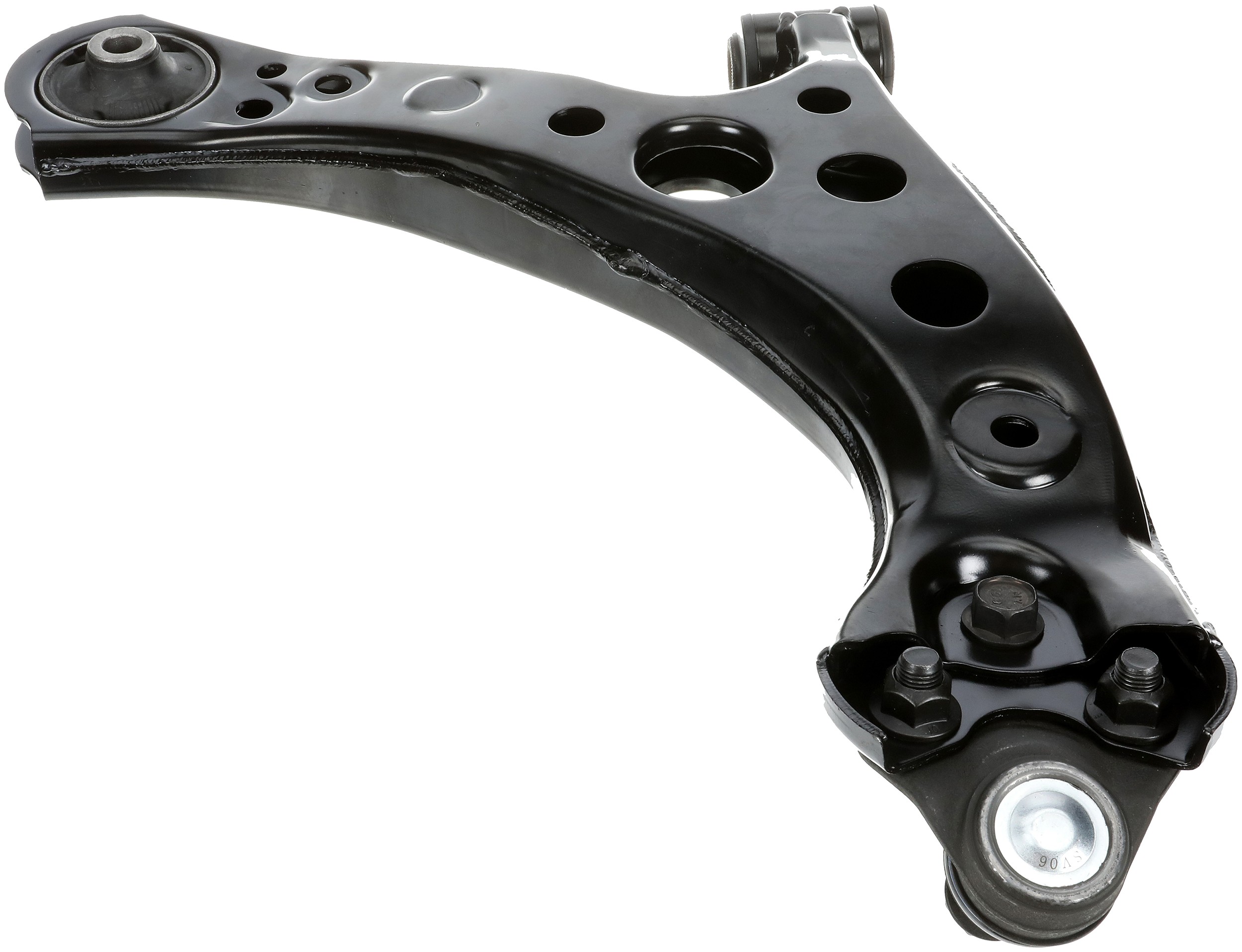

Dorman 526-515 Suspension Control Arm And Ball Joint Assembly

Dorman 526-515 Suspension Control Arm And Ball Joint Assembly

Features:

Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

Ball Joint Stud Type	Threaded
Attachment Type	Bolt In
Bushings Included	No
Ball Joint Thread Diameter	14 mm MM
Ball Joint Installed	Yes
Length	237 MM
Control Arm Type	Casting/Forged
4887	288.5 MM
Mounting Hole Quantity	1 IN
Grease Fitting Included	No
Pre-greased	Yes
Bushing Type	Rubber
Package Contents	1 Control Arm
Mounting Hole Diameter	12.3 MM
Package Contents	1 Ball Joint
4890	42 MM
Bushing Type	Steel
Adjustable	No

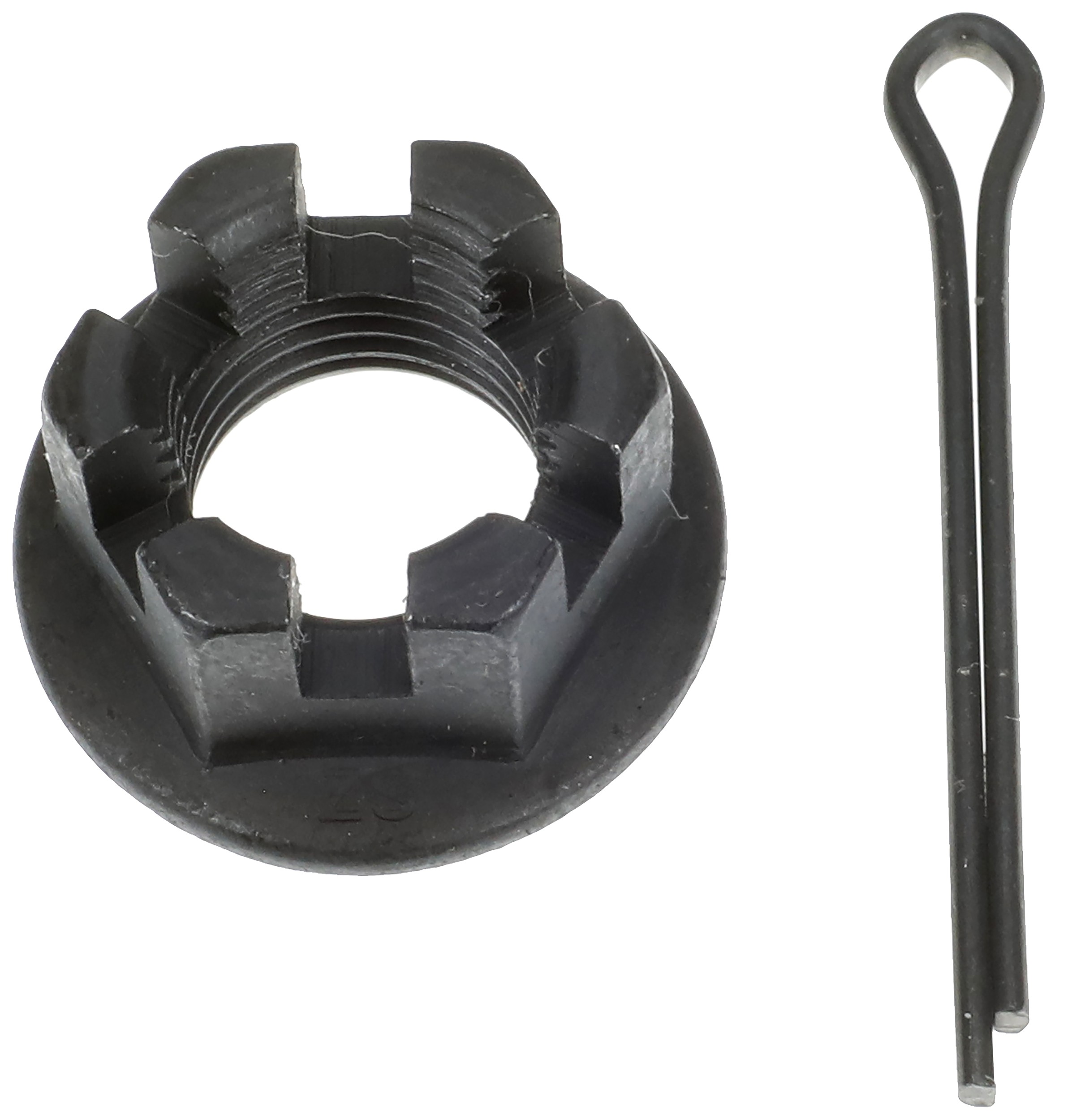

Mounting Hardware Included	Yes
Finish	Black
Grade Type	Standard Replacement
Material	Steel
Ball Joint Included	Yes

Vehicle Applications:

Make	Model	Position	Years	Notes
Toyota	Corolla	Front Left Lower	2019 to 2025
Toyota	Prius AWD-e	Front Left Lower	2019 to 2022
Toyota	Prius Prime	Front Left Lower	2017 to 2022
Toyota	Prius	Front Left Lower	2016 to 2022
