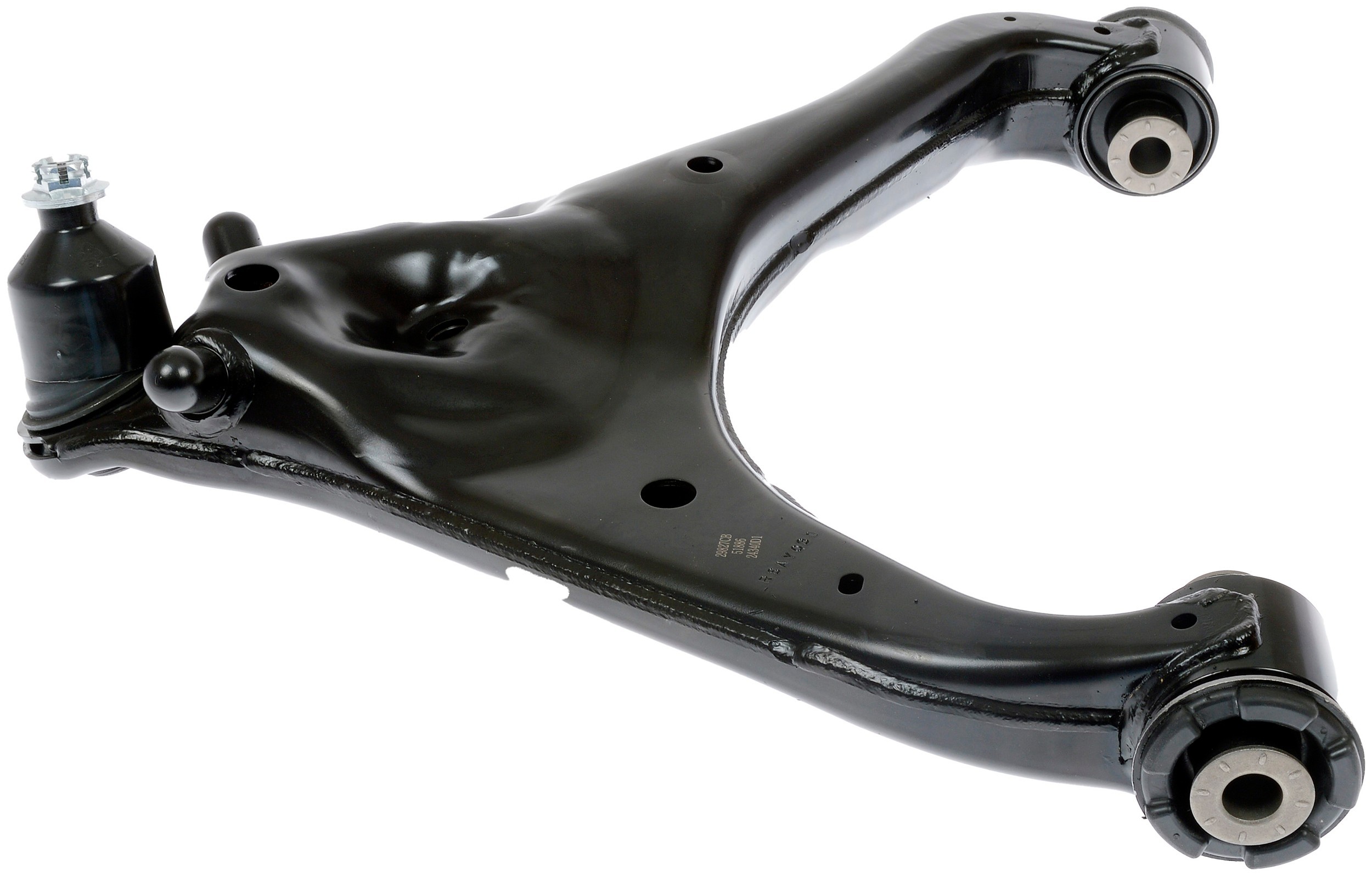

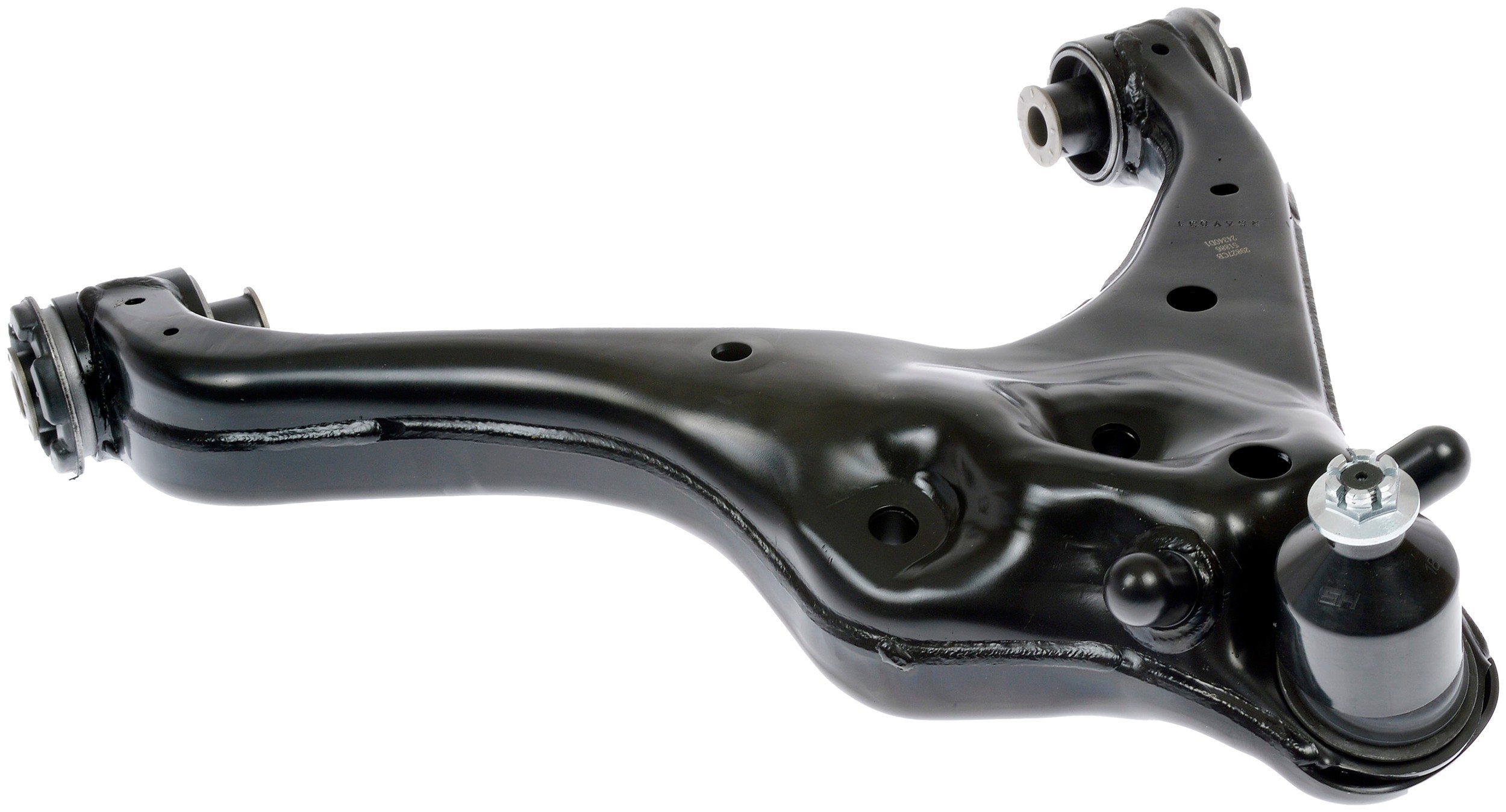

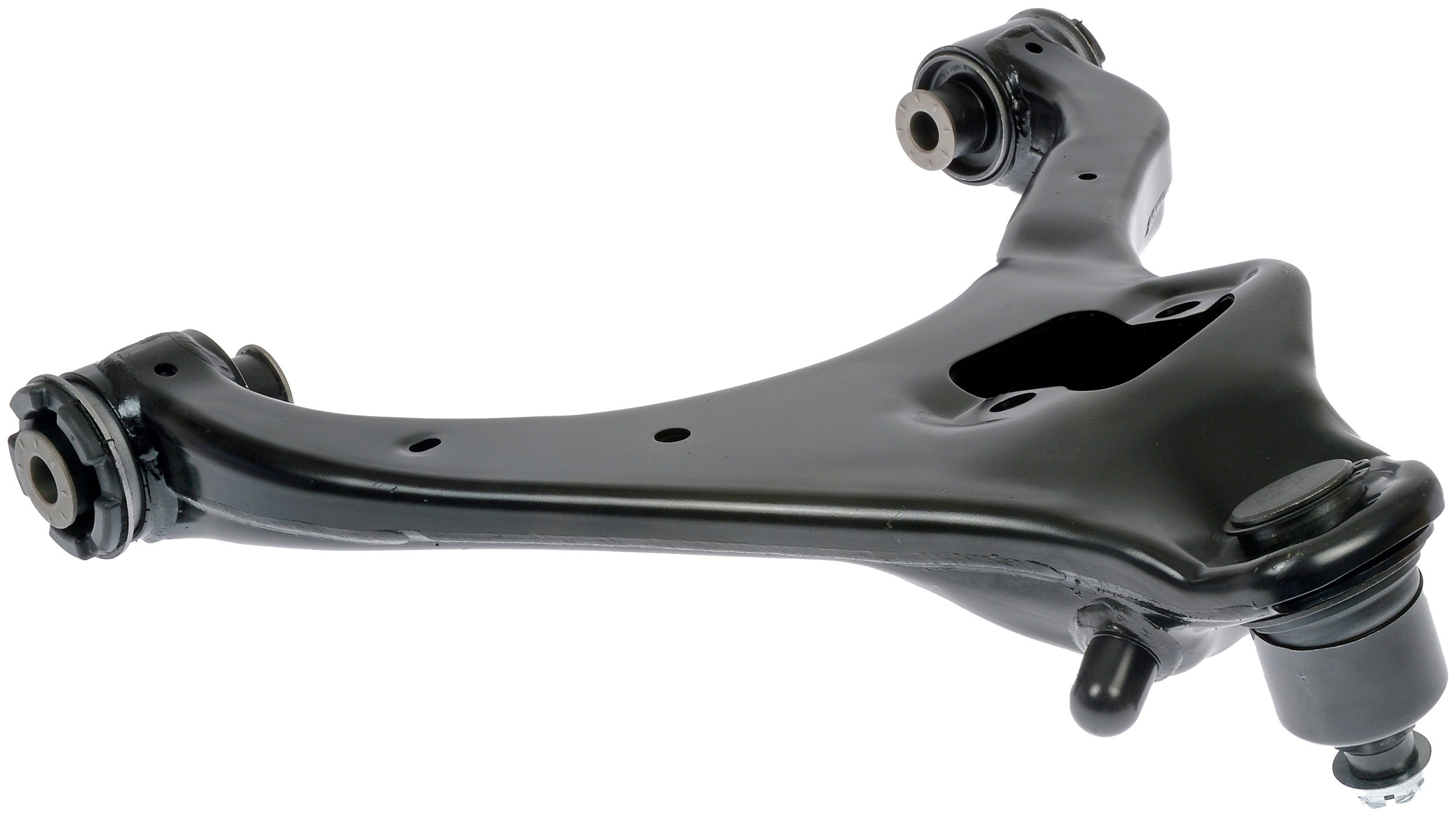

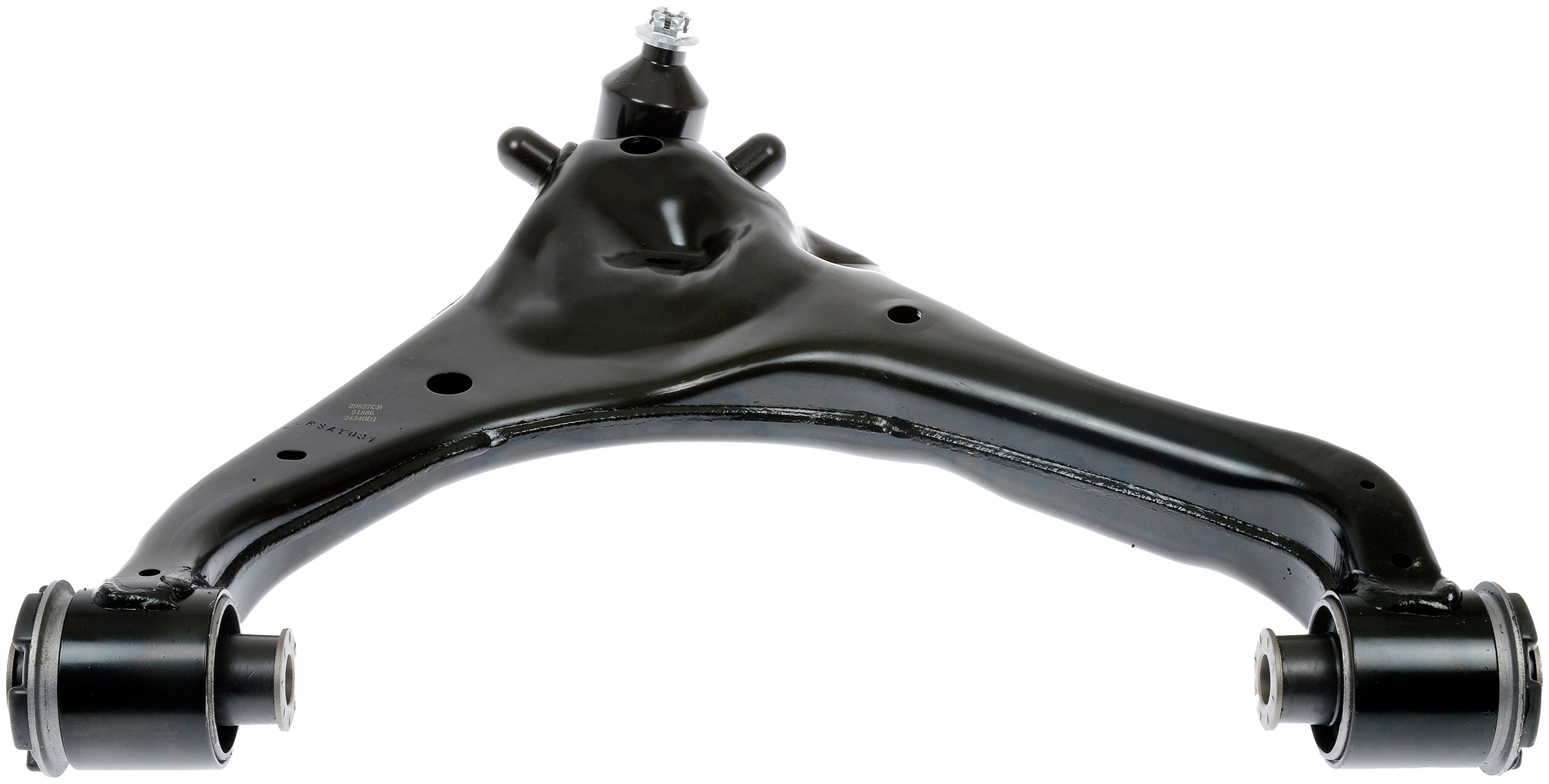

Dorman 526-648 Suspension Control Arm And Ball Joint Assembly

Dorman 526-648 Suspension Control Arm And Ball Joint Assembly

Features:

Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

Thread Direction	Clockwise (Right)
Mounting Hole Diameter	18.6 MM
End 2 Thread Size	1.5 mm MM
End 2 Thread Size	14 mm MM
2334	Yes
1260	No
Thread Size	1.5 mm MM
Thread Size	14 mm MM
Length	419.2 MM
Length Centre Bore To Centre Bore	558 MM
Bore Diameter	18.6 MM
Mounting Hole Diameter	16.2 MM
Mounting Hole Diameter	16.2 MM
Bore Diameter	18.6 MM
4890	37.5 MM
4887	558 MM
9532	558 MM
Mounting Hardware Included	Yes
Adjustable	No
Bushing Type	Rubber
Bushing Colour	Black
Finish	Painted
Mounting Hole Quantity	4
Boot Colour	Black
Bearing Material	Polymer
Pre-greased	Yes
Grease Fitting Included	No
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
662	19.75 MM
Material	Steel
Grade Type	Standard Replacement
Greaseable	No
Finish	Black
Thread Diameter	14 mm MM
Thread Pitch	1.5 mm MM
Length	419.2 MM
Bushing Inside Diameter	18.6 MM
Ball Joint Thread Diameter	14 mm MM
Bushing Inside Diameter	18.6 MM
Bushing Length	100.2 MM
Bushing Length	100.2 MM
Suspension Grade Type	Standard Replacement
Set	No
Package Contents	1 Cotter Pin
Package Contents	1 Nut
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
Package Contents	1 Control Arm
Control Arm Type	Stamped
Ball Joint Installed	Yes
Attachments Included	Yes
6529	Power
4241	Yes
Mounting Hole Diameter	18.6 MM
2827	Yes
2386	Stamped
