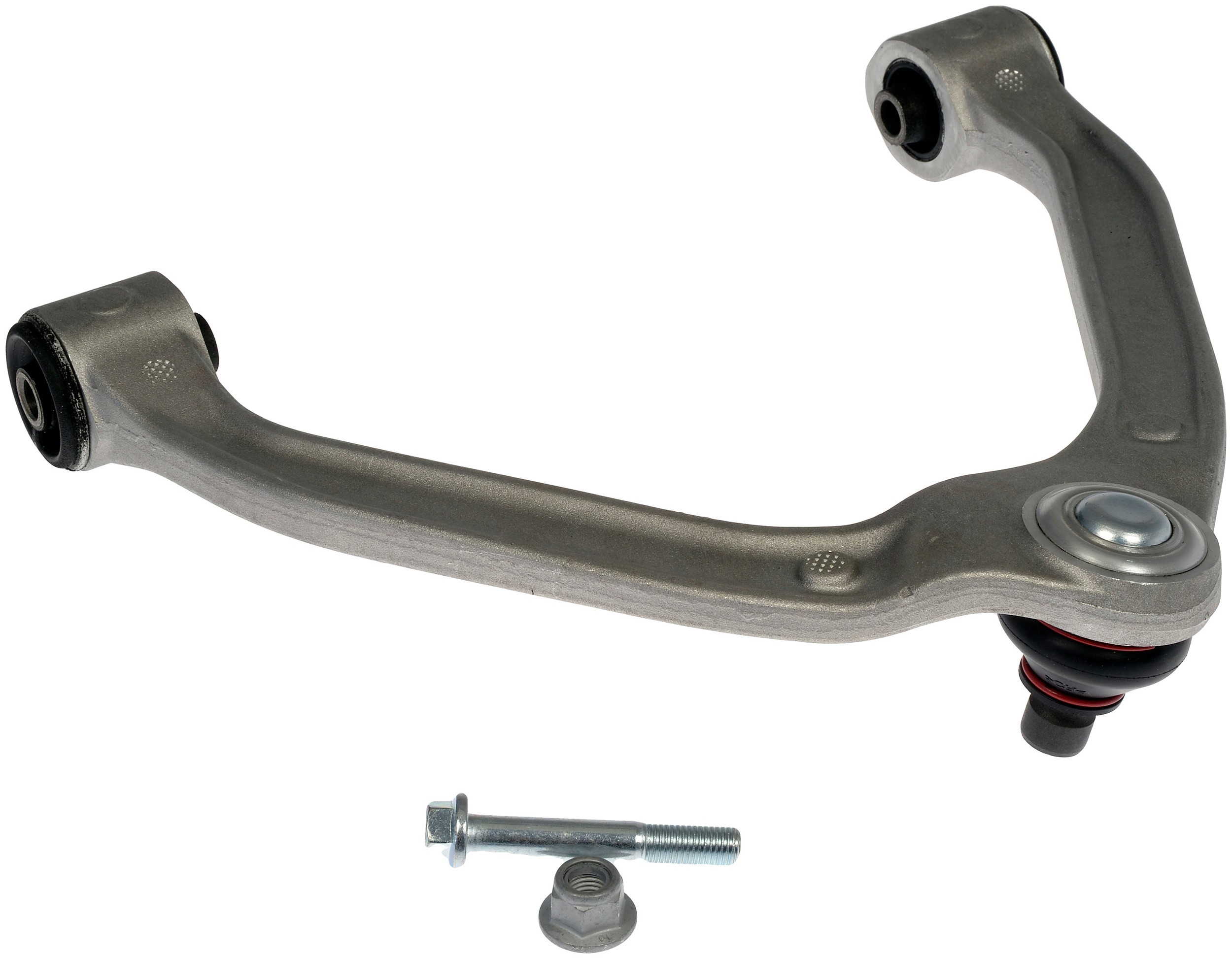

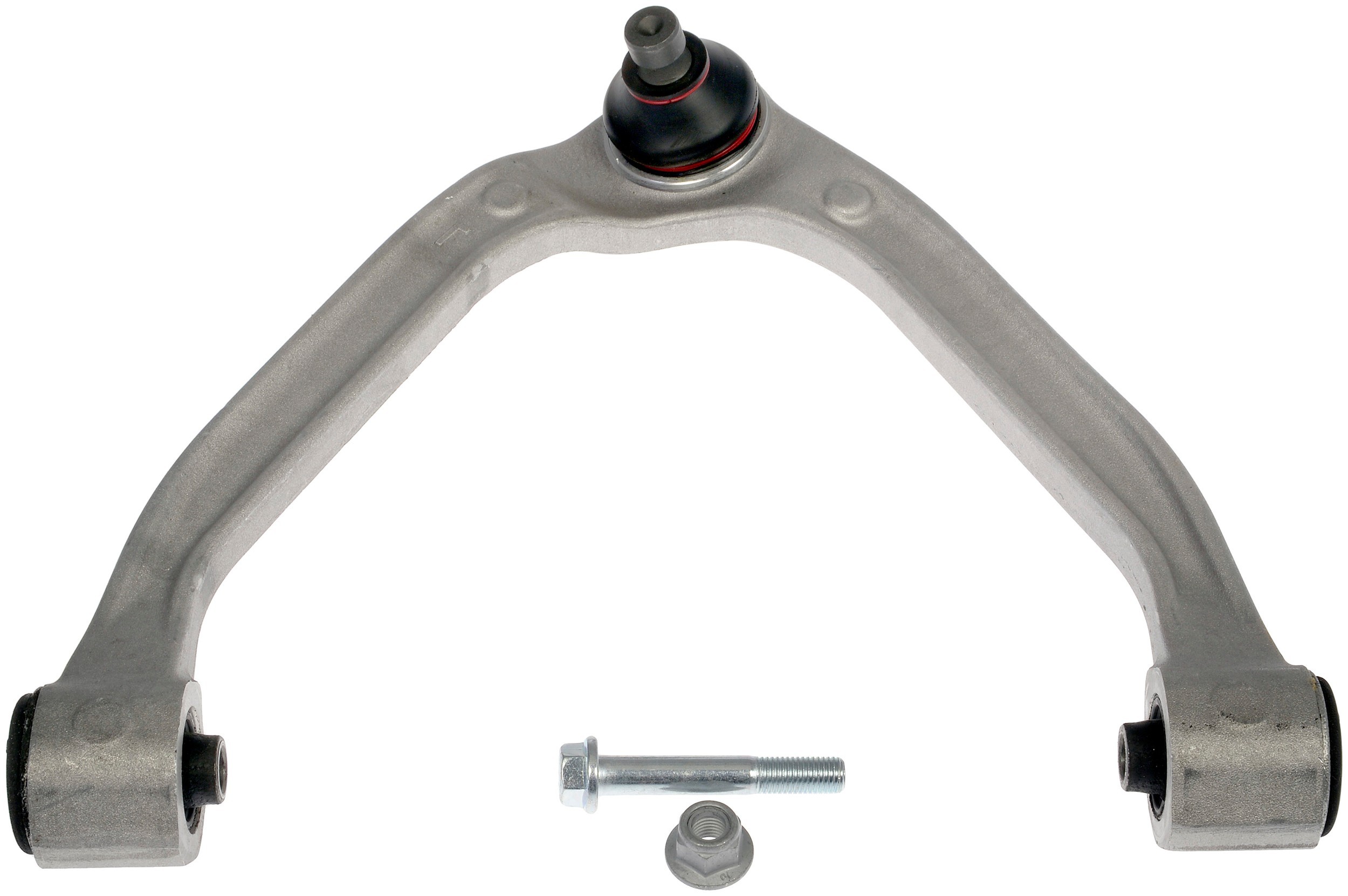

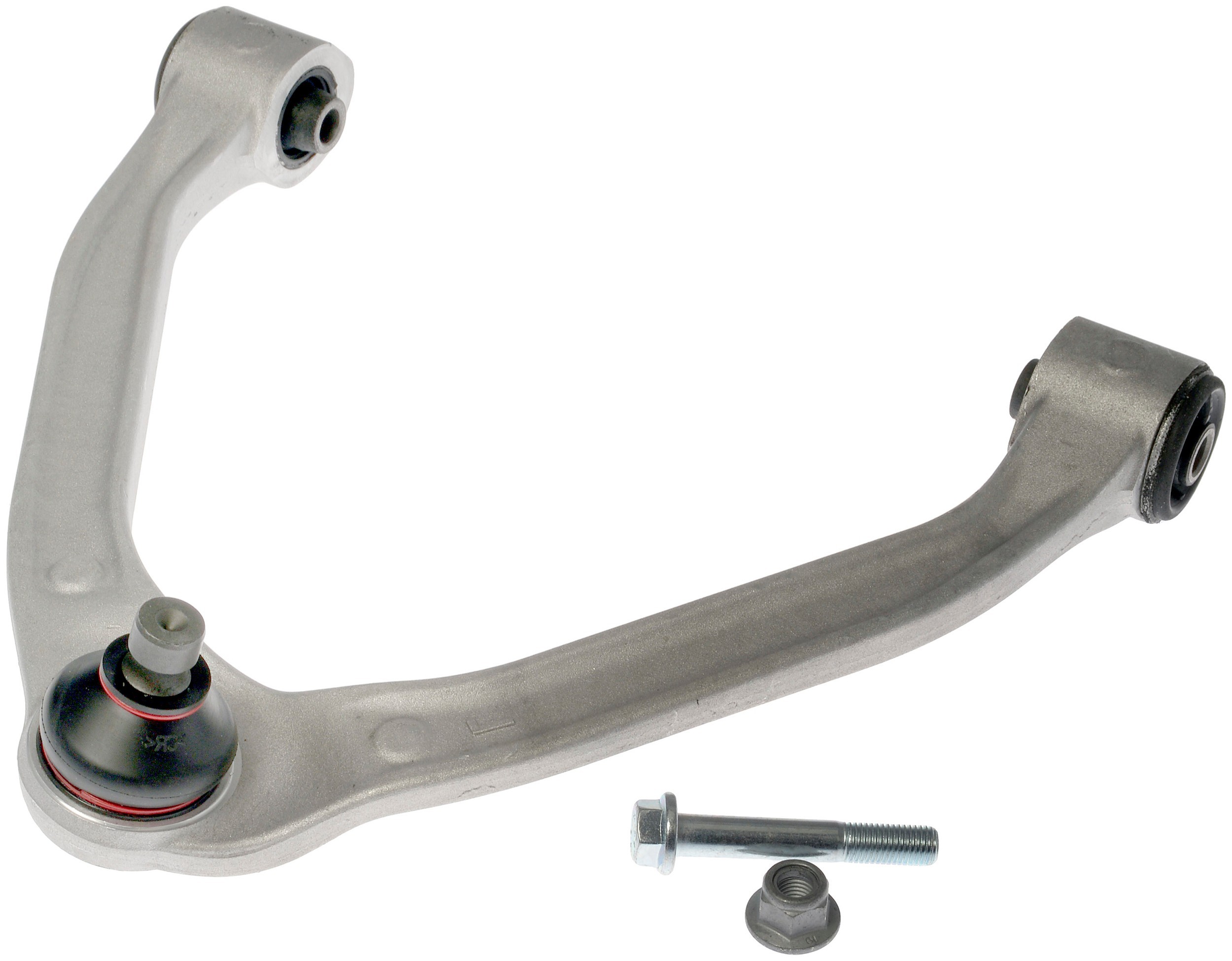

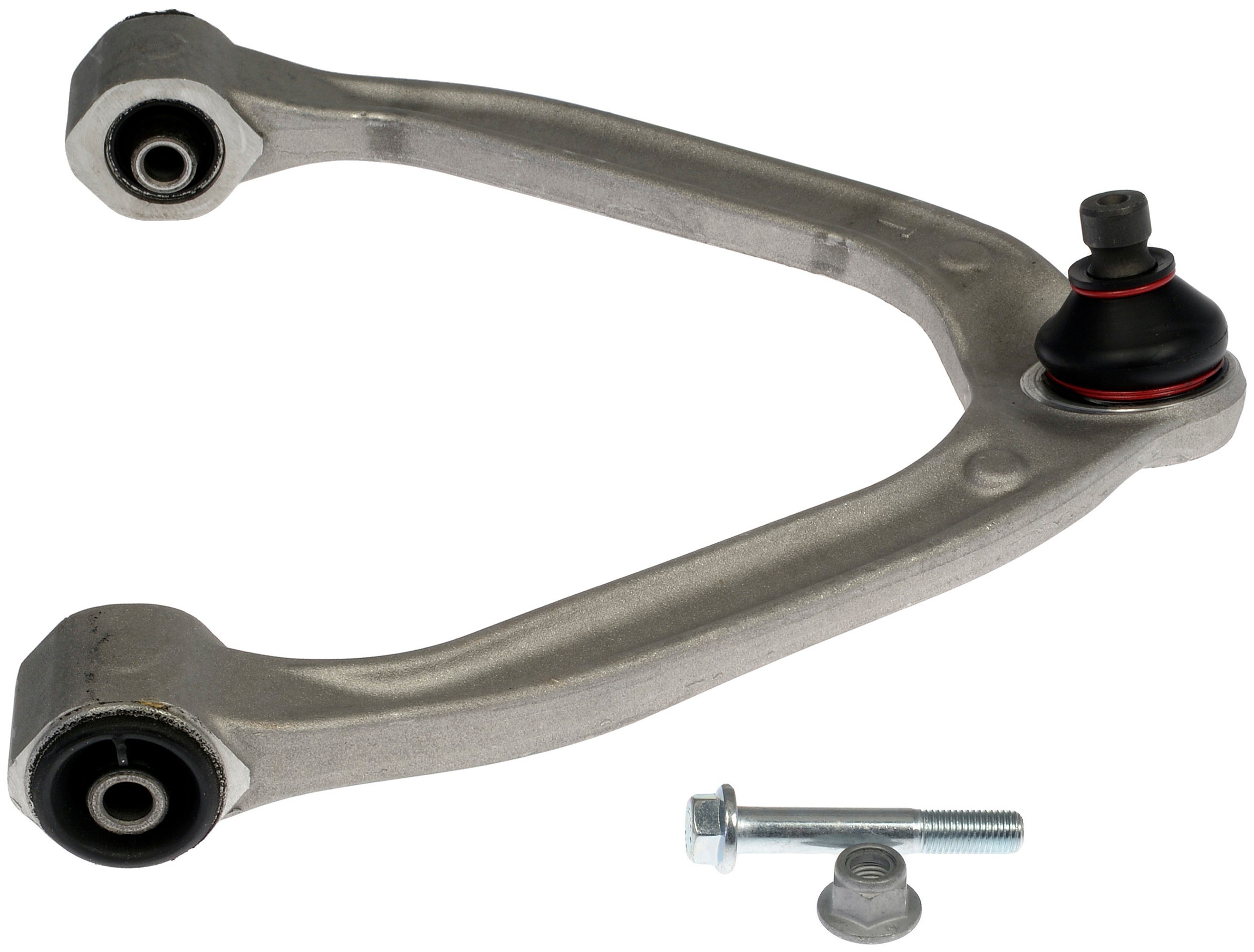

Dorman 526-689 Suspension Control Arm And Ball Joint Assembly

Dorman 526-689 Suspension Control Arm And Ball Joint Assembly

Features:

Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

End 1 Thread Pitch	1.25 mm MM
Bore Diameter	10.2 MM
Mounting Hole Diameter	10.2 MM
Length Centre Bore To Centre Bore	315 MM
Length	229 MM
Suspension Grade Type	Standard Replacement
Set	No
Package Contents	1 Nut
Package Contents	1 Bolt
Package Contents	1 Control Arm
Control Arm Type	Casting/Forged
Ball Joint Installed	Yes
Attachments Included	Yes
6529	Power
4241	Yes
2827	No
Length	229 MM
Bore Diameter	10.2 MM
Ball Joint Thread Diameter	16 mm MM
9532	315 MM
4890	27 MM
4887	315 MM
662	16 MM
Dust Boot Included	Yes
Attachment Type	Machined
Thread Size	1.25 mm MM
Ball Joint Stud Type	Pinch
Bushing Inside Diameter	10.2 MM
Bushing Inside Diameter	10.2 MM
Ball Joint Included	Yes
Bushing Length	50 MM
Material	Aluminum
Grade Type	Standard Replacement
Greaseable	No
Finish	Gray
End 2 Thread Size	10mm
2386	Casting/Forged
2334	Yes
End 2 Thread Size	1.25 mm
1260	No
Bushing Length	50 MM
Thread Size	10 mm MM
Thread Diameter	10 mm MM
Thread Pitch	1.25 mm MM
Bushing Type	Rubber
Adjustable	No
Mounting Hardware Included	Yes
Thread Direction	Clockwise (Right)
Mounting Hole Diameter	10.2 MM
Bushing Colour	Black
Finish	Uncoated
Mounting Hole Quantity	2
Boot Colour	Black
Bearing Material	Polymer
Pre-greased	Yes
Grease Fitting Included	No
Bushings Included	Yes
End 1 Thread Diameter	10 mm MM

Vehicle Applications:

Make	Model	Position	Years	Notes
INFINITI	M35h	Front Left Upper	2012 to 2013
INFINITI	M37	Front Left Upper	2011 to 2013
INFINITI	M56	Front Left Upper	2011 to 2013
INFINITI	Q70	Front Left Upper	2014 to 2019
INFINITI	Q70L	Front Left Upper	2015 to 2019
