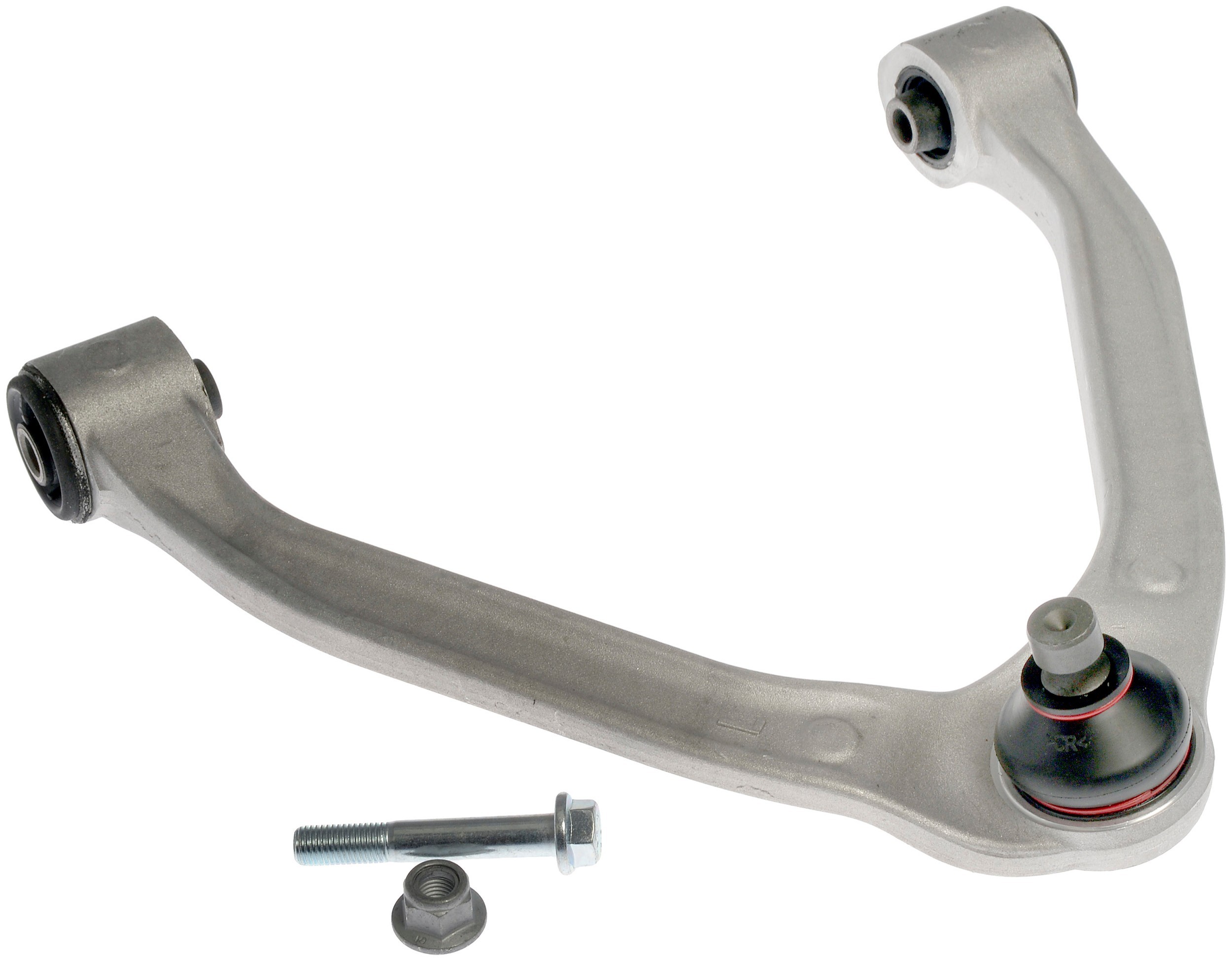

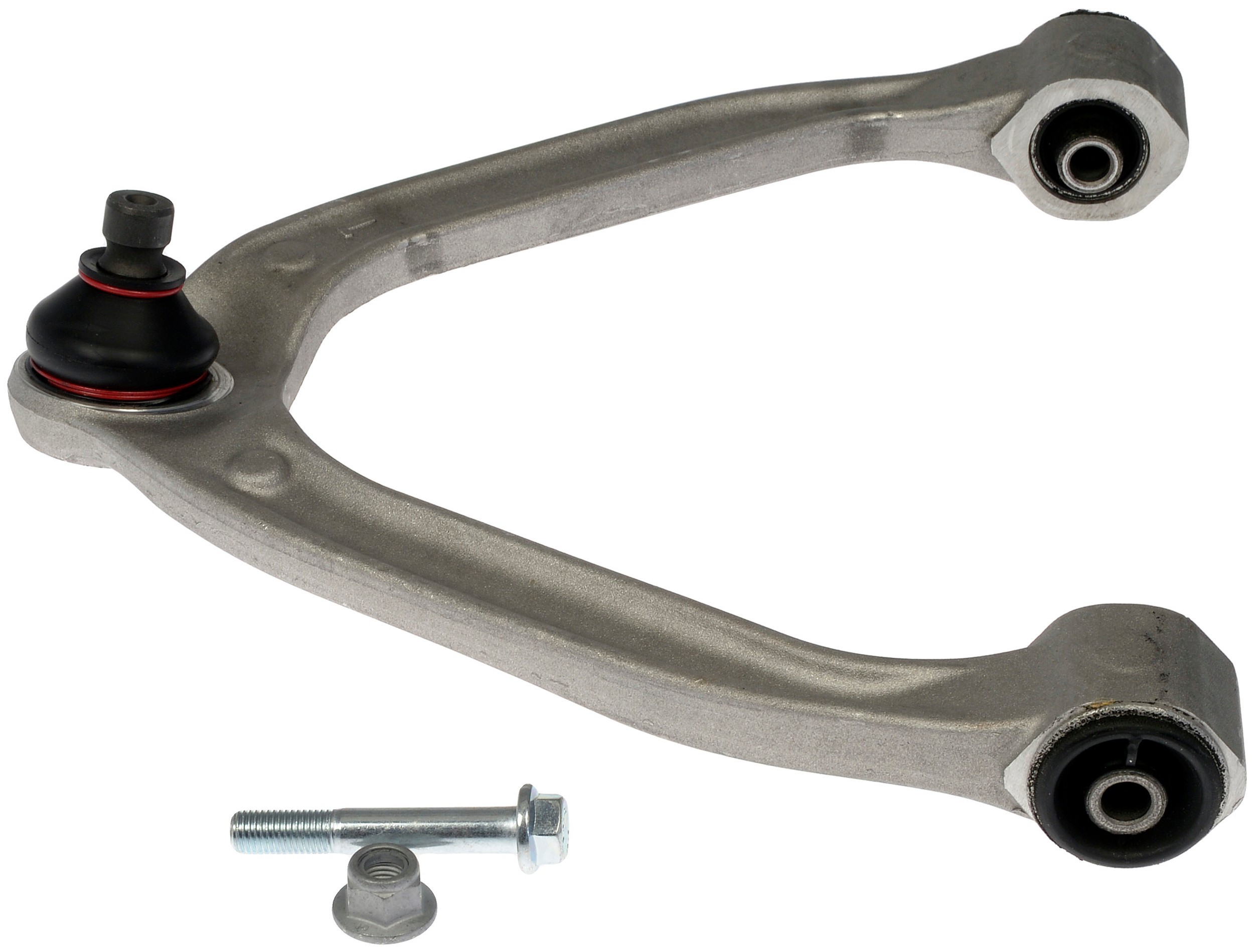

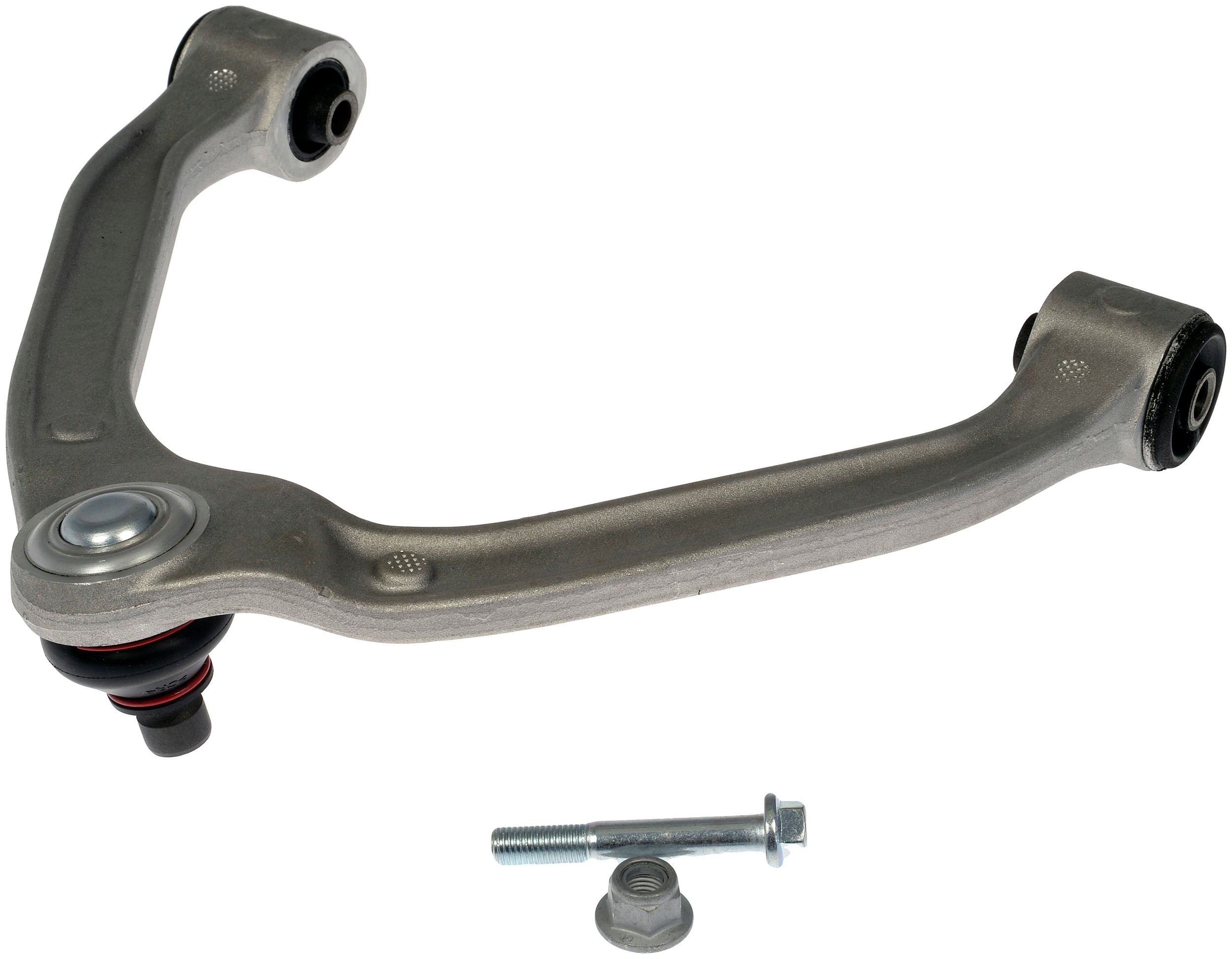

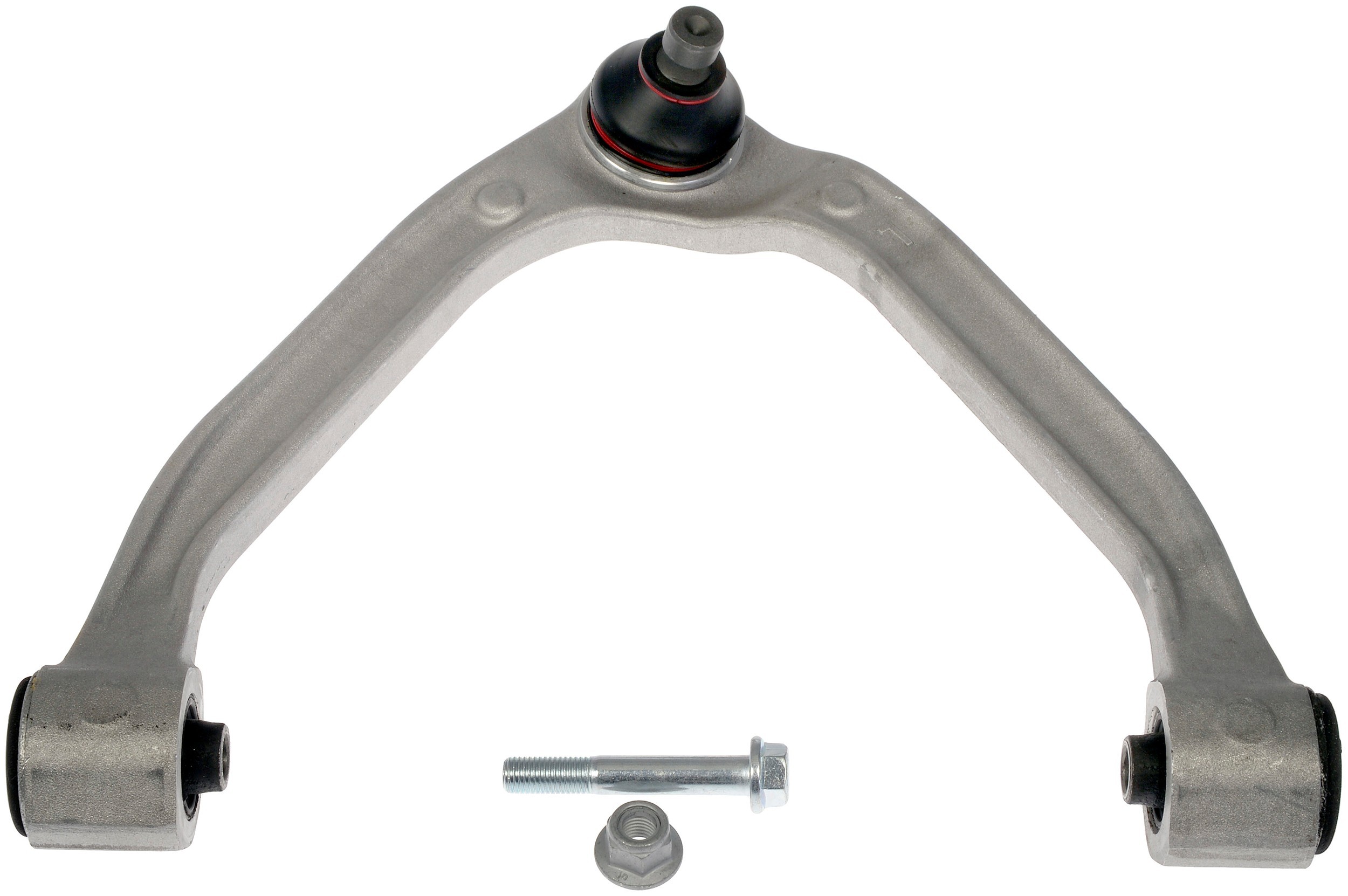

Dorman 526-690 Suspension Control Arm And Ball Joint Assembly

Dorman 526-690 Suspension Control Arm And Ball Joint Assembly

Features:

Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Direct replacement – this suspension trailing arm fits and functions like the original equipment part

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

2827	No
Bore Diameter	10.2 MM
Mounting Hardware Included	Yes
Greaseable	No
Adjustable	No
4887	315 MM
662	16 MM
Bushing Type	Rubber
Bushing Colour	Black
Finish	Uncoated
Mounting Hole Quantity	2
Boot Colour	Black
Bushings Included	Yes
4890	27 MM
Mounting Hole Diameter	10.2 MM
9532	315 MM
Thread Pitch	1.25 mm MM
Ball Joint Thread Diameter	16 mm MM
Bushing Length	50 MM
1260	No
2334	Yes
2386	Casting/Forged
4241	Yes
6529	Power
Attachments Included	Yes
Ball Joint Installed	Yes
Control Arm Type	Casting/Forged
Package Contents	1 Control Arm
Package Contents	1 Bolt
Mounting Hole Diameter	10.2 MM
Bushing Inside Diameter	10.2 MM
Bushing Inside Diameter	10.2 MM
Length	229 MM
Bearing Material	Polymer
Pre-greased	Yes
Package Contents	1 Nut
Set	No
Grade Type	Standard Replacement
Thread Diameter	10 mm MM
End 2 Thread Size	1.25 mm
End 2 Thread Size	10mm
End 1 Thread Diameter	10 mm MM
Material	Aluminum
Finish	Gray
Thread Size	1.25 mm MM
Thread Size	10 mm MM
Thread Direction	Clockwise (Right)
Bushing Length	50 MM
Dust Boot Included	Yes
Suspension Grade Type	Standard Replacement
Ball Joint Stud Type	Pinch
Attachment Type	Machined
End 1 Thread Pitch	1.25 mm MM
Length	229 MM
Length Centre Bore To Centre Bore	315 MM
Bore Diameter	10.2 MM
Ball Joint Included	Yes
Grease Fitting Included	No

Vehicle Applications:

Make	Model	Position	Years	Notes
INFINITI	M35h	Front Right Upper	2012 to 2013
INFINITI	M37	Front Right Upper	2011 to 2013
INFINITI	M56	Front Right Upper	2011 to 2013
INFINITI	Q70	Front Right Upper	2014 to 2019
INFINITI	Q70L	Front Right Upper	2015 to 2019
