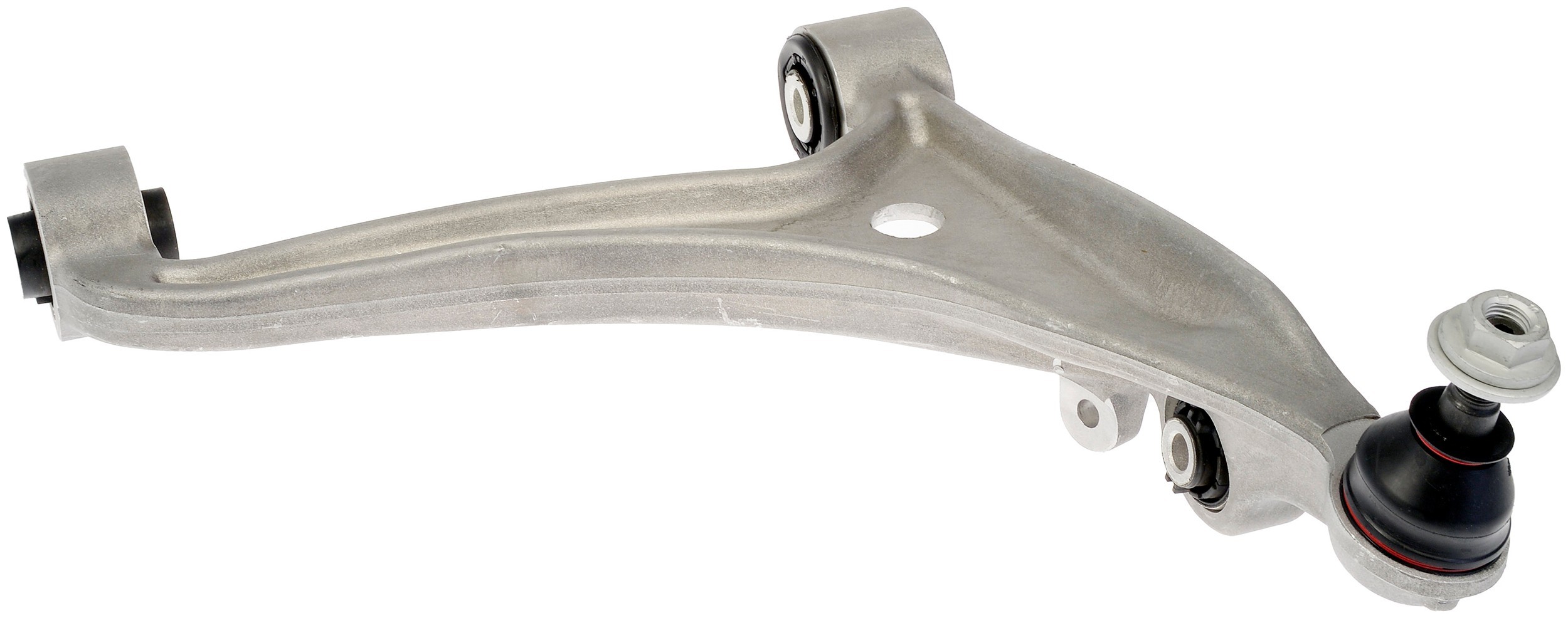

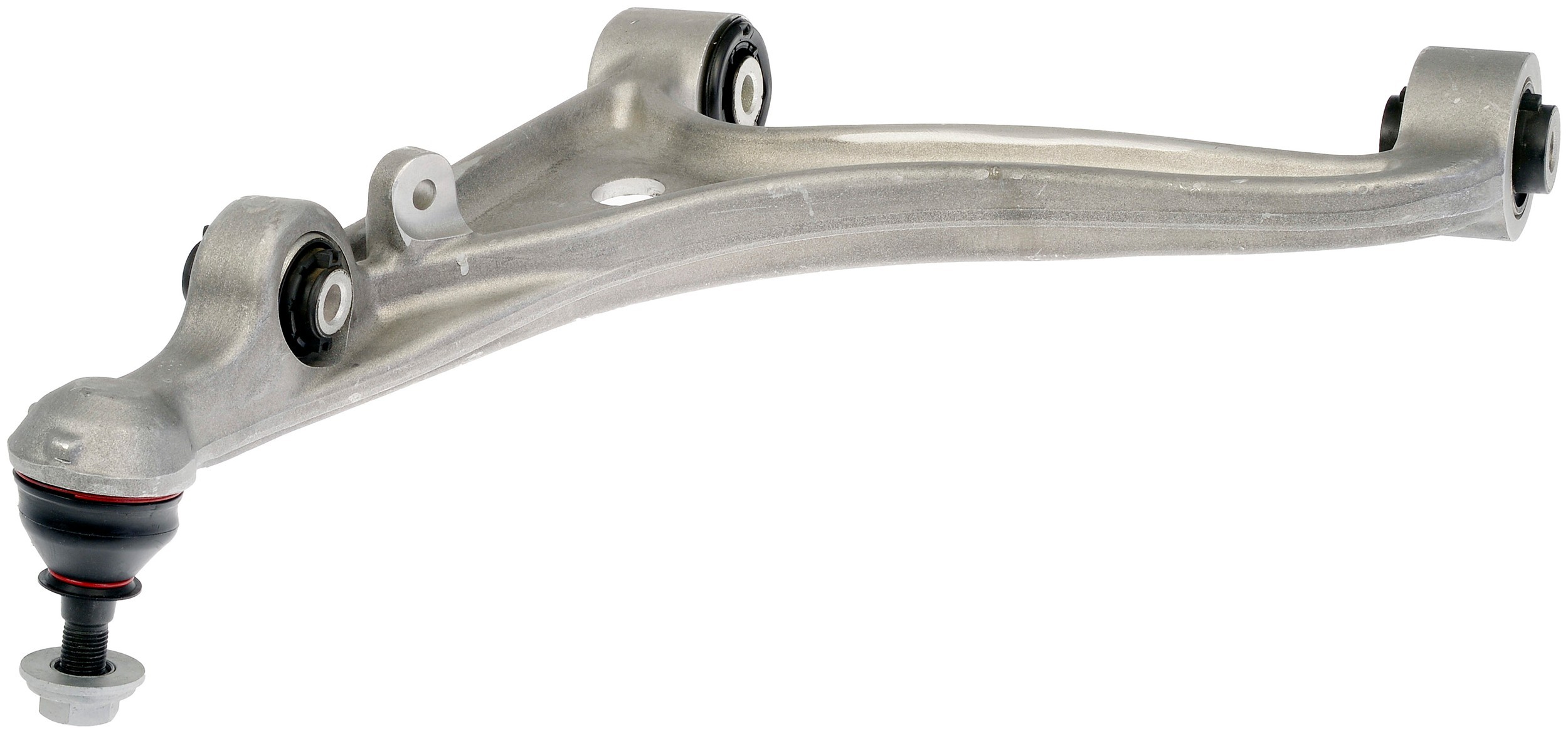

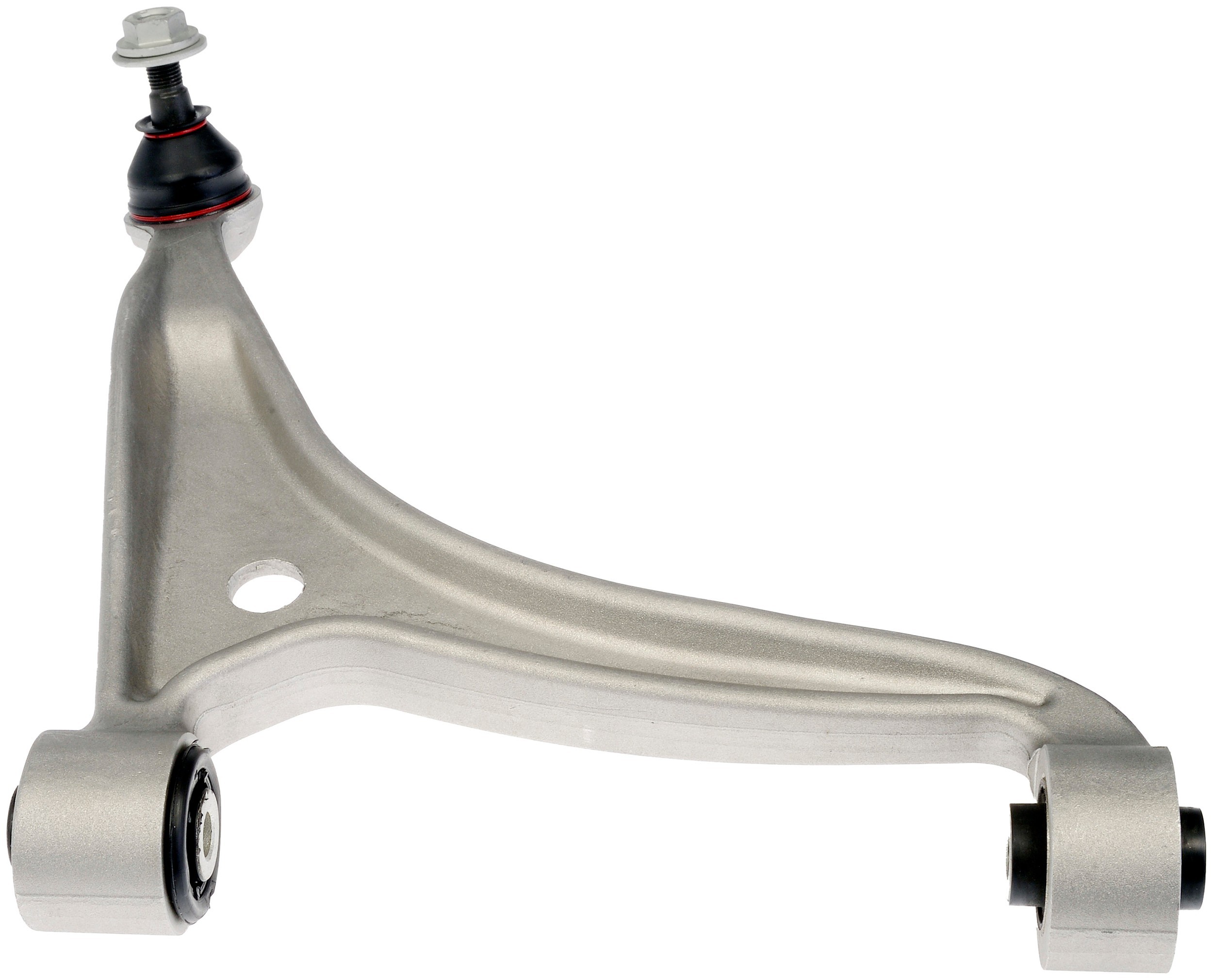

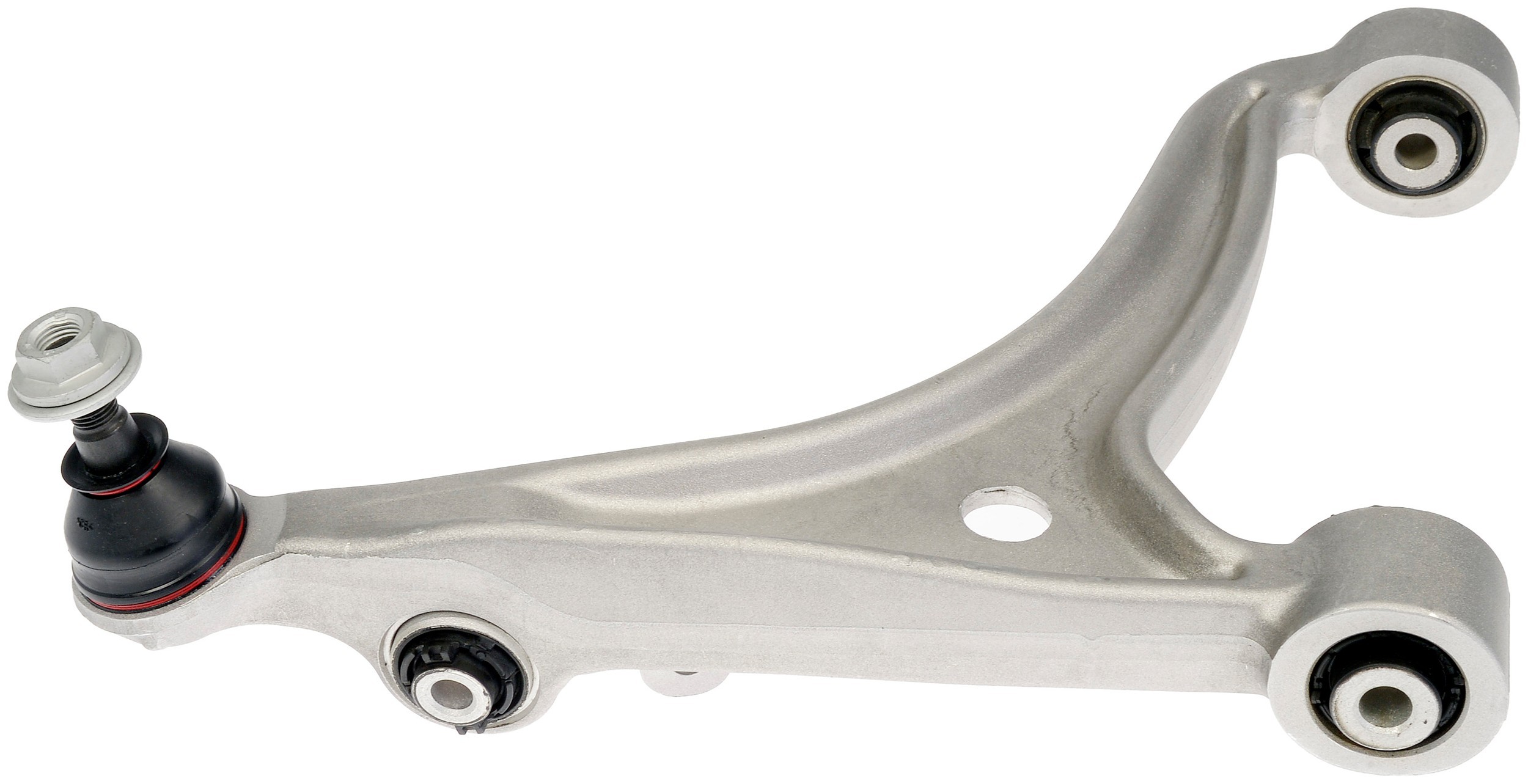

Dorman 526-693 Suspension Control Arm And Ball Joint Assembly

Dorman 526-693 Suspension Control Arm And Ball Joint Assembly

Features:

Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

Finish	Gray
Length	339 MM
662	16 MM
4887	361.5 MM
4890	28.8 MM
9532	253.5 MM
Ball Joint Thread Diameter	14 mm MM
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
Thread Diameter	14 mm MM
Thread Pitch	1.5 mm MM
End 2 Thread Size	1.5 mm MM
End 2 Thread Size	14 mm MM
Thread Size	1.5 mm MM
Thread Size	14 mm MM
Length Centre Bore To Centre Bore	253.5 MM
Mounting Hole Diameter	12.2 MM
Mounting Hole Diameter	14.2 MM
Mounting Hole Diameter	14.2 MM
Bushing Inside Diameter	12.2 MM
Bushing Inside Diameter	14.2 MM
Bushing Inside Diameter	14.2 MM
Length	339 MM
1260	No
2334	Yes
2386	Casting/Forged
2827	No
4241	Yes
6529	Power
Attachments Included	Yes
Ball Joint Installed	Yes
Control Arm Type	Casting/Forged
Package Contents	1 Control Arm
Package Contents	1 Nut
Set	No
Suspension Grade Type	Standard Replacement
Thread Direction	Clockwise (Right)
Mounting Hardware Included	Yes
Adjustable	No
Bushing Type	Rubber
Bushing Length	60.3 mm
Bushing Length	57 mm
Bushing Length	50 mm
Bushing Colour	Black
Finish	Uncoated
Mounting Hole Quantity	3
Boot Colour	Black
Bearing Material	Polymer
Bore Diameter	14.2 mm
Bore Diameter	14.2 m
Bore Diameter	12.2 mm
Pre-greased	Yes
Grease Fitting Included	No
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Material	Aluminum
Grade Type	Standard Replacement
Greaseable	No
