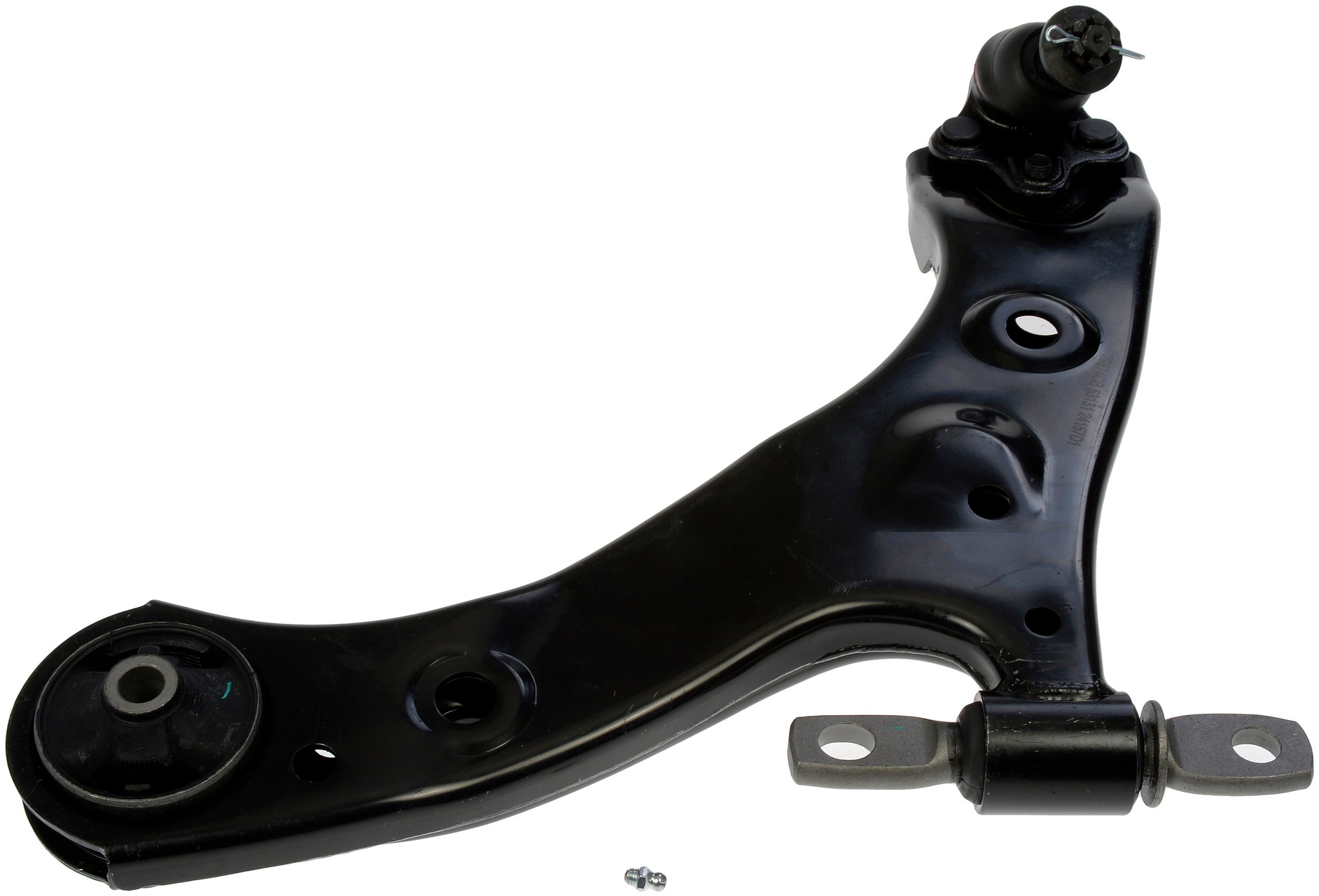

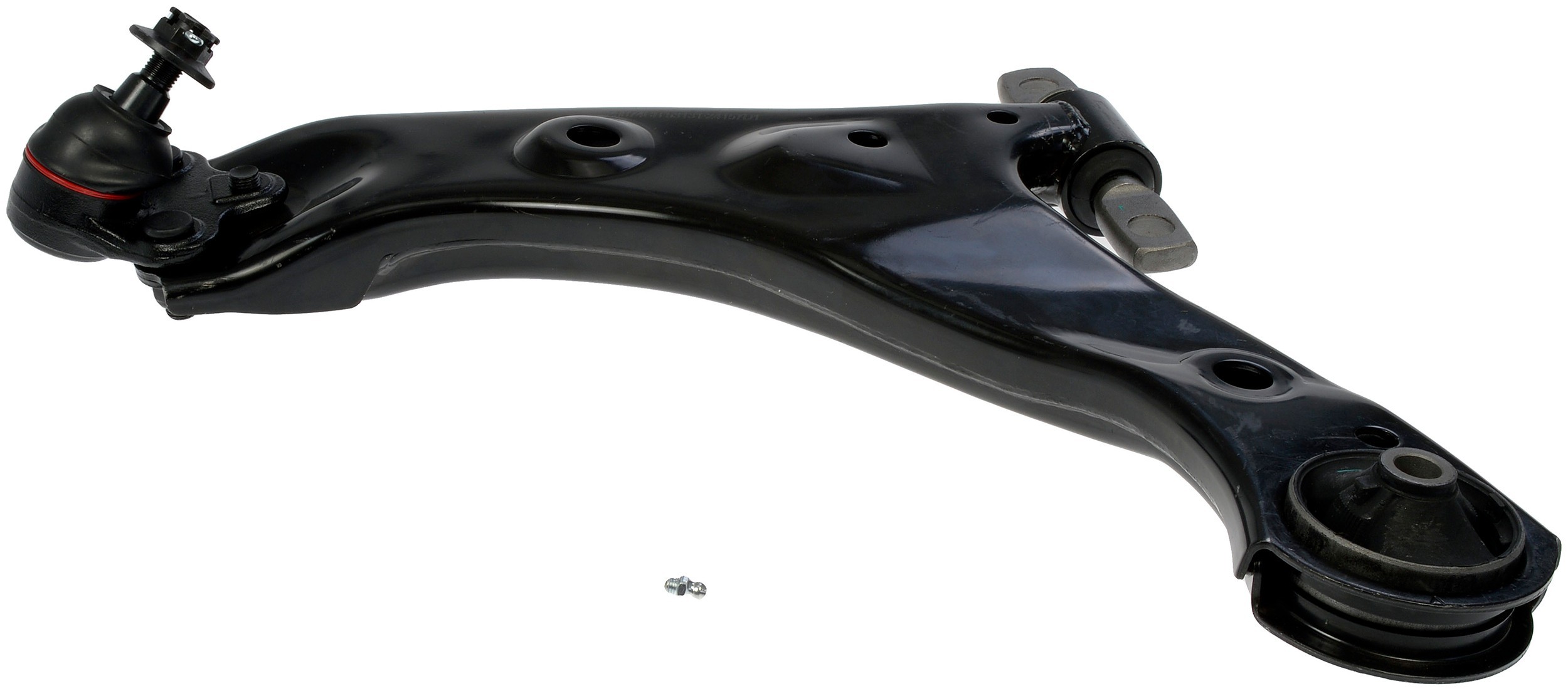

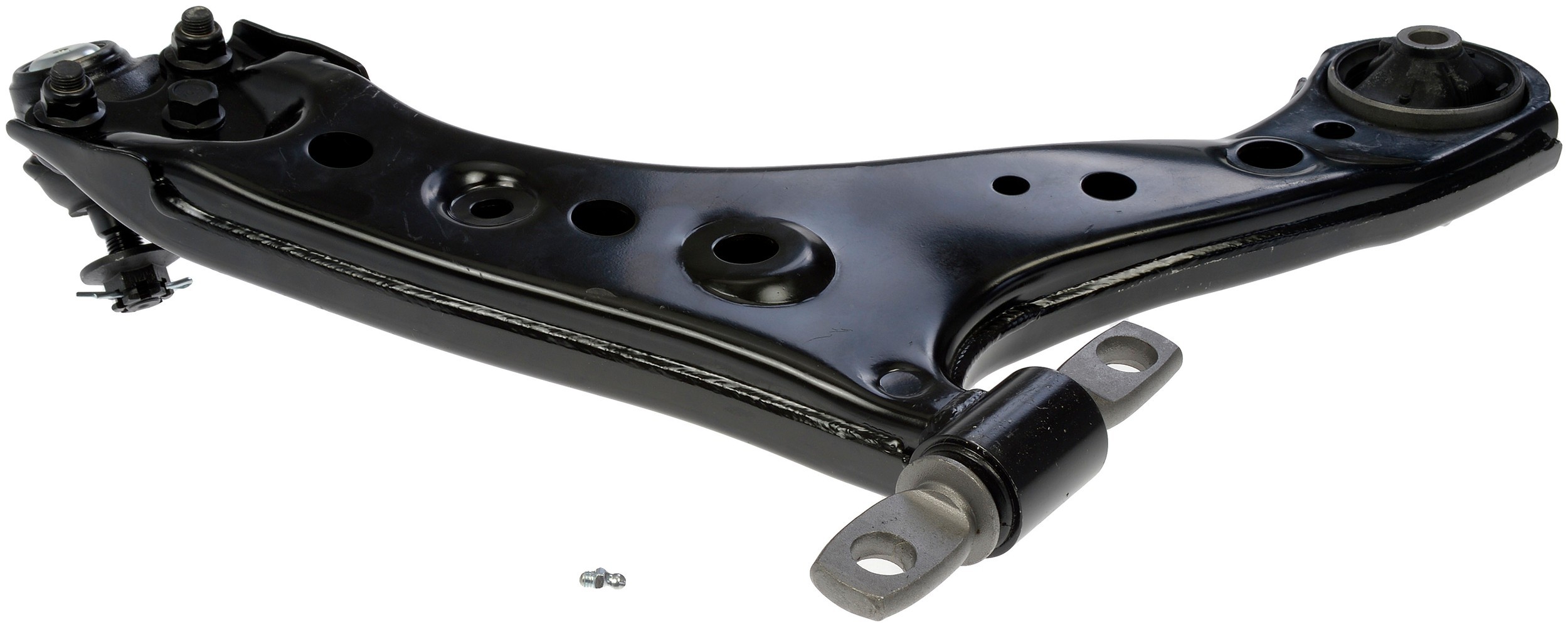

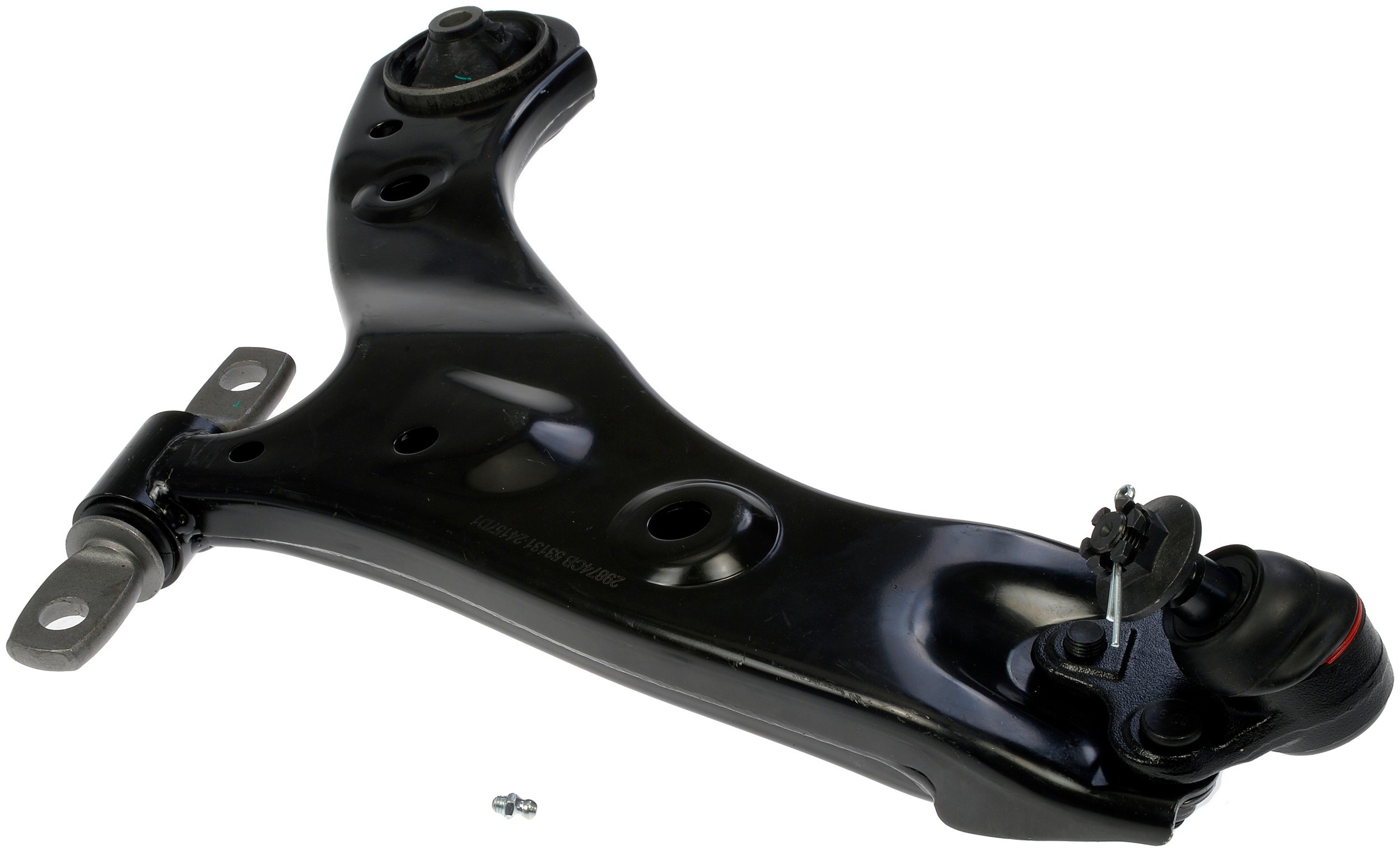

Dorman 526-695 Suspension Control Arm And Ball Joint Assembly

Dorman 526-695 Suspension Control Arm And Ball Joint Assembly

Features:

Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Bolt In
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Material	Steel
Grade Type	Standard Replacement
Greaseable	Yes
Finish	Black
Bushing Inside Diameter	14.3 MM
Bushing Length	67 MM
9532	225.2 MM
Bore Diameter	16.3 MM
Length	385.1 MM
6529	Power
Attachments Included	Yes
Ball Joint Installed	Yes
Bushing Length	136 MM
4890	21 MM
Bore Diameter	16.2 MM
Bore Diameter	14.3 MM
2827	Yes
End 2 Thread Size	1.5 mm MM
Mounting Hole Diameter	16.3 MM
Mounting Hole Diameter	16.2 MM
Mounting Hole Diameter	14.3 MM
Thread Size	14 mm MM
4887	361.2 MM
Length Centre Bore To Centre Bore	361.2 MM
Thread Size	1.5 mm MM
End 2 Thread Size	14 mm MM
1260	No
Length	385.1 MM
2386	Stamped
2334	Yes
Control Arm Type	Stamped
Package Contents	1 Control Arm
Package Contents	1 Nut
662	17.6 MM
4241	Yes
Package Contents	1 Cotter Pin
Package Contents	1 Grease Fitting
Thread Pitch	1.5 mm MM
Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	14 mm MM
Set	No
Thread Direction	Clockwise (Right)
Mounting Hardware Included	Yes
Adjustable	No
Bushing Type	Rubber
Bushing Colour	Black
Suspension Grade Type	Standard Replacement
Finish	Painted
Mounting Hole Quantity	3
Ball Joint Thread Diameter	14 mm MM
Boot Colour	Black
Bearing Material	Metal
Grease Fitting Included	Yes
