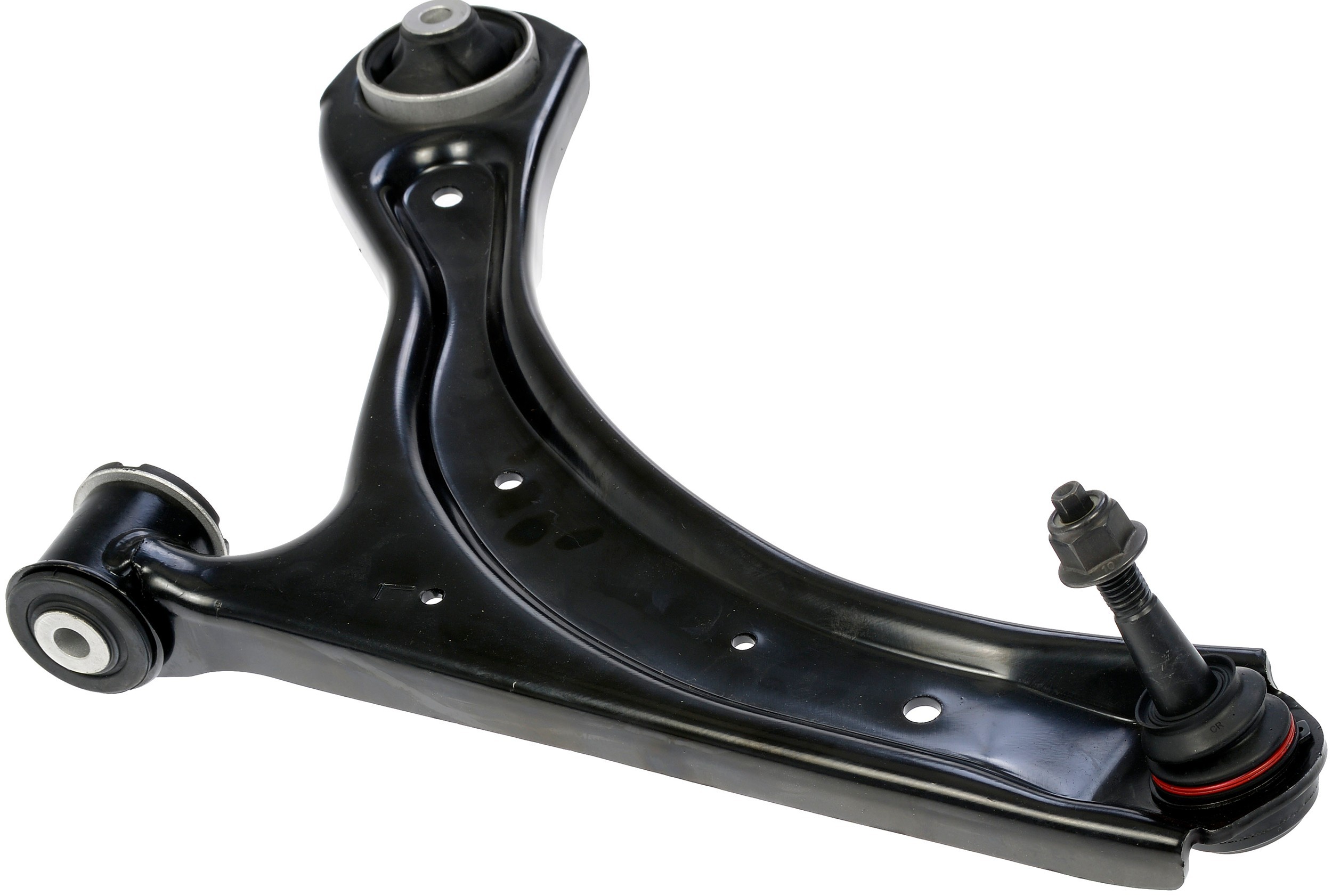

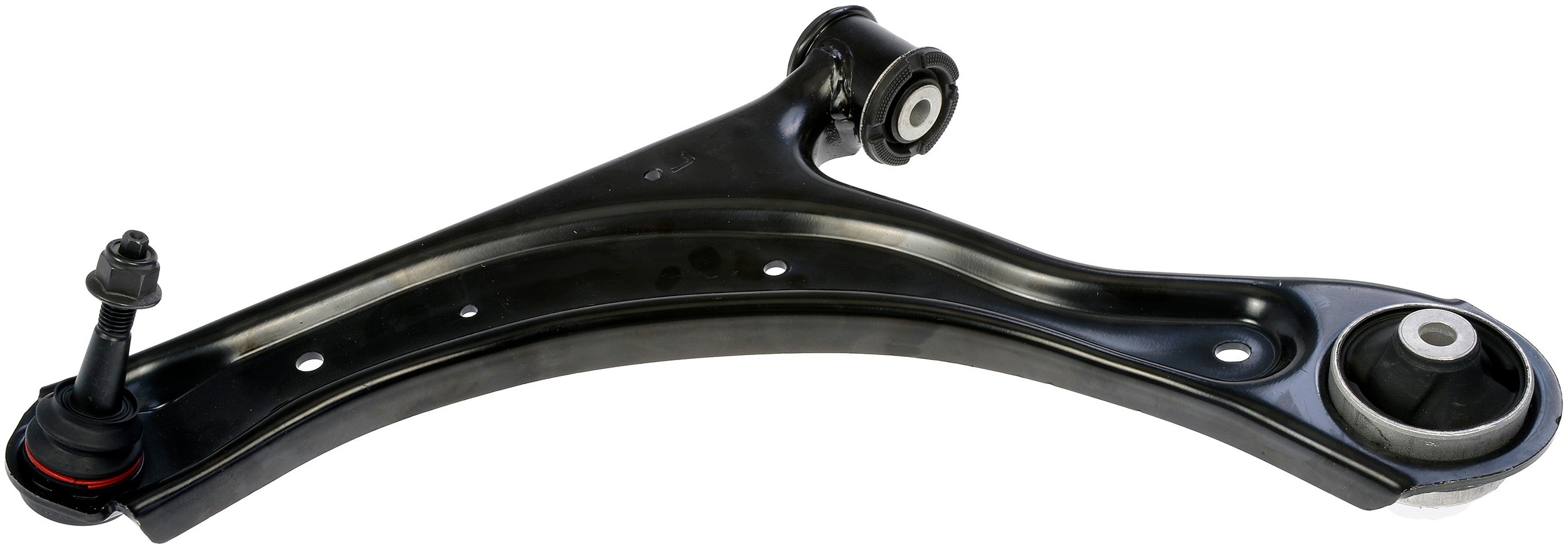

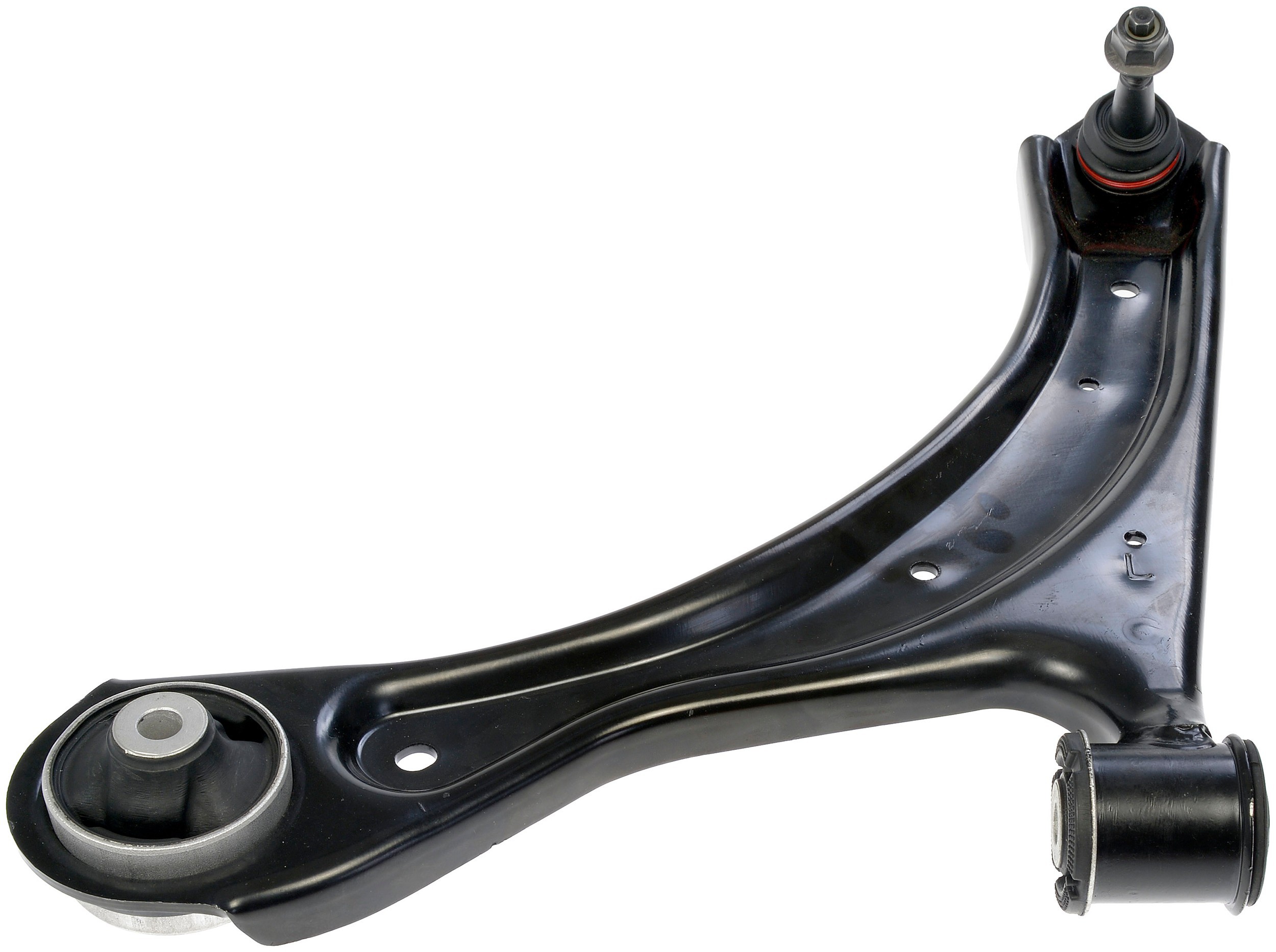

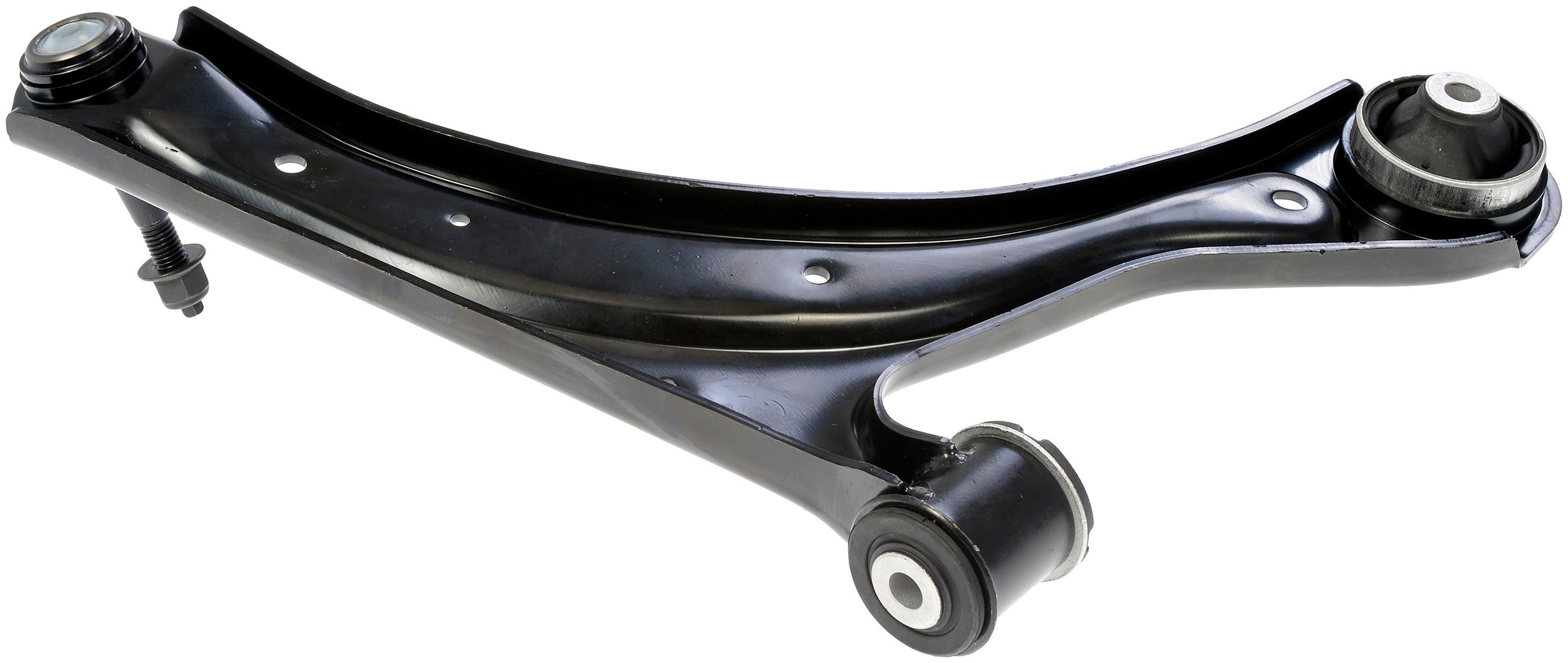

Dorman 527-487 Suspension Control Arm And Ball Joint Assembly

Dorman 527-487 Suspension Control Arm And Ball Joint Assembly

Features:

Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
Complete repair – each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering – underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed – additional coatings offer long-lasting rust and corrosion resistance
Trustworthy replacement – this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

Attributes:

End 2 Thread Size	1.75 mm MM
Suspension Grade Type	Standard Replacement
Set	Yes
9532	311 MM
Dust Boot Included	Yes
Ball Joint Thread Diameter	12 mm MM
Bushings Included	Yes
End 1 Thread Diameter	12 mm MM
End 1 Thread Pitch	1.75 mm MM
Thread Diameter	12 mm MM
Thread Pitch	1.75 mm MM
Grease Fitting Included	No
Pre-greased	Yes
Bearing Material	Polymer
Boot Colour	Black
Mounting Hole Quantity	0
Finish	Painted
Bushing Colour	Black
Bushing Type	Rubber
Adjustable	No
Greaseable	No
Finish	Black
Attachments Included	Yes
Bushing Inside Diameter	12.2 MM
Bushing Length	65.5 MM
Bushing Length	60 MM
Length	352 MM
Thread Size	12 mm MM
Grade Type	Standard Replacement
Ball Joint Installed	Yes
Control Arm Type	Stamped
Length	352 MM
Bushing Inside Diameter	12.2 MM
Material	Steel
Ball Joint Included	Yes
2334	No
1260	No
End 2 Thread Size	12 mm MM
Thread Size	1.75 mm MM
Mounting Hardware Included	Yes
Thread Direction	Clockwise (Right)
4887	311 MM
662	12.6 MM
6529	Power
4241	Yes
2827	No
2386	Stamped
Package Contents	1 Control Arm
4890	33.6 MM
Ball Joint Stud Type	Threaded
Package Contents	1 Nut
Attachment Type	Press In

Vehicle Applications:

Make	Model	Position	Years	Notes
Buick	Encore GX	Front Left Lower	2020 to 2025
Buick	Envista	Front Left Lower	2024 to 2025
Chevrolet	Trailblazer	Front Left Lower	2021 to 2025
Chevrolet	Trax	Front Left Lower	2024 to 2025
