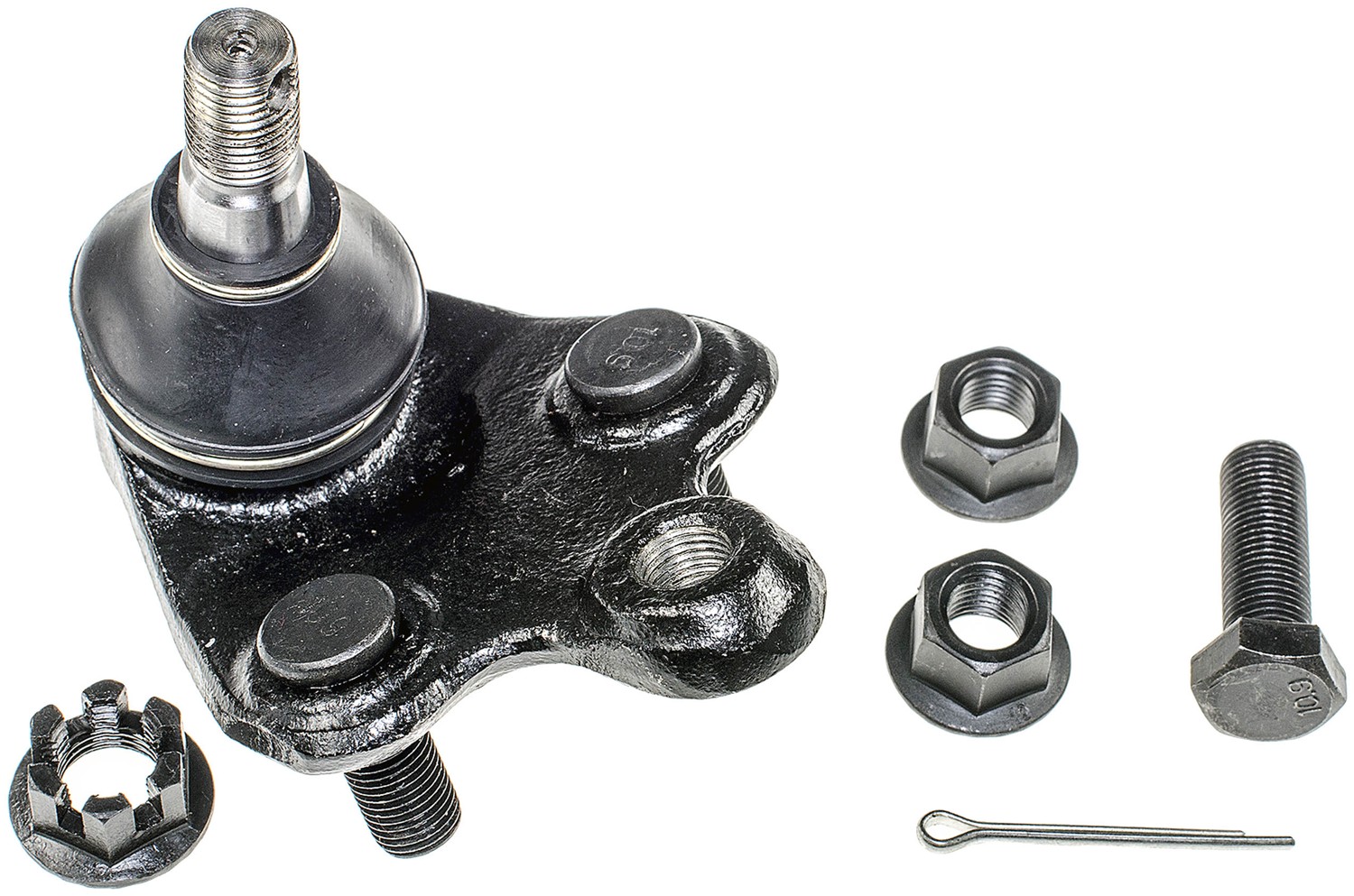

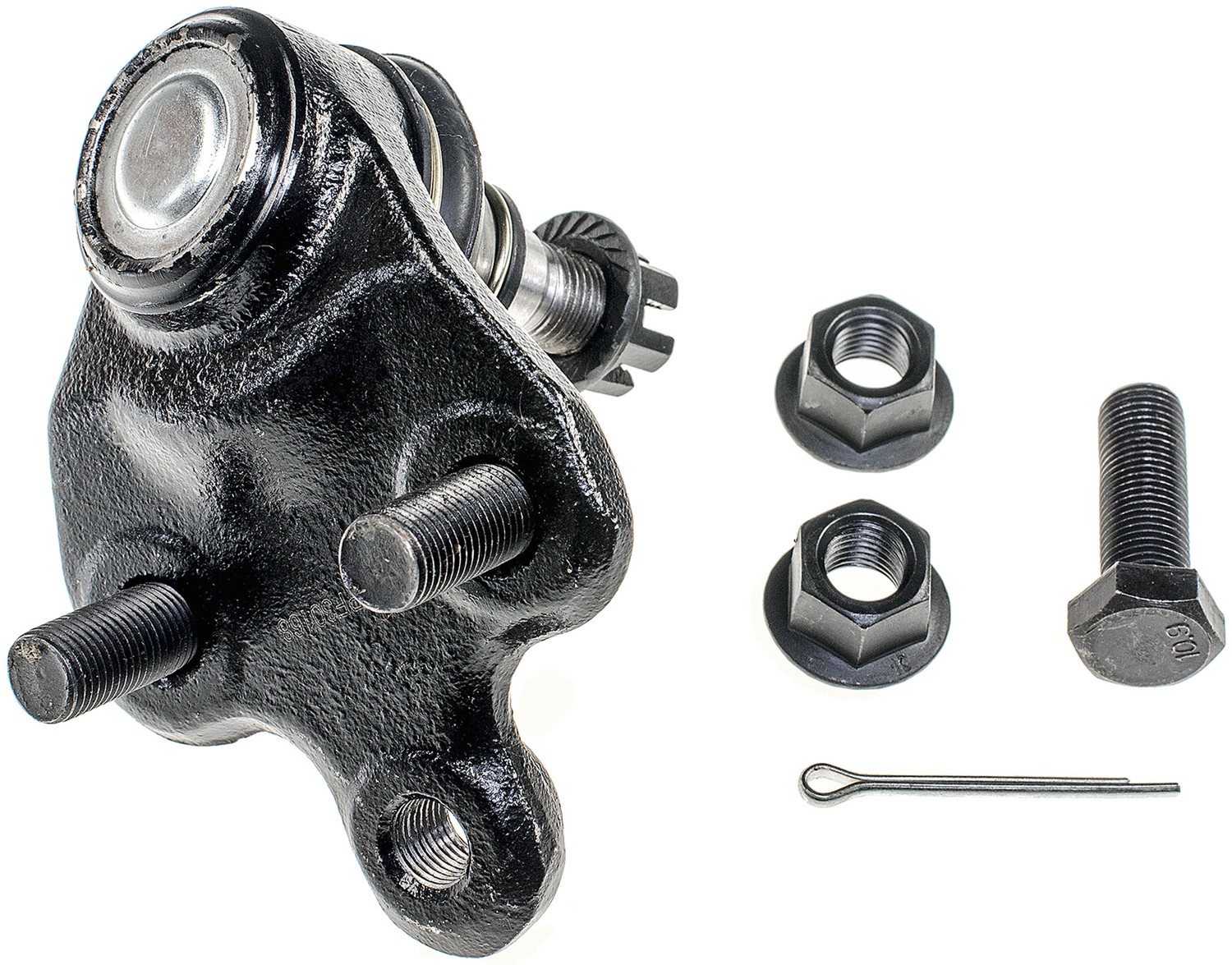

Dorman 534-017 Suspension Ball Joint

Dorman 534-017 Suspension Ball Joint

Features:

Reliable fit – precision-engineered to match the design and dimensions of original components
Durable construction – manufactured to strict standards using sturdy, safe materials
Rigorously tested – thorough quality control measures ensure longevity

This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.

Attributes:

4966	35.5 MM
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Standard
Grease Fitting Included	No
Mounting Type	Bolt On
Adjustable	No
Mounting Hardware Included	Yes
Type	Threaded
Color	Gray
Material	Steel
839	12 mm MM
9211	2 IN
9212	22 MM
9213	27.2 MM
Housing Press Fit Diameter	45 mm MM
Stud Thread Diameter	14 mm MM
Stud Thread Pitch	1.5 mm MM
Thread Pitch	M1.5 MM
Package Contents	1 Bolt
Package Contents	2 Nuts
Package Contents	1 Cotter Pin
Package Contents	1 Castle Nut
Package Contents	1 Ball Joint
Nuts Included	Yes
Bushing Included	No
Bolts/Studs Included	Yes
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
9210	Yes
9209	No
9204	No
9090	Rubber
2827	No
2381	Yes
2334	Yes
881	Taper
Maximum Outside Diameter	61 MM
Mounting Hole Quantity	1 IN
Height	85.03 MM
Width	59 MM
Length	111 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Pontiac	Vibe	Front Lower	2003 to 2010
Scion	tC	Front Lower	2005 to 2010
Toyota	Corolla	Front Lower	2009 to 2019
Toyota	Matrix	Front Lower	2003 to 2014
