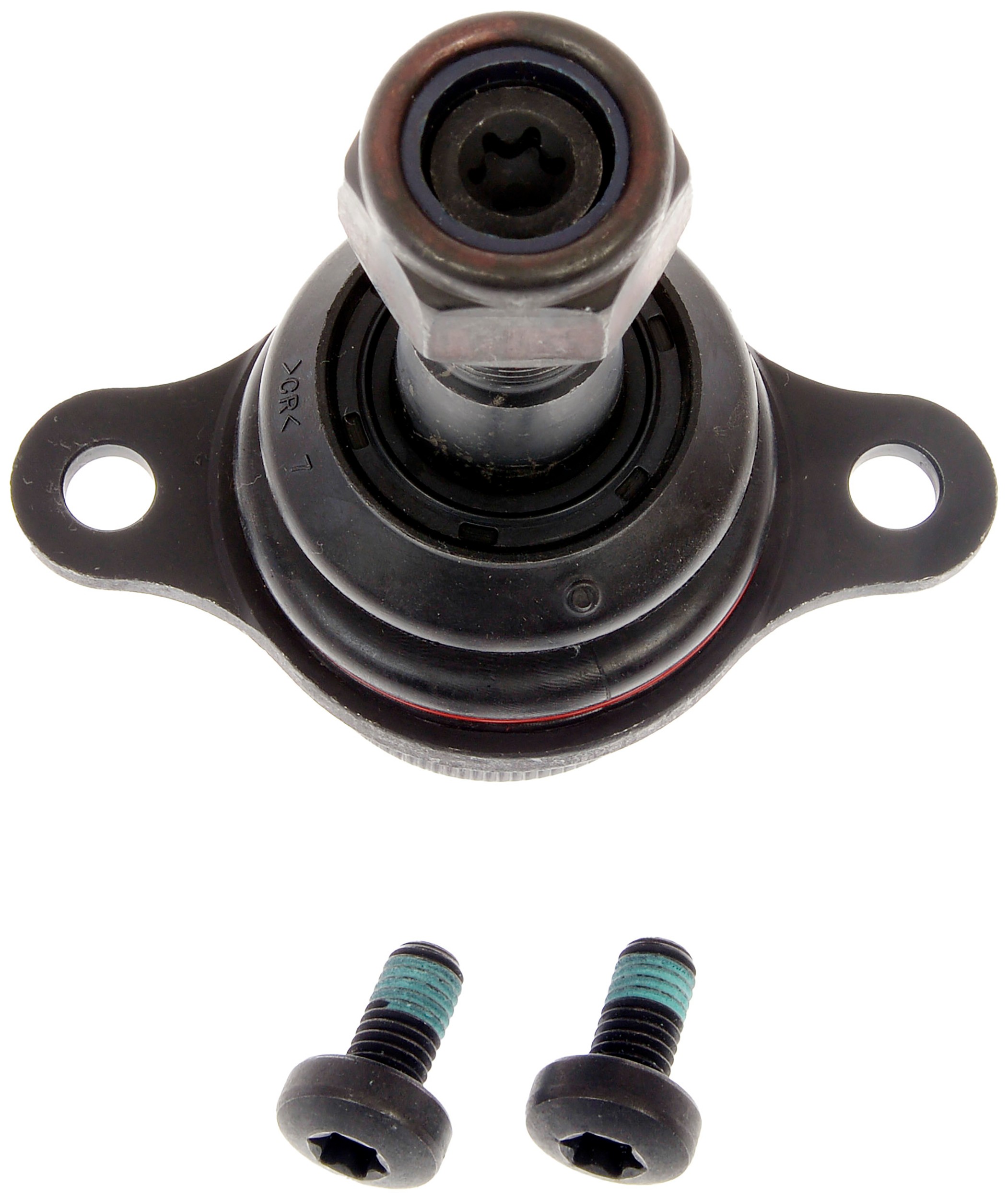

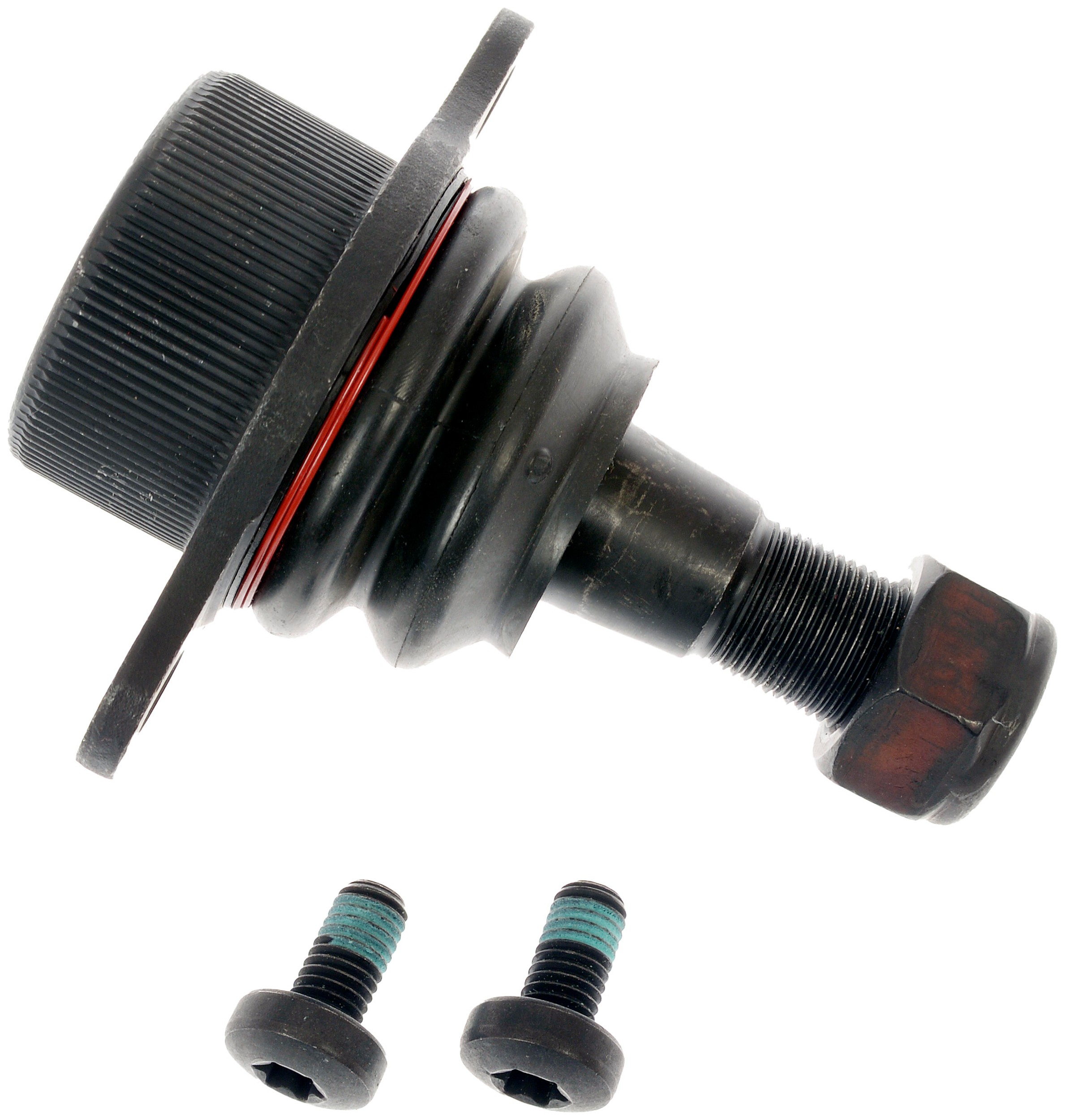

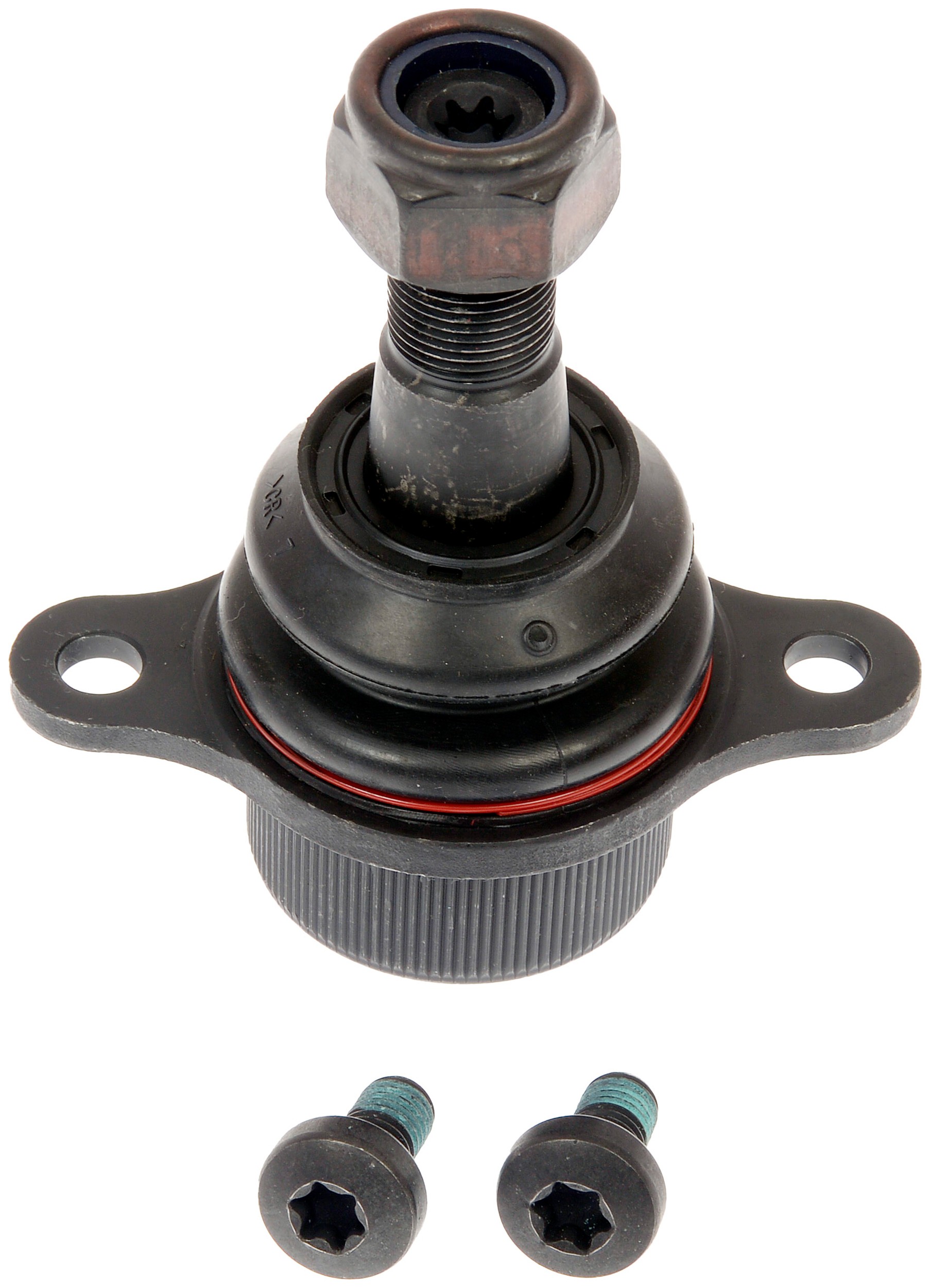

Dorman 540-045 Suspension Ball Joint

Dorman 540-045 Suspension Ball Joint

Features:

Durable construction – manufactured to strict standards using sturdy, safe materials
Rigorously tested – thorough quality control measures ensure longevity
Direct replacement – fits and performs like the original equipment on specific vehicles
Reliable fit – precision-engineered to match the design and dimensions of original components

This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.

Attributes:

Pre-greased	Yes
Length	91 MM
Width	90 MM
Outside Diameter	54 MM
Height	91 MM
Mounting Hole Diameter	10.4 MM
Mounting Hole Diameter	10.4 MM
Maximum Outside Diameter	54 MM
Ball Joint Installed	Yes
881	Threaded
1260	No
2334	No
662	21.7 MM
839	20 mm MM
3068	20 MM
2381	Yes
2827	No
4966	35.5 MM
9058	90 MM
9202	10 MM
4241	Yes
9203	20 MM
6529	Power
Material	Steel
9207	20 MM
9211	2 IN
9212	20 MM
9213	21.7 MM
Housing Press Fit Diameter	54 mm MM
Mounting Bolt Thread Diameter	10 mm MM
Stud Thread Diameter	20 mm MM
Thread Pitch	20 mm MM
Package Contents	1 Ball Joint
Package Contents	1 Nut
Package Contents	2 Bolts
Retaining Ring Included	Yes
Stud Thread Pitch	1.5
Thread Direction	Clockwise (Right)
Color	Grey
Type	Threaded
Mounting Hardware Included	Yes
Adjustable	No
9090	Polychloroprene
Mounting Type	Press-In
Mounting Hole Quantity	2
Bearing Type	Polymer
Boot Colour	Black
Grease Fitting Included	No
Suspension Grade Type	Standard Replacement
Bushings Included	No
Dust Boot Included	Yes
9204	Yes
9209	Yes
Cotter Pin Hole	No
Washers Included	No
Grade Type	Standard Replacement
Greaseable	No
Bushing Quantity	0
9210	Yes
10667	No
10826	Control Arm
Attachment Type	Press In
Attachments Included	Yes
Bearing Material	Polymer
Bolts/Studs Included	Yes
Bushing Included	No
Mounting Bolt Thread Pitch	1.5
Nuts Included	Yes
Stud Threads Per Inch	2

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Transit-150	Front Lower	2020 to 2024
Ford	Transit-250	Front Lower	2020 to 2024
Ford	Transit-350 HD	Front Lower	2020 to 2024
Ford	Transit-350	Front Lower	2020 to 2024
