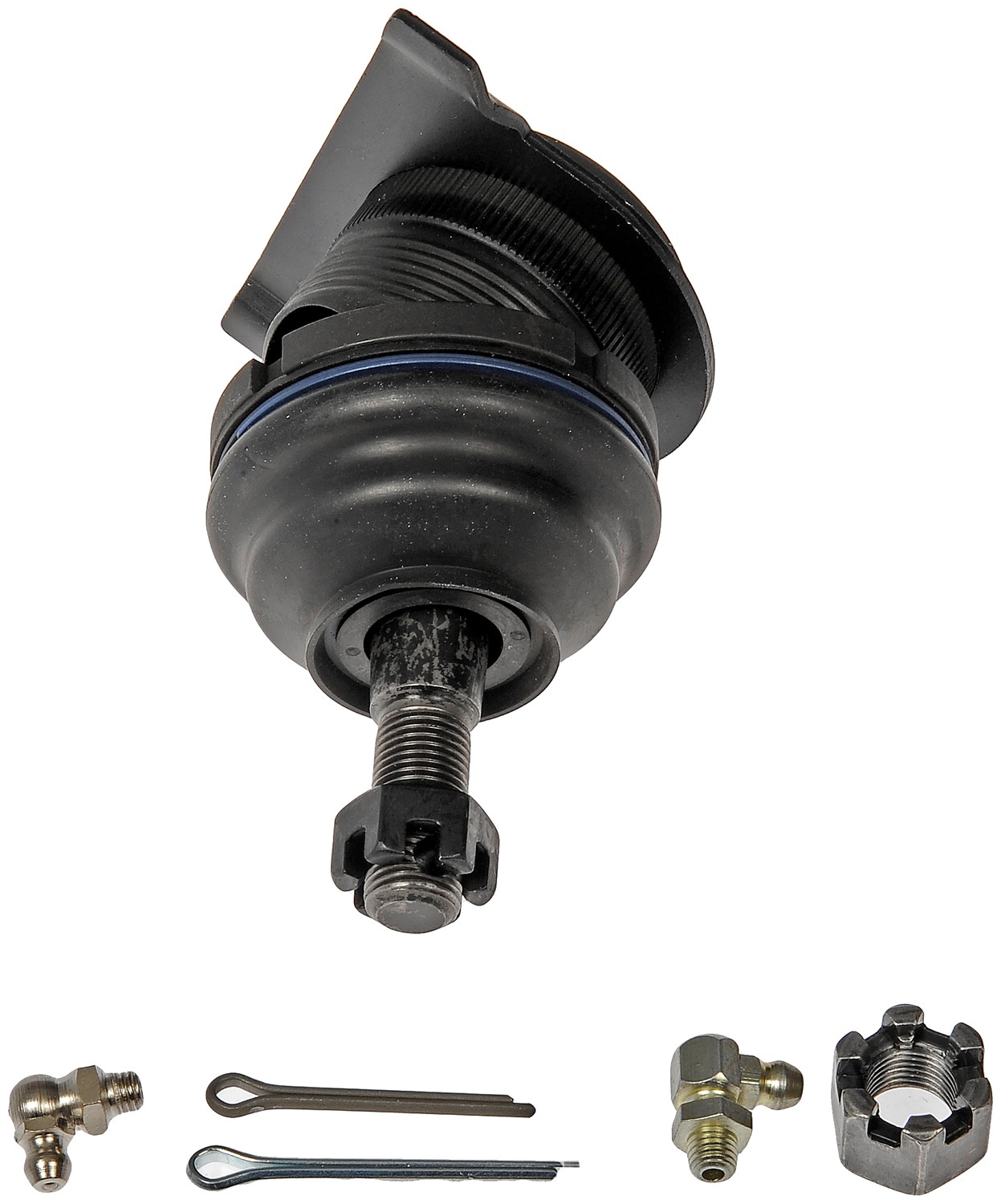

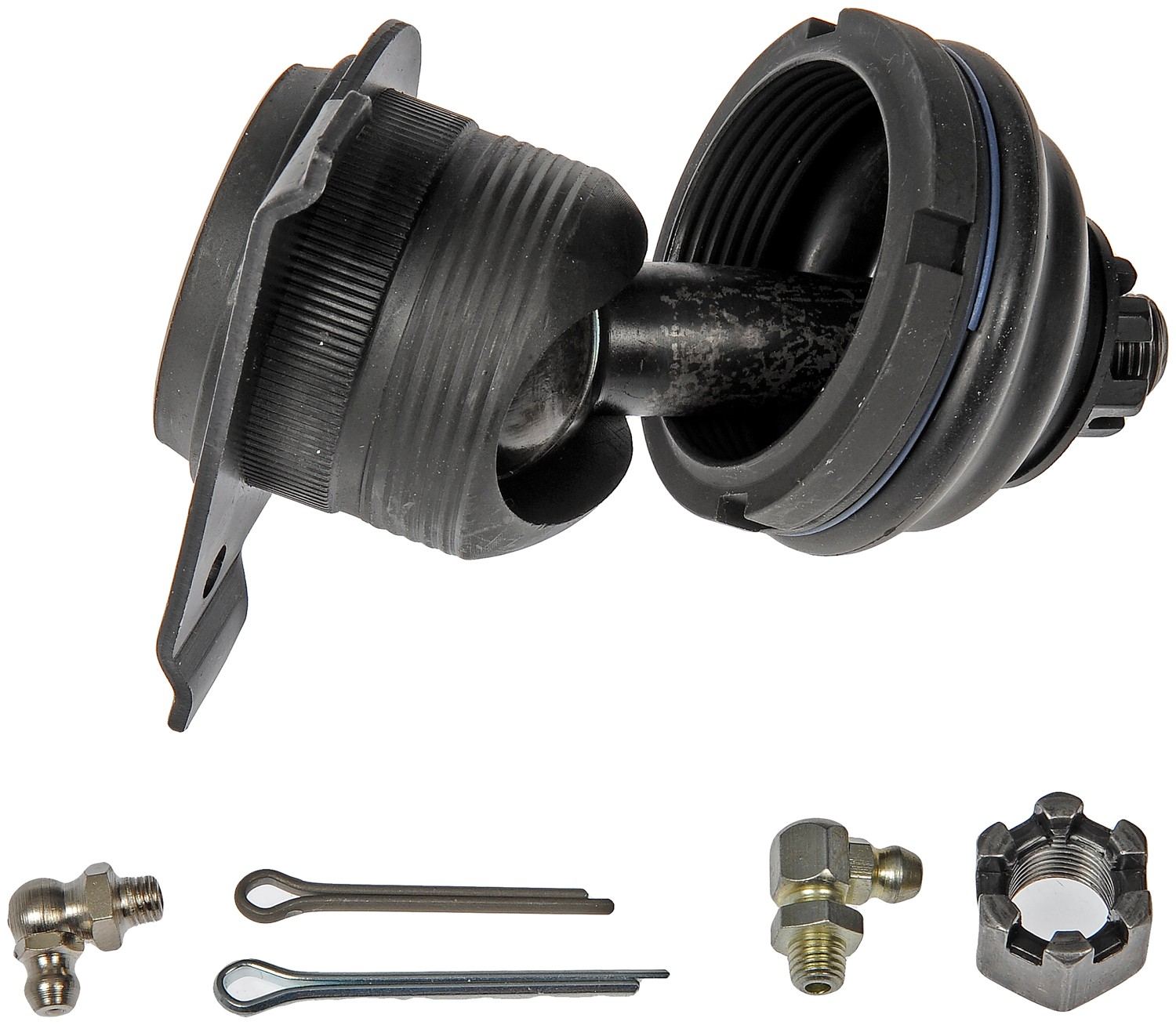

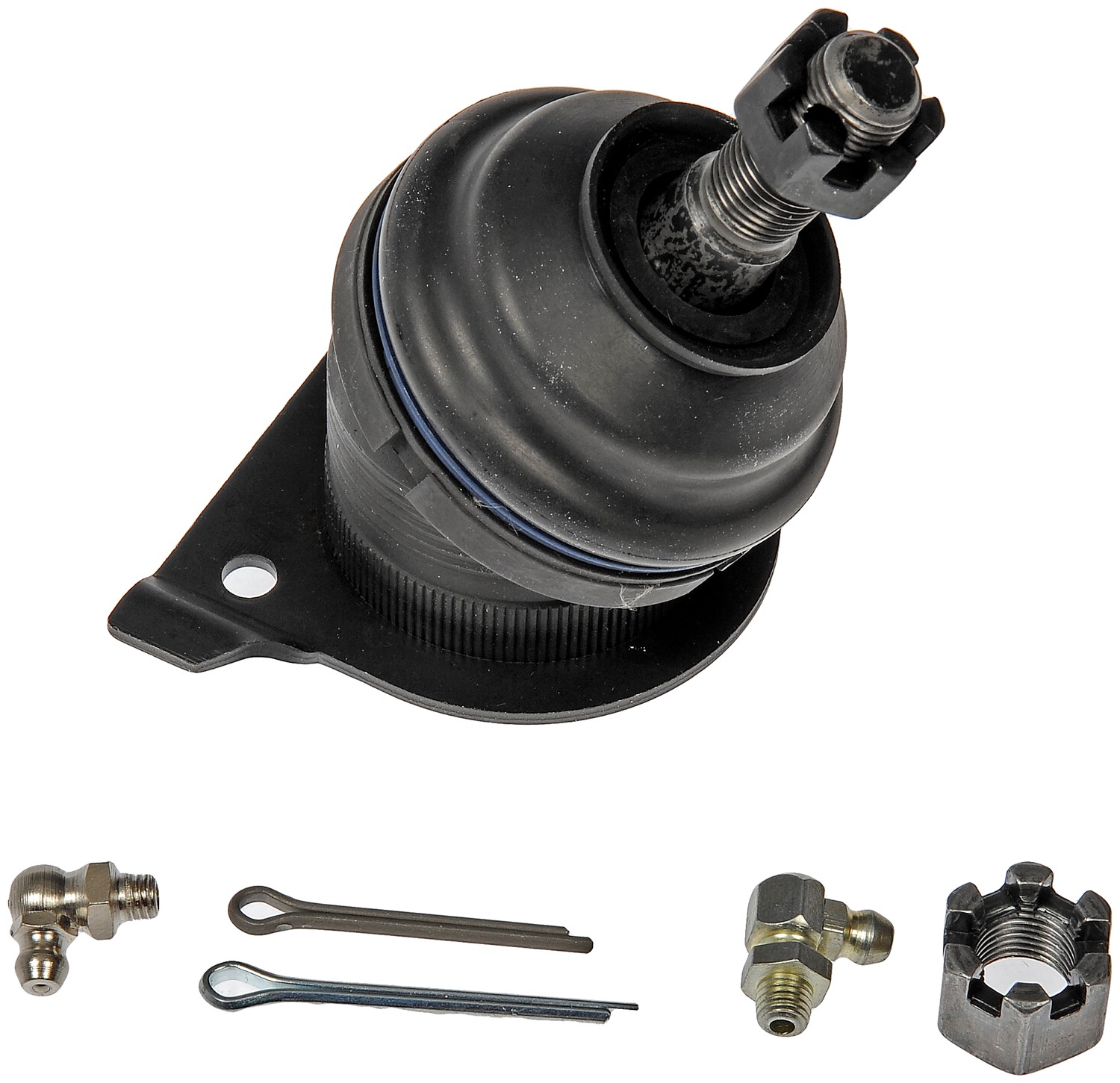

Dorman 540-048 Suspension Ball Joint

Dorman 540-048 Suspension Ball Joint

Features:

Direct replacement – fits and performs like the original equipment on specific vehicles
Reliable fit – precision-engineered to match the design and dimensions of original components
Durable construction – manufactured to strict standards using sturdy, safe materials
Rigorously tested – thorough quality control measures ensure longevity
Direct replacement – fits and performs like the original equipment on specific vehicles
Reliable fit – precision-engineered to match the design and dimensions of original components

This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.

Attributes:

Dust Boot Included	Yes
Thread Pitch	M1.5 MM
Stud Thread Pitch	M1.5 MM
Stud Thread Diameter	1/2 in IN
Mounting Bolt Thread Pitch	M24 MM
Mounting Bolt Thread Diameter	5/16 in IN
Housing Press Fit Diameter	47.3 mm MM
9213	17.95 MM
9212	21.4 MM
9211	1.59 IN
9207	25.4 MM
9203	11.7 MM
9058	44.68 MM
9058	30 MM
9058	28 MM
4966	23 MM
3068	25.4 MM
839	21 mm MM
Package Contents	6 Nuts
Package Contents	6 Bolts
Package Contents	1 Cotter Pin
Package Contents	1 Castle Nut
Package Contents	1 Zerk Fitting
Package Contents	1 Ball Joint
Nuts Included	Yes
Bushing Included	No
Bolts/Studs Included	Yes
Bearing Material	Metal
Ball Joint Installed	Yes
Attachment Type	Taper
9210	Yes
9209	Yes
9204	Yes
9090	Polychloroprene
2827	Yes
2381	Yes
2334	Yes
881	Tapered
Bushing Quantity	0
Greaseable	Yes
Washers Included	No
Cotter Pin Hole	Yes
Bushings Included	No
Suspension Grade Type	Standard
Grease Fitting Included	Yes
Mounting Hole Quantity	0
Mounting Type	Bolt-In
Adjustable	No
Mounting Hardware Included	Yes
Type	Bolt On
Color	Grey
Material	Steel
Maximum Outside Diameter	56.06 MM
Height	85.03 MM
Width	59 MM
Length	111 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Cadillac	Calais	Front Right Upper	1965 to 1976
Cadillac	DeVille	Front Right Upper	1961 to 1976
Cadillac	Fleetwood	Front Right Upper	1965 to 1976
