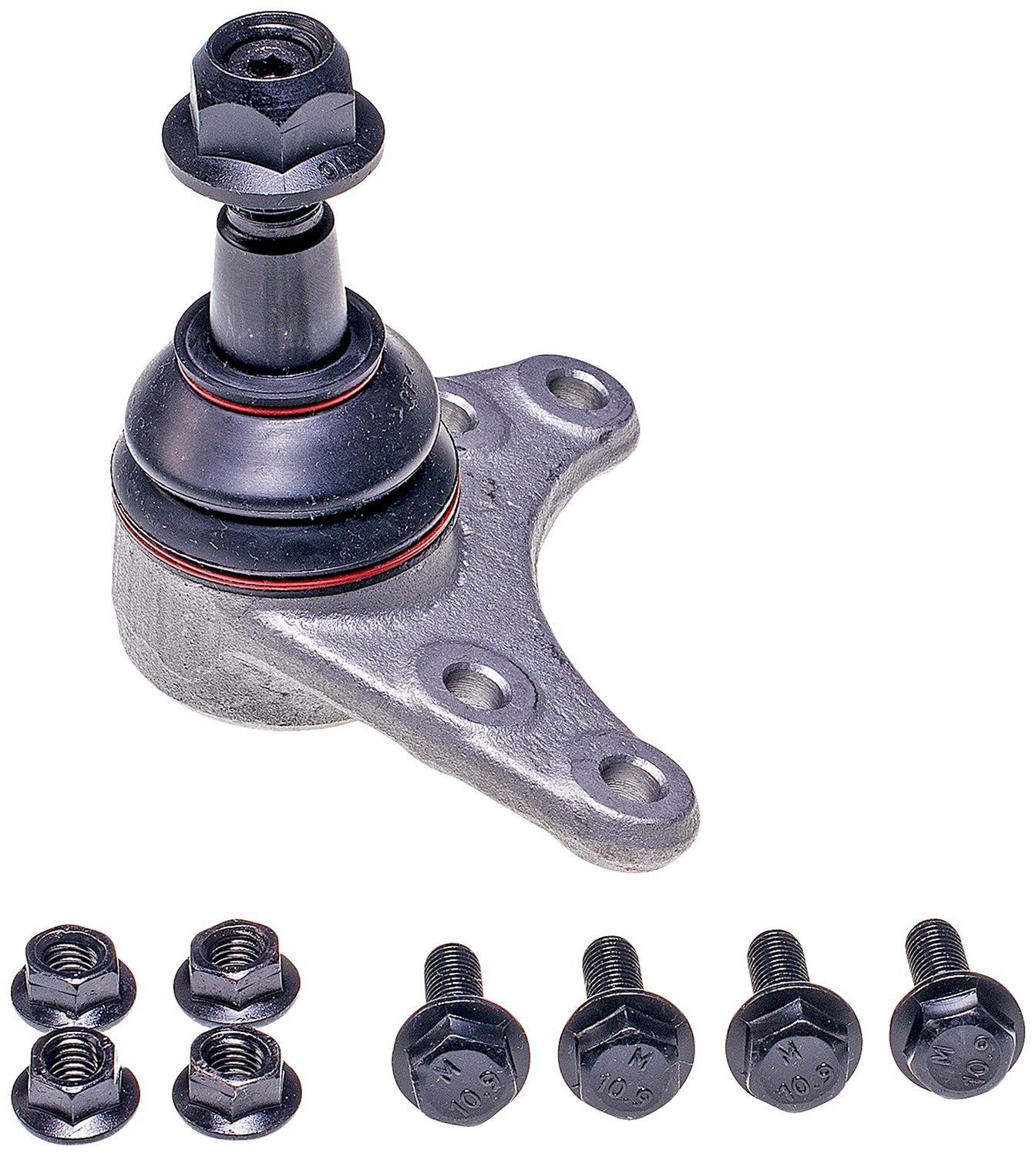

Dorman 540-054 Suspension Ball Joint

Dorman 540-054 Suspension Ball Joint

Features:

Rigorously tested – thorough quality control measures ensure longevity

This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.

Attributes:

Package Contents	5 Nuts
881	Tapered
2334	No
2381	Yes
2827	No
9090	Polychloroprene
9204	No
9209	No
9210	Yes
Attachment Type	Taper
Ball Joint Installed	Yes
Bearing Material	Polymer
Bolts/Studs Included	Yes
Bushing Included	No
Nuts Included	Yes
Package Contents	1 Ball Joint
Package Contents	4 Bolts
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Premium
Grease Fitting Included	No
Mounting Hole Quantity	4
Mounting Type	Bolt-In
Adjustable	No
Mounting Hardware Included	Yes
Type	Threaded
Color	Grey
Material	Steel
Length	111 MM
Width	59 MM
Height	85.03 MM
Maximum Outside Diameter	61 MM
Thread Pitch	2 mm MM
Stud Thread Pitch	1.5 mm MM
Stud Thread Diameter	14 mm MM
Housing Press Fit Diameter	45 mm MM
9213	27.2 MM
9212	22 MM
9211	2 IN
4966	35.5 MM
839	12 mm MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Chevrolet	Colorado	Front Upper	2004 to 2015
Chevrolet	S10	Front Upper	2016 to 2017
GMC	Canyon	Front Upper	2004 to 2012
Isuzu	i-280	Front Upper	2006 to 2006
Isuzu	i-290	Front Upper	2007 to 2008
Isuzu	i-370	Front Upper	2008 to 2008
