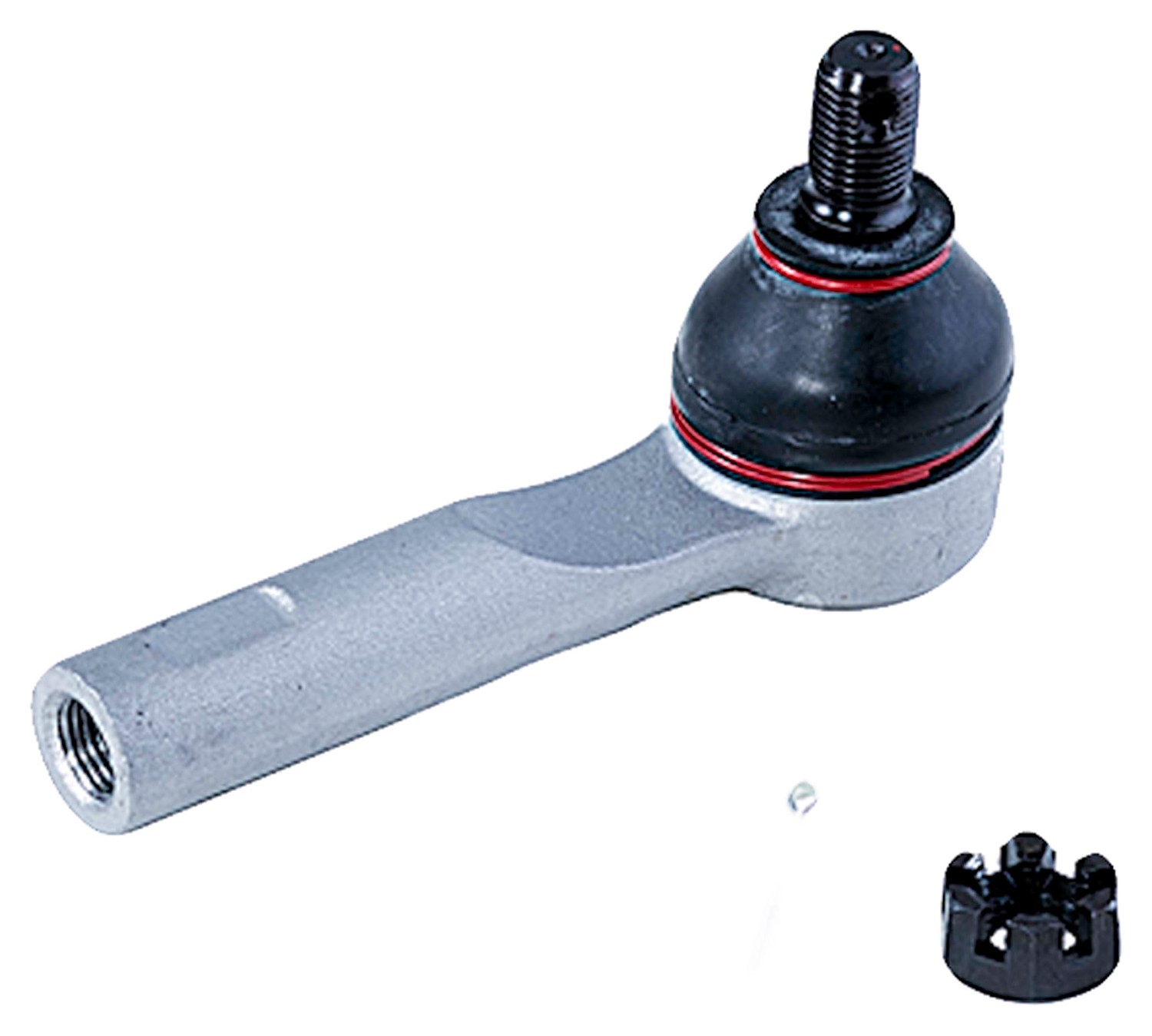

Dorman 542-950 Steering Tie Rod End

Dorman 542-950 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Finish	E-Coated
Type	Straight
Tie Rod End Thread Diameter	12 mm MM
Thread Pitch	1.25 mm MM
Mounting Hardware Included	Yes
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod
Package Contents	1 Castle Nut
Package Contents	1 Cotter Pin
Color	Black
End 2 Thread Pitch	1.25 mm MM
36	20 MM
Outside Diameter	41.15 mm MM
662	12.8 MM
Center Mount Hole Quantity	1 IN
Center Mount Stud Quantity	1 IN
Weight	0.8 lb LB
2827	Yes
End 2 Thread Diameter	12 mm MM
End 1 Thread Pitch	1.25 mm MM
End 1 Thread Diameter	12 mm MM
4241	Yes
5235	No
End 2 Threads Per Inch	2 mm MM
Width	41.15 MM
Height	66.57 MM
9090	Polychloroprene
9091	Steel
Head Drive Type	Smooth
Ball Joint Included	Yes
Bolts Included	No
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	No
Grade Type	Standard
End 1 Attachment Type	Threaded
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Washer Included	No
Bearing Material	Polymer
Boot Colour	Black
Housing Material	Steel
End 2 Attachment Type	Threaded
Color	Silver
Adjustable	Yes
Length	100 MM
881	Threaded
Stud Length	19 MM
2334	Yes

Vehicle Applications:

Make	Model	Position	Years	Notes
Nissan	200SX	Front Outer	1995 to 1998
Nissan	240SX	Front Outer	1989 to 1994
Nissan	Almera	Front Outer	2001 to 2005
Nissan	Altima	Front Outer	1996 to 2001
Nissan	Hikari	Front Outer	1988 to 1992
Nissan	Lucino	Front Outer	1996 to 2000
Nissan	Multi	Front Outer	1986 to 1988
Nissan	Pulsar NX	Front Outer	1987 to 1990
Nissan	Sentra	Front Outer	1986 to 1989	Female Type
Nissan	Sentra	Front Outer	1990 to 2006
Nissan	Stanza	Front Outer	1986 to 1988
Nissan	Tsubame	Front Outer	1993 to 2004
Nissan	Tsuru	Front Outer	1986 to 1987	Female Type
Nissan	Tsuru	Front Outer	1988 to 2017
