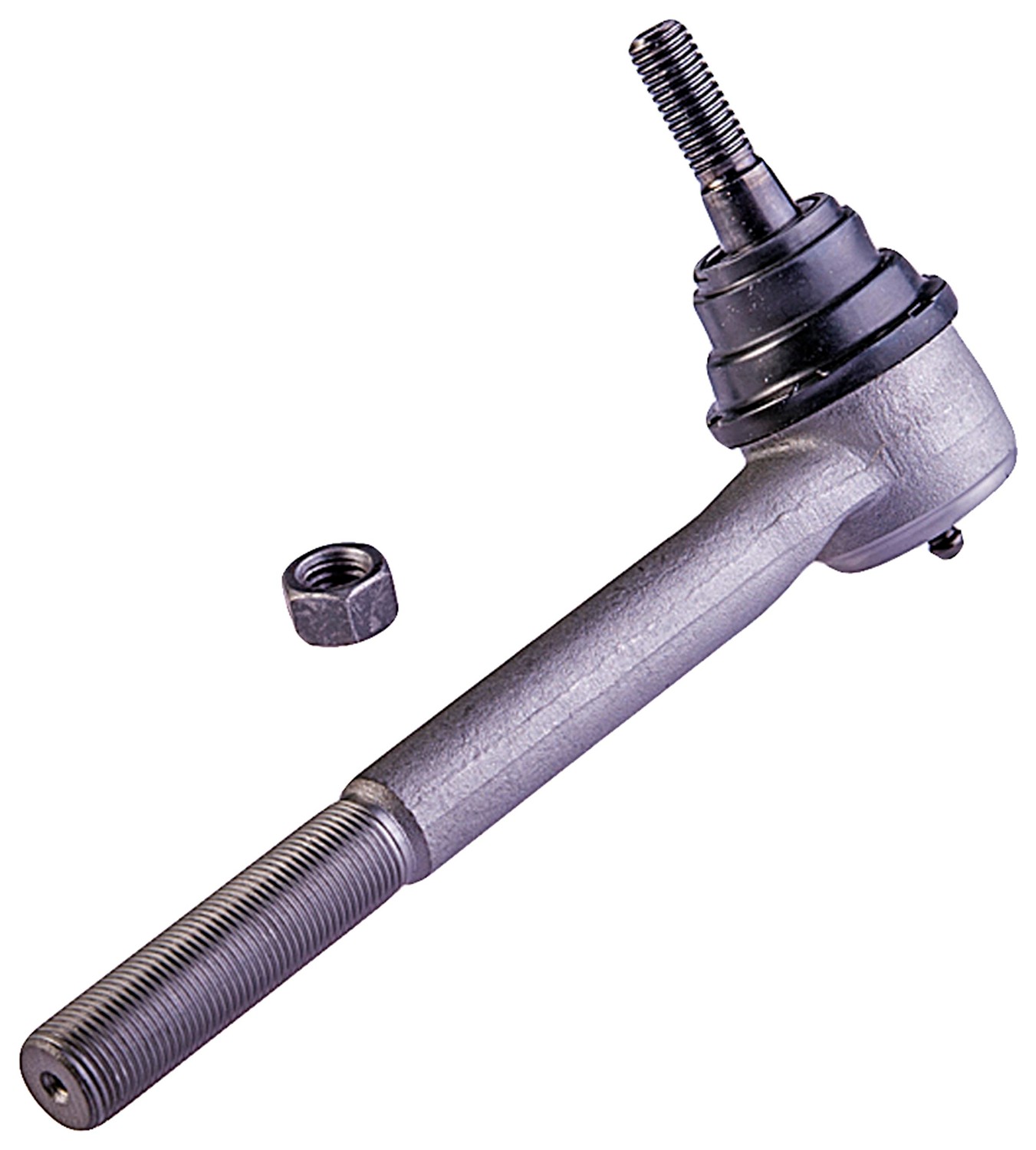

Dorman 542-954 Steering Tie Rod End

Dorman 542-954 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Bolts Included	No
Dust Boot Included	Yes
Pre-greased	Yes
Thread Pitch	1.75 mm MM
36	18.68 MM
Length	194 MM
Width	40.27 MM
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Diameter	12 mm MM
End 2 Thread Pitch	1.75 mm MM
End 2 Threads Per Inch	2 mm MM
Outside Diameter	40.27 mm MM
End 2 Gender	Male
Greaseable	Yes
Grade Type	Standard
Grease Fitting Included	Yes
Center Mount Hole Quantity	1 IN
Center Mount Stud Quantity	1 IN
End 1 Thread Pitch	18 mm MM
Tie Rod End Thread Diameter	11/16 in IN
End 2 Thread Direction	Clockwise (Right)
End 1 Gender	Male
Washer Included	No
Bearing Material	Metal
Boot Colour	Black
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Height	93.13 MM
662	12.6 MM
Mounting Hardware Included	Yes
Type	Straight
Stud Length	25.67 MM
Color	Black
Color	Silver
Head Drive Type	Smooth
881	Threaded
2334	No
2827	No
4241	Yes
5235	No
9090	Polychloroprene
9091	Steel
Ball Joint Included	Yes
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
Weight	1.52 lb LB
End 1 Thread Diameter	11/16 in IN
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod End
Package Contents	1 Nut
Package Contents	1 Zerk Fitting

Vehicle Applications:

Make	Model	Position	Years	Notes
Cadillac	Escalade	Front Outer	1999 to 2000
Chevrolet	Blazer	Front Outer	1992 to 1994
Chevrolet	C1500 Suburban	Front Outer	1992 to 1999
Chevrolet	C1500	Front Outer	1988 to 1999
Chevrolet	C2500 Suburban	Front Outer	1992 to 1999
Chevrolet	C2500	Front Outer	1988 to 2000
Chevrolet	C3500	Front Outer	1988 to 2000
Chevrolet	Express 1500	Front Outer	1996 to 2002
Chevrolet	Express 2500	Front Outer	1996 to 2002
Chevrolet	Express 3500	Front Outer	1996 to 2002
Chevrolet	K1500 Suburban	Front Outer	1992 to 1999
Chevrolet	K1500	Front Outer	1988 to 1999
Chevrolet	K2500 Suburban	Front Outer	1992 to 1999
Chevrolet	K2500	Front Outer	1988 to 2000
Chevrolet	K3500	Front Outer	1988 to 2000
Chevrolet	Silverado	Front Outer	1995 to 1999
Chevrolet	Tahoe	Front Outer	1995 to 2000
GMC	C1500 Suburban	Front Outer	1992 to 1999
GMC	C1500	Front Outer	1988 to 1999
GMC	C2500 Suburban	Front Outer	1992 to 1999
GMC	C2500	Front Outer	1988 to 2000
GMC	C3500	Front Outer	1988 to 2000
GMC	K1500 Suburban	Front Outer	1992 to 1999
GMC	K1500	Front Outer	1988 to 1999
GMC	K2500 Suburban	Front Outer	1992 to 1999
GMC	K2500	Front Outer	1988 to 2000
GMC	K3500	Front Outer	1988 to 2000
GMC	Savana 1500	Front Outer	1996 to 2002
GMC	Savana 2500	Front Outer	1996 to 2002
GMC	Savana 3500	Front Outer	1996 to 2002
GMC	Yukon	Front Outer	1992 to 2000
