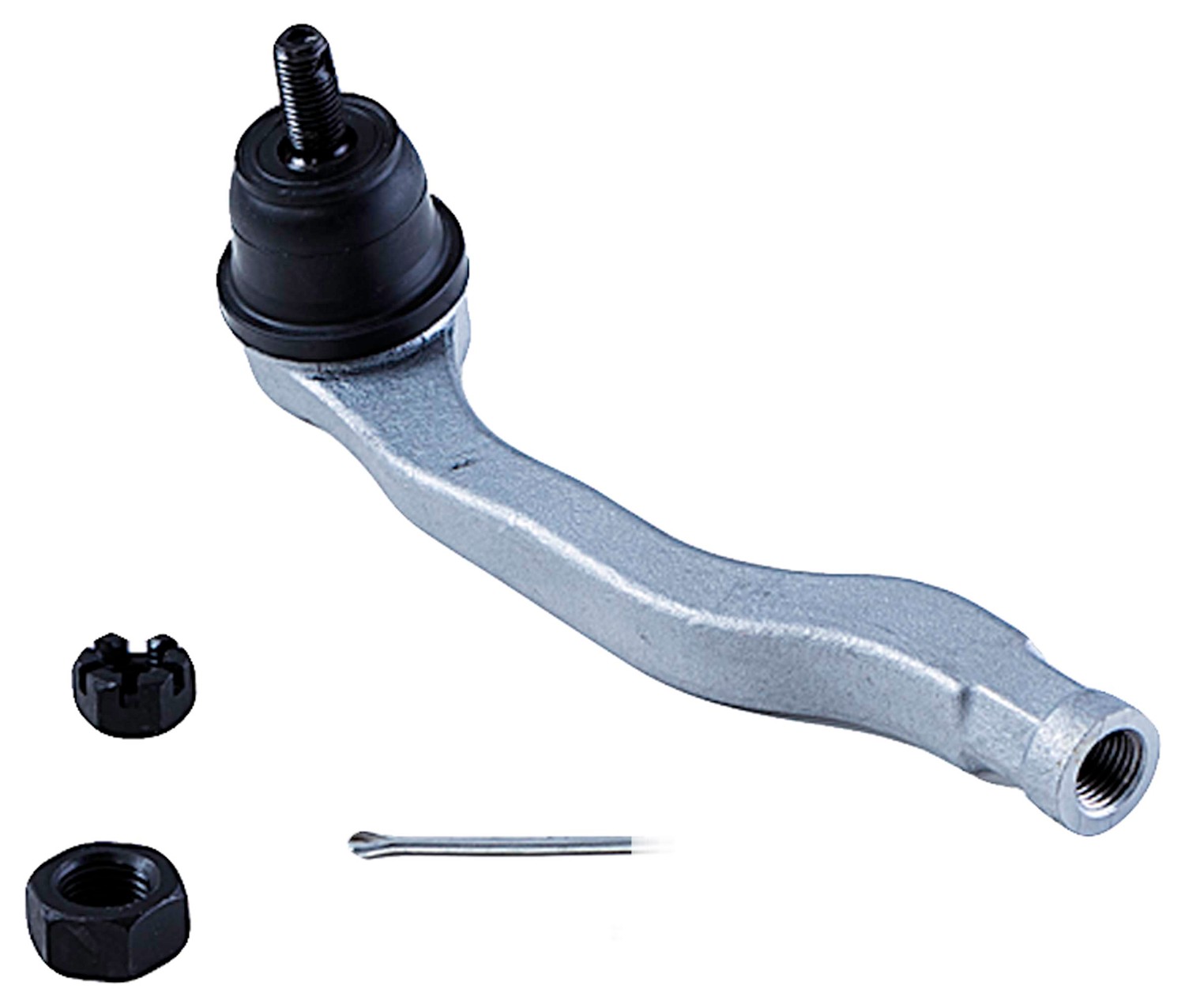

Dorman 543-041 Steering Tie Rod End

Dorman 543-041 Steering Tie Rod End

Features:

Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 1 Attachment Type	Threaded
End 2 Thread Diameter	10 mm MM
Washer Included	No
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	14 mm MM
Center Mount Stud Quantity	1 IN
Center Mount Hole Quantity	1 IN
662	12.75 MM
36	18.17 MM
End 2 Thread Pitch	1.25 mm MM
End 2 Threads Per Inch	1.5 mm MM
Outside Diameter	42.69 mm MM
Thread Pitch	1.25 mm MM
Tie Rod End Thread Diameter	14 mm MM
Weight	1.43 lb LB
Dust Boot Included	Yes
Bearing Material	Polymer
Grade Type	Standard
Greaseable	No
Boot Colour	Black
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Bent
Length	182 MM
Color	Black
Color	Silver
881	Threaded
Head Drive Type	Smooth
Width	42.69 MM
Height	65.45 MM
2334	Yes
2827	Yes
4241	Yes
5235	No
9090	Polychloroprene
9091	Steel
Stud Length	22 MM
Ball Joint Included	Yes
Bolts Included	No
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod End
Package Contents	1 Castle Nut
Package Contents	1 Nut
Package Contents	1 Cotter Pin

Vehicle Applications:

Make	Model	Position	Years	Notes
Acura	EL	Front Left Outer	1997 to 2000
Acura	Integra	Front Left Outer	1990 to 2001
Honda	CR-V	Front Left Outer	1997 to 2001
Honda	CRX	Front Left Outer	1988 to 1991
Honda	Civic del Sol	Front Left Outer	1993 to 1997
Honda	Civic	Front Left Outer	1988 to 2000
