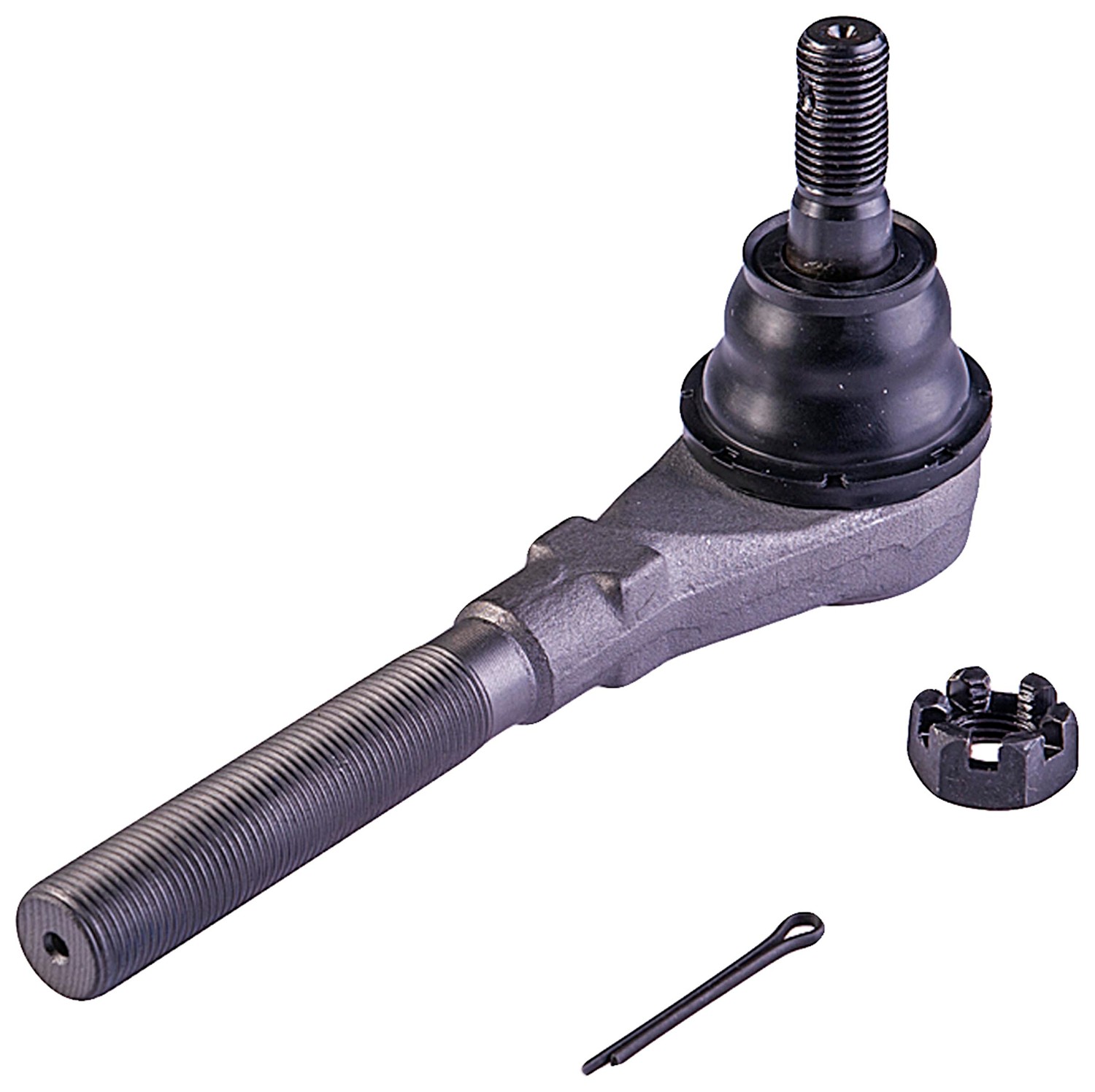

Dorman 543-053 Steering Tie Rod End

Dorman 543-053 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Color	Black
Type	Straight
Grade Type	Standard
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
End 1 Gender	Female
Grease Fitting Included	No
Washer Included	No
Center Mount Hole Quantity	0
881	Threaded
Greaseable	No
Mounting Hardware Included	Yes
Adjustable	Yes
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
Finish	E-Coated
Package Contents	Castle Nut
Housing Material	Steel
Boot Colour	Black
2334	Yes
2827	Yes
4241	Yes
5235	No
Package Contents	Tie Rod
Bearing Material	Polymer
Stud Length	27 MM
Material	Steel
End 2 Type	Threaded
Tie Rod End Thread Diameter	18 mm MM
Length	78 MM
Width	8.1 MM
Thread Pitch	1.5 mm MM
Outside Diameter	8.1 mm MM
Package Contents	Cotter Pin
9090	Polychloroprene
9091	Steel
Ball Joint Included	Yes
End 2 Threads Per Inch	2 mm MM
Bolts Included	No
End 2 Gender	Male
Dust Boot Included	Yes
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
Height	15.84 MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	18 mm MM
Head Drive Type	Smooth
Center Mount Stud Quantity	1 IN
662	14.8 MM
Color	Silver
Pre-greased	Yes
Weight	1.71 lb LB
36	3.5 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Expedition	Front Left Outer	1997 to 2002
Ford	F-150 Heritage	Front Left Outer	2004 to 2004
Ford	F-150	Front Left Outer	1997 to 2003
Ford	F-250	Front Left Outer	1997 to 1997
Ford	F-250	Front Left Outer	1998 to 1999	Light Duty
Ford	Lobo	Front Left Outer	1997 to 2003
Lincoln	Blackwood	Front Left Outer	2002 to 2002
Lincoln	Navigator	Front Left Outer	1998 to 2002
