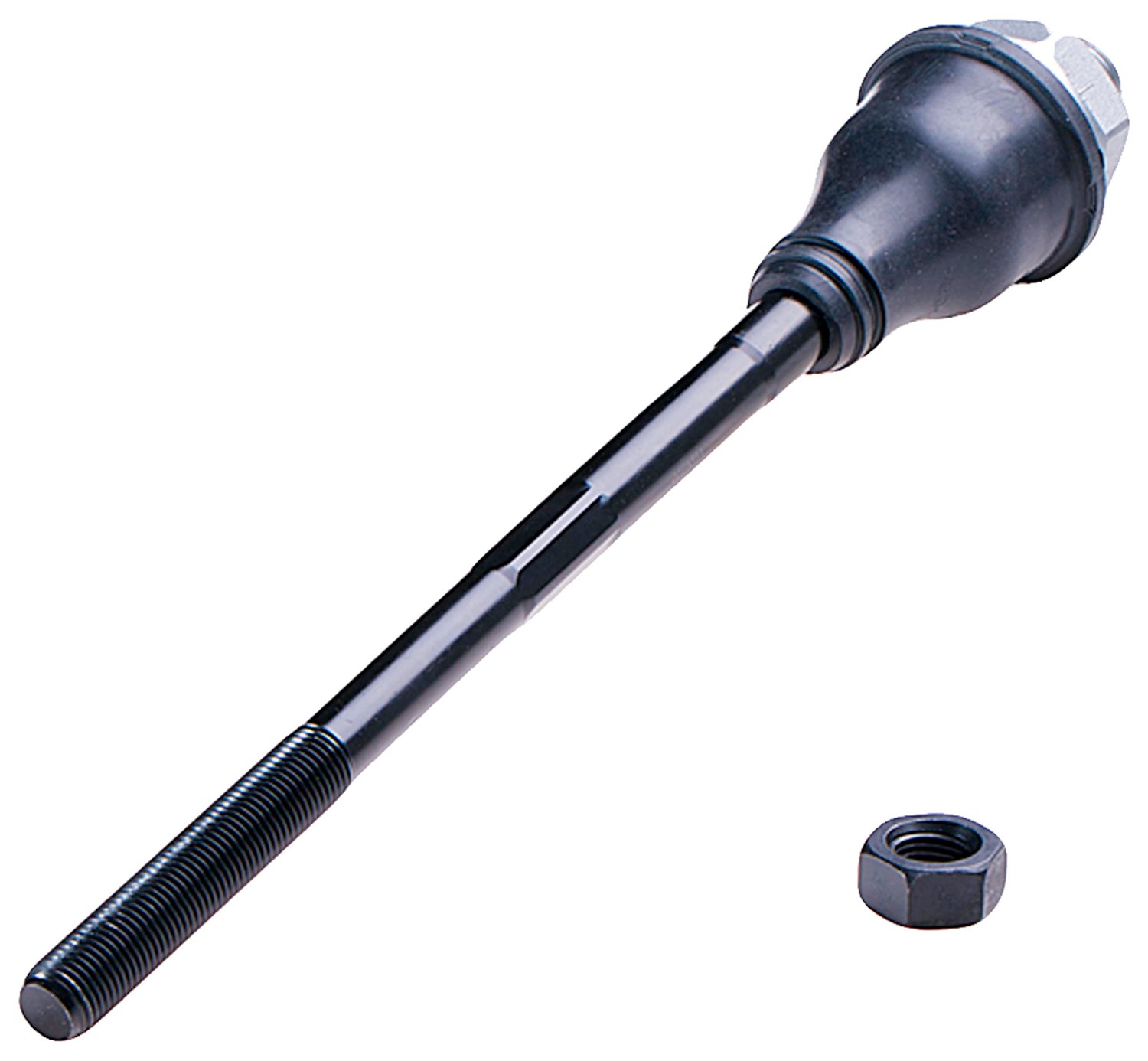

Dorman 543-096 Steering Tie Rod End

Dorman 543-096 Steering Tie Rod End

Features:

Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Bolts Included	No
Outside Diameter	36 mm MM
End 1 Thread Pitch	1.5 mm MM
4241	Yes
Color	Black
Tie Rod End Thread Diameter	14 mm MM
2827	No
Greaseable	No
2334	No
Center Mount Hole Quantity	0
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
End 2 Thread Diameter	18 mm MM
End 2 Type	Threaded
Head Drive Type	Smooth
Type	Straight
Material	Steel
Washer Included	No
End 2 Thread Pitch	1.5 mm MM
Package Contents	1 Tie Rod
Stud Length	14 MM
Height	36 MM
Width	36 MM
Length	315 MM
End 2 Thread Direction	Clockwise (Right)
Package Contents	1 Nut
End 1 Thread Direction	Clockwise (Right)
Grade Type	Standard
36	14.2 MM
Mounting Hardware Included	Yes
Adjustable	Yes
Center Mount Stud Quantity	1 IN
881	Threaded
End 2 Gender	Female
End 1 Gender	Male
Pre-greased	Yes
End 1 Thread Diameter	14 mm MM
Grease Fitting Included	No
Finish	E-Coated
Weight	1.53 lb LB
Housing Material	Steel
Boot Colour	Black
Dust Boot Included	Yes
Bearing Material	Polymer
Ball Joint Included	Yes
9091	Steel
9090	Polychloroprene
Thread Pitch	1.5 mm MM
5235	No

Vehicle Applications:

Make	Model	Position	Years	Notes
Cadillac	Escalade ESV	Front Inner	2003 to 2006
Cadillac	Escalade EXT	Front Inner	2002 to 2006
Cadillac	Escalade	Front Inner	2002 to 2006
Chevrolet	Avalanche 1500	Front Inner	2002 to 2006
Chevrolet	Avalanche 2500	Front Inner	2002 to 2006
Chevrolet	Silverado 1500 Classic	Front Inner	2007 to 2007
Chevrolet	Silverado 1500 HD Classic	Front Inner	2007 to 2007
Chevrolet	Silverado 1500 HD	Front Inner	2001 to 2006
Chevrolet	Silverado 1500	Front Inner	1999 to 2006
Chevrolet	Silverado 2500 HD Classic	Front Inner	2007 to 2007
Chevrolet	Silverado 2500 HD	Front Inner	2001 to 2010
Chevrolet	Silverado 2500	Front Inner	1999 to 2010
Chevrolet	Silverado 3500 Classic	Front Inner	2007 to 2007
Chevrolet	Silverado 3500 HD	Front Inner	2007 to 2010
Chevrolet	Silverado 3500	Front Inner	2001 to 2010
Chevrolet	Sonora	Front Inner	2000 to 2006
Chevrolet	Suburban 1500	Front Inner	2000 to 2006
Chevrolet	Suburban 2500	Front Inner	2000 to 2013
Chevrolet	Suburban 3500 HD	Front Inner	2016 to 2019
Chevrolet	Tahoe	Front Inner	2000 to 2006
GMC	Sierra 1500 Classic	Front Inner	2007 to 2007
GMC	Sierra 1500 HD Classic	Front Inner	2007 to 2007
GMC	Sierra 1500 HD	Front Inner	2001 to 2006
GMC	Sierra 1500	Front Inner	1999 to 2006
GMC	Sierra 2500 HD Classic	Front Inner	2007 to 2007
GMC	Sierra 2500 HD	Front Inner	2001 to 2010
GMC	Sierra 2500	Front Inner	1999 to 2004
GMC	Sierra 3500 Classic	Front Inner	2007 to 2007
GMC	Sierra 3500 HD	Front Inner	2007 to 2010
GMC	Sierra 3500	Front Inner	2001 to 2006
GMC	Yukon XL 1500	Front Inner	2000 to 2006
GMC	Yukon XL 2500	Front Inner	2000 to 2013
GMC	Yukon	Front Inner	2000 to 2006
Hummer	H2	Front Inner	2003 to 2009
