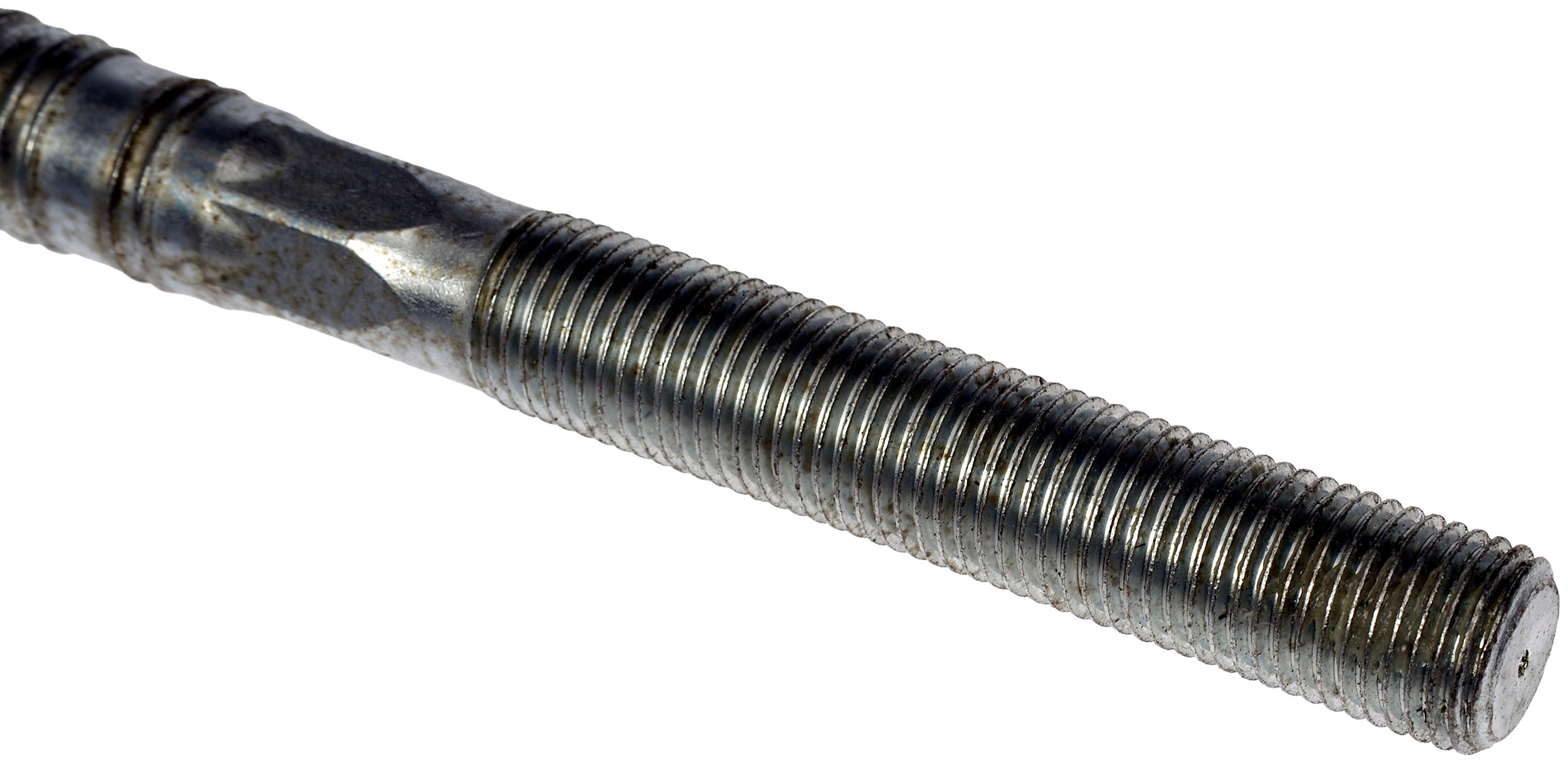

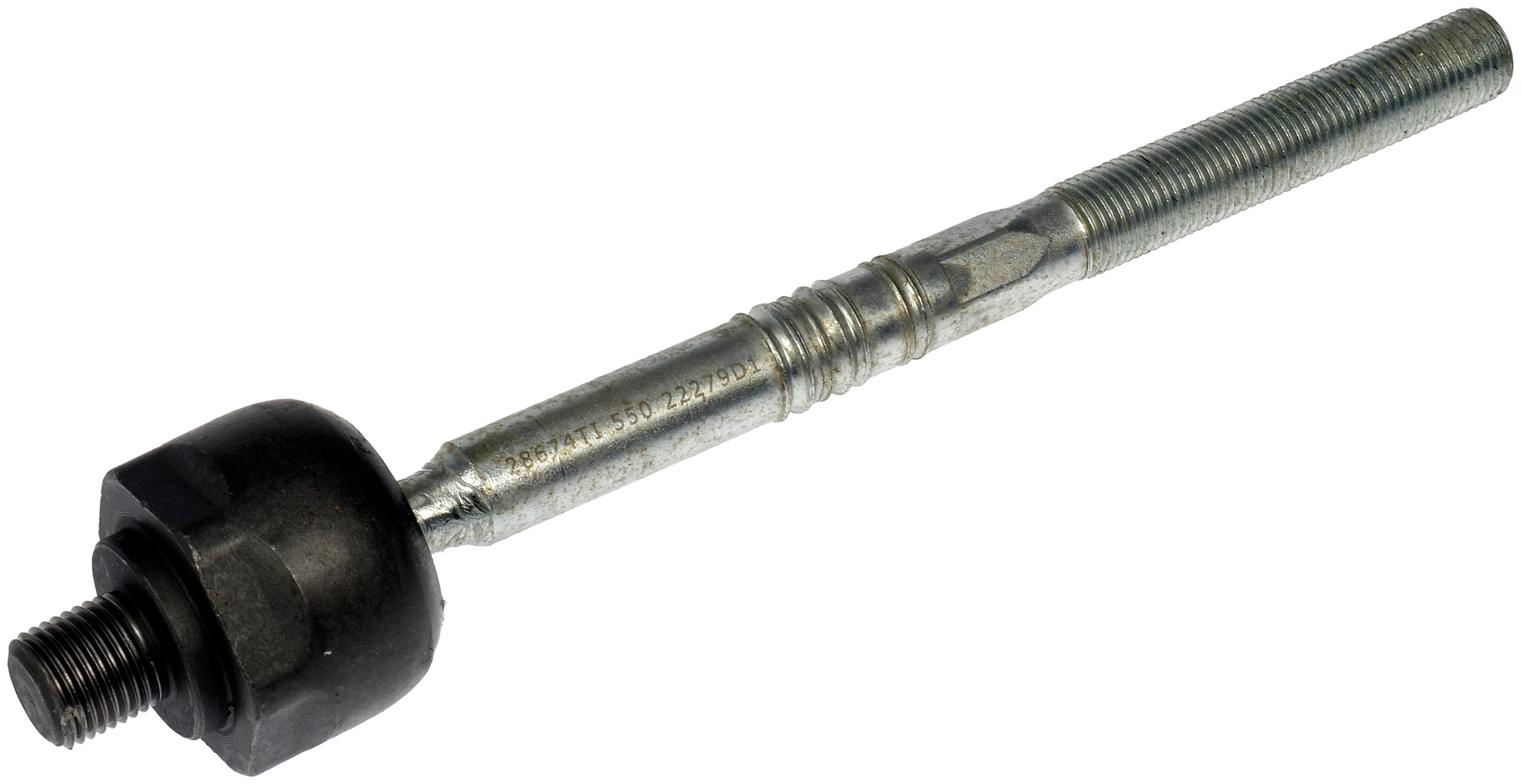

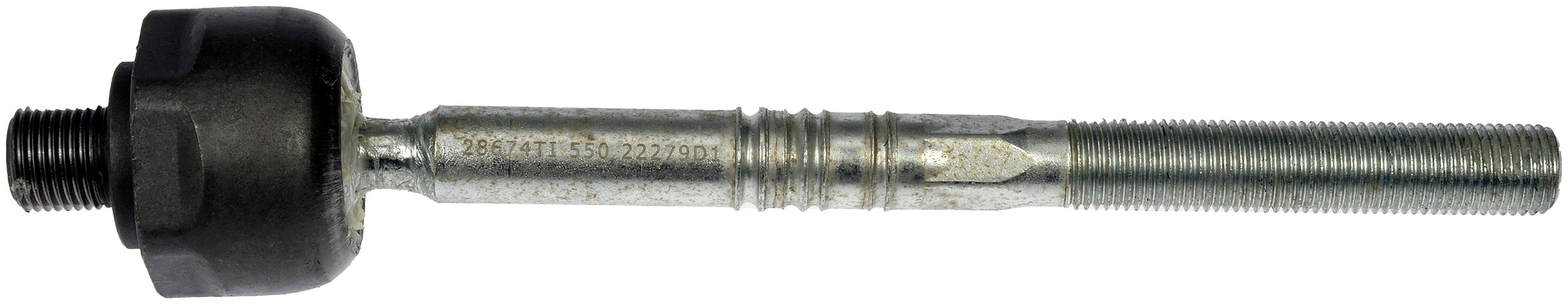

Dorman 543-301 Steering Tie Rod End
Features:
- Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed – factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered – built to decrease wear rate and ensure overall strength
- Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
- Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed – factory-sealed and precision-forged housing resists future corrosion
This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.
Attributes:
| Mounting Hardware Included | Yes |
| 662 | 10.2 MM |
| Dust Boot Included | No |
| 881 | Threaded |
| 9091 | Steel |
| Center Mount Stud Quantity | 1 IN |
| End 1 Thread Diameter | 14 mm MM |
| End 1 Thread Pitch | 1.5 mm MM |
| End 2 Thread Diameter | 16 mm MM |
| Adjustable | Yes |
| End 2 Type | Threaded |
| End 2 Attachment Type | Threaded |
| Bolts Included | No |
| Finish | Powder Coated |
| Housing Material | Steel |
| Width | 43 MM |
| Center Mount Hole Quantity | 0 |
| End 1 Attachment Type | Threaded |
| Height | 43 MM |
| 36 | 14.5 MM |
| Length | 214 MM |
| Material | Steel |
| Package Contents | 1 Ball Joint |
| Pre-greased | Yes |
| Package Contents | 1 Tie Rod End |
| Bearing Material | Polymer |
| End 1 Gender | Male |
| Weight | 1.26 lb LB |
| Head Drive Type | Smooth |
| Color | Black |
| Tie Rod End Thread Diameter | 14 mm MM |
| Thread Pitch | 1.5 mm MM |
| Type | Straight |
| Grease Fitting Included | No |
| End 2 Gender | Male |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 mm MM |
| Outside Diameter | 14.5 mm MM |
| End 1 Thread Direction | Clockwise (Right) |
| Grade Type | Standard |
Vehicle Applications:
| Make | Model | Position | Years | Notes |
| BMW | 520i | Front Inner | 2018 to 2020 | |
| BMW | 530e xDrive | Front Inner | 2018 to 2023 | |
| BMW | 530e | Front Inner | 2018 to 2023 | |
| BMW | 530i xDrive | Front Inner | 2017 to 2023 | |
| BMW | 530i | Front Inner | 2017 to 2023 | |
| BMW | 540d xDrive | Front Inner | 2018 to 2018 | |
| BMW | 540i xDrive | Front Inner | 2017 to 2023 | |
| BMW | 540i | Front Inner | 2017 to 2023 | |
| BMW | 550i | Front Inner | 2022 to 2022 | |
| BMW | 640i xDrive Gran Turismo | Front Inner | 2018 to 2019 | |
| BMW | 740Le xDrive | Front Inner | 2017 to 2017 | |
| BMW | 740e xDrive | Front Inner | 2017 to 2019 | |
| BMW | 740i xDrive | Front Inner | 2017 to 2022 | |
| BMW | 740i | Front Inner | 2016 to 2022 | |
| BMW | 745Le xDrive | Front Inner | 2020 to 2022 | |
| BMW | 745e xDrive | Front Inner | 2020 to 2022 | |
| BMW | 745e | Front Inner | 2020 to 2022 | |
| BMW | 750Li xDrive | Front Inner | 2017 to 2022 | |
| BMW | 750Li | Front Inner | 2016 to 2019 | |
| BMW | 750i xDrive | Front Inner | 2016 to 2022 | |
| BMW | 750i | Front Inner | 2016 to 2019 | |
| BMW | 840i Gran Coupe | Front Inner | 2020 to 2024 | |
| BMW | 840i xDrive Gran Coupe | Front Inner | 2020 to 2024 | |
| BMW | 840i xDrive | Front Inner | 2020 to 2024 | |
| BMW | 840i | Front Inner | 2020 to 2024 | |
| BMW | Alpina B7 | Front Inner | 2017 to 2022 | |
| BMW | Alpina B8 Gran Coupe | Front Inner | 2022 to 2024 | |
| BMW | M550i xDrive | Front Inner | 2018 to 2023 | |
| BMW | M760Li xDrive | Front Inner | 2017 to 2022 | |
| BMW | M760i xDrive | Front Inner | 2017 to 2022 | |
| BMW | M850i xDrive Gran Coupe | Front Inner | 2020 to 2024 | |
| BMW | M850i xDrive | Front Inner | 2019 to 2024 |
