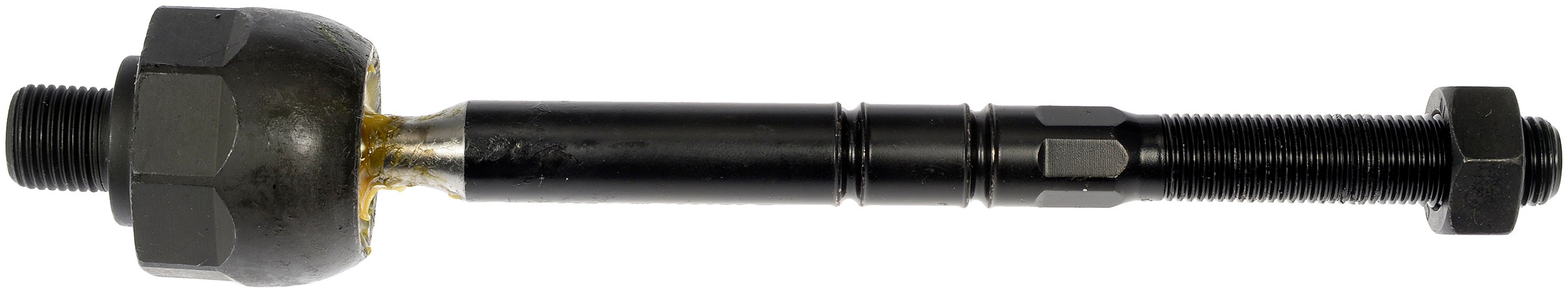

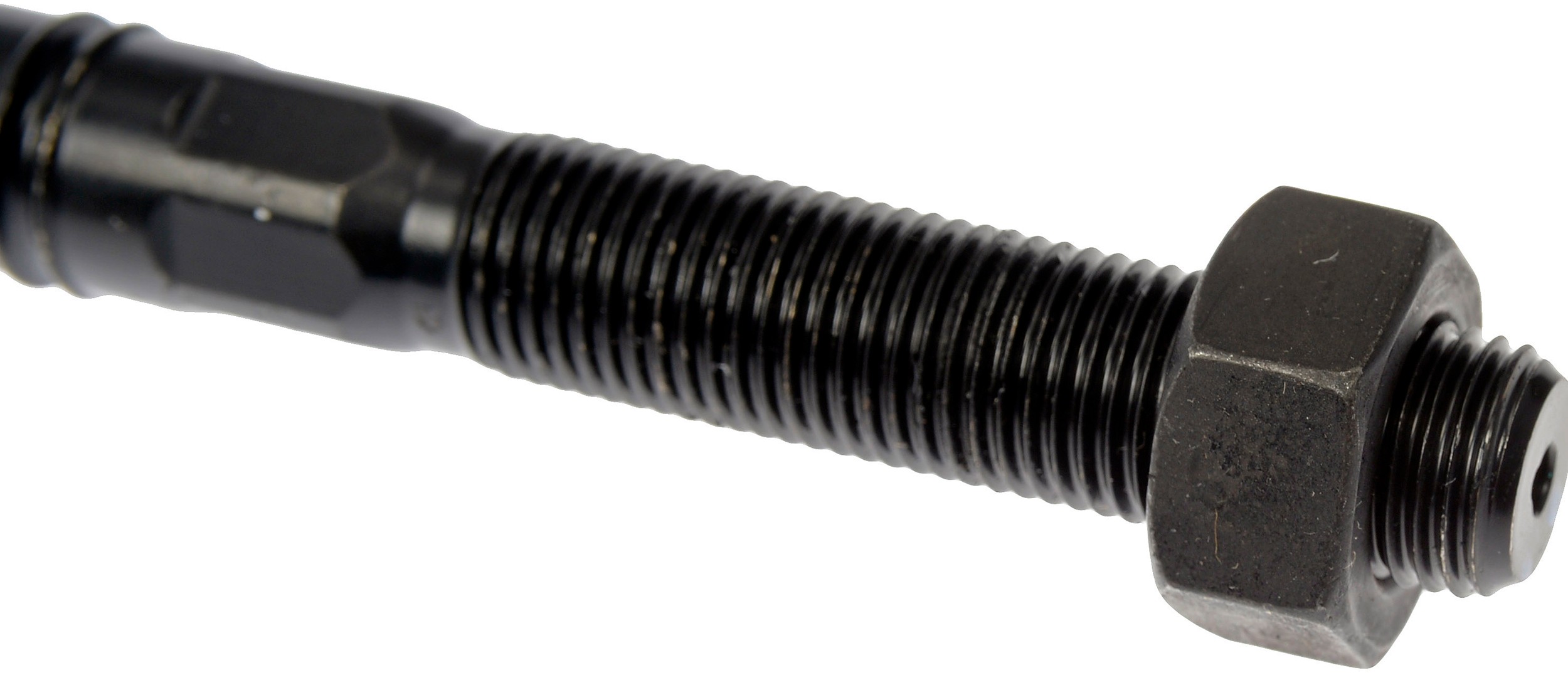

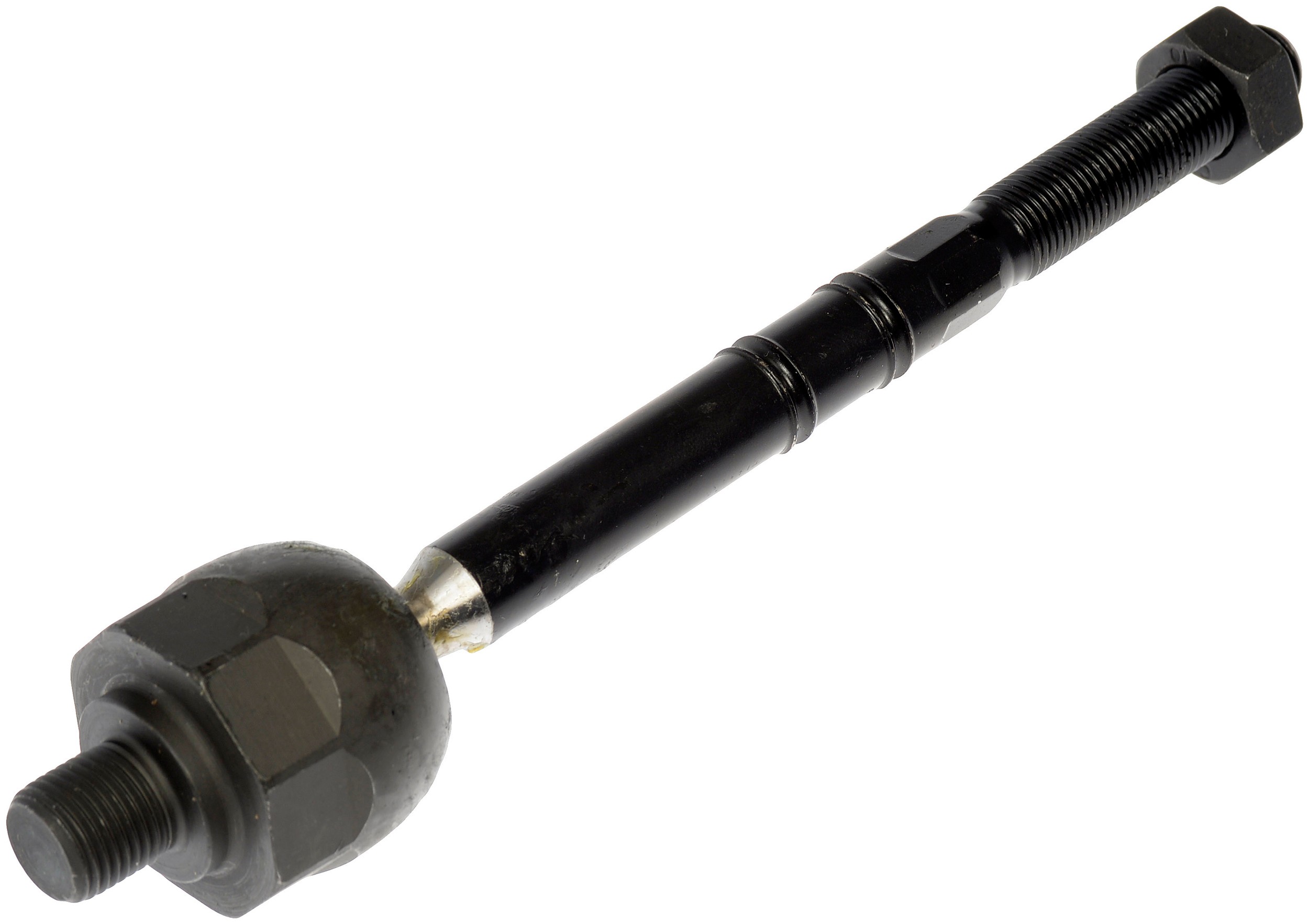

Dorman 543-424 Steering Tie Rod End

Dorman 543-424 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Tie Rod End Thread Diameter	M14 MM
Height	40.3 MM
Center Mount Hole Quantity	0
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod End
Package Contents	1 Nut
Grease Fitting Included	No
Width	40.3 MM
Length	225 MM
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Bearing Material	Polymer
Housing Material	Steel
Finish	Powder Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Weight	1.16 lb LB
Thread Pitch	1.5 mm MM
Outside Diameter	15 mm MM
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	16 mm MM
Color	Black
Head Drive Type	Smooth
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
881	Threaded
Dust Boot Included	No
Grade Type	Standard
End 1 Thread Direction	Counterclockwise (Left)
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	14 mm MM
Center Mount Stud Quantity	1 IN
662	10.25 MM
36	15 MM
End 2 Thread Direction	Counterclockwise (Left)

Vehicle Applications:

Make	Model	Position	Years	Notes
Volvo	C40 Recharge	Front Inner	2022 to 2024
Volvo	C40	Front Inner	2022 to 2023
Volvo	EX40	Front Inner	2025 to 2025
Volvo	XC40 Recharge	Front Inner	2021 to 2024
Volvo	XC40	Front Inner	2019 to 2025
