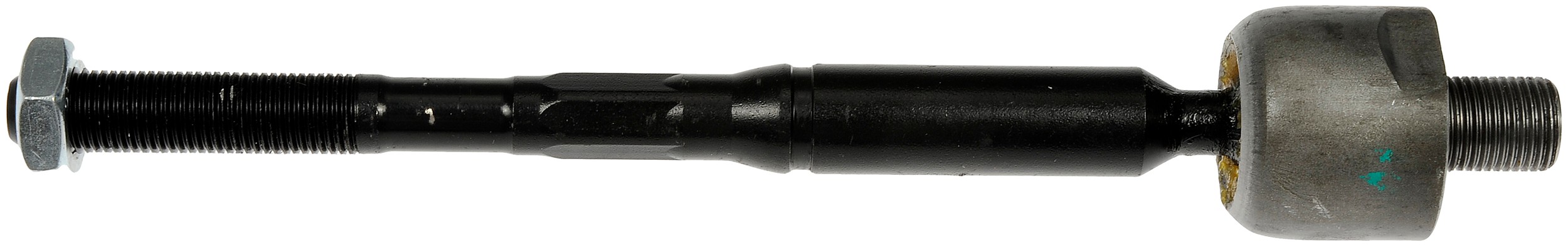

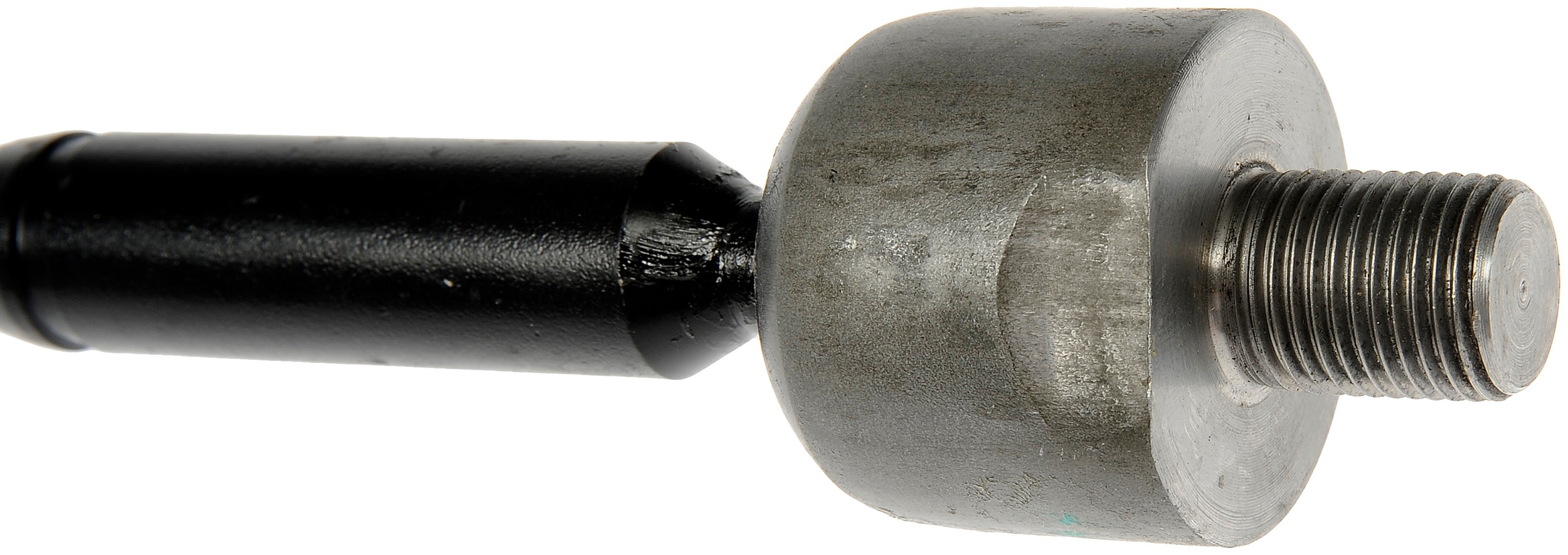

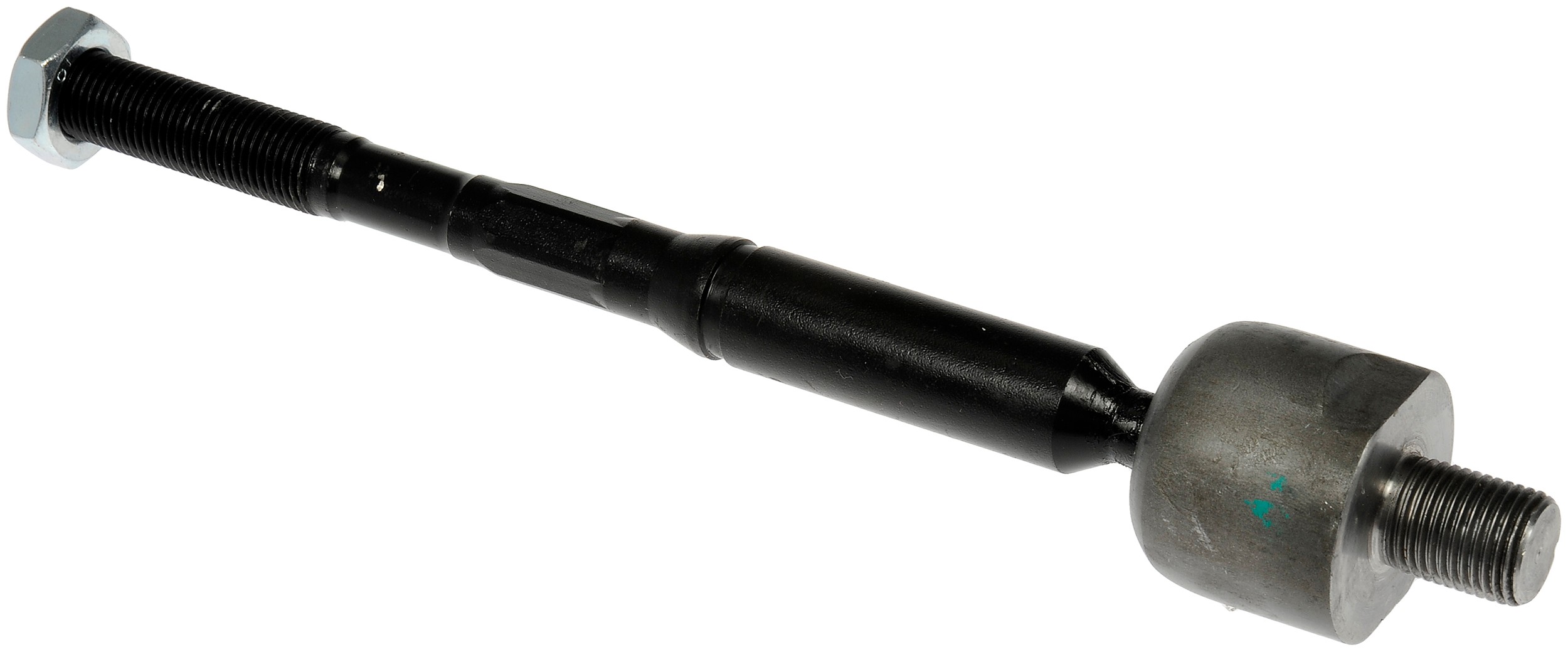

Dorman 543-634 Steering Tie Rod End

Dorman 543-634 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

2827	No
Length	246.6 MM
Width	38 MM
Height	38 MM
36	18 MM
662	10 MM
Center Mount Stud Quantity	1 IN
Stud Length	16.5 MM
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	16 mm MM
End 2 Thread Pitch	1.5 mm MM
Outside Diameter	38 mm MM
Thread Pitch	1.5 mm MM
Tie Rod End Thread Diameter	14 mm MM
Weight	1.3 lb LB
Package Contents	1 Nut
Package Contents	1 Steering Tie Rod End
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Center Mount Hole Quantity	0
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
5235	No
4241	Yes
2334	No
881	Threaded
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Greaseable	No
Grade Type	Standard
Dust Boot Included	No
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Washer Included	No
Bearing Material	Polymer
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Color	Black
Head Drive Type	Smooth
