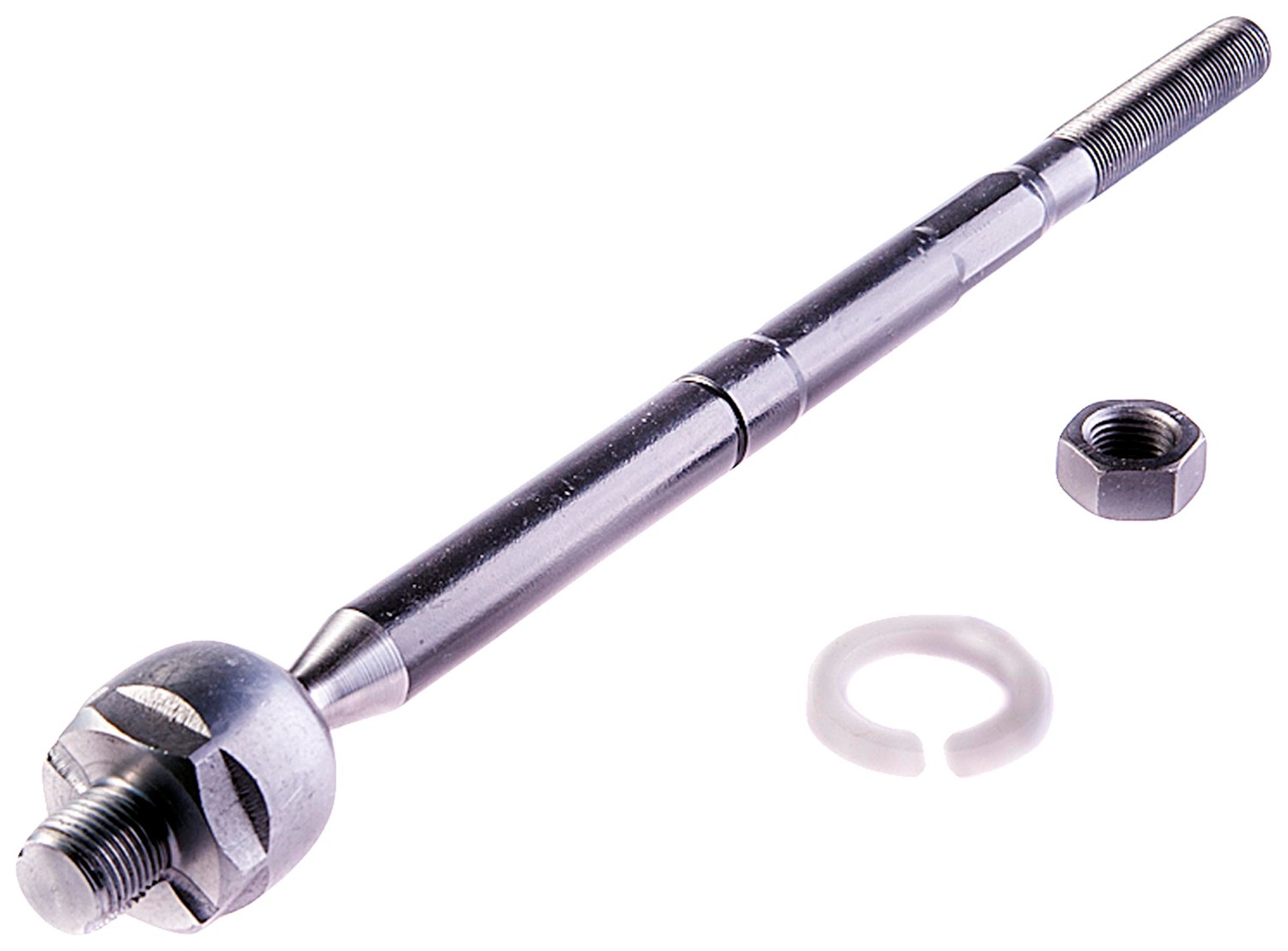

Dorman 543-724 Steering Tie Rod End

Dorman 543-724 Steering Tie Rod End

Features:

Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
Ball Joint Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Adjustable	Yes
Outside Diameter	38 mm MM
Finish	E-Coated
Thread Pitch	1.5 mm MM
Housing Material	Steel
Tie Rod End Thread Diameter	15 mm MM
Bearing Material	Polymer
Stud Length	16 MM
Height	38 MM
Width	38 MM
2827	No
4241	Yes
5235	No
9091	Steel
End 1 Thread Direction	Clockwise (Right)
Length	305 MM
Center Mount Hole Quantity	0
662	10 MM
Center Mount Stud Quantity	1 IN
Weight	1.71 lb LB
End 1 Attachment Type	Threaded
Package Contents	1 washer
Package Contents	1 tie rod
881	Threaded
36	18 MM
End 1 Thread Diameter	15 mm MM
End 1 Thread Pitch	1.5 mm MM
End 2 Thread Direction	Clockwise (Right)
Grease Fitting Included	No
2334	Yes
End 2 Thread Diameter	18 mm MM
Head Drive Type	Smooth
Color	Black
End 2 Thread Pitch	1.5 mm MM
Washer Included	No
Greaseable	No
Grade Type	Standard
Package Contents	1 nut
End 1 Gender	Male
End 2 Gender	Male
Dust Boot Included	No
Pre-greased	Yes
Bolts Included	No

Vehicle Applications:

Make	Model	Position	Years	Notes
Chrysler	300	Front Inner	2005 to 2010
Dodge	Challenger	Front Inner	2008 to 2010
Dodge	Charger	Front Inner	2006 to 2010
Dodge	Magnum	Front Inner	2005 to 2008
